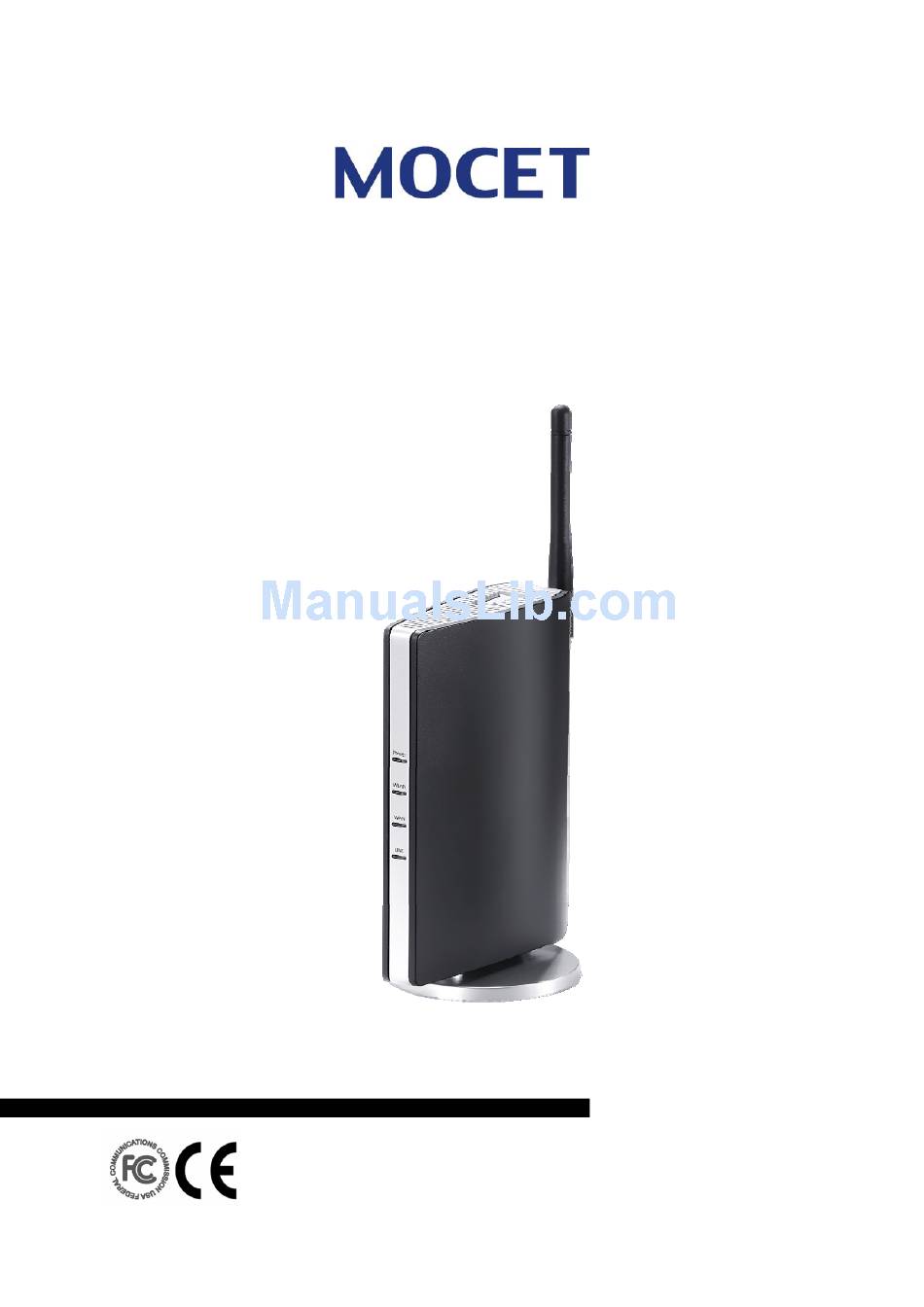

- Page 1 IG7200 Smart Phone Gateway User Guide Copyright © 2012, All Rights Reserved. 1 / 53 ...
-
Page 2: Fcc Statement
Environment The equipment you have purchased must not be disposed of with household waste. You should return these to your distributor if they are to replace or dispose of them in an approved recycling centre. FCC Statement This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions in this manual, may cause interference to radio communications. - Page 3 Electrical Powering: The IG7200 can be powered with correct power adaptor, the power adaptor must be 12V/0.5A. Any damage caused to the IG7200 as a result of using unsupported power adaptors will not be covered by the manufacturer’s warranty.
-
Page 4: Table Of Contents
Table Of Contents Introduction ..........................7 Getting to Know the IG7200 ..................... 9 2.1 Front Panel .......................... 9 2.2 Rear Panel ......................... 10 3. IG7200 Voice General Features ....................11 3.1 Access Control for Web Page .................... 11 3.2 Basic Call .......................... 11 3.3 Call Abandon ........................ - Page 5 Figure 1 The basic configuration of IG7200 system ............ 7 Figure 2 The full application of IG7200 system .............. 8 Figure 3 Front Panel of IG7200 ................... 9 Figure 4 Rear Panel of IG7200 ................... 1 0 Figure 5 Authentication .................... 1 3 Figure 6 Information ...................... 1 4 Figure ...
-
Page 6: Figure 43 System Management‐User Management 4
Figure 24 IP Filter‐Outgoing Setup .................. 2 9 Figure 25 Add IP Filter‐Outgoing .................. 3 0 Figure 26 IP Filter‐Incoming Setup .................. 3 0 Figure 27 Add IP Filter‐Incoming Setup ................ 3 1 Figure 28 System‐Smart phone .................. 3 2 Figure ... -
Page 7: Introduction
VoIP, including low cost long distance service, and one network for both voice and data. The IG7200 is so easy to configure that a fully working system can be set up in minutes. Plug and Play feature allows smart phone, Android phone or iPhone, with MOCET soft client to be automatically detected and registered when they are connected. -
Page 8: Figure 2 The Full Application Of Ig7200 System
(2) To build a common setting file for most users. (3) To configure each phone and install them into the network. (4) To configure each interfaces and install them into IG7200. (5) And to solve the problems that users encounter during operation. -
Page 9: Getting To Know The Ig7200
2. Getting to Know the IG7200 2.1 Front Panel 1. The front panel contains several LEDs that indicate the status of the IG7200. Figure 3 Front Panel of IG7200 LED Name Color Status Description POWER Blue Fast Flash Firmware upgrading Slow Flash Booting Solid on... -
Page 10: Rear Panel
PSTN Line is idle Flashing PSTN receives incoming call, flashing according to the receive cadence 2.2 Rear Panel Figure 4 Rear Panel of IG7200 Name Color Description POWER Switch Black Power ON/OFF POWER Receptor Black Receptor for the supplied power adapter... -
Page 11: Ig7200 Voice General Features
Intercom call with other SMP phone or make outgoing trunk through FXO trunk. 3.3 Call Abandon For every PSTN call, IG7200 provides the facility to monitor the call status. If the remote party hangs up, the ongoing call will be terminated. 11 / 53 ... -
Page 12: Configuration
Connect the IG7200 LAN port to PC. The default LAN IP of the IG7200 is 192.168.123.1. The default WAN IP of the IG7200 depends on upper router’s DHCP server. For web login, the default user name is “admin1234”, the default password is “123456”. -
Page 13: Establish The Connection
4.2 Establish the Connection Enter the IP address of IG7200 from the Web Browser. A Dialogue Box will pop up to request the user to enter username and password. Figure 5 Authentication Please enter the management username/password into the fields then click the OK button (default username/password is admin1234/123456). -
Page 14: Wizard
Settings. WAN Type Selection: There are three modes to assign WAN IP address to IG7200: Static IP mode, DHCP mode and PPPoE mode. Enable Wireless: Enable or disable the wireless LAN interface. Network Name (SSID): Allow user to change the wireless network name. -
Page 15: Information
Figure 7 WAN Connection and Wireless settings 4.4 Information This information reflects the current Status of IG7200 connection. It includes the following topics: System information Routing Table DHCP 4.4.1 System Information In the page， you can get the information reflects the current software version and IG7200 status. -
Page 16: Wan/Lan Packet Statistics
4.4.2 WAN/LAN Packet Statistics In these two pages, you can get the traffic statistics of the WAN/LAN interface. Click “Reset” to clean up all network statistics. Figure 8 Information-WAN Figure 9 Information-LAN 4.4.3 Routing Table In the page，you can get the information about routing table of this device. ... -
Page 17: Arp
Figure 10 Routing table 4.4.4 ARP This page shows an ARP table which maps network IP addresses to hardware Addresses used by data link protocol. Figure 11 ARP Information 17 / 53 ... -
Page 18: Dhcp
4.4.5 DHCP In this page, you can get the information for each LAN IP lease status. Figure 12 DCHP 18 / 53 ... -
Page 19: Network Setting
Mal-reg Advance 4.5.1. WAN There are three modes that you can assign WAN IP address to IG7200: Static IP mode, DHCP mode and PPPoE mode. Network Address Translation (NAT) allows you to share one public WAN IP address for multiple computers on your LAN side. In IG7200, NAT is default enabled and is not shown on the page to prevent it from being disabled. - Page 20 configuration parameters such as the subnet mask and default router, and to provide other configuration information. This page shows the setting of WAN interface which is DHCP mode Figure 14 Network settings-WAN-DHCP The Point-to-Point Protocol over Ethernet (PPPoE) requires a user name and password that your ISP has provided to you to establish your connection.
-
Page 21: Lan
4.5.2. LAN It allows you to set LAN IP and Subnet Mask for LAN interface. You can also enable or disable DHCP Server and configure related settings. The “Static IP Lease List” allows to program 2 entries to have the fixed IP address for the specified devices. -
Page 22: Ntp
4.5.3. NTP This page allows you to configure the Internet time setting. You can configure the “NTP server”. And the IG7200 can synchronize its system time with NTP time server automatically. Or you can manually configure the date and time settings by setting “System Time settings”. -
Page 23: Upnp
IG7200 use sub-function of UPnP – PMP(NAT Port Mapping Protocol) to allows IG7200 at a private network (behind a NAT router) to automatically configure port mapping table in the router and can allow out-parties on public network to contact it. - Page 24 2. IG7200 uPNP operation relies on NAT router uPNP-PMP performance and user network environment greatly. Because of uPNP-PMP protocol design, IG7200 can only issue one request for one port at one time. It means one port mapping rule on NAT router is used for one port, not a range of ports.
-
Page 25: Ddns
Now IG7200 support DynDNS.org. Specify the register hostname and choose the related interface. Fill in the username/password and click “Save”. IG7200 will update the current IP with DDNS provider when click “Save” or system reboot successfully. IG7200 will also update the current IP automatically with DDNS provider in the programmed Update Cycle. -
Page 26: Mal-Reg
(counts) came from a same internet host. If the number of packets is over this condition in the time interval, then IG7200 will determine it is a network attack. Dynamic BlackList: Allow you to change the black list display range. -
Page 27: Advance
Figure 20 Mal-reg 4.5.8. Advance Advanced Setup allows system administrator to configure the following topics: Virtual Servers Routing IP Filter-Outgoing setup IP Filter-Incoming setup 4.5.8.1 Virtual Servers Virtual Server allows system administrator to direct incoming traffic from WAN side identified by Protocol and External port to the internal server with private IP address on the LAN side. -
Page 28: Routing
Figure 21 Virtual Servers Setting 4.5.8.2 Routing The Routing allows you to add special routing rules into routing table. Figure 22 Routing Table Click “Add” to create a new routing rule. Enter the destination network address, subnet mask, gateway and interface, then click "Save" to add the entry to the routing table. -
Page 29: Ip Filter-Outgoing Setup
Figure 23 Add Routing Rule 4.5.8.3 IP Filter-Outgoing setup It allows system administrator to create a filter rule to identify outgoing IP traffic by specifying a new filter name. At least one condition is needed. All of the specified conditions in this filter rule must be satisfied for the rule to take effect. -
Page 30: Ip Filter-Incoming Setup
Figure 25 Add IP Filter-Outgoing 4.5.8.4 IP Filter-Incoming setup It allows the administrator to create a filter rule to identify incoming IP traffic by specifying a new filter name. At least one condition is needed. All of the specified conditions in this filter rule must be satisfied for the rule to take effect. ... - Page 31 Figure 27 Add IP Filter-Incoming Setup 31 / 53 ...
-
Page 32: System Settings
4.6 System Settings Use the System screen to configure the IG7200’s voice related parameters. It allows system administrator to configure SMP client. 4.6.1 Smart Phone The IG7200 combines Proxy and Register servers in its application. All phones registered to the internal Register server are set here; it provides 6 phones to register. -
Page 33: Line
IG7200 to make call to the user. -
Page 34: System Parameter
Internal Settings Hostname: Display the DDNS hostname for IG7200. Route IP: If IG7200 is located behind a router, the router IP address will be displayed here automatically. If this field is blank, it means IG7200 connects to ADSL/cable modem directly. - Page 35 needs not change it in common case) DTMF CID: The settings allow administrator to change the DTMF start and end digit, if it needs special digits for PBX connection. Start digit: Default digit is “D”. End digit: Default digit is “C”. ...
-
Page 36: Ip Camera
4.6.4 IP Camera IG7200 can connect with IP camera and support remote video monitor function. User can access to IG7200 IP-Cam and do video monitor. System can support third party IP-Cam and MOCET IP-Cam. For third-party IP-Cam, user must correct Config the IP-Cam and fill its network and related device parameters in IP-Cam table. -
Page 37: Wireless
4.7 Wireless Use the Wireless screen to configure the IG7200 for wireless access. It is separated into 5 parts: Basic Security Advanced Station Info Power Saving The configurable items for each part would be described in the following. 4.7.1 Basic This page allows you to configure basic features of the wireless LAN interface. -
Page 38: Advanced
Figure 33 Wireless-Security 4.7.3 Advanced This page allows you to configure advanced features of the wireless LAN interface. You can select a particular channel on which to operate, force the transmission rate to a particular speed. Protocol: Default setting is B+G+N. Channel: Select the appropriate channel from the list provided to correspond with your network settings. -
Page 39: Station Info
Figure 34 Wireless-Advance 4.7.4 Station Info This page shows wireless stations’ status. Figure 35 Station information 4.7.5 Power Saving User can setup a specific time to turn on/off for power saving. 39 / 53 ... - Page 40 Figure 36 Power saving setting 40 / 53 ...
-
Page 41: Advance Settings
4.8 Advance Settings The system administrator can setup the audio and tone related parameter as following topics: Audio Gain & Frequency 4.8.1 Audio It is used to setup audio-related parameters. Codec: The system administrator can choose the codec G.711u, G.711a, G.723 and G.729 for audio signal process, and setup the codec priority. -
Page 42: Gain & Frequency
Figure 37 Audio Setting 4.8.2 Gain & Frequency It is used to setup tone-related parameters. Figure 38 Gain & Frequency Settings 42 / 53 ... -
Page 43: System Management
In this page you can define the passwords for administrator. The Administrator has unrestricted access to change and view configuration of your IG7200. The Support is used to allow an ISP technician to access your IG7200 for maintenance and to run diagnostics. The User can access the IG7200, view configuration settings and statistics, as well as, update the router’s software. -
Page 44: Web Language
Figure 40 System Management-User Management-modify password 4.9.2 Web Language IG7200 support 3 kinds Languages: English, Simple Chinese, and Traditional Chinese. Users can choose a language and the web will be changed. Figure 41 System Management-Web Language ... -
Page 45: Update
4.9.4 Backup/Restore Click “Save”, you may save your IG7200’s configurations to a file on your PC. The backup file is a compress file (.tar). It includes System Configuration file. Click “Browse” to locate the setting file saved on the Local PC. The file can be a System Configuration file (config.xml). - Page 46 Figure 43 System Management-User Management 46 / 53 ...
-
Page 47: Update Certificate
4.9.6 APNS-APS Server Configuration MOCET provide APNS-APS Server and IG7200 will get APNs Certification file from APNS-APS Server automatically according to requirement. User need not manually update certification file. System default enabled this function and include MOCET APNS-APS Server domain. -
Page 48: System Log
4.9.7 System Log This page allows engineer for advanced debug for IG7200. Figure 44 System Log 48 / 53 ... -
Page 49: System Packet Log
Figure 45 System Packet Log 4.9.9 Reboot Click the “System Restart” button to reboot IG7200. Figure 46 Reboot 4.9.10 Diagnostic User can enable the event log record (check “Enable” and press “Apply” button), and then download the log file to PC. -
Page 50: Reset
Figure 47 Event Log Configuration 4.9.11 Reset Select “Factory Default” can be returned to default setting. Figure 48 System Reset 50 / 53 ... -
Page 51: Appendix 1: Product Summary
Appendix 1: Product Summary TCP/IP Protocols IP Protocol (791) ARP (RFC 826) / RARP (RFC 903) ICMP (RFC792) TCP (RFC 793) UDP (RFC 768) SNTP HTTP Static Routing IP Address Assignment Static Dynamic Subnet Mask PPPoE Client (RFC 2516) Primary and Secondary DNS DHCP Server (RFC 2131-2132) DHCP Client (RFC 2132) Routing... - Page 52 Real Time Protocol (RTP ; RFC 1889) MD5 (RFC3261 HTTP) digest authentication G.168 Echo Cancellation Voice Codec: G.711u, G.711a, G.729 and G.723 Digital Audio Codec: G.711 a-law/μ-law 64Kbps SIP Call Offer /Answer: Codec auto capacity exchange Echo Cancellation: G.168 for each voice line Silence Detection/Suppression Comfort Noise Generation Adaptive jitter buffer...
- Page 53 One 10/100BaseT Ethernet port (RJ-45) for LAN interface One PSTN Line interface (RJ-11) Power Requirement Input : Voltage Range 90~230 VAC Output : 12V DC / 0.5A Operating Environment Temperature : 0~40℃ Humidity : 10 to 90%, non-condensing Physical Specification Dimension : 100(W) x 141(L) x 73(D) (mm) ...
