Reflex IQ-LOGGER Quick Reference Manual page 7

IQ-LOGGER™ L O G G I N G
Measure next structure

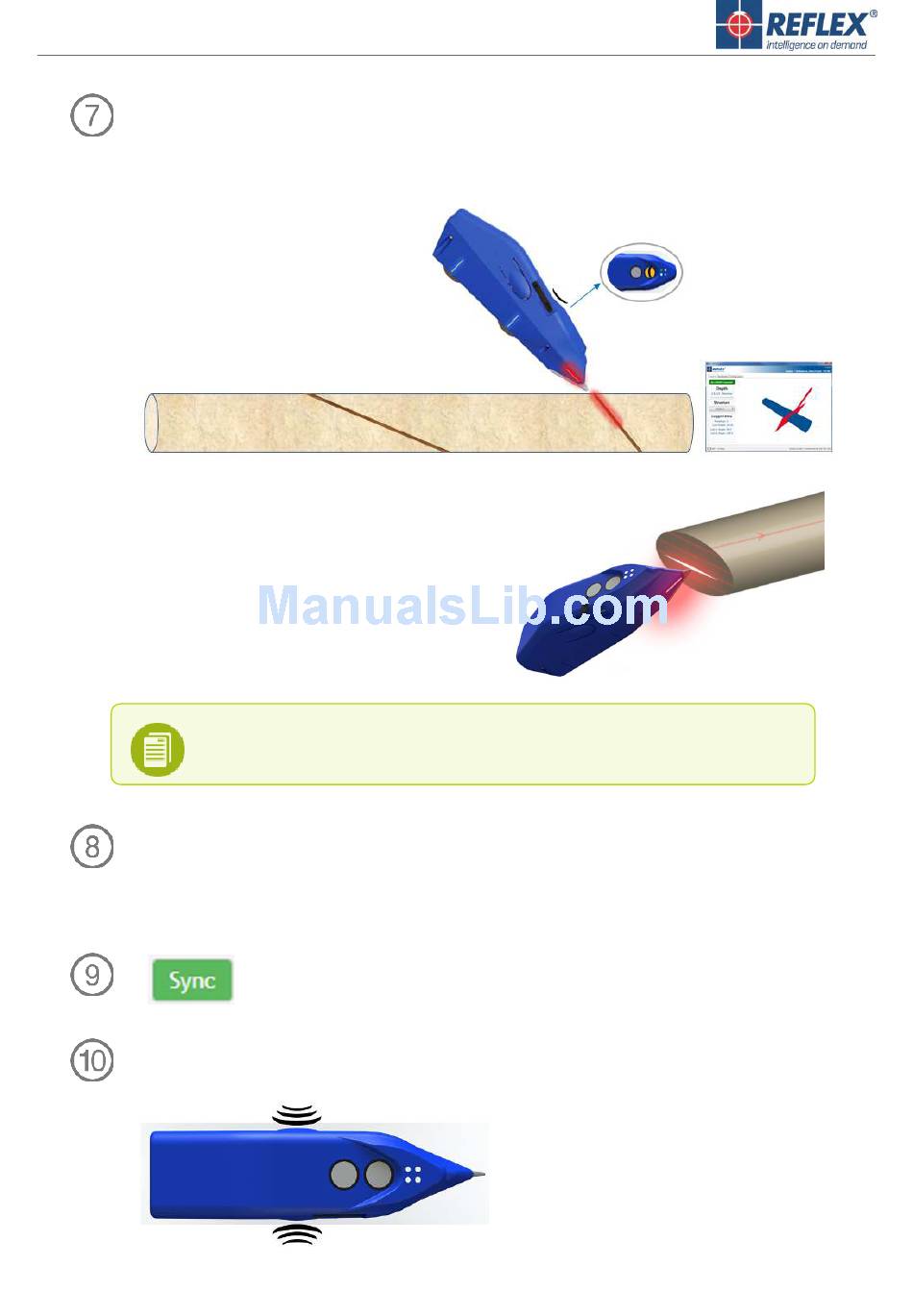

Lift the REFLEX IQ-LOGGER™ device to align the laser with the structure, click the front button on the
top of the device to record the measurement.
If the structure is a linear feature, first measure the
angle of the plane it lies on, then measure the linear
structure by aligning the laser with the line on the
plane surface.
Take measurements for all structures of interest
Repeat steps 5 to 7 to take measurements for all structures of interest.
Turn off device
7
Press the front button on the top of the device twice (quickly) to set the QA Flag for
that reading.
to upload to Hub
Press and hold both side buttons until the
green and blue lights extinguish. The
REFLEX IQ-LOGGER™ is now turned
off.
