Q U I C K R E F E R E N C E G U I D E
The information contained in this document is believed to be accurate at the time of printing; however, Imdex Limited, its subsidiaries, agents, distributors or resellers assume no responsibility
or liability for the accuracy or completeness of, or consequences arising from, such information and the use of such information. Changes, typos, and technical inaccuracies will be corrected in
subsequent publications. This publication is subject to change without notice.
Determination of the suitability of any information or product for use contemplated by any user, and the manner of that use is the sole responsibility of the user.
Copyright © 2017 Imdex Limited.
REFLEX IQ-LOGGER™ Software v1.2
Inside
1. Installation
2. Set Up
3. Initialisation
4. Logging
5. Verification
Compatible
IQ-LOGGER™

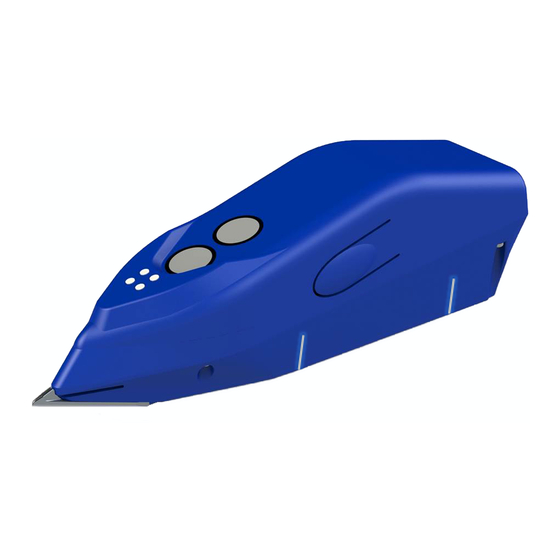

This easy-to-use core logging solution provides
fast, accurate structural measurements
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Reflex IQ-LOGGER
- Page 1 IQ-LOGGER™ This easy-to-use core logging solution provides fast, accurate structural measurements Q U I C K R E F E R E N C E G U I D E REFLEX IQ-LOGGER™ Software v1.2 Inside 1. Installation 2. Set Up 3.
- Page 2 Bluetooth on the computer. Launch REFLEX IQ-LOGGER™ software Double-click desktop icon to launch the REFLEX IQ-LOGGER app. The Projects screen displays. Press the Sync button to transfer data between HUB and the REFLEX™ REFLEX IQ-LOGGER™ software. Add Project (in the app)
- Page 3 IQ-LOGGER™ S E T U P Add Drillhole (in the app) Configure Drillhole (in the app) Custom Structural Feature lists can be created in IMDEXHUB-IQ™ and synced to the app using the Sync button.
- Page 4 IQ-LOGGER™ I N I T I A L I S E Turn on REFLEX Stabilise gyroscopes IQ-LOGGER™ Press and hold both side buttons until While the red light is flashing, wave the device in a the green and blue lights turn on. The figure-eight pattern 5 times, then sit it on a flat red light should start to flash.
- Page 5 To record a lineation, you must first record the planar feature it lies on. Move device downhole Roll the REFLEX IQ-LOGGER™ device down the core along the orientation line (check that the depth increases in the software interface). Align with first structure Stop rolling the device when the front wheel alignment marker is inline with the first structure to measure.
- Page 6 IQ-LOGGER™ L O G G I N G Measure first structure Lift the REFLEX IQ-LOGGER™ device to align the laser with the structure, click the front button on top of the device to record the measurement. Move to second structure Slide the device back on the core with the front wheel alignment marker inline with the first structure, then slide downhole to the next structure;...
- Page 7 IQ-LOGGER™ L O G G I N G Measure next structure Lift the REFLEX IQ-LOGGER™ device to align the laser with the structure, click the front button on the top of the device to record the measurement. If the structure is a linear feature, first measure the...
- Page 8 IQ-LOGGER™ V E R I F I C A T I O N Verify Data The red star indicates the drillhole position. The legend describes the feature for each shape and colour. Set the depth filter to display only readings of interest.
Need help?
Do you have a question about the IQ-LOGGER and is the answer not in the manual?
Questions and answers
our device can not be switch on after squeezing the two side buttons for a long time.
If the Reflex IQ-LOGGER does not turn on after pressing the side buttons for a long time, the battery charge may be too low. A flashing green light indicates the battery is below 20%, and if the charge is below 5%, the device will not turn on and will show a red LED. In this case, the device needs to be charged for at least an hour.
