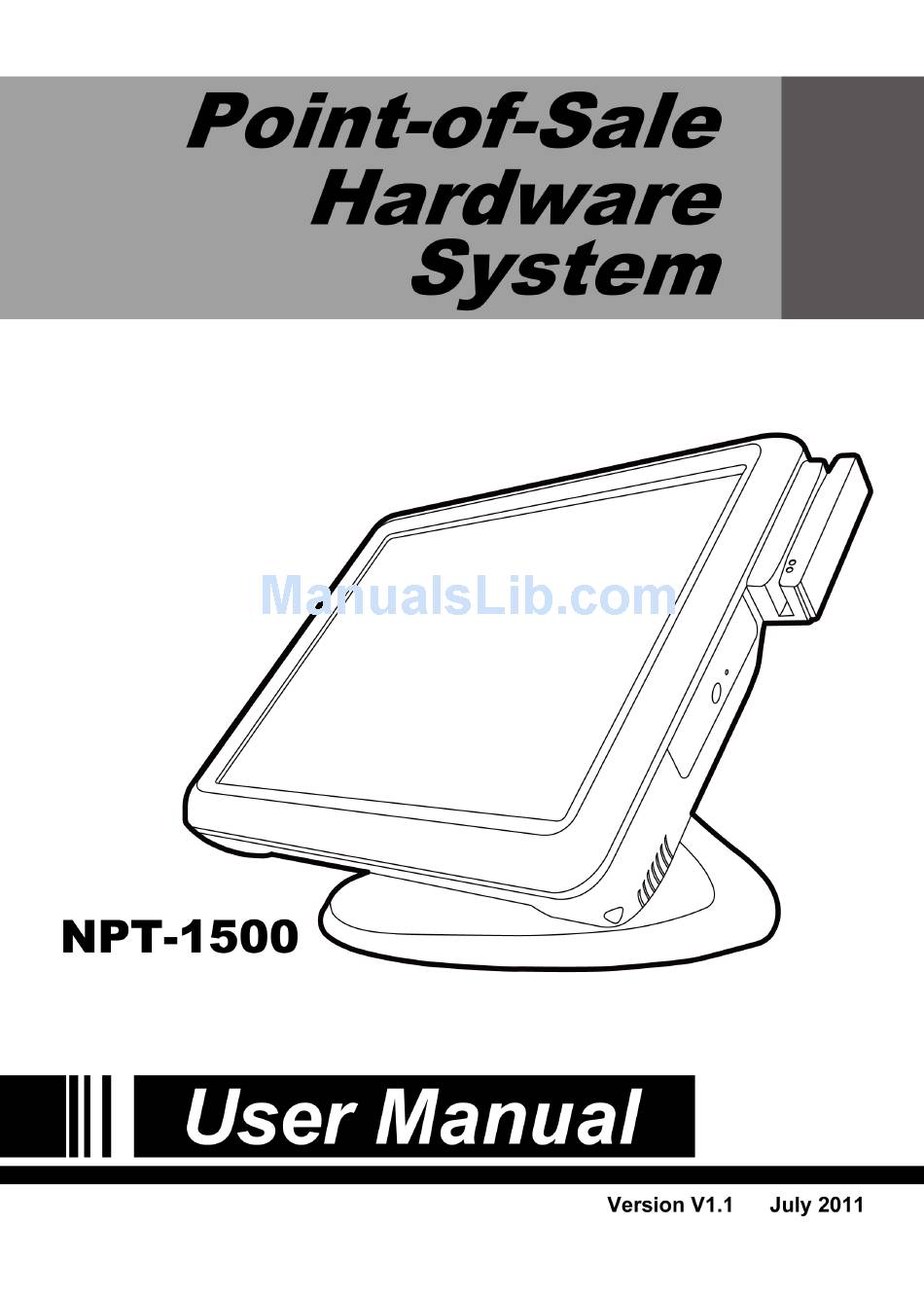

Nexcom NPT-1500 User Manual

Point-of-sale hardware system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Nexcom NPT-1500

Summary of Contents for Nexcom NPT-1500

  • Page 2 Copyright 2011 All Rights Reserved Manual Version 1.1 Part Number: NPT-1500 The information contained in this document is subject to changewithout notice. We make no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.

  • Page 3: Important Safety Instructions

    Safety IMPORTANT SAFETY INSTRUCTIONS 1. To disconnect the machine from the electrical power supply, turn off the power switch and remove the power cord plug from the wall socket. The wall socket must be easily accessible and in close proximity to the machine. 2.

  • Page 4: Legislation And Weee Symbol

    CE MARK This device complies with the requirements of the EEC directive 2004/108/EC with regard to “Electromagnetic compatibility” and 2006/95/EC “Low Voltage Directive” This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference.

  • Page 5: Revision History

    Revision History Changes to the original user manual are listed below: Version  Date  Description   1.0  Mar. 2011  Initial release   Jul. 2011 Change power adapter and COM5, COM6        4   ...

  • Page 6: Table Of Contents

    Table of Contents 1. Package Checklist……………..............1-1 Standard items…………………………………………………………………… 1-2 Optional items……………………………………………………………………. 2. System View…………………………………………………………………... 3. System Assembly & Disassembly………………………………………… 3-1 Replace the HDD…………………………………………………………………... 3-2 Replace the Motherboard…………………………………………………………. 3-3 Replace the Inverter Board & Touch Board…………………………………... 4. Specification………………………………………………………………….. 5. Jumper Settings……………………………………………………………… 5-1 NP-D5250 Motherboard Layout…………………………………………………..

  • Page 7: Package Checklist

    Package Checklist   Standard items b. power adapter  a. System  Optional items a. Second Display   b. MSR  c. VFD  d. driver bank / e. power cord  e-User Manual  1   ...

  • Page 8: System View

    System View   Front View Rear View No.  Description  1  Touch Screen  2  MSR/2-in-1 MSR (Option)  3  Stand  4  Cables outlet  5  Avoid cover the vents 6  Model No. Label 7  OS License Label Side View Top View No.  Description  8 ...
  • Page 9 Rear I/O View No.  Description  1  DC 12V IN  2  Cash Drawer Port  3  USB (x4)  4  LAN (10/100/1000)  5  COM(x4) 6  2nd VGA 7  DC 12V OUT 8  2.5 HDD 9  Parallel port 10  Line OUT 3   ...

  • Page 10: System Assembly & Disassembly

    System Assembly & Disassembly   3-1 Replace the HDD a. Unfasten the screws (x2) to remove the HDD cover. b. Disconnect the HDD Cable and take out the HDD with HDD metal bracket. c. Unfasten c. Unfasten the screws (x4) at both sides of HDD metal bracket. d.

  • Page 11: Replace The Motherboard

    3-2 Replace the Motherboard To replace the motherboard, please follow the below steps: (1) Disconnect the HDD cable from the motherboard (Chapter 3-1, step a,b) (2) Open the system box to access the motherboard (See below)   a. Unfasten the screws(x8) on the back of system box. b.

  • Page 12: Replace The Inverter Board & Touch Board

    3-3 Replace the Inverter Board & Touch Board:  3-3-1 Replace the Inverter Board a. The location of Inverter board on the LCD sheet metal bracket. b. Unfasten the screws (x2). c. Disconnect the cables (x3). 3-3-2 Replace the Touch Board: a.

  • Page 13: Specification

    Specification   Model Name NPT-1500 Motherboard NP-D5250 / NP-D4250 Default: Intel® Atom D525 Dual-Core Processor, 1.8GHz, 1M L2 Cache; Processor Optional: Intel® Atom D425 Single-Core Processor, 1.8GHz, 512KB L2 Cache Chipset Intel® ICH8M, NH82801HBM I/O Control Hub System Memory Default: 1 x SO-DIMM DDR3 1GB; Optional: 1 x SO-DIMM DDR3 2GB Integrated Intel®...
  • Page 14 Peripheral (Optional) ISO 3 Tracks MSR (USB or PS/2) Customer Display 2 x 20 VFD customer display Display 15" LCD monitor Certificate EMC & Safety FCC Class A / CE / LVD Environment Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F) Operating Humidity...

  • Page 15: Jumper Settings

    Jumper Settings   5-1 NP-D5250 Motherboard Layout 9   ...

  • Page 16: Connectors Description

    5-2 Connectors Description Connector Purpose Connector Purpose COM5 LVDS CON 24bit COM6 LVDS CON 18bit MINI PCI-E AUDIO (Line out and MIC IN) Parallel Interface COM4 CN9A COM3 Connector CN9B VGA Connector CN10 DC-Power Input Connector COM1A COM1 Connector COM1B COM2 Connector CON1 MSR CONN...

  • Page 17: Jumper Settings

    5-3 Jumper Settings Panel Power selection:JP1 Function JP1 (1-2) (2-3) ◎3V ◎Default setting 1-2 short. CMOS CLEAR SIGNAL: JP2 Function JP1 (1-2) (2-3) ◎NORMAL CLEAR CMOS ◎Default setting 1-2 short. Note: 11   ...

  • Page 18: Install A Cash Drawer

    5-4 Install a Cash Drawer You can install a cash drawer through the cash drawer port. Please verify the pin assignment before installation. Cash Drawer Pin Assignment Signal CASEOPEN2# CASH1_P CASEOPEN# CASH2_P Cash Drawer Controller Register The Cash Drawer Controller use one I/O addresses to control the Cash Drawer. 12 ...

  • Page 19: Bios Settings

    BIOS Settings   This chapter explains how to use the BIOS Setup program for the NPT-1500. The current BIOS setup pictures in the chapter are for reference only, which may change by the BIOS modification in the future. User can download any major updated items or reversion from NEXCOM web site http://www.nexcom.com.tw.

  • Page 20: Main Features

    not exactly match the items of your BIOS version. 6-3 Main Features Use this menu for basic system configuration. 14   ...

  • Page 21: Advanced Features

    6-4 Advanced Features Use this menu to set the Advanced Features available on the system. IDE Configuration This section is used to configure the IDE drives. USB Configuration This section is used to configure USB devices. ACPI Configuration This section is used to configure the Advanced ACPI configuration. MPS Configuration This section is used to configure the MPS configuration.
  • Page 22 IDE Configuration This section is used to configure the IDE drives. Configure SATA As This option configures the Serial ATA drives as Parallel ATA physical storage IDE: device. Default:[Enhanced] AHCI: This option configures the Serial ATA drives to use AHCI (Advanced Host Controller Interface).
  • Page 23 USB Configuration This section is used to configure USB devices. Legacy USB Support Due to the limited space of the BIOS ROM, the support for legacy USB keyboard (in DOS mode) is by default set to Enabled. With more BIOS ROM space available, it will be able to support more advanced features as well as provide compatibility to a wide variety of peripheral devices.
  • Page 24 ACPI Configuration This section is used to configure the Advanced ACPI configuration. Suspend mode Sets the ACPI Standby State when system goes into ACPI Standby Mode.S1/PSOS: Power on Suspend. In the S1 state, a bit more power is consumed and the fans remain active. S3/STR: Suspend to RAM.
  • Page 25 MPS Configuration This section is used to configure the MPS configuration MPS Revision Selects the MPS revision used by the system. Default:[1.4] Configuration Win627 Super IO Chipset This section is used to configure the I/O functions supported by the onboard Super I/O chip. Parallel Port Address Selects the parallel port’s base address.
  • Page 26 Parallel Port Mode This field is used to select normal, ECP or EPP mode of the parallel port. Default: [Normal] Parallel Port IRQ This field is used to select an IRQ for the parallel port. Default: [IRQ7] Serial Port1 Address to Serial Port6 Address Auto The system will automatically select an I/O address for the onboard serial port.
  • Page 27 Hardware Health Configuration This section is used to configure the hardware monitoring events such as the temperature, fan speed and voltages.   H/W Health Function This section is used to configure the hardware monitoring events such as the temperature, fan speed and voltages. Default:[Enabled] CPU Temperature and System Temperature Detects and displays the current temperature of the CPU and the internal temperature of the...

  • Page 28: Boot Settings

    6-5 Boot Settings This section is used to configure settings during system boot. Boot Settings Configuration This section is used to configure settings during system boot. Boot Device Priority This section is used to select the boot priority sequence of the devices. Hard Disk Drives This section is used to select the boot priority sequence of the hard disk drives.
  • Page 29 Boot Settings Configuration This section is used to configure settings during system boot. Quick Boot When Enabled, the BIOS will shorten or skip some check items during POST. This will decrease the time needed to boot the system. Default:[Enabled] Quiet Boot Enabled Displays OEM logo instead of the POST messages.
  • Page 30 Hit ‘DEL’ Message Display When enabled, the system displays the “Press DEL to run Setup” message during POST. Default:[Enabled] Boot Device Priority This section is used to select the boot priority sequence of the devices. 1st Boot Device The BIOS will boot the operating system according to the sequence of the drive selected. 2nd Boot Device The BIOS will boot the operating system according to the sequence of the drive selected.
  • Page 31 Hard Disk Drives This section is used to select the boot priority sequence of the hard disk drives. Removable Drives This section is used to configure the Removable Drives configuration 25   ...

  • Page 32: Chipset

    6-6 Chipset This section is used to configure the system based on the specific features of the chipset. North Bridge Chipset Configuration Initiate Graphic Adapter Selects the graphics controller to use as the primary boot device. Internal Graphics Mode Select 26 ...
  • Page 33 Selects the amount of system memory used by the internal graphics device. DVMT Mode Select Selects the DVMT mode. Default:[DVMT Mode] DVMT/Fixed Memory This field is used to select the graphics memory size used by DVMT/Fixed mode. Default:[256MB] Boot Display Device This field is used to select the type of display to use when the system boots.
  • Page 34 USB 2.0 Controller This field is used to enable or disable the Enhanced Host Controller Inter-face controller. HDA Controller Enables or disables the onboard audio. Default:[Enabled] SMBUS Controller Enables or disables the SMBUS controller. Default:[Enabled] Restore On AC Power Loss Off: When power returns after an AC power failure, the system’s power is off.

  • Page 35: Pcipnp

    6-7 PCIPnP This section is used to configure settings for PCI/PnP device. Plug & Play O/S Yes: Configures Plug and Play (PnP) devices that are not required to boot in a Plug and Play supported operating system. The BIOS configures all the devices in the system Default:[No] IRQ3 to IRQ15 Available The specified IRQ is available for PCI/PnP devices.

  • Page 36: Security Settings

    6-8 Security Settings Change Supervisor Password This field is used to set or change the supervisor password. To set a new password: 1. Select the Change Supervisor Password field then press <Enter>. 2. Type your password in the dialog box then press <Enter>. You are limited to eight letters/numbers.

  • Page 37: Exit Options

    6-9 Exit Options Save Changes and Exit: To save the changes and exit the Setup utility, select this field then press <Enter>. A dialog box will appear. Confirm by selecting OK. You can also press <F10> to save and exit Setup. Discard Changes and Exit: To exit the Setup utility without saving the changes, select this field then press <Enter>.
  • Page 38 To load failsafe default values from the BIOS ROM, select this field then press <Enter>. A dialog box will appear. Confirm by selecting OK. You can also press <F9> to load failsafe default values. 32   ...

  • Page 39: Appendix

    Appendix     Drivers Installation: The shipping package includes a Driver CD. You can find every individual driver and utility that enables you to install the drivers in the Driver CD. Please insert the Driver CD into the drive and double click on the “index.htm” to pick up the models.
