C. Power supply

1. Power supplied through DLC adapter

12V battery power is supplied through most of the DLC adapters except
GM/Daewoo 10Pin and Mitsubishi/Hyundai 12Pin adapters

2. Cigarette lighter

a. Use the cigarette lighter cable when power is not supplied through the
DLC adapter.
b. Insert the cigarette lighter connector into the socket, and check if the red
LEDs in both ends of the cable are ON.

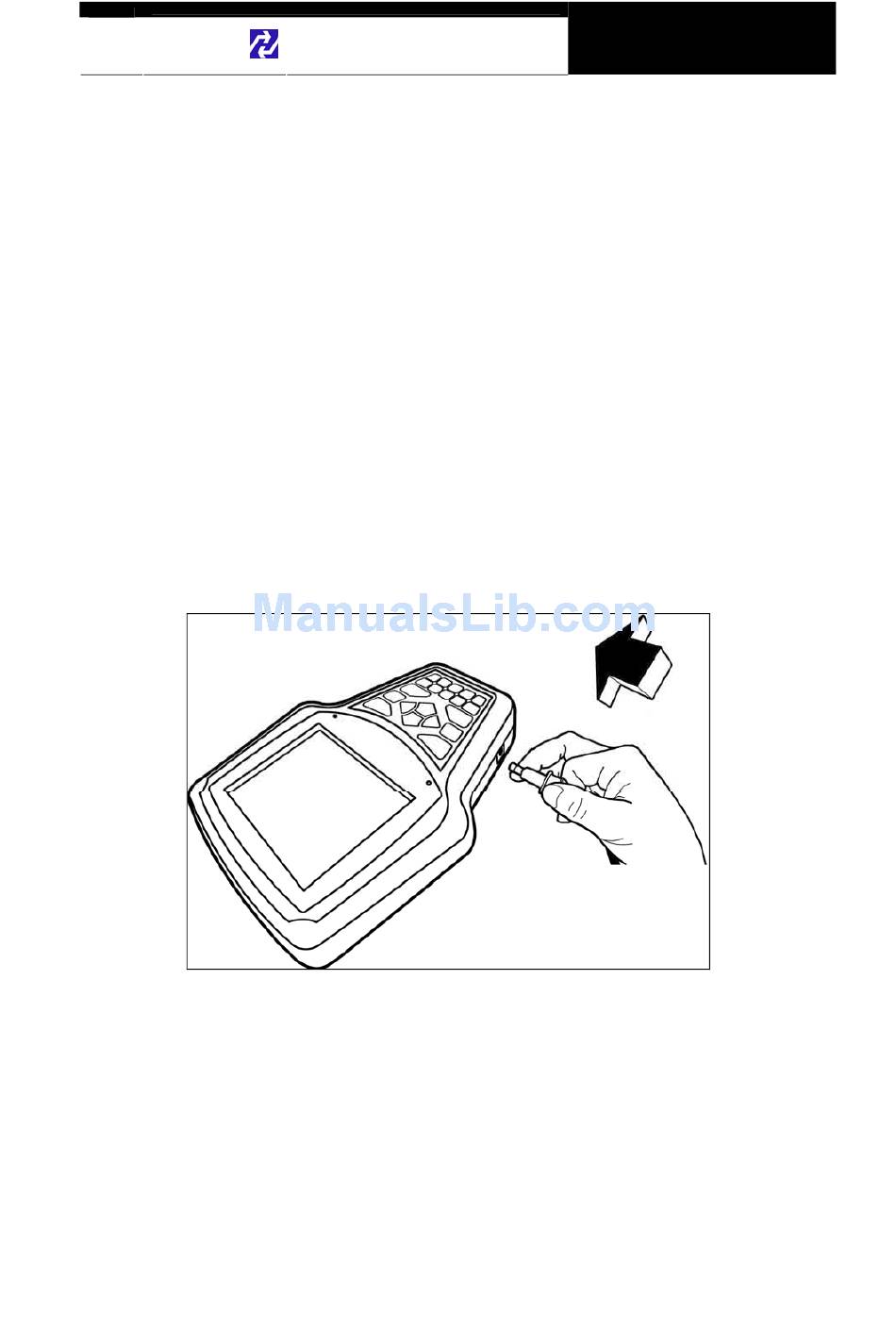

c. Insert the power jack into the head unit power socket.
Chapter 3 - 3
Chapter 3
