Poulan Pro 180278 Owner's Manual

Poulan pro lawn tractor owner's manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IMPORTANT MANUAL
Do Not Throw Away
180278 Rev. 3 6.20.02 RD
Printed in U.S.A.

Advertisement

Table of Contents
loading

Related Manuals for Poulan Pro 180278

Summary of Contents for Poulan Pro 180278

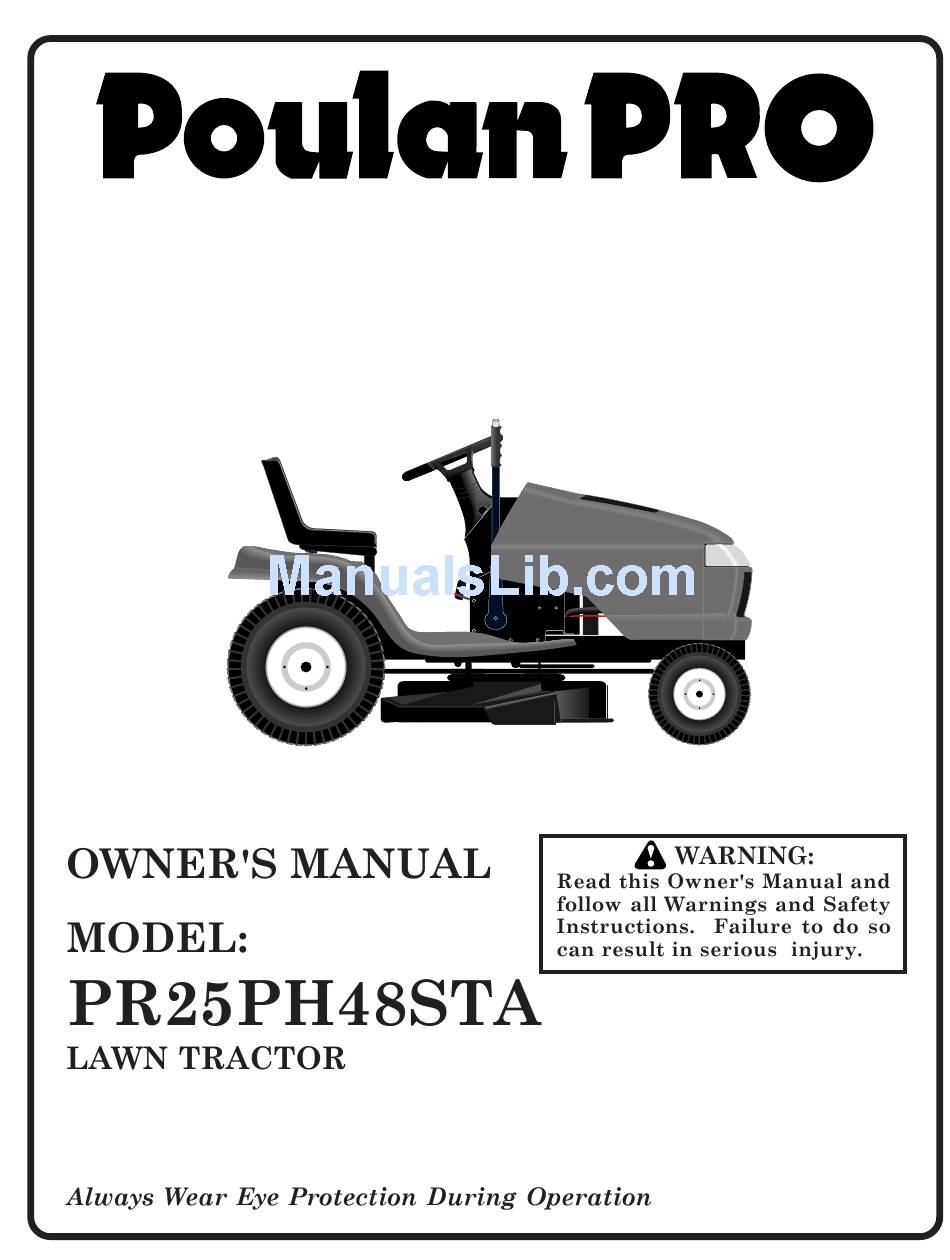

  • Page 1 IMPORTANT MANUAL Do Not Throw Away 180278 Rev. 3 6.20.02 RD Printed in U.S.A.

  • Page 2: Safety Rules

    Safe Operation Practices for Ride-On Mowers IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. GENERAL OPERATION • Read, understand, and follow all instructions in the manual and on the machine before starting.
  • Page 3 Safe Operation Practices for Ride-On Mowers • Be sure the area is clear of other people before mowing. Stop machine if anyone enters the area. • Never carry passengers or children even with the blades off. • Do not mow in reverse unless absolutely necessary. Always look down and behind before and while backing.

  • Page 4: Table Of Contents

    PRODUCT SPECIFICATIONS GASOLINE CAPACITY 3.5 GALLONS AND TYPE: UNLEADED REGULAR OIL TYPE (API-SF-SJ): SAE 30 (above 32°F) SAE 5W-30 (below 32°F) OIL CAPACITY: W/ FILTER: W/O FILTER: 3.75 PINTS SPARK PLUG: CHAMPION RC12YC (GAP: .040") GROUND SPEED (MPH): FORWARD: 0 – 5.5 REVERSE: 0 –...

  • Page 5: Unassembled Parts

    UNASSEMBLED PARTS Steering Wheel Steering Steering Wheel Adapter Wheel Insert Seat (1) Washer 17/32 x 1-3/16 x 12 Gauge (1) Knob Mower (2) Flanged Pins (1) Front Plate Assembly (2) Retainer Springs (single loop) (5) Retainer Springs (4) Adjusting Bars Steering Sleeve Steering Sleeve Extension...

  • Page 6: Assembly

    Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness.
  • Page 7 INSTALL SEAT (See Fig. 3) Adjust seat before tightening adjustment knob. • Remove adjustment knob and flat washer securing seat to cardboard packing and set aside for assembly of seat to tractor. • Pivot seat upward and remove from the cardboard packing.
  • Page 8 TO ATTACH NOSE ROLLER (See Fig. 5) • Assemble brackets "A" and "B" to the inside of mower mounting brackets as shown. Tighten securely. NOTE: Be sure bracket tabs are positioned in tab holes in mower brackets. • Position nose roller between brackets and install rod and retainer spring.
  • Page 9 CHECK TIRE PRESSURE The tires on your tractor were overinflated at the factory for shipping purposes. Correct tire pressure is important for best cutting performance. • Reduce tire pressure to PSI shown in “PRODUCT SPECIFICATIONS” section of this manual. CHECK MOWER LEVELNESS For best cutting results, mower should be properly leveled.

  • Page 10: Operation

    These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning. BATTERY CAUTION OR WARNING ENGINE ON ENGINE OFF FUEL CHOKE ATTACHMENT REVERSE CLUTCH ENGAGED ATTACHMENT CLUTCH DISENGAGED IGNITION DANGER, KEEP HANDS AND FEET AWAY OPERATION REVERSE FORWARD...
  • Page 11 KNOW YOUR TRACTOR READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference. THROTTLE CONTROL BRAKE PEDAL HEIGHT ADJUSTMENT...

  • Page 12: To Move Forward And Backward

    The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields while operating your tractor or performing any adjustments or repairs. We recommend a wide vision safety mask over spectacles or standard safety glasses.

  • Page 13: To Operate On Hills

    TO ADJUST GAUGE WHEELS (See Fig. 9) Gauge wheels are properly adjusted when they are slightly off the ground when mower is at the desired cutting height in operating position. Gauge wheels then keep the deck in proper position to help prevent scalping in most terrain conditions.

  • Page 14: Before Starting The Engine

    BEFORE STARTING THE ENGINE CHECK ENGINE OIL LEVEL • The engine in your tractor has been shipped, from the factory, already filled with summer weight oil. • Check engine oil with tractor on level ground. • Remove oil fill cap/dipstick and wipe clean, reinsert the dipstick and screw cap tight, wait for a few seconds, remove and read oil level.
  • Page 15 PURGE TRANSMISSION CAUTION: Never engage or disengage freewheel lever while the engine is running. To ensure proper operation and performance, it is recom- mended that the transmission be purged before operating tractor for the first time. This procedure will remove any trapped air inside the transmission which may have devel- oped during shipping of your tractor.

  • Page 16: Customer Responsibilities

    CUSTOMER RESPONSIBILITIES MAINTENANCE SCHEDULE FILL IN DATES AS YOU COMPLETE REGULAR SERVICE Check Brake Operation Check Tire Pressure Check Operator Presence and Interlock Systems Check for Loose Fasteners Sharpen/Replace Mower Blades Lubrication Chart Check Battery Level Clean Battery and Terminals Check Transaxle Cooling Check V-Belts Check Engine Oil Level...
  • Page 17 CUSTOMER RESPONSIBILITIES TRACTOR Always observe safety rules when performing any mainte- nance. BRAKE OPERATION If tractor requires more than six (6) feet stopping distance at high speed in highest gear, then brake must be adjusted. (See “TO ADJUST BRAKE” in the Service and Adjust- ments section of this manual).
  • Page 18 CUSTOMER RESPONSIBILITIES V-BELTS Check V-belts for deterioration and wear after 100 hours of operation and replace if necessary. The belts are not adjustable. Replace belts if they begin to slip from wear. TRANSAXLE COOLING The transmission fan and cooling fins should be kept clean to assure proper cooling.
  • Page 19 CUSTOMER RESPONSIBILITIES TO SERVICE PRE-CLEANER • Wash it in liquid detergent and water. • Squeeze it dry in a clean cloth. • Saturate it in engine oil. Wrap it in clean, absorbent cloth and squeeze to remove excess oil. • If very dirty or damaged, replace pre-cleaner.

  • Page 20: Service And Adjustments

    SERVICE AND ADJUSTMENTS CAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS: • Depress brake pedal fully and set parking brake. • Place attachment clutch in “DISENGAGED” position. • Turn ignition key “OFF” and remove key. • Make sure the blades and all moving parts have completely stopped. •...

  • Page 21: To Level Mower Housing

    SERVICE AND ADJUSTMENTS NOTE: To assist in locating hole in flanged pin, the hole in pin is inline with notch on head of pin. If necessary, move mower side-to-side to give space between plate and mower brackets. IMPORTANT: CHECK BELT FOR PROPER ROUTING IN ALL MOWER PULLEY GROOVES.

  • Page 22: To Replace Mower Blade Drive Belt

    SERVICE AND ADJUSTMENTS • To raise front of blade, loosen nut “D” from trunnion on both front links. Tighten nut “C” on both front links an equal number of turns. • When distance “B” is 1/8" to 1/2" lower at front than rear, tighten nut “D”...
  • Page 23 SERVICE AND ADJUSTMENTS • Road test tractor for proper stopping distance as stated above. Readjust if necessary. If stopping distance is still greater than six (6) feet in highest gear, further maintenance is necessary. Contact your nearest au- thorized service center/department. WITH PARKING BRAKE “ENGAGED”...

  • Page 24: Interlocks And Relays

    SERVICE AND ADJUSTMENTS IMPORTANT: YOUR TRACTOR IS EQUIPPED WITH A 12 VOLT NEGATIVE GROUNDED SYSTEM. THE OTHER VEHICLE MUST ALSO BE A 12 VOLT NEGATIVE GROUNDED SYSTEM. DO NOT USE YOUR TRACTOR BATTERY TO START OTHER VEHICLES. TO ATTACH JUMPER CABLES - •...
  • Page 25 SERVICE AND ADJUSTMENTS ENGINE TO ADJUST THROTTLE CONTROL CABLE (See Fig. 32) The throttle control has been preset at the factory and adjustment should not be necessary. Check adjustment as described below before loosening cable. If adjustment is necessary, proceed as follows: •...

  • Page 26: Storage

    Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days or more. CAUTION: Never store the tractor with gasoline in the tank inside a building where fumes may reach an open flame or spark.

  • Page 27: Troubleshooting

    TROUBLESHOOTING POINTS PROBLEM CAUSE Will not start Out of fuel. Engine not “CHOKED” properly. Engine flooded. Bad spark plug. Dirty air filter. Dirty fuel filter. Water in fuel. Loose or damaged wiring. Carburetor out of adjustment. Engine valves out of adjustment. Hard to start Dirty air filter.

  • Page 28: Troubleshooting

    TROUBLESHOOTING POINTS PROBLEM CAUSE Engine continues to run Faulty operator-safety presence control system. when operator leaves seat with attachment clutch engaged Poor cut - uneven Worn, bent or loose blade. Mower deck not level. Buildup of grass, leaves, and trash under mower. Bent blade mandrel.
  • Page 29 TRACTOR - MODEL NUMBER PR25PH48STA SCHEMATIC AMMETER (OPTIONAL) WHITE BLACK IGNITION SWITCH GREEN BLUE FUEL SHUT-OFF SOLENOID IGNITION SWITCH POSITION CIRCUIT “MAKE” M+G+A1 NONE RUN/LIGHT B+A1 A2+L B+A1 NONE START B + S + A1 NONE BATTERY FUSE WHITE CLUTCH / BRAKE (PEDAL UP) SEAT SWITCH (NOT OCCUPIED)

  • Page 30: Repair Parts - Tractor

    REPAIR PARTS TRACTOR - MODEL NUMBER PR25PH48STA ELECTRICAL D .C...
  • Page 31 REPAIR PARTS TRACTOR - MODEL NUMBER PR25PH48STA ELECTRICAL PART DESCRIPTION 144927 Battery 74760412 Bolt Hex Hd 1/4-20 UNC X 3/4 7603J Tray, Battery 145211 Bolt, BTR FRT 1/4-20 x 7.5 150109 Hold Down Battery, Front 145769 Nut, Push, Nylon 176138 Switch Interlock Push-In 175688 Harness Asm Light W/Bulbs...
  • Page 32 REPAIR PARTS TRACTOR - MODEL NUMBER PR25PH48STA CHASSIS AND ENCLOSURES...
  • Page 33 REPAIR PARTS TRACTOR - MODEL NUMBER PR25PH48STA CHASSIS AND ENCLOSURES PART DESCRIPTION 174619 Chassis 176554 Drawbar 17060612 Screw 3/8-16x3/4 163976X428 Dash 72140608 Bolt 3/8-16 x 1 167203 Panel Dash Lh 178298 Panel Dash Rh 17490608 Screw Thdrol 3/8-16 x 1/2 175260X428 Hood 162026 Plate Battery...
  • Page 34 REPAIR PARTS TRACTOR - MODEL NUMBER PR25PH48STA DRIVE 227 218...
  • Page 35 REPAIR PARTS TRACTOR - MODEL NUMBER PR25PH48STA DRIVE PART DESCRIPTION - - - - - - Transaxle (Order parts from transaxle manufacturer) Hydro gear Model 323-0510 17060512 Screw 5/16-18 x 3/4 174367 Clutch Elec 74490544 Bolt Hex Flghd 5/16-18 Gr. 5 73800500 Nut Lock Hex W/Ins.
  • Page 36 REPAIR PARTS TRACTOR - MODEL NUMBER PR25PH48STA STEERING ASSEMBLY...
  • Page 37 REPAIR PARTS TRACTOR - MODEL NUMBER PR25PH48STA STEERING ASSEMBLY PART DESCRIPTION 159944X428 Wheel Steering 172393 Axle Cast Lt Machined 169840 Spindle Asm LH 169839 Spindle Asm RH 6266H Bearing Race Thrust Harden 121748X Washer 25/32 X 1-5/8 X 16 Ga 12000029 Ring Klip #t5304-75 175121...
  • Page 38 REPAIR PARTS TRACTOR - MODEL NUMBER PR25PH48STA ENGINE OPTIONAL EQUIPMENT Spark Arrester PART DESCRIPTION 175437X428 Control Throttle 164863 Screw HwHd Hi-Lo #13-16 x 3/4 - - - - - - - - Engine, Briggs Model 445777 (Order parts from engine mfg.) 149723 Muffler Asm Twin Lo-Tone 159955...
  • Page 39 REPAIR PARTS TRACTOR - MODEL NUMBER PR25PH48STA SEAT ASSEMBLY PART DESCRIPTION 171684 Seat 140551 Bracket Pivot Seat 8 720 71110616 Bolt Fin Hex 3/8-16 Unc x 1 19131610 Washer Flat 13/32 x 1 x 10 Ga. 145006 Clip Push-In 73800600 Nut Hex w/Ins.
  • Page 40 WHEELS & TIRES 4,10 PART 177982 178502 175291 180894 176272 145005 169210 174998X428 Pad Footrest Lh 138311 175542X428 Pad Footrest Rh 180278 180279 PART 59192 65139 170455 59904 106732X421 Rim Asm 6"front Service 278H 9040H 106108X421 Rim Asm 8"rear Service 170456 7152J...
  • Page 41 REPAIR PARTS TRACTOR - MODEL NUMBER PR25PH48STA MOWER LIFT PART DESCRIPTION 159461 Wire Asm Inner/Sprg W/plunger 159476 Shaft Asm Lift RH w/Inf 138284 Pin Groove 12000002 E Ring #5133-62 19211621 Washer 21/32 X 1 X 21 Ga 120183X Bearing Nylon Blk 629 Id 125631X Grip Handle 170770...
  • Page 42 REPAIR PARTS TRACTOR - MODEL NUMBER PR25PH48STA MOWER DECK...
  • Page 43 REPAIR PARTS TRACTOR - MODEL NUMBER PR25PH48STA MOWER DECK PART DESCRIPTION 180358X421 Deck Weldment Mower 48 138017 Bracket Asm., Sway Bar 4939M Retainer Spring 178024 Arm, Suspension, Rear Sway Bar Deck 174365 Bolt 7/16 Asm. Blade 180054 Blade 174360 Shaft Asm. w/Lower Bearing 174358 Mandrel Asm.

  • Page 44: Warranty

    The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from defects in materials and workmanship. For a period of two (2) years from date of purchase by the original consumer purchaser, we will repair or replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we find to be defective due to materials or workmanship.
  • Page 45 SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION WARNING: To avoid serious injury, operate your tractor up and down the face of slopes, never across the face. Do not mow slopes greater than 15 degrees. Make turns gradually to prevent tipping or loss of control.
  • Page 46 SERVICE NOTES...
  • Page 47 SERVICE NOTES...
