Summary of Contents for Caen ELS FAST-PS-M

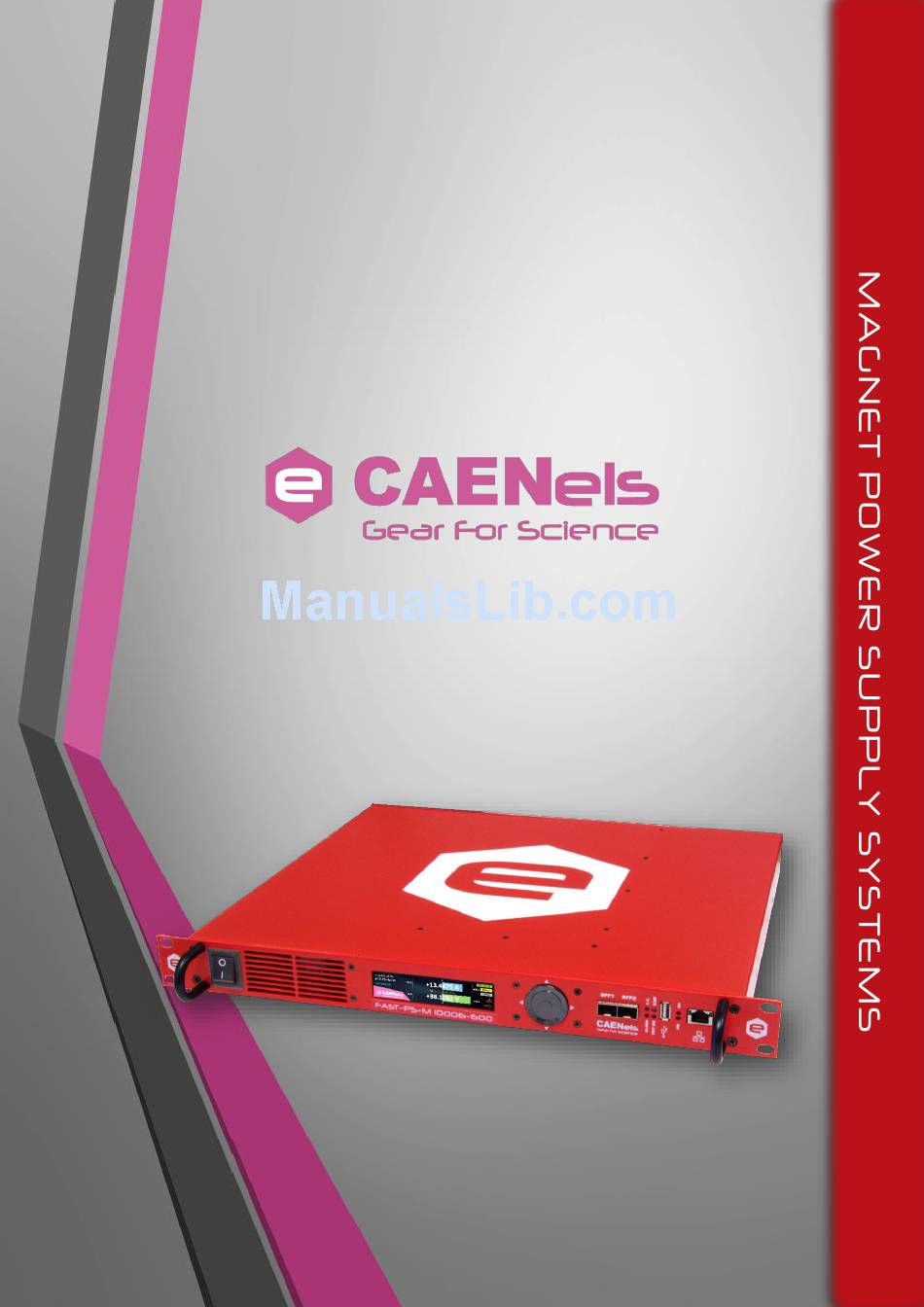

- Page 1 FAST-PS-M – User’s Manual FAST-PS-M Current- and Voltage-Controlled Monopolar Digital Power Supply Series User’s Manual All Rights Reserved © CAEN ELS s.r.l. Rev. 1.4 – August 2017...
- Page 2 FAST-PS-M – User’s Manual This product is marked. CAEN ELS s.r.l. c/o AREA Science Park S.S. 14 km 163,5 - 34149 Basovizza (TS) Italy Mail: info@caenels.com Web: www.caenels.com...
- Page 3 • FAST-PS-M 7508-600 • FAST-PS-M 10006-600 The FAST-PS can be equipped with the following options: • FAST-PS-M AN-CTRL: Analog Control Input (±10 V) on BNC connector – optional • FAST-PS-M TGR-IN: Trigger Input on BNC connector This manual cover the Custom Model named as following:...
-
Page 4: Table Of Contents
Update Mode .................... 14 POWER SUPPLY MAIN FEATURES ............15 ....................15 ONNECTORS Power Cables Connectors ................ 15 Power Cables Connectors for the FAST-PS-M 3030 ......16 I/O Connectors ..................17 Remote Sensing ..................18 ......................19 PTIONS Analog Control Input ................20 Trigger Input .................... - Page 5 FAST-PS-M – User’s Manual Power-up ....................34 Home Screen .................... 34 Menu Page ....................35 Control Page ..................36 Config Page ..................37 Advanced Page ................. 37 MECHANICAL DIMENSIONS ............... 38 FAST PS M 3030 M ..........39 ECHANICAL IMENSIONS...
- Page 6 FAST-PS-M – User’s Manual Document Revisions Revision Date Comment October 7 2015 Draft Release November 26 2015 First Public Release December 14 2015 Fixed some errors and images added July 15 2016 Updated Images and Installation Chapter December 21 2016...
-
Page 7: Safety Information
FAST-PS-M – User’s Manual Safety information The following table shows the general environmental requirements for a correct operation of referred instruments in this User’s Manual: Environmental Conditions Requirements Environment Indore use Operating Temperature 0°C to 50°C Operating Humidity 20% to 80% RH (non-condensing) - Page 8 User's Manual before any kind of operation. CAEN ELS d.o.o. reserves the right to change partially or entirely the contents of this Manual at any time and without giving any notice. Disposal of the Product The product must never be dumped in the Municipal Waste.
- Page 9 FAST-PS-M – User’s Manual WARNING • Do not use this product in any manner not specified by the manufacturer. The protective features of this product may be impaired if it is used in a manner not specified in this manual.
-
Page 10: Introduction
M different form the mentioned in Table 1 refer to Appendix A for the parameter differing from standard model. The FAST-PS-M module is compact and fits in a single 19-inch 1U standard crate. The power unit implements a completely digital control loop with a Pulse Width Modulation (PWM) generation technique that allows to adapt the system to any load condition. -
Page 11: Fast-Ps-Mat A Glance
(rear view). Figure 1: FAST-PS-M front view On the front side of the FAST-PS-M unit are placed: a power switch, a colour graphic display with navigation switch for the local control of the module, three communication sockets (2 SFPs and one Ethernet ports), four status LEDs and one USB... - Page 12 SN ending in x010 and later, a separate connector for the voltage remote sensing is also present below the I/O connector. The FAST-PS-M 3030, as it carries up to 30 Amperes only, it is provided with 2 x WGKV 10/Z SW output connectors, instead of metal bars: Some models can mount one or two BNC connectors reserved for additional features of the power supply.
-
Page 13: Modes Of Operation
FAST-PS-M – User’s Manual 1.4 Modes of Operation The FAST-PS-M system has multiple features and multiple configurations that allow using the unit for a very widespread topology of applications. A brief summary of the basic configurations that the unit is able to handle are hereafter presented. -
Page 14: Update Mode
FAST-PS-M – User’s Manual Update Mode The current or voltage setting of the unit can also be performed in four different modes: • NORMAL: the update of the set-point (current or voltage, depending on the operation mode) is performed as soon as a new set-point is received via the remote, local or fast interfaces;... -
Page 15: Power Supply Main Features
FAST-PS-M – User’s Manual 2. Power Supply Main Features The features listed in this chapter are common to the FAST-PS-M family and can be regarded as the basic features of this power supplies family. 2.1 Connectors Three different types of connection are present in FAST-PS-M power supplies: power cables connector (bus-bars), I/O connectors and remote sensing connectors. -
Page 16: Power Cables Connectors For The Fast-Ps-M 3030
FAST-PS-M – User’s Manual Power Cables Connectors for the FAST-PS-M 3030 The load needs to be connected to the output connector placed on the rear panel of the unit as shown in Figure 3. This type of connector offers a convenient and reliable form of connection;... -
Page 17: I/O Connectors
FAST-PS-M – User’s Manual I/O Connectors The FAST-PS-M module has two configurable dry-contact input interlocks and output status signals that are directly available on the D-Sub 15 Pin Female connector on the rear panel (Figure 5). A mating connector, a standard D-Sub 15 Pin Male type, can be installed in order to use/access these available signals. -
Page 18: Remote Sensing
“Remote Control Manual”. The interlocks are disabled by default. Remote Sensing From FAST-PS-M of any model with SN (Serial Number) ending with x10 and later – i.e. x11, x12, etc. – there is a different voltage-sensing connector on the rear panel that allows using the voltage sensing feature especially when using the power supply in C.V. -
Page 19: Options
The FAST-PS-M can be configured with options that are factory-configured and can be found on the rear panel in places of connectors A and B. The standard version of the FAST-PS-M, on the rear panel, is as shown in the following... -
Page 20: Analog Control Input
A brief description of the two options is presented hereafter. Analog Control Input An input that allows the FAST-PS-M to be controlled as an “amplifier” is provided on the rear panel on a BNC connector on the “A” socket. This input is labelled as “AN CTRL”. -
Page 21: Trigger Input
FAST-PS-M – User’s Manual Trigger Input An input that allows the FAST-PS-M to be triggered is provided on the rear panel on a BNC connector on the “B” socket. This input is labelled as “TRG IN”. This input accepts TTL (5V) and LVTTL (3.3V) compatible signals and should be driven by a low-impedance source or generator. -
Page 22: Front Panel Indicators
FAST-PS-M – User’s Manual 2.3 Front Panel Indicators The FAST-PS-M has four (4) front panel LED indicators as shown in the following Figure 12 Figure 12: front panel indicators The front panel indicators and their behaviour are hereafter listed (clockwise starting from top-left): •... -
Page 23: Internal Protections
FAST-PS-M – User’s Manual 2.4 Internal Protections The FAST-PS-M is equipped with several internal protections that allow configuring the unit for optimal operation. These protections have the dual use of protecting the unit and the connected load/device from unwanted damages or undesired operation conditions. -
Page 24: Input Overcurrent - Ovc
The internal current drawn from the AC/DC power section of the unit is sensed by a hall transducer that, in conjunction with a comparator, generates a signal that turns off the device. The threshold value of intervention depends on the FAST-PS-M specific model and cannot be changed by the user. -
Page 25: Dcct Not Ok
OVT condition is generated, thus shutting off the power unit. The threshold value [°C] can be set by experienced users. A reset fault operation needs to be executed on the status register of the FAST-PS-M before turning the output off again. - Page 26 FAST-PS-M – User’s Manual The waveform is stored internally in a point-by-point manner and it gives a lot of flexibility since the maximum number of points of the waveform can be defined as well as the sampling period (of the waveform execution).
-
Page 27: Installation
If damage is detected, compile the RMA form available to the CAEN ELS web site. 3.3 Mounting The FAST-PS-M module can be used either as a desktop unit or as a rack-mount device since the unit form factor is designed to be installed in a standard 19-inch cabinet. -
Page 28: Rack Mounting
Allow minimum 10 cm of unrestricted air space at the front and the read of the unit. Rack Mounting The FAST-PS-M power supply series is designed to fit in a standard 19” equipment rack. CAUTION Use a support bar to provide adequate support for the power supply. -
Page 29: Ac Source Requirement
Figure 14: AC Power Line input socket AC Source requirement The FAST-PS-M power supplies are designed for universal AC input range since it can operate with voltage from 100V to 240V and input frequency ranging from 47 Hz to 63 Hz. Installation Category shall be CAT II so maximum impulse voltage on the network mains must be below 2500 V. -
Page 30: Remote Sensing
Voltage if Remote sensing is used – Cable Drop Voltage Maximum compensation Voltage for all models is 0.5 V For instance, the FAST-PS-M 10006-600 that have a nominal output voltage of 6 V connected to a load at 8 meter of distance using 2x16 mm cable can drive at maximum 6+ 0.5 - 2 = 4.5 V at 100 A on the load. -
Page 31: Grounding Outputs
To allow floating operation of the output it is sufficient to remove the Earth Fuse from the fuse-holder and set the Power supply for Floating operation. When the FAST-PS-M is configured to operate in floating mode either the positive or negative output terminals can be grounded. Always use two wires to connect the load... - Page 32 FAST-PS-M – User’s Manual WARNING Output terminals shall not float more than +/-60VDC above/below chassis ground when Earth Fuse is not present.
-
Page 33: Local Control
4. Local Control This chapter describes the local control functionalities that are provided by the FAST-PS-M power supply and some useful information on how to use it. The power supply can work either in LOCAL mode or in REMOTE mode. The control mode (LOCAL or REMOTE) can be set on the configuration page of the local display. -
Page 34: Display
Please note that this procedure will take approximately 25-seconds before the Home Screen is displayed. Home Screen The FAST-PS-M home screen is the first loaded page upon power-up or power- cycling of the module, it is shown in , and contains information on: Figure 17 •... -
Page 35: Menu Page
The Menu page is reachable by performing any action on the navigation switch when in the Home Screen. The Menu Page gives access to all the local features of the FAST-PS-M power supply unit. There are five different options that can be selected as shown in... -
Page 36: Control Page
FAST-PS-M – User’s Manual • Advanced – sub-page; • Reset faults - action; • Return to main - action. The access to each sub-menu (or action) is necessary to highlight the selected rectangle by using the encoder or the arrows of the navigation switch and press the “Enter”... -
Page 37: Config Page
FAST-PS-M – User’s Manual Config Page The Config Page is reachable by selecting the corresponding rectangle from the Menu Page. This page allows the user to set the control mode of the power supply – e.g. LOCAL or REMOTE – to select the regulation mode (C.C. or C.V.) and to set the slew rate in [A/s] or [V/s] depending on the selected regulation mode. -
Page 38: Mechanical Dimensions
FAST-PS-M – User’s Manual 5. Mechanical Dimensions The mechanical dimensions of the FAST-PS-M units are hereafter presented (in units of mm) in Figure 23: Figure 23: FAST-PS Mechanical Drawings... -
Page 39: Fast Ps M 3030 Mechanical Dimensions
FAST-PS-M – User’s Manual 5.1 FAST PS M 3030 Mechanical Dimensions The FAST PS M 3030 has different dimensions with respect to the other monopolar models, which are reported hereafter:... -
Page 40: Technical Specifications
FAST-PS-M – User’s Manual 6. Technical Specifications The main technical specifications for the FAST-PS-M models are hereafter presented: Technical Specifications FAST-PS-M 30 A 60 A Output current range 75 A 100 A 30 V 10 V Output voltage range 600W... - Page 41 FAST-PS-M – User’s Manual Technical Specifications FAST-PS-M Over-Voltage DC Link Voltage Auxiliary ADC Read-Backs Ground Leakage Current (16 bit resolution) Heatsink Temperature DCCT Temperature Cooling On-module self-regulated fans Drivers EPICS 1x Ethernet 10/100/1000 TCP-IP Communication interfaces 2x SFP ports Point-by-point current waveform...
