Digital earth meter

Advertisement

Quick Links

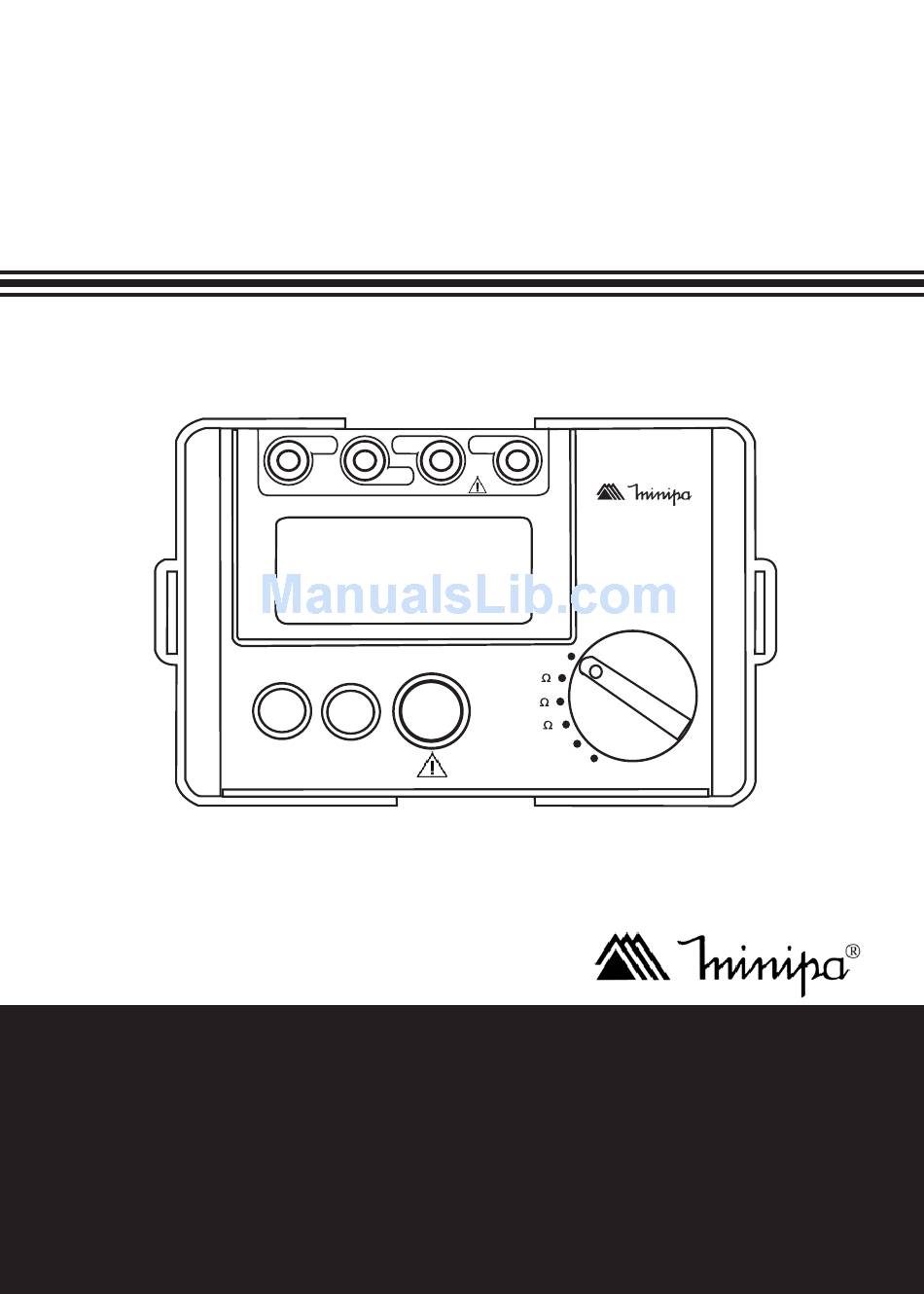

TERRÔMETRO DIGITAL
LIGHT/LOAD HOLD/SAVE
* Imagem meramente ilustrativa./Only illustrative image./
Imagen meramente ilustrativa.
MANUAL DE INSTRUÇÕES
Manual de Instrucciones
V
P
MAX
E
400V
CAT III 600V
DIGITAL EARTH TESTER
TEST
Instructions Manual
1
Digital Earth Meter
TelurímetroDigital
MTR-1522
C
MTR-1522
OFF
4000
400
40
EARTH
VOLTAGE
OFF

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MTR-1522 and is the answer not in the manual?

Questions and answers

Summary of Contents for Minipa MTR-1522

  • Page 1 TERRÔMETRO DIGITAL Digital Earth Meter TelurímetroDigital MTR-1522 400V CAT III 600V DIGITAL EARTH TESTER MTR-1522 TEST LIGHT/LOAD HOLD/SAVE 4000 EARTH VOLTAGE * Imagem meramente ilustrativa./Only illustrative image./ Imagen meramente ilustrativa. MANUAL DE INSTRUÇÕES Instructions Manual Manual de Instrucciones...
  • Page 2: Table Of Contents

    SUMÁRIO 1)GENERAL VISION 2) ACCESSORIES 3) SAFETY INFORMATION 4) RULES FOR A SAFETY OPERATION 5) INTERNATIONAL ELETRIC SYMBOLS 6) DEVICE DESCRIPTION 7) DEVICE CONFIGURATION A. Battery level B. Probes conection 8) OPERATION A. Precision Measure B. Earth Voltage Measure C. Earth Resistance Measure D.
  • Page 3: General Vision

    1) GENERAL VISION The earth meter MTR-1522 is a macromachined device with high precision and reliability. Able to measure the earth resistence of eletric cables, eletric instalations and lightning rod equipaments. Beyond that, is able to measure the earth voltage.
  • Page 4: Safety Information

    3) SAFETY INFORMATION This instructions manual contains orientations to the user and safety instructions for device handle. Please, read the manual before handle with the device. ● Before use the device, please, understand this instruction manual content. ● Keep the instructions manual in an easily accessible place for a possible consultation during operation. ● When using the instrument, follow the test procedure as stated in the instructions manual.
  • Page 5: Rules For A Safety Operation

    4) RULES FOR A SAFE OPERATION The symbol “ ” has three meanings in this manual. The user must look carefully for the symbol “ ” during operation: Danger - Identify conditions and actions that may result risk or even death. Warning - identify conditions and actions that may result risk or even death.
  • Page 6: International Eletric Symbols

    ● Never exchange the battery or open the battery compartment when the device is humid. Use a softy cloth to dry the device to proced with the exchange. ● Assure that the device is off for battery exchange or open the battery content. CAUTION ● Make sure that the terminals of the probes are connected to appropriate terminals of the instrument before performing a measurement. ● Remove the batteries when stores the instrument for long periods.
  • Page 7: Device Description

    6) DEVICE DESCRIPTION                                      ...
  • Page 8: Device Configuration

    7) DEVICE CONFIGURATION A. Battery Level Select the function EARTH VOLTAGE ou EARTH RESISTANCE. If the battery indication is “ ” means low battery and it need to be exchange, otherwise, the device will not operate correctly. Battery Symbol Battery Voltage ≥ 8,2V 7,8V ~ 8,1V 7,4V ~ 7,7V 7,1V ~ 7,3V ≤ 7,0V B.
  • Page 9: Operation

    8) OPERATION Warning When the device is developing ground resistance tests, the highest voltage between E and C must be 50V AC. Do not touch the external part of the probes or the au- xiliary stakes, to avoid eletric shock danger. A.
  • Page 10: Earth Voltage Measure

    Note ● Check the ground humid where the auxiliary stakes will be placed. If the groud is to dry, moist it a little. Rocky and sandy soils alson need to be moisted before testing. ● If the test site is in an urban center covered in concrete and difficult access to the stakes, use two steel plates 25cmx25cm(or the stakes pre-existing), place them ho- rizontally over the concrete surface then cover it with a moist cloth. Replace the measure earth in this situation, because in general cases it still can be used. B. Earth Voltage Measure WARNING The earth voltage test only works in V and E. The C and P cables must be separated, otherwise, the device is in risk of being damaged and the user suffer injuries.
  • Page 12: Simple Measure

    large, a shift in the range can be done. D. Simple Measure Danger To avoy eletrical shock risks, be careful when using a grounding point of commercial electric power systems as a point of reference test. This method can be used when there is not possible to use the auxiliary stakes.
  • Page 13: Especial Function

    E. Special Functions ● Auto Shutdown The device will turns on when the buton is pressed and some function is selected. The auto shutdown happens after 10 minutes to save battery (except when the device is realizing ground resistance tests). ● Backlight When performing the tests in poorly lit areas, you can use the backlight of the display.
  • Page 14: Especifications

    Press “LIGHT/LOAD” again then the display will show the saved data number 02 e so on until the 20th saved data. If you want to return to previous data, press “HOLD/SAVE” once (in this case, “HOLD/SAVE” and “LIGHT/LOAD” are working as “up” and “down”). To disable the function, press “LIGHT/LOAD” for two seconds. 3. Erase the saved data: press the buttons “HOLD/SAVE” and “LIGHT/LOAD” simultaneously then turn on the device. The display will show “C L.” and all the data will be erased. 9) Specification A. General Specification ● Display: LCD 3 3/4 digits, 4000 counts ● Functions: Earth voltage measure and earth resistance measure.
  • Page 15: Eletric Especifications

    B. Eletrical Specifications ● Precision: ± (a% read + b digits), Guaranteed for 1 year. ● Operation Temperature: 20°C±5°C. Relative humidity: ≤ 75%. The specification applies between 10% to 100% of the, measurement range. A. Ground Voltage Ranges Resolution Accuracy 400V 0,1V ±(1,0%+6) Observations: ●Average response. ● Frequency Response: 50Hz/60Hz. ● Overload Protection: 600V AC (per 30 seconds). ● Input Impedance: 20MΩ B. Grounding Resistance Range Resolution Precision 40 Ω 0,01 Ω ±(2,0%+20) 400 Ω...
  • Page 16: Maintenance

    10) MAINTENANCE A. Battery Replacement When the low battery indication appear on the display, per- form the replacement immediately as described bellow: 1. Turn Off the device and remove the probes. 2. Remove the screw from the bottom and open the battery compartment.
  • Page 17 If necessary to perform any repair, take the instrument to an specialized technical and authorized by Minipa to perform the service.
  • Page 18: Warranty

    5- For instrument with software, Minipa assumes responsibility that the software will operate in accordance with its functional specifications for 90 days.Minipa will not guarantee that the software will be error free or operate without interruption. 6- Minipa assumes no risk for damage in transit or transportation costs.
  • Page 19: Warranty Certificate Registration

    Av. Carlos Liviero, 59 - Vila Liviero CEP: 04186-100 - São Paulo - SP - Fax: Send a copy of warranty certificate correctly filled by fax number 0xx11-5071-2679. - e-mail: Scanning this formand attach to your e-mail. Please send to sac@minipa.com.br. - Site: Register the warranty certificate by http:// www.minipa. com.br/sac. IMPORTANT The warranty conditions and limitations will be valid only to the certificates correctly registered. in case the purchaser did not register, a sales receipt showing hte date of pur- chase will be required.
  • Page 20 MINIPA DO BRASIL LTDA. MINIPA DO BRASIL LTDA. Av. Carlos Liviero, 59 - Vila Liviero Rua Dna. Francisca, 8300 - Módulo 4 04186-100 - São Paulo - SP - Brasil Módulo A - 89219-600 - Joinville/SC - Brasil MINIPA ELECTRONICS USA INC. 10899 - Kinghurst # 220 Houston - Texas - 77099 - USA DO BRASIL LTDA.
