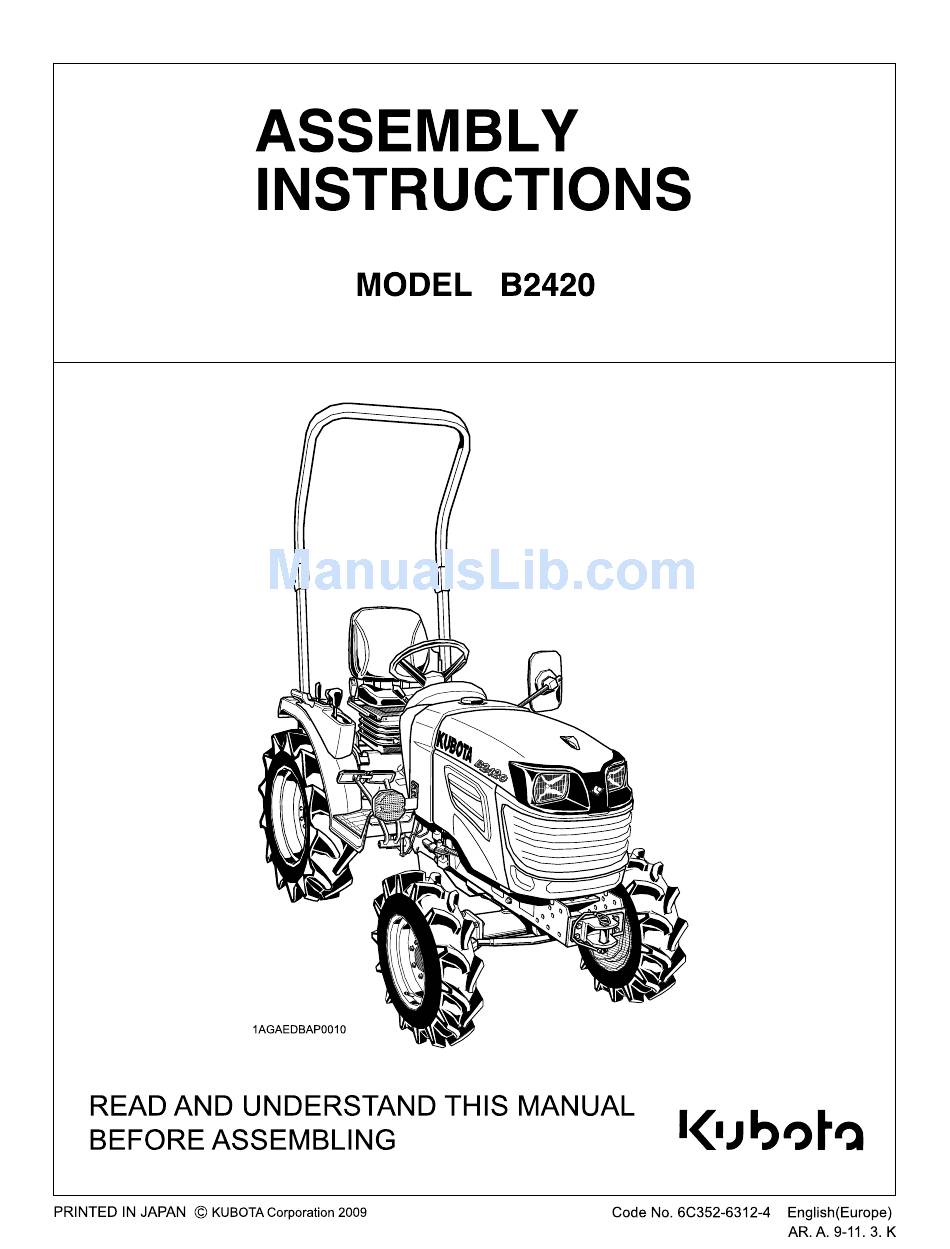

Summary of Contents for Kubota B2420

  • Page 2: Table Of Contents

    CONTENTS ASSEMBLY INSTRUCTIONS ..................1 TO THE DEALER..................... 1 SAFETY ........................1 UNPACKING AND CHECKING PARTS ..............2 Unpacking Iron Crate......................2 The Accessories Packaged Together with Tractor ............2 Contents of Accessory Case .................... 3 Contents of Nylon Bag Attached with the Accessory Case ..........5 ASSEMBLY......................
  • Page 3: Assembly Instructions

    ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS TO THE DEALER (3) Working clothes which may 1. This manual contains procedures intended to assist be pinched or caught in the the dealer in unpacking and assembling the product equipment must not be worn. before delivering to the customer. Loose clothing can cause The customer's purchase is based on confidence in serious injury or death.
  • Page 4: Unpacking And Checking Parts

    ASSEMBLY INSTRUCTIONS 3. After assembly check (1) Before operating or test driving the equipment, read and understand the operator's manual. (2) Once the equipment is fully assembled, select a safe place for a test run. Prevent onlookers from approaching the equipment. To avoid personal injury or death: A Do not start engine or...
  • Page 5: Contents Of Accessory Case

    ASSEMBLY INSTRUCTIONS BContents of Accessory Case A : Rear mount type ROPS / B : Mid mount type ROPS UNIT UNIT DESCRIPTION DESCRIPTION OPERATOR'S MANUAL PAD (STEERING) WARRANTY STATEMENT GRIP (ORANGE 83) ASSEMBLY INSTRUCTIONS GRIP (YELLOW 63) FILTER WRENCH GRIP (BLACK 63) SLOW BLOW FUSE (50A) GRIP (ORANGE 63) STARTER KEY...
  • Page 6 ASSEMBLY INSTRUCTIONS A Bolt, Nut and Tool A : Rear mount type ROPS / B : Mid mount type ROPS UNIT UNIT DESCRIPTION DESCRIPTION FRONT TIRE ACCESSORIES SPRING, WASHER (9/16) NUT (M12) NUT (9/16-18UNF) SPRING WASHER (M12) SET, BOLT ROPS PLAIN WASHER (M12) HEX.
  • Page 7: Contents Of Nylon Bag Attached With The Accessory Case

    ASSEMBLY INSTRUCTIONS BContents of Nylon Bag Attached with the Accessory Case A : Rear mount type ROPS / B : Mid mount type ROPS UNIT DESCRIPTION RING JOINT PIN BOLT (M8 x 20) for FENDER 3-POINT HITCH LOWERING SPEED KNOB ASSEMBLY BRemoving the Battery BMounting the Right and Left Fenders...
  • Page 8: Installing The Lever Grip

    ASSEMBLY INSTRUCTIONS BAttaching the 3-Point Hitch Assembly BInstalling the Lever Grip 1. Attach the top link (1) and top link holder (3) to the top Install the lever grips onto the control levers. See the link bracket (2) with the joint pin and set pin. figure.
  • Page 9: Attaching The Tail Light

    ASSEMBLY INSTRUCTIONS 5. Install the tail light assembly (1) with the step bolt (2), rubber cushion (3), and M8 nut (4) to the right rear of BAttaching the Tail Light the tractor. 1. Attach the tail light (1) to the tail light cover (2). 2.
  • Page 10: Attaching The Rops Cover

    ASSEMBLY INSTRUCTIONS A Install the front turn signal / hazard light at the upper BAttaching the ROPS Cover position. Insert the ROPS cover (1) onto the ROPS frame (2). Be sure the cutting face of the ROPS cover is towards the 6.
  • Page 11: Attaching The License Light And Trailer Electrical Outlet

    ASSEMBLY INSTRUCTIONS (A) Red (C) Orange [Rear mount type ROPS] (B) Yellow (D) Pink 3. Attach the license plate holder (4) to the license [Rear and Mid mount type ROPS] holder stay (7) with the M8 x 20 bolts (8). 7.
  • Page 12: Mounting The Front Hitch

    ASSEMBLY INSTRUCTIONS [Mid mount type ROPS] [Rear mount type ROPS] 3. Attach the license holder stay (7) to the ROPS frame (11) with the bolts (9/16-18UNF x 3-1/4) (12), M14 plain washers (13), spring washers (9/16) (14) and nuts (9/16-18UNF) (15). 4.
  • Page 13: Attaching The Steering Wheel

    ASSEMBLY INSTRUCTIONS BAttaching the Seat 1. Attach the upper seat support (1) to the seat with the two M8 x 30 bolts (2). BAttaching the Steering Wheel 1. Attach the steering wheel (1) with one M12 nut (2) and 2. Place the seat on the tractor and fix it with five M8 x 20 spring washer (3).
  • Page 14 ASSEMBLY INSTRUCTIONS 3. Secure the OPC switch harness (1) in place with the [SEARS 607] cord band (2) to protect this switch against damages even if the seat is moved. [COBO SC74 / M91] 4. Connect the connector of the OPC switch harness (2) to the connector of the machine-side harness (1).
  • Page 15: Attaching The Pto Cover

    ASSEMBLY INSTRUCTIONS A Rear end : Hook to lower links as indicated in the figure. BAttaching the PTO Cover 1. Attach the PTO cover (1) to the lower link stay with the M8 x 25 bolts (2). BHoisting the Tractor To avoid personal injury: A Set blocks and/or safety stands under the tractor when suspended, to prevent falling,...
  • Page 16: Attaching The Front Tires

    ASSEMBLY INSTRUCTIONS BAttaching the Front Tires BAttaching the Rear Tires 1. Attach the front tires (1) (left and right) with twelve M12 1. Attach the left and right hub (1) to the rear tires with six nuts (2), spring washers (3) and plain washers (4). M14 nuts (2), spring washers (3) and plain washers (4) each.
  • Page 17: Hooking Up The Battery

    ASSEMBLY INSTRUCTIONS 8. Check air pressure in the rear tires. BHooking Up the Battery Tire sizes Inflation Pressure 1. Perform the following after the battery has received a good charge (specific gravity: 1.26/20 C). 8-16, 4PR 160 kPa (1.6 kgf/ (1) Check that the battery fluid is at an intermediate 9.5-16, 4PR 140 kPa (1.4 kgf/...
  • Page 18: Checking The Hydraulic Control Lever Performance

    ASSEMBLY INSTRUCTIONS CHECKING THE HYDRAULIC CONTROL LEVER PERFORMANCE A The hydraulic control lever guides (1) and (2) have been shipped temporarily assembled. It is necessary to readjust the lever guides (1) and (2). 1. Preparation before checking (1) Start the engine. (2) Set the throttle lever to the engine max.
  • Page 19: Checking List For Inspection After Assembly

    ASSEMBLY INSTRUCTIONS CHECKING LIST FOR INSPECTION AFTER ASSEMBLY...
