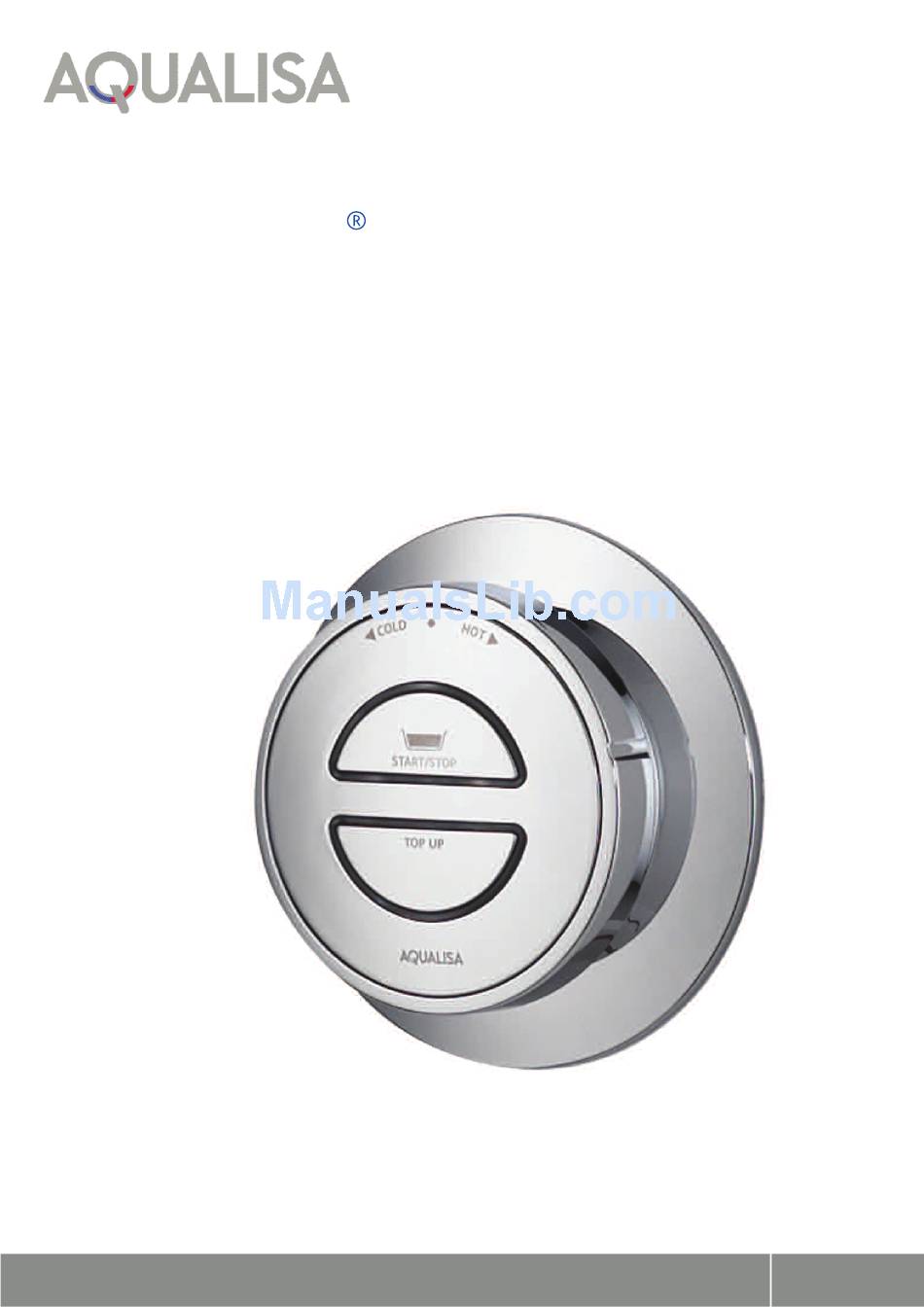

Rise
Digital
Bath with overflow filler
The Waste Electrical and Electronic Equipment (Producer Responsibility) Regulation 2004
This product is outside the scope of the European Waste Electrical and Electronic Equipment Directive as interpreted within the UK.
In the UK this product can therefore be disposed of through commercial non-WEEE waste facilities.
The original manufacturer does not accept any liability under the WEEE directive.
Rise Digital Bath installation instuctions
page 1
Advertisement
Related Manuals for Aqualisa RSDB1X
Summary of Contents for Aqualisa RSDB1X
- Page 1 Rise Digital Bath with overflow filler The Waste Electrical and Electronic Equipment (Producer Responsibility) Regulation 2004 This product is outside the scope of the European Waste Electrical and Electronic Equipment Directive as interpreted within the UK. In the UK this product can therefore be disposed of through commercial non-WEEE waste facilities. The original manufacturer does not accept any liability under the WEEE directive.
- Page 2 Bath system Rise Digital Bath with overflow filler Rise Digital Bath with overflow filler - HP/Combi RSDB1X Rise Digital Bath with overflow filler - Gravity Pumped RSDB2X Rise Digital Bath installation instuctions page 2...
- Page 3 Components (HP/Combi) Components (Gravity Pumped) Rise Digital Bath installation instuctions page 3...
- Page 4 Important information Safety information This product must be installed by a competent person in accordance with all relevant current Water Supply Regulations. ALL PRODUCTS REQUIRING AN ELECTRICAL CONNECTI0N MUST BE INSTALLED BY A QUALIFIED PERSON FOLLOWING THE LATEST REVISION OF BS 7671 (WIRING REGULATIONS) AND CERTIFIED TO CURRENT BUILDING REGULATIONS. This system should be installed so that other taps or appliances operated elsewhere within the premises do not significantly affect the flow.
-
Page 5: After Installation
Water Supply Regulations prior to connection of the product. After installation Familiarise the end user with the Rise Digital operation and hand them this guide. Complete and post the guarantee card or register online at www.aqualisa.co.uk Rise Digital Bath installation instuctions page 5... - Page 6 Step-by-step instructions This product must be installed by a competent person in accordance with the current Water Supply Regulations. In addition to the guide below it is essential that the written instructions overleaf are read and understood and that you have all the necessary components (shown overleaf) before commencing installation.
- Page 7 Choose the position for your Digital processor as close to the bath control as possible. The processor may be sited in the roof space above the proposed bath site, in the airing cupboard or behind a screwed bath panel if more convenient. If siting in the roof space, ensure that freezing cannot occur and that no insulation material is placed under or over the processor.
- Page 8 Place the paper template on the wall in the desired location for the bath control and mark all fixing points and the data cable entry point. Remove the template and drill a Ø16mm hole at the appropriate position for the data cable.
-
Page 9: This Appliance Must Be Earthed
BEFORE ANY ELECTRICAL ADJUSTMENT IS ATTEMPTED, THE ELECTRICITY SUPPLY MUST BE TURNED OFF AT THE MAINS SWITCH. ELECTRICAL INSTALLATION MAY ONLY BE CARRIED OUT BY A QUALIFIED PERSON. Connect the processor power lead to a double pole 3 amp fuse switched spur incorporated in the fixed wiring circuit, in accordance with current wiring rules. - Page 10 The Digital processors are supplied factory set with the flow rate at either ‘NORMAL HP’ or ‘NORMAL GRAVITY’ mode depending on which bath system has been ordered. STANDARD PROCESSORS ON BALANCED HP SYSTEMS: Standard processors fitted to balanced high pressure systems may be set to ‘NORMAL HP’...
- Page 11 Commissioning The Rise Digital bath product has a factory set maximum run time of 12 minutes. If required this can be adjusted anywhere from 1 second up to 30 minutes to suit the site conditions by adopting the following procedure. With the bath plug in, push and hold the start/stop button for 3 seconds to invoke memory run time record mode.
- Page 12 If an alternative bath outlet or bath spout with hand shower combination is used, due to the restrictive characteristics of some of these products, outlet flow rate may be affected. Aqualisa Products Ltd cannot guarantee outlet flow rate if an alternative outlet solution is used. Please refer to the manufacturer’s installation guide for full fitting instructions.
- Page 13 Regulations (not supplied). Waste pipe extension kit If required, for larger baths, a 900mm waste pipe conversion kit is available from Aqualisa Customer Service department. Please contact customer services on 01959 560010. Unscrew the clamping nut and remove the waste pipe from the waste assembly.
- Page 14 Remove the clamping nut and sealing washer from the waste pipe and set aside. Carefully pull the waste pipe away from the outlet assembly. Reassemble the unit using the longer waste pipe by reversing the above procedure. Rise Digital Bath installation instuctions page 14...
- Page 15 Digital bath controller user guide 1. Turn the temperature dial to the required setting. 2. Press the ‘start/stop’ button on the control. 3. The LED display will flash until the selected temperature has been reached and will then remain constant. 4.
- Page 16 Typical installations Typical gravity system installation Typical combination boiler installation (compatible with pumped processor) (compatible with standard processor) NB: THE BASE OF THE PROCESSOR Supply MUST BE SITED NO HIGHER THAN THE BASE LEVEL OF THE CISTERN Digital shower control Vent and draw-off pipe to hot water Cold feed...
- Page 17 Part No:700067 Issue 01 Jan 12 Please note that calls may be recorded for training and quality purposes The company reserves the right to alter, change or modify the product specifications without prior warning ® Registered Trademark Aqualisa Products Limited...
