First Posted 4/14/2000
Updated 4/21/2000
The new

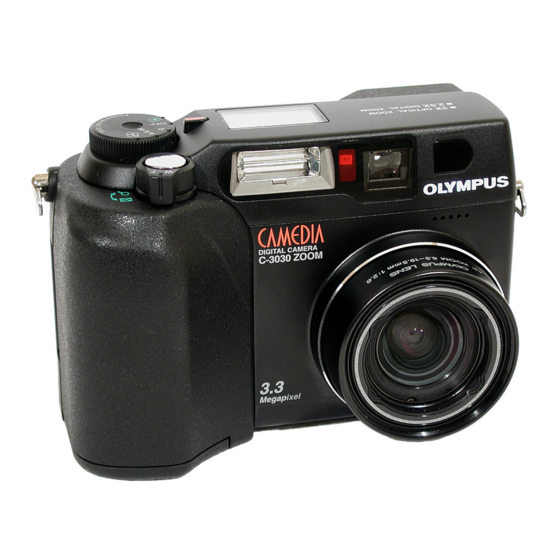

Olympus C-3030 ZOOM
still image capture modes in five different image sizes (2048 x 1536, 1600 x 1200, 1280
x 960, 1024 x 768 and 640 x 480.) It also offers QuickTime Movie capture at 15fps with
sound. Sound can be recorded during video filming or a 4 second sound byte can be
recorded for play with a single image. If you look at the photo above you will see five
small holes just above the lens on the right, this is the microphone.
Click to take a 360-degree QTVR tour of the C-3030 Zoom
is a 3.34 megapixel digital camera with 15 different

Advertisement

loading
Need help?

Need help?

Do you have a question about the Camedia C-3030 Zoom and is the answer not in the manual?

Questions and answers

Related Manuals for Olympus Camedia C-3030 Zoom

Summary of Contents for Olympus Camedia C-3030 Zoom

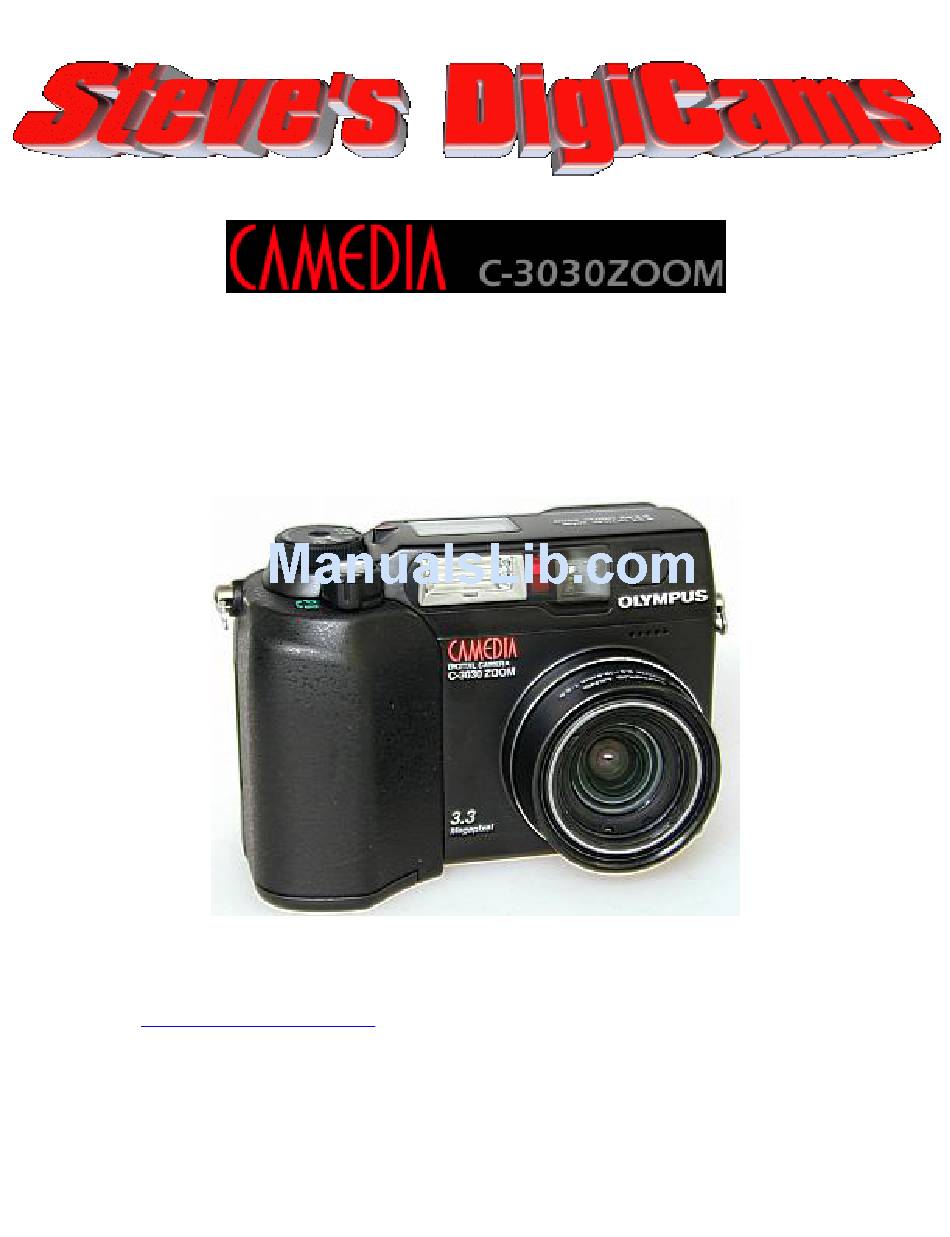

  • Page 1 Click to take a 360-degree QTVR tour of the C-3030 Zoom The new Olympus C-3030 ZOOM is a 3.34 megapixel digital camera with 15 different still image capture modes in five different image sizes (2048 x 1536, 1600 x 1200, 1280 x 960, 1024 x 768 and 640 x 480.) It also offers QuickTime Movie capture at 15fps with...
  • Page 2 6-mode flash has a new slow syncro mode plus red-eye reduction plus a connector that provides true TTL control of the Olympus FL-40 external speedlight. Shutter speeds from 1/30 to 1/10,000 second plus longer shutter speeds of up to 16 seconds in Manual mode.
  • Page 3 I'm happy to report that Olympus has finally done away with that battery door that required two hands and twelve fingers to close. The new door easily closes and latches securely shut with little to no effort. The bottom of the C-3030 is nice and flat and lends itself well to being mounted on a tripod.
  • Page 4 The lens base is threaded and accepts the optional Olympus CLA-1 lens adapter to attach filters or add-on lenses. The mode dial is also the main power switch. Recording modes include "P"rogram automatic, a choice of "A"perture priority, "S"hutter priority or full "M"anual operation (depends on how you set it up in the menu).
  • Page 5 The C-3030Z accomodates any capacity 3.3v SmartMedia card and comes with an 16MB card. The C-3030's I/O ports are neatly hidden behind an easy to access door on the side. On the top is the DC input jack for the optional AC power adapter.
  • Page 6 The C-3030 is equipped with a 5-pin sync port that allows connection to the high power Olympus FL-40 speedlight. The benefits are longer range, bounce/tilt flash head and true TTL-controlled flash illumination. A newly designed door makes changing the batteries a snap now compared to the tug of war we had with the C-2020 and C-2000 models.
  • Page 7 What's in the box? The C-3030 ZOOM camera, a 16MB Olympus brand panorama SmartMedia card, remote control, 2 CR-3V Lithium batteries, lens cap, strap, USB and serial cable for PC and Mac, video connection cable for TV or VCR, Adobe PhotoShop LE image manipulation and creation software, Enroute Imaging QuickStitch panorama stitching software, Olympus Camedia Master Utility Software, and instruction manuals.
  • Page 8 Casio QV-3000, Nikon Coolpix 990 and the Olympus C-3030 Zoom Go to Page Two Click here to Olympus C-3030 Zoom...
  • Page 9 4 sec. sound on still images; (wave format) White balance iESP full-auto TTL, Manual (daylight, overcast, tungsten, fluorescent) Lens Olympus lens 6.5 - 19.5mm f 2.8 (Equivalent to 32 - 96mm lens on 35mm camera) Digital zoom Continuous 1-2.5x Photometric system...
  • Page 10 Exposure control Programmed auto exposure Aperture priority: Wide ; F2.8 - 11.0, Tele ; F2.8 - 11.0, 1/3EV steps Shutter priority: 1 - 1/800 sec. (used with mechanical shutter), 1/3EV steps Manual exposure: shutter speed up to 16 sec. +/- 2EV by 1/3EV steps exposure compensation Auto Bracketing: selectable from 1/3EV, 2/3 EV and 1EV;...
  • Page 11 Sequence mode 3.3 frames per sec., up to 5 frames in JPEG Modes Motion picture mode Format: QuickTime Movie (Motion JPEG) HQ: 320x240 pixels, 15frame/sec. up to approx. 46 sec. with 16MB SQ: 160x120 pixels, 15frame/sec. up to approx. 191 sec.
  • Page 12 Return To Steve's Reviews Index Note: All photographs and page content Copyright © 2000 Steve's Digicam Online, Inc. Nothing on this page may be used, distributed or copied without the author's prior permission.
  • Page 13 Screens & Menus Record mode screen showing onscreen data overlay. Starting in the upper left corner the "A" means Aperture Priority mode. It can also be "P" for Program, "S" for Shutter Priority or "M" for Manual record modes. The current aperture (F2.8) and shutter speed (1/30 sec). The upper right corner is the EV exposure compensation factor (0.0).
  • Page 14 This is the record screen when you press the MF (manual focus) button on the back. The slider scale can be set for feet or meters in the setup menu. When you switch back to autofocus the scale disappears. This is the recording screen when you are in the Movie mode - note the little icon of the...
  • Page 15 movie camera in the upper left. The flash is disabled, the sound is enabled and the default setting is for HQ quality. The green 15" indicates that there is enough memory on the card to record 15 seconds of video. Screen 1 of the options available during record mode.
  • Page 16 Drive options available are: Single frame mode Sequential mode, autofocus and exposure is set on first frame, up to 3.3 frames per second, TIFF mode not available Sequential mode with autofocus and exposure set inbetween every frame Selftimer/Remote Control mode Bracketed auto exposure mode White balance options for Automatic, Sunny, Cloudy, Incandescent and Flourescent.
  • Page 17 Enable or disable the digital zoom. Enable or disable the 4 second sound recording after each picture is taken. The last option is only available when using an Olympus brand SmartMedia card, this is the Panorama function.
  • Page 18 This is the Function submenu. Here you can enable any one of the special recording functions; Black&White, Sepia, Whiteboard or Blackboard. Page three of the recording options menu lets you format the memory card, enter the Mode Setup (see below) submenu, set the image quality (TIFF, SHQ, HQ, SQ1 or SQ2) and the mode used when you set the dial to the "ASM"...
  • Page 19 Page one of the Mode Setup submenu. Reset All parameters to default. Image sharpness (see next frame), image size for TIFF mode, image size for SQ1 mode and image size for the SQ2 mode. This is the image sharpness options; Hard, Normal or Soft.
  • Page 20 Page two of the Mode Setup submenu. Set the loudness of the beep tones. Enable or disable continuous autofocus. The Rec View option if enabled brings up the confirmation screen before saving the picture. The File Name option lets the camera sequentially number pictures no matter how many times the card is swapped or it can reset the numbering when a new card is inserted.
  • Page 21 Go to Page Three Click here to Olympus C-3030 Zoom Return To Steve's Reviews Index Note: All photographs and page content Copyright © 2000 Steve's Digicam Online, Inc.
  • Page 22 Nothing on this page may be used, distributed or copied without the author's prior permission.
  • Page 23 Playback Features & Menus Typical playback screen with the normal overlay data displayed. Battery condition, image quality (SHQ), date, time and frame number.
  • Page 24 This is the exposure information that is displayed when the "info" option is enabled. Besides the exposure data, the current folder and picture number is also displayed. Typical of all digicams, the C-3030 can display small thumbnails of the images stored on the SmartMedia card.
  • Page 25 To check critical focus, exposure or subject matter you can use the zoomed playback mode. By toggling the zoom lever you can enlarge the picture from 1x to 3x and then scroll around inside using the 4-way jog switch. Pressing the menu button during playback mode brings up the following two menu screens.
  • Page 26 or disables the display of the extended exposure data. The microphone icon enables the playback of the 4 second sound clips. Card setup is for deleting images or formatting the memory card. Choosing the Mode setup option brings up the following menu screen.
  • Page 27 0.6 or 1.0 stop increments), Selftimer and Remote. Burst mode is good for around 3fps up to five JPEG-compressed pictures, it is not useable in TIFF mode. When using an Olympus brand SmartMedia card there is also a special Panorama mode available. As...
  • Page 28 Filters or add-on lenses can be attached to the C-3030 using the Olympus CLA-1 adapter. Tiffen also makes an adapter that can be used on the C-3030, C-2020 and C-2000 cameras.
  • Page 29 Unfortunately Olympus decided not to package a set of NiMH batteries and charger this time. They did include two of their new lithium 3v battery packs that take the place of the four AA type batteries.
  • Page 30 Go to Sample Pictures Click here to Olympus C-3030 Zoom Return To Steve's Reviews Index Note: All photographs and page content Copyright © 2000 Steve's Digicam Online, Inc. Nothing on this page may be used, distributed or copied without the author's prior permission.
