The online User’s Manual installed on your tablet is the latest available at the ■ production time. Please check http://www.toshiba.co.jp/worldwide/ for the most up-to-date online User’s Manual. Safety Icons Safety icons are used in this manual to bring important information to your attention.
Page 2 11, 2012 Connecting the AC adaptor 1. Connect the power cord to the AC adaptor. 2-pin 3-pin Depending on the model, either a 2-pin or 3-pin AC adaptor will be bundled with the tablet. 2. Connect the AC adaptor’s DC output plug to the DC IN 19V jack on your tablet. 3.

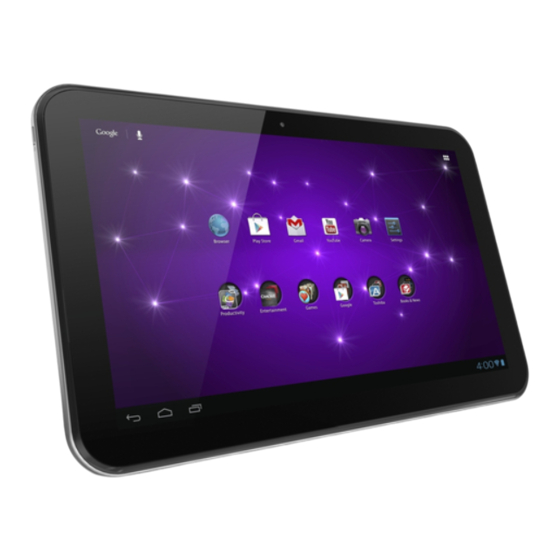

Page 3 11, 2012 Quick Tour The following figure shows each important part of your tablet. 1. Power button 7. Web Camera (front) 13. DC IN 19V jack 2. Multi function switch 8. Display screen 14. Speakers 15. Wireless communication antennas 3.
Page 4 11, 2012 When starting to use the tablet for the first time, there are a few basic settings that will need to be configured before the tablet is ready for use as detailed below: 1. Press and hold Power button on the tablet for approximately 2 seconds to turn on the power.
Page 6
Page 5 11, 2012 Item Description All Apps Tap to see all your apps and widgets. App shortcuts Tap to open an app. Back Return to the previous screen. Home Return to the default Home screen. Recent apps Tap to see the thumbnails of your recently used apps. System bar The System bar is located permanently at the bottom of the screen.
Page 6 11, 2012 9:24 Notes on the LCD Brightness Control The LCD screen brightness can be adjusted either manually or automatically. Under certain operating conditions, e.g., very high ambient temperatures, your tablet might automatically dim the LCD brightness in order to maintain a reasonable system temperature.
Cet appareil numérique de la class B respecte toutes les exgences du Règlement sur le matériel brouileur du Canada. Disposing of the Tablet and the Tablet's Battery Contact an authorized TOSHIBA service provider for details regarding how to dispose of the tablet and the battery. Information for Wireless Devices...
■ TOSHIBA Support If you require any additional help using your tablet or if you are having problems operating the tablet, you may need to contact TOSHIBA for additional technical assistance. Before you call Some problems you experience may be related to software or the operating system so it is important that you investigate other sources of assistance first.
Page 10 11, 2012 9:24 FCC Regulations: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 12
Page 9 11, 2012 Band Position (W/kg) WLAN2.4G Body(0cm Gap) IC Regulations: This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
