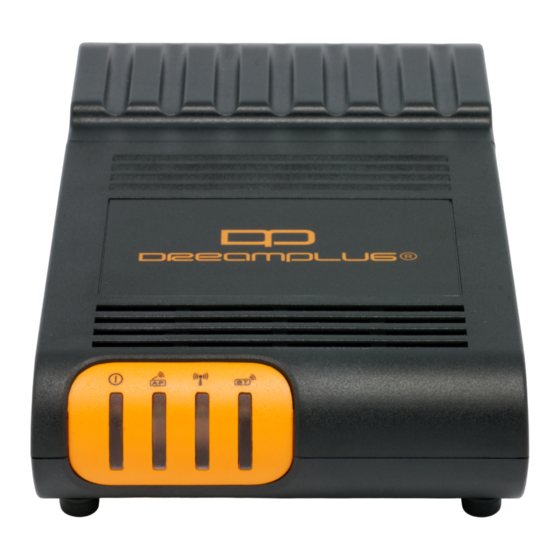

DreamPlug User Guide
Thank you for purchasing our DreamPlug – The Power to Innovate!
This is running at 2.4GHz yet using less than 10W power consumption. This little palm-sized powerhouse can handle all your
biggest tasks while still saving about 96% on energy costs when compared to the average 175 Watt desktop computer. You can
customize your Plug to work in almost any industry - Cloud Computing Home / Industrial Automation, Security/Surveillance,
Medical Monitoring and Data Capture , High End Audio Systems Network Storage and monitoring , VoIP and IPPBX Smart Grid
/Mesh . You can never have enough storage, not to mention fast access to all that data. That's why we have provided Wi-Fi,
Bluetooth, Gigabit Ethernet, USB 2.0 and eSATA connection options to the Server line of products. as the AUDIO INTERFACE,
the dreamplug can play the music or others data from this port to the external speaker or others devices.in a word, Go ahead
give us what you got, we can take it.

Package contents

DreamPlug Content List
1
DreamPlug
2
Detachable AC-DC Power Supply Unit
3
Detachable DC-DC Power Cable
4
Detachable AC Slider
5
Detachable AC Power Cord Adaptor
6
AC power Cord
7
Protective Slide Cover for DreamPlug
8
Protective Slide Cover for Power Supply Unit
9
Ethernet Cable
10
Warranty Card
11
Quick Reference Guide
12
External JTAG Debug Module
Note 1: All files will be available download:
Note 2: JTAG debug module is sold separately. It's highly recommended for you to purchase this module to use in programming and debugging.
Note3: This device has been integrated with internal antenna, no external antenna is needed. for more details of the antenna ,please refer to the EUT
Photo in the test report.
A. FOR INITIAL USE
1. To be used as a Plug Computer:
Remark
1 unit
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
No
Optional item. Not included
https://www.globalscaletechnologies.com/t-downloads.aspx
Quick Start Guide – DreamPlug page 1 / 11
GTI-2010.12.10

Advertisement

loading
Need help?

Need help?

Do you have a question about the DreamPlug and is the answer not in the manual?

Questions and answers

Related Manuals for GlobalScale DreamPlug

Summary of Contents for GlobalScale DreamPlug

  • Page 1: Package Contents

    Bluetooth, Gigabit Ethernet, USB 2.0 and eSATA connection options to the Server line of products. as the AUDIO INTERFACE, the dreamplug can play the music or others data from this port to the external speaker or others devices.in a word, Go ahead give us what you got, we can take it.
  • Page 2 Quick Start Guide – DreamPlug page 2 / 11 2. To Be Used as a “Desk Top” Computer.
  • Page 3 Quick Start Guide – DreamPlug page 3 / 11 3. To Have the “DreamPlug” Wall Mounted.
  • Page 4 Quick Start Guide – DreamPlug page 4 / 11 appearance and connecting ports DreamPlug Server Remark:the RJ45 can not work when direct connect to the computer it need to connect through the router then work. Ports description- DreamPlug Server Connection port...

  • Page 5: Led Indication Table

    Quick Start Guide – DreamPlug page 5 / 11 Ports description- DreamPlug Server C. LED indication D. LED indication table Color/ Pattern Description Power on LED Solid green Upon power on, this LED lights up WiFi AP mode Solid blue...
  • Page 6 Quick Start Guide – DreamPlug page 6 / 11 E. Connect to JTAG board 1. Connect 4 pin UART cable 2. Connect 8 pin JTAG cable 3. Connect Mini USB cable here. The other end to computer’s USB port. This is the standard 20pin JTAG connector which has the same pin signals as 8 pin cable This DC 2.5V is for Dream Plug CPU...
  • Page 7 Quick Start Guide – DreamPlug page 7 / 11 File name Description Where to get it Minicom Used as Board console Re-Install command: yum install minicom note 1: Fedora9 has a built-in minicom Ftdi_sio.ko FTDI device driver http://www.globalscaletechnologies.com/t-downloads.aspx module for Linux Ftdi_sio.ko...
  • Page 8 Now, you have the full control right of it. H. Wi-Fi / Bluetooth DreamPlug Server has a built-in WiFi module which is compliance with 8.2.11 b/g standard and Bluetooth 2.1 + Enhanced data rate (EDR). The WiFi works as both client and AP mode but only one at a time.
  • Page 9 Quick Start Guide – DreamPlug page 9 / 11 The default mode is AP mode every time when it powers on and can be switched to client mode manually by entering the setup page, please follow the procedures below to set-up the functionalities for WIFi and Bluetooth.
  • Page 10 7. Connected 8. Open internet browser, enter address: 192.168.1.1, you will see the web page as below. This is the setup page for this DreamPlug Server, please follow the instruction and link on the page for configuration.

  • Page 11: Download Sites

    Quick Start Guide – DreamPlug page 11 / 11 I. Download sites To download the files for Dreamuplug server, please visit: http://www.globalscaletechnologies.com/t-downloads.aspx Other useful resource links are: http://www.plugcomputer.org/ http://plugcomputer.org/plugwiki/index.php/GuruPlug the bluetooth and wifi module uses the same module,and the same antenna,when using the bluetooth,the wifi will not work and the same as the wifi,when using the wifi, the bluetooth will not work.
