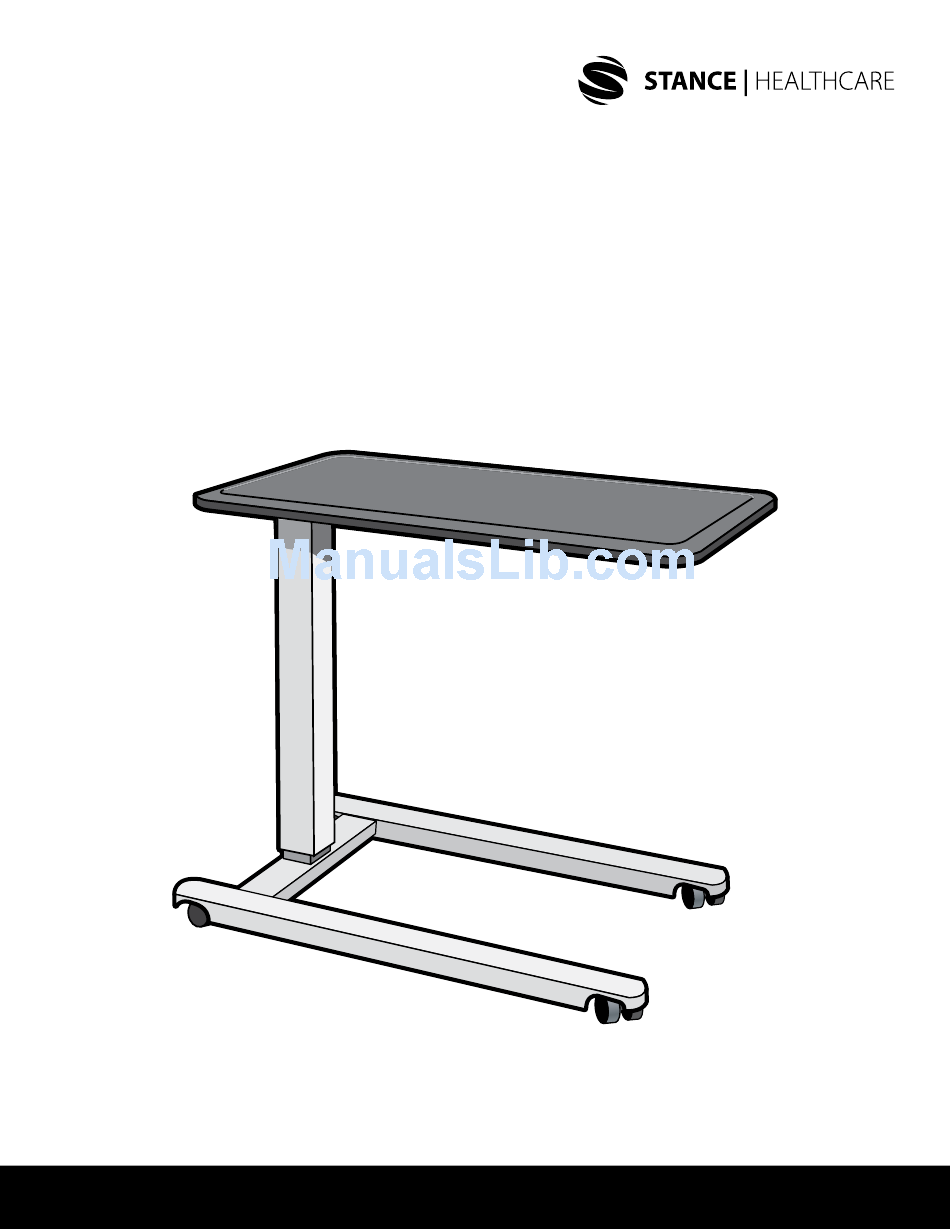

- Page 1 Victory Over Bed Table - Assembly, Maintenance and Parts Manual Your table may vary from this illustration 45 Goodrich Drive, Kitchener, Ontario, Canada N2C 0B8 tel 1.877.395.2623 fax 1.877.395.6270 www.stancehealthcare.com...
- Page 2 Thank you for your recent purchase of our Over Bed Table. Although this product is engineered to provide years of reliable performance, a little common sense maintenance and operational checks will help to keep it in top condition. Should any questions arise regarding the performance and maintenance of the table please call our toll-free line (877) 395-2623 for assistance.
- Page 3 A) Attaching the Casters to the Base 1) Lay the base upside down on a table surface. A clean sheet of cardboard or a blanket should be placed on the table to prevent scratching the finish. 2) Using a hammer and punch (or a strong hand) force each caster onto the grip ring stem until a snap is heard, and the axle housing rotates freely.
- Page 4 C) Attaching the Top to the Column Place the table top face down on the floor or table (again, be sure to use cardboard or a blanket to protect the top), and with the aid of an assistant carefully align the table support plate with the pilot holes in the table top.
- Page 5 Maintenance of your Over Bed Table A) Scheduled Service and Inspections Depending on frequency of use, the Over Bed table should receive scheduled service and inspections. 1) Casters should be cleared of debris to ensure that they swivel and roll smoothly. No lubrication is required.
- Page 6 3) Using a 13mm wrench, remove the M8 nut securing the gas spring. 4) With the aid of an assistant and a 6mm Allen key, detach the base from the column. 5) Lay the column on a table, and using a 4mm Allen key, now remove the locking screw securing the gas spring to the bottom end of the column.
- Page 7 7) Unthread the mounting bushing from the gas spring. 8) Installation of the new gas spring is done in the reverse order of removing the gas spring. - Page 7 -...
-
Page 8: Parts Diagrams
Parts Diagrams ITEM QTY. PART NUMBER DESCRIPTION 00111ST190C ST190C OVER THE BED TABLE BASE 001310231 TENTE 5920 PJ1 040 L51-10 LOW PROFILE CASTER - Page 8 -... - Page 9 Parts Diagrams SEE DETAIL A DETAIL A ITEM QTY. PART NUMBER DESCRIPTION 01112ST190 ST190 BASE COLUMN W/TOP PLATE M8X12mm HEX SOCKET CAP SCREW 5/16” SPLIT LOCK WASHER - Page 9 -...
- Page 10 Parts Diagrams SEE DETAIL A DETAIL A ITEM QTY. PART NUMBER DESCRIPTION 00116ST190 ST190 RELEASE PADDLE ASSEMBLY 00116ST190LS ST190 LATCH SPRING 00116ST190PR ST190 PADDLE RETAINER #8-32X1/4” BUTTON HEAD SOCKET SCREW - Page 10 -...
- Page 11 Parts Diagrams ITEM QTY. PART NUMBER DESCRIPTION 01213ST190 ST190 TABLE TOP W/INSERT NUTS #10-24X1/2” PAN HEAD MACHINE SCREW - Page 11 -...
-
Page 12: Warranty
Minimum Base Height: 2” Warranty: Stance Healthcare Inc. is pleased to warrant products it manufactures against defects in materials and workmanship for a period of two (2) years to the original purchaser beginning from the date the product was shipped to said purchaser. This warranty shall not apply to products that have been subjected to misuse, abuse, negligence, accidental damage, damage in transportation or improper maintenance.
