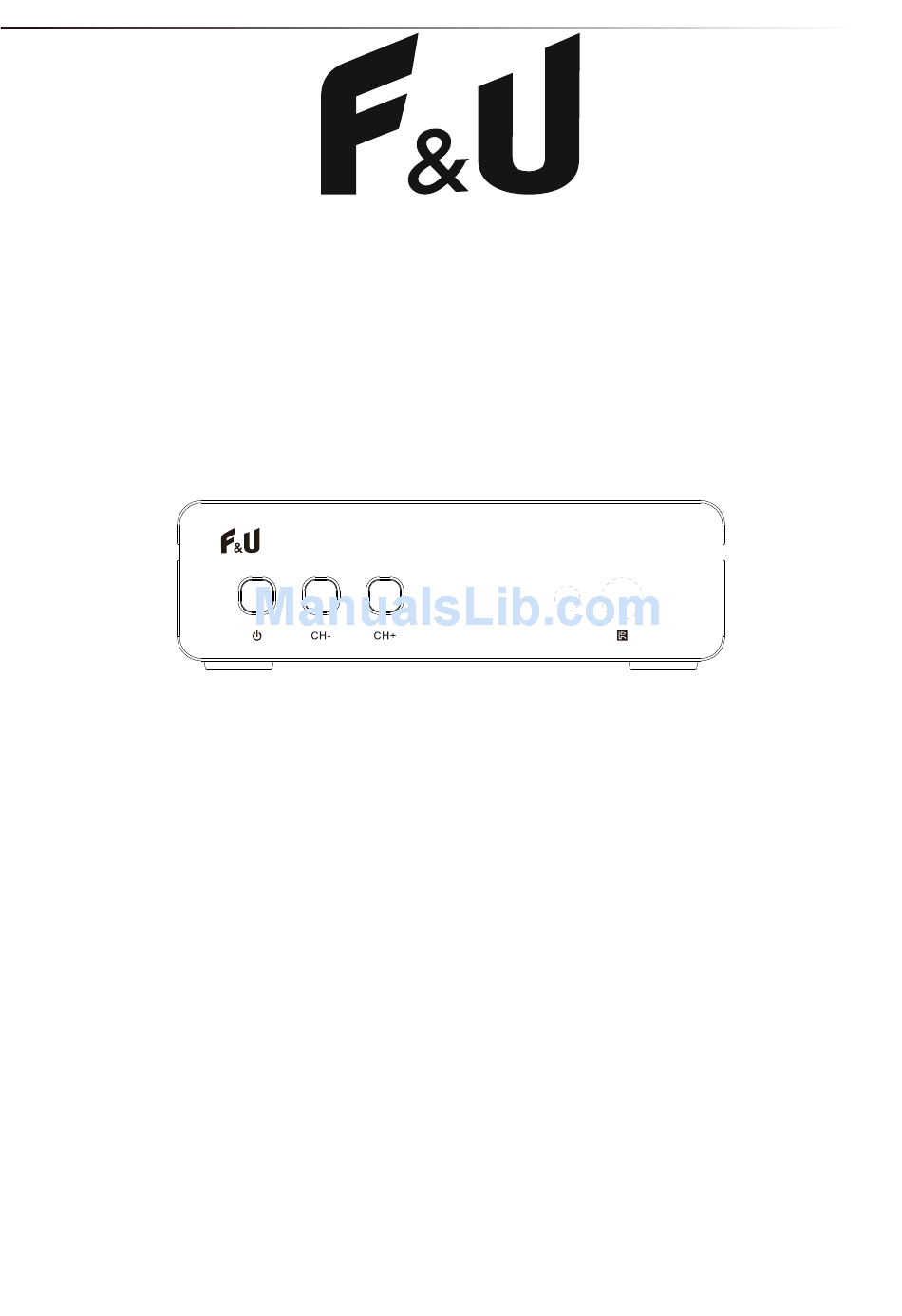

- Page 1 High Definition Digital Set Top Box MPF3573HU INSTRUCTIONS MANUAL SAVE THESE INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE...
- Page 2 Important Safety Instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Page 3 This symbol indicates that dangerous voltages constituting a risk of electric shock are present within this unit. This symbol indicates that there are important operating and maintenance instructions in the literature according this unit. This symbol indicates that this product incorporate& double insulation between hazardous mains voltage and user accessible parts.
-
Page 4: Table Of Contents
Table of Contents Front and Rear Panel ………………………………………………………………………………5 Remote Control ……………………………………………………………………………………6 Connecting to a Television…………………………………………………………………………8 First Time Installation ……………………………………………………………………………9 Troubleshooting …………………………………………………………………………………20... -
Page 5: Front And Rear Panel
Front and Rear Panel 1. Front panel 2.Rear panel... -
Page 6: Remote Control
Remote Control 1.POWER 2.AV/TV 3.VOL- 4.TV/RADIO 5.FAV 6.EPG 7.OK/CH+/CH-/VOL-/VOL+ 8.MENU 9.PAUSE 10.PLAY 11.<0>-<9> 12.TTX 13.POWER 14.SET 15.VOL+ 16.MUTE 17.AUDIO 18.INFO 19.EXIT 20.REW 21.STOP 22.FWD 23.REC 24.SUBTITLE Programming the remote control The decoder's remote control has 4 programmable keys via learning mode. For each of these keys, you can copy the functions in some buttons on the TV remote control. - Page 7 Installing the Batteries Remove the battery cover from the rear of the Remote Control and place 2xAAA size batteries inside the compartment. Please make sure the battery polarities match the polarity markings inside the compartment.
-
Page 8: Connecting To A Television
Connecting to a Television Antenna HDMI cable RF cable Make the connections as shown in the figure. -
Page 9: First Time Installation
First Time Installation After all connections have been made properly, switch on TV and make sure the unit is connected to the Main Power. Press Power button to switch the unit on. If you are using the unit for the first time or have restored the unit to factory default, the installation guide menu will appear on your TV screen. - Page 10 Set Favorite Channels You can create a short list of favorite programs that you can easily access. Set Favorite TV or Radio program: 1.Select your desired channel then press the FAVOURITE button. Choose a category to assign the channel and confirm with OK button. 2.Repeat the previous step to select more Favorite channels.
- Page 11 First Time Installation Lock a TV or Radio channel: 1.Select the preferred channel then press the YELLOW button. A lock-shaped symbol is displayed. The channel is now marked as locked. 2.Repeat the previous step to select more channels. 3.To confirm your settings and exit the menu, press the EXIT button. 4.Press the YELLOW button to disable the locked channels function.
- Page 12 (c).Sort [By Service Name] - Sort the channels in alphabetical order. [By Service ID] - Sort the channels according to the station. [By ONID] - Sort the channels according to ONID. (d) LCN (Logical channel number) Set LCN on or off (suggested as ON) (2).Picture Setting To access the Menu, press MENU then select [Picture] using the RIGHT/LEFT key.
- Page 13 First Time Installation (3)Channel Search To access the menu, press MENU and select [Search Channel] using the RIGHT/LEFT keys. This menu provides options to adjust the search channel settings. Press UP/DOWN to select an option and press RIGHT/LEFT to adjust the setting. Press EXIT to exit the menu.
- Page 14 2.Press the RIGHT/LEFT key to select the channel frequency. 3.Press OK to start searching channels. If a channel is found, it is saved and added to the channels list. If channels can not be found during searching, the unit will exit automatically. (c) Country Select your country of residence.
- Page 15 (a) OSD (On Screen Display) Language Select an OSO language. (b) Digital Audio Select the digital audio for watching TV channels. [PCM], [RAW HDMI ON], [RAW HDMI OFF], [OFF]. (6).System Setting To access the menu, press MENU and select [System] using the RIGHT/LEFT keys. The menu provides options to adjust the system settings.
- Page 16 (a) Parental control When DVB-T box is used by children it is possible to block certain programs, which are for adults. NOTE: this function must be supported by the channel. (b) Set Password Set or change the password for locked programs. Enter your old password or the default password ‘000000’.
- Page 17 (a) Multimedia: When a USB device is attached you can select from the Music, Photo, Movie or REC opitons in this menu using the RIGHT/LEFT keys and OK to select. If a USB device is not connected, the warning message “No USB device is Found” will appear. (b) Photo Configure: -Slide Time: adjust slide show interval to 1-8 seconds.
- Page 18 -Subtitle Font Color: [Red]: Displays Subtitle in red font. [Blue]: Displays Subtitle in blue font. [Green]: Displays Subtitle in green font. [White]: Displays Subtitle in white font. [Black]: Displays Subtitle in black font. (d)USB RECORDING. This function is available only when a USB storage device is connected to the receiver. Instant recording: If you want to start recording a live show, which is currently being broadcast, go to the desired channel and press the REC button.
- Page 19 •Select “OTHER RECORDING” in the “Mode” option. •Press EXIT. A few seconds before starting to record, a warning message with a count-down is displayed on screen, which will change to the programmed channel when the count-down ends. Once the recording has finished, a confirmation message appears on screen.
-
Page 20: Troubleshooting
- You can press [fast forward]/[fast back] to move in the current recording. Press [Stop] button to end the timeshift, and it will back to the normal playing of the program Troubleshooting Problem Potential Reasons What to do Power isn’t connected Connect the power No picture The power switch is not on... - Page 21 Technical Specifications Item Sub Item Parameter 170～230MHz Input Frequency 470～860MHz Tuner RF Input Level -78～20dBm IF Band width 6MHz/7MHz/8MHz Modulation QPSK, 16QAM, 64QAM MPEG4 AVC/H.264 HP@L4 Decoder Video Formats MPEG2 MP@ML.HL HEVC(H.265) Video Video Formats 576P, 720P, 1080I, 4:3 and 16:9 Output Port HDMI(V1.4) MPEG-1/MPEG-2/layer...
- Page 22 NOTICE ABOUT RECYCLING Your product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste. Please dispose of this equipment at your local community waste collection/ recycling centre.
