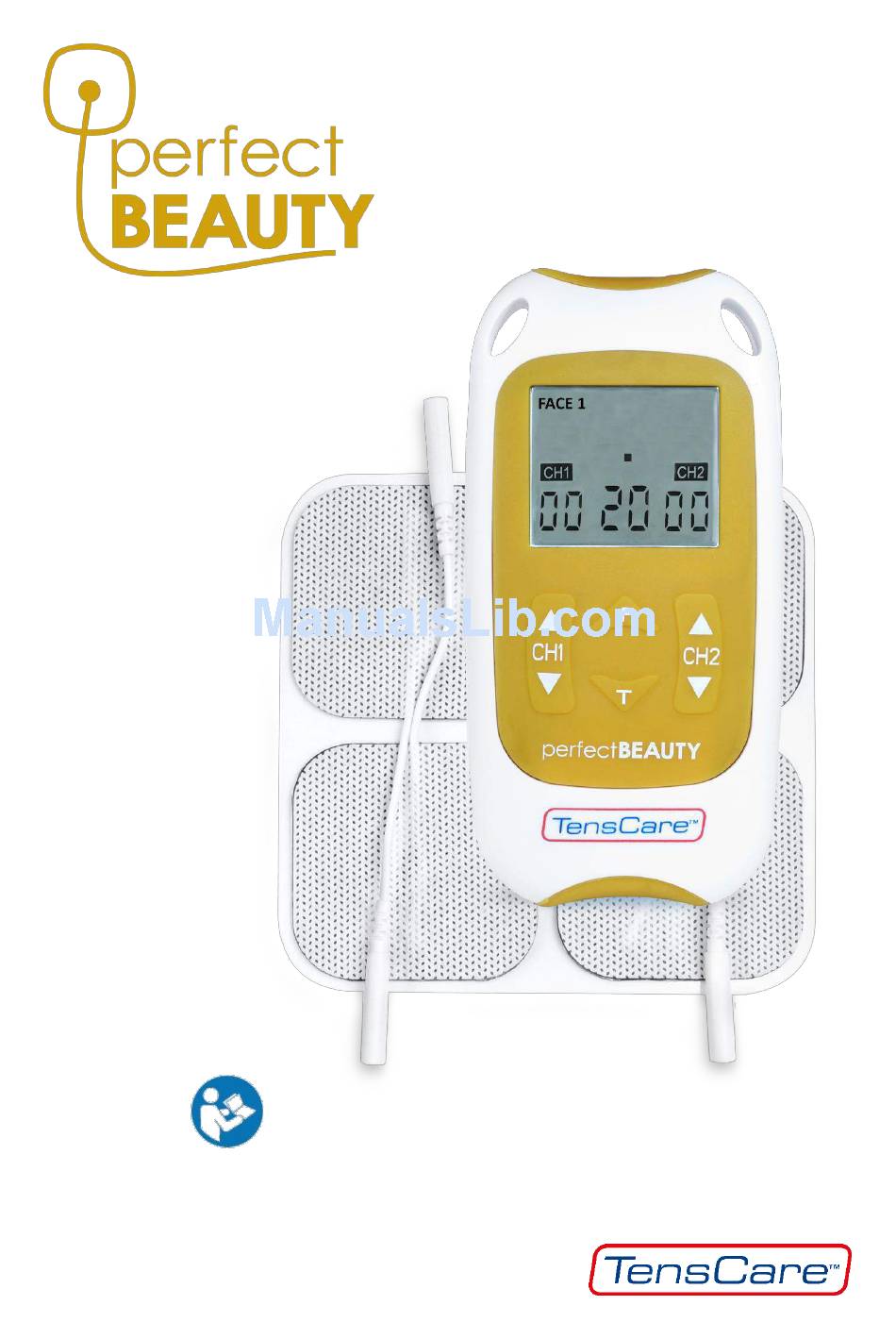

Page 1: Instructions For Use
INSTRUCTIONS FOR USE READ CAREFULLY BEFORE USE... - Page 2 QUICKSTART GUIDE Place the electrode pads around Connect the unit to the the area to be treated electrode pads Button P Press and hold the ON button to Select the programme by switch the device on pressing the button P Channel Channel 1 UP...
- Page 4 Dear Customer, Thank you for choosing perfect BEAUTY. TensCare stands for high- quality, thoroughly tested products for the applications in the areas of gentle electrotherapy, muscle toning, continence management and pain relief during labour. Please read these instructions for use carefully and keep them for later use, be sure to make them accessible to other users and observe the information they contain.
-
Page 5: Table Of Contents
9. CONTENT ......................22 UNIT INFORMATION ..................23 10.1. CONTROLS & DISPLAY ................. 23 10.2. OPERATING INSTRUCTIONS ..............24 SETTING UP AND USING THE PERFECT BEAUTY ........26 11.1. INSTALLATION OF BATTERIES ............. 26 11.2. CONNECTING LEAD WIRES ..............27 11.3. - Page 6 SYMBOLS USED Attention! Please follow the instructions in the user’s instructions for use. TYPE BF EQUIPMENT: Equipment providing a degree of protection against electric shock, with isolated applied part. Indicates that this device has conductive contact with the end user. This symbol on the unit means “Refer to instructions for use”.
-
Page 7: Introduction

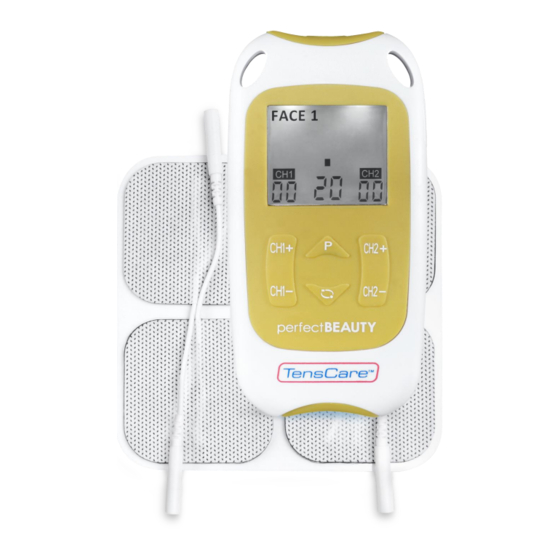

Device Description & Principles of • Dual Channel Design Two independent channels with four The perfect BEAUTY is a powered electrode pads to treat two areas at the muscle stimulator used for body toning same time. and shaping, as well as for the •... -
Page 8: How 'Ems' Works
Note: The electrode pads need Successful athletes all over the world to be applied directly to the skin have discovered the advantages of before the intensity increase electrical muscle stimulation, such as buttons will operate. If the Perfect an increase of the local circulation and BEAUTY detects the unit is not properly the size of the muscle fibres. -
Page 9: Contraindications, Warnings & Cautions
WARNINGS: 5. CONTRAINDICATIONS, WARNINGS & Do NOT use when driving, operating machinery, or similar CAUTIONS actions needing muscular control. Loose electrode pads, damaged leads, or sudden changes in In this manual: contact may cause brief involuntary Warning is used when failure to muscle movements. - Page 10 BEAUTY at high strength settings. tissue irritation. Prolonged use at high settings may cause muscle injury tissue inflammation. The Perfect BEAUTY is Note: Electrode pads supplied capable of delivering outputs in excess have measurable latex of 10 mA (RMS) or 10 V averaged over content.
-
Page 11: Information About The Programme Settings
& Relative Humidity of storage: millionths of a second) -20°C to +40°C, 8% to 70% R.H. The perfect BEAUTY unit has pulse Temperature & Relative Humidity of widths of 80 to 600 μs. Generally transportation: -20°C to +40°C, 8% to speaking, the higher the pulse width, 70% R.H. - Page 12 • Toning (40 Hz to 50 Hz) Each programme is a balanced mix of toning, firming, and shaping specifically Toning up working mainly on fast-twitch designed for the designated muscle fibres. group. • Definition and bulk (60 Hz to 100 Defining muscles in the arms and bust All the programmes except FACE 1 working mainly on explosive fibres.
-
Page 13: Programmes
7. PROGRAMMES 7.1. PRESET PROGRAMMES Programme Muscle group Description Special Feature FACE 1 Facial Quick Helps tone, firm, lift and Intensity limited to 40 Tone tighten the soft tissues of the face, counteracting Use with face electrode the effects of ageing. pads (see E-CM3050). -
Page 14: Programmes Settings
7.2. PROGRAMMES SETTINGS PROGRAMME 1: Facial Quick Tone Phase Total Time (min) Stimulation (s) Pause (s) Frequency (Hz) Pulse width (µs) Ramp (s) PROGRAMME 2: Facial Deep Tone Phase Total Time (min) Stimulation (s) Pause (s) Frequency (Hz) Pulse width (µs) Ramp (s) PROGRAMME 3: Abdominal Phase... - Page 15 PROGRAMME 5: Thighs Phase Total Time (min) Stimulation (s) Pause (s) Frequency (Hz) Pulse width (µs) Ramp (s) PROGRAMME 6: Bust/Pectorals Phase Total Time (min) Stimulation (s) Pause (s) Frequency (Hz) Pulse width (µs) Ramp (s) PROGRAMME 7: Arms Phase Total Time (min) Stimulation (s)
-
Page 16: Using The Programmes
The TensCare face electrode pads (see 7.3. USING THE E-CM3050) are designed to reduce any PROGRAMMES risk to a minimum. Some secondary effects may subsist but they should be FACIAL PROGRAMMES: temporary. The FACE 1 and FACE 2 programmes are a non-invasive option for helping lift... - Page 17 Recommended use: Perfect BEAUTY helps to tone, firm and lift the biceps as it allows you to Generally, 3 sessions per week, over a generate contractions in this specific period of 4 to 6 weeks, gives good initial muscle group.
-
Page 18: Electrode Pads
thighs and abdominal muscles, treating 8. ELECTRODE PADS one set one day and the other the next day. 8.1. PAD POSITIONING Warning: Working The electrode pads must always be many muscles at the same used in pairs (two electrode pads on time is not recommended. -
Page 19: Pad Advice
Perfect BEAUTY resets strength to normal condition. zero lead • The electrode pads provided are disconnected from your body. This latex-free. -
Page 20: Electrode Placement
8.3. ELECTRODE PLACEMENT The electrode pads placement is specific to the programme used. Please refer to the placement guidelines below. Note: The + electrode pad needs to be plugged in to the red lead wire connector, the – refers to the one for the black lead wire connector. FACE 1 and FACE 2 –... - Page 21 HIP – Pads placement THIGH – Pad placement 1 THIGH – Pad placement 2 BUST – Pad placement 1...
- Page 22 BUST – Pad placement 2 with the optional breast electrode pads (E-CMR60130) ARM – Pad placement 1 ARM – Pad placement 2 CALF – Pad placement...
-
Page 23: Content
9. CONTENT The pack contains: • 1 x Perfect BEAUTY multi-purpose muscle stimulator and body toner • 2 x Lead wires (L-CPT) • 4 x 50x50 mm electrode pads (E- CM5050) • 4 x 30x50 mm face electrode pads (E-CM3050) •... -
Page 24: Unit Information
10. UNIT INFORMATION 10.1. CONTROLS & DISPLAY ON/OFF Programme Programme selected phase Keypad Lock Work / Rest Low Battery Channel 2 Channel 1 strength strength Time Programme remaining selector Channel 1 strength UP Channel 2 strength UP Channel 1 strength DOWN Channel 2 strength DOWN Phase Skip... -
Page 25: Operating Instructions
To increase strength in steps of 1 mA, 10.2. OPERATING press and release the top part of the INSTRUCTIONS channel buttons, CH1+ and CH2+. ON/OFF The strength levels are shown on the LCD. To turn the unit ON, press the The strength control buttons will not ON/OFF button on the top of the unit operate until the unit is properly... - Page 26 When the unit is first switched on it automatically enters the programme OPEN CIRCUIT CUTOUT FACE 1. If the perfect BEAUTY is not correctly Each time you press and release the P connected to your body, the strength in button, the programme changes and the channel which is not properly the letter is shown on the LCD.
-
Page 27: Setting Up And Using The Perfect Beauty
Storage 11. SETTING UP AND USING THE PERFECT Remove batteries from your perfect BEAUTY if the unit is unlikely to be BEAUTY used for a long period. Some types of batteries may leak corrosive fluid. 11.1. INSTALLATION OF BATTERIES Battery Life Batteries should last about 48 hours at 1) Remove belt clip by sliding down. -
Page 28: Connecting Lead Wires
TensCare battery indication. Contact Skin Wipes (see E-CW50). If you are using the FACE programmes, Disposal: Always dispose of batteries clean the skin carefully before applying... -
Page 29: After Your Training Session
automatically select the programme you were using the last time it was 12. CLEANING & switched off. STORAGE 2) You can select from the 8 preset programmes. Details in section 7 will help you identify the best programme Clean the case and lead wires at least to suit you. -
Page 30: Disposal Of Waste Electrical And Electronic Products
To remind you of this back cover for contact details), by mail Directive all affected products are now order from TensCare, by telephone being marked with a crossed-out using a credit or debit card, or through wheelie bin symbol, as depicted below. -
Page 31: Warranty
TensCare Ltd. For hygiene reasons, please do not We will repair, or at our option replace include used electrode pads. Send only free of charge, any parts necessary to the unit and lead wires. -
Page 32: Troubleshooting
TensCare or your local supplier or distributor (address on back cover) for advice. Contact TensCare customer service on +44 (0) 1372 723 434. Our staff are trained to assist you with most issues you may have experienced, without the need to send your... -
Page 33: General Specification
18. GENERAL SPECIFICATION Waveform Asymmetrical Bi-Phasic Amplitude FACE over 500 Ohm load 40 mA zero to peak +ve in 40 steps. Other programmes over 1 90 mA zero to peak +ve in 90 steps +/- 10% kOhm load Modified constant charge control Output plug Fully shielded: touch proof Channels... - Page 34 PLEASE RETAIN THIS WARRANTY CARD. RETURN THIS PORTION ONLY WHEN YOU RETURN YOUR PRODUCT FOR REPAIR UNDER WARRANTY. NAME: ADDRESS: POSTCODE: DAYTIME TELEPHONE: E-MAIL: MODEL: DATE OF PURCHASE: ATTACH PROOF OF PURCHASE DO NOT SEND IN ELECTRODE PADS RETAILER’S NAME: RETAILER’S ADDRESS: RETAILER’S POSTCODE: BRIEF DESCRIPTION OF PROBLEM YOU ARE EXPERIENCING:...
- Page 35 TensCare aim to give you the best possible product and service. We listen to your suggestions and are constantly trying to improve our products. We also want to learn about the way our products are used, and the benefits they give. If you have anything you would like to share with us, please contact: www.tenscare.co.uk...
- Page 36 Distributed by: Manufactured by: TensCare Ltd, 9 Blenheim Road, Epsom, Surrey KT19 9BE, UK Tel: +44(0) 1372 723434 www.tenscare.co.uk Pub No.: I-PBEAUTY-UK Rev 1.0 08/17...
