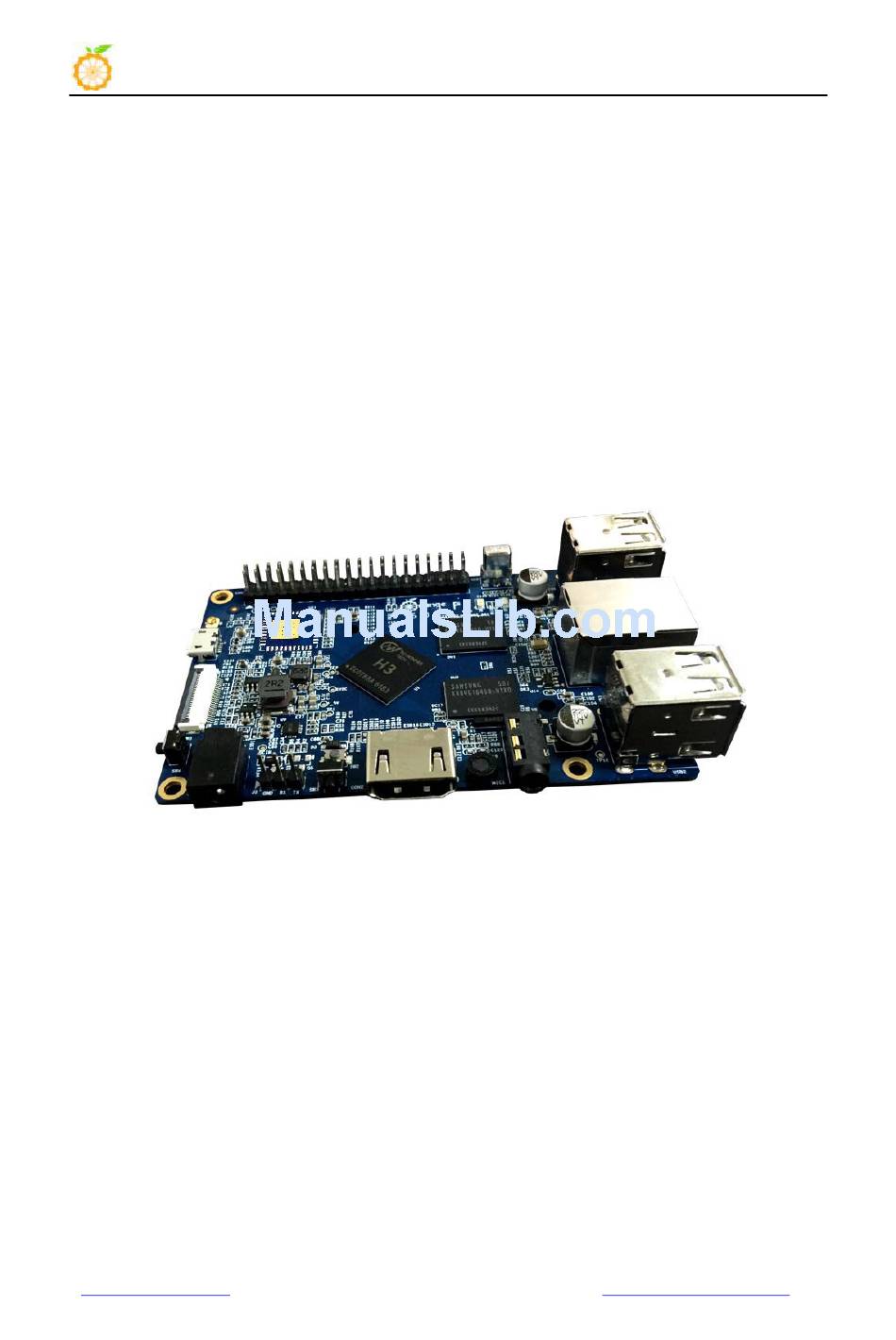

- Page 1 Orange Pi mini 2 User Manual Daehosemicon CO., Limited Orange Pi mini 2 User Manual <Version: V0.9 > www.orangepi.co.kr www.daehosemicon.co.kr ...
- Page 2 Orange Pi Mini 2 is for anyone who wants to start creating with technology – not just consuming it. It's a simple, fun, useful tool that you can use to start taking control of the world around you.
-
Page 3: Hardware Specification
Orange Pi mini 2 User Manual Daehosemicon CO., Limited Hardware specification H3 Quad-core Cortex-A7 H.265/HEVC 4K Mali400MP2 GPU @600MHz, Supports OpenGL ES 2.0 Memory (SDRAM) 1GB DDR3 (shared with GPU) ... -
Page 4: Interface Definition
Android, Ubuntu, Debian, Rasberry Pi Image Interface definition Product size 93mm × 60mm Weight Orange Pi™ is a trademark of the Daehosemicon CO., Limited Hardware Top view: www.orangepi.co.kr www.daehosemicon.co.kr ... -
Page 5: Bottom View
Orange Pi mini 2 User Manual Daehosemicon CO., Limited Bottom view: www.orangepi.co.kr www.daehosemicon.co.kr ... - Page 6 Orange Pi mini 2 User Ivianual Daehosemicon CO., Limited Interface: Top view Allwinner (ARM®Cortex -A7 Quad-core) 1.6GHZ headers Rece Two USB 100M Ethernet ...
- Page 7 Daehosemicon CO., Limited Orange Pi mini 2 User Manual Step 1: Get what you need To enjoy the use of your Orange Pi Mini 2, you will need at least the accessories in the table below. ...
- Page 8 In order to enjoy your Orange Pi Mini 2, you will need to install an Operating System (OS) onto a TF card. Instructions below will teach you how to write an OS image to your TF card under Windows and Linux.
- Page 9 Daehosemicon CO., Limited Orange Pi mini 2 User Manual iv. Check the TF card you inserted matches the one selected by the tool. v. Click the “Format” button. 3. Download the OS image from the Downloads webpage.
- Page 10 Daehosemicon CO., Limited Orange Pi mini 2 User Manual writing. Linux: 1. Insert your TF card into your computer. The size of TF should be larger than the OS image size, generally 4GB or greater.
- Page 11 Daehosemicon CO., Limited Orange Pi mini 2 User Manual How to Write an Android OS image to your TF card? Android OS image can not use the command under the Linux nor the Win32 Diskimager under Windows, you need to use PhoenixCard to make the TF card.
- Page 12 Daehosemicon CO., Limited Orange Pi mini 2 User Manual Successfully to format the TF card to normal, click the “OK” button. Then burn the Android OS image to your TF card. Pay attention to those red tag options.
- Page 13 Daehosemicon CO., Limited Orange Pi mini 2 User Manual Click the “Burn” button. Burn Android OS image to TF card successfully. Click “Exit”. www.orangepi.co.kr www.daehosemicon.co.kr ...
- Page 14 Orange Pi mini 2 User Manual Step3: Set up your Orange Pi Mini 2 According to the set up diagram below, you can easily set up your Orange Pi Mini 2. Hardware connect sketch map www.orangepi.co.kr www.daehosemicon.co.kr ...
- Page 15 Daehosemicon CO., Limited Orange Pi mini 2 User Manual Hardware connect physical map-top view www.orangepi.co.kr www.daehosemicon.co.kr ...
- Page 16 Daehosemicon CO., Limited Orange Pi mini 2 User Manual Hardware connect physical map-bottom view 1. Insert the written-image TF card into the TF card slot on the left edge of the downside of the board. 2. On the bottom edge in the middle of the board is the HDMI Type A (Full sized) port.
- Page 17 Orange Pi Mini 2 40-pin GPIO Orange Pi Mini 2 has a 40-pin GPIO header that matches that of the Model A and Model B Raspberry Pi. Following is the Orange Pi Mini 2 GPIO Pinout: www.orangepi.co.kr www.daehosemicon.co.kr...
- Page 18 Daehosemicon CO., Limited Orange Pi mini 2 User Manual Orange_Pi-Mini 2(H3) CON3-P01 VCC-3V3 CON3-P02 VCC-5V CON3-P03 TWI0-SDA PA12 CON3-P04 VCC-5V CON3-P05 TWI0-SCK PA11 CON3-P06 CON3-P07 PWM1 CON3-P08 UART3_TX PA13 CON3-P09 ...
- Page 19 The CSI Camera Connector is a 24-pin FPC connector which can connect external camera module with proper signal pin mappings. The pin definitions of the CSI interface are shown as below. This is marked on the Orange Pi Mini 2 board as “CON1″. ...
- Page 20 Daehosemicon CO., Limited Orange Pi mini 2 User Manual CON1-P18 CSI-D4 CON1-P19 CSI-D0 CON1-P20 CSI-D3 CON1-P21 CSI-D1 CON1-P22 CSI-D2 CON1-P23 CON1-P24 AFVCC-CSI www.orangepi.co.kr www.daehosemicon.co.kr ...
