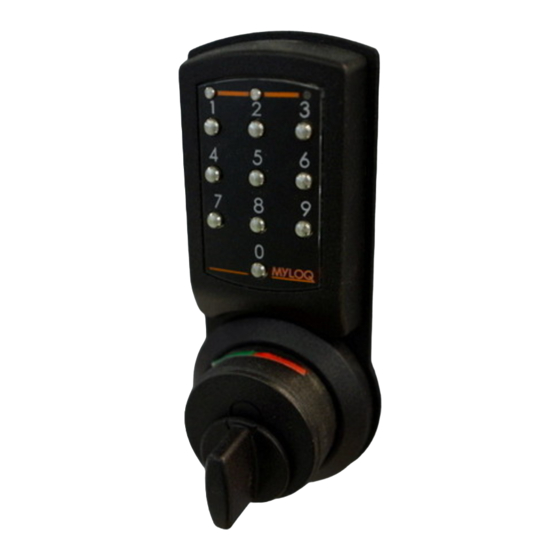

MYLOQ Code Cylinder 1101 Instruction Manual
  1. Manuals
  2. Brands
  3. MYLOQ Manuals
  4. Door locks
  5. Code Cylinder 1101
  6. Instruction manual

MYLOQ Code Cylinder 1101 Instruction Manual

Digital
Hide thumbs Also See for Code Cylinder 1101:
Table of Contents

Advertisement

Quick Links

MYLOQ 1101
Important information before use
To use the Code Cylinder, it has to be activated (see page 3).
An administration code has to be added. Be sure to write down the new
administration code and store it as a valuable document. If the code is
forgotten, the Code Cylinder can not be programmed.
For more information, www.myloq.com
info@myloq.com
www.myloq.com
Instruction Manual
MADE IN SWEDEN
Code Cylinder
®
GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Code Cylinder 1101 and is the answer not in the manual?

Questions and answers

Related Manuals for MYLOQ Code Cylinder 1101

Summary of Contents for MYLOQ Code Cylinder 1101

  • Page 1 An administration code has to be added. Be sure to write down the new administration code and store it as a valuable document. If the code is forgotten, the Code Cylinder can not be programmed. For more information, www.myloq.com MADE IN SWEDEN info@myloq.com...

  • Page 2: Table Of Contents

    Table of content Page 2 (12) Read this before you start using the Code Cylinder • The Code Cylinder is normally in a sleep mode to save batteries. That means that the keypad are unlit and nothing will happen when the buttons are pressed. Each time you are going to use the Code Cylinder you first need to wake it up, you do this by turning the thumb turn in one direction, and then back to the distinct rest position.

  • Page 3: Get Started

    Get started - Administrator code Page 3 (12) Get started Get started - Administrator code First of all you need to decide which administrator code to use for adding and changing codes. Decide on a code containing 6 digits and write it down on page 11 in this manual, or on another suitable place.

  • Page 4: User Codes

    Get started - User codes Page 4 (12) Get started - User codes You need to add at least one user code to be able to use the Code Cylinder – the administrator code cannot be used to lock/unlock. There is space for nine user codes and one temporary user code.

  • Page 5: To Use The Code Cylinder

    To use the Code Cylinder - Locking and unlocking Page 5 (12) To use the Code Cylinder Locking and unlocking A user code is needed to operate the Code Cylinder in the same way you need a key to operate an ordinary mechanical cylinder.

  • Page 6: Temporary User Code

    To use the Code Cylinder - Temporary user code Page 6 (12) Temporary user code The temporary user code (see programming steps on page 4) is activated and deactivated by using the programming button. The temporary code remains in the memory of the Code Cylinder (position 10) even when the code is deactivated.

  • Page 7: Administration

    Administration - Remove a user code / Change administrator code Page 7 (12) Administration Remove a user code • Wake the Code Cylinder up, se fig 1. • Press the programming button until you hear a short tone (takes about 5 seconds) and the green indication lights up, see fig 2. • Enter your administrator code. A short tone will follow and the indication light will flash green.

  • Page 8: Reset The Code Cylinder To Default State

    The Code Cylinder is now reset. All user codes including temporary codes are removed and the cylinder needs to be reprogrammed to be used again (see “Get started – administrator code”, page 3). At www.myloq.com you can print a new blank sheet for codes. What can go wrong? •...

  • Page 9: Batteries

    Batteries Page 9 (12) Batteries When the batteries are running low The batteries are normally good for several years but should be replaced after 3 years. The batteries have a limited sustainability even if not all the energy from the batteries is used up. Would the battery level drop low, the red indication light will flicker and the tones from button input change.

  • Page 10: Programming Menu

    Illustration of programming menu Page 10 (12)

  • Page 11: Codes

    CODES Page 11 (12) CODES Code 01 Code 02 Code 03 Code 04 Code 05 Code 06 Code 07 Code 08 Code 09 Code 10 - Temporary User Code Administrator Code...

  • Page 12: Codes

    For increased security change codes regularly. • Remember to deactivate the temporary user code. • Always leave the Code Cylinder with the thumb turn in the distinct rest position. For more information, www.myloq.com MYLOQ AB Redegatan 1A info@myloq.com S-426 77 Västra Frölunda www.myloq.com...
