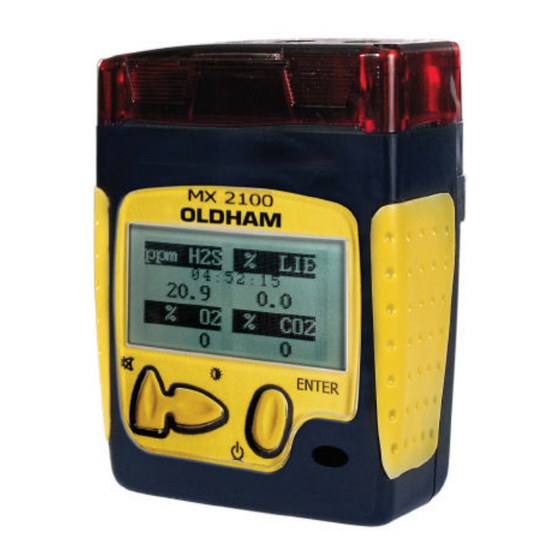

Oldham MX 2100 Operating And Maintenance Manual

Gas
Hide thumbs
Table of Contents

Advertisement

Quick Links

O
P
O
P
M
A
I
N
T
M
A
I
N
T
E
R
A
T
I
N
E
R
A
T
I
N
E
N
A
N
C
E
N
A
N
C
Réf.:
Code: 06 MT MX2100 GB02
G
A
N
D
G
A
N
D
E
M
A
N
E
M
A
N
CD00002
U
A
L
U
A
L

Advertisement

Table of Contents
loading

Related Manuals for Oldham MX 2100

Summary of Contents for Oldham MX 2100

  • Page 1 Réf.: CD00002 Code: 06 MT MX2100 GB02...
  • Page 2 OLDHAM S.A., even if it is involved in the sale of OLDHAM S.A. products. * OLDHAM S.A. cannot be held responsible for direct or indirect damage or be required to pay direct or indirect compensation resulting from the sale or use of any of its products IF THESE PRODUCTS HAVE NOT BEEN DEFINED AND CHOSEN BY OLDHAM S.A.

  • Page 3: Table Of Contents

    6.1. Electric pumping system BP2100 ..................8 6.2. Manual pumping system ....................8 6.3. The various probes ......................8 7. CARRYING THE MX 2100: OPTIONS .................. 9 Positioning the appliance ....................9 MX 2100 as beacon ......................9 MX 2100 on shoulder strap ....................9 8.
  • Page 4 9. PRINTING DATA (VIA COM 2100)..................17 III. SPECIAL INSTRUCTIONS FOR USE IN ATEX EXPLOSIVE ATMOSPHERES ..18 MAINTENANCE........................18 1. ACCESS TO MAINTENANCE MENUS ON MX 2100 ............19 Channel programming menu ..................19 1.2. Cell calibration menu......................21 1.3. Auto-zero menu ......................... 21 1.4.

  • Page 5: Introduction

    Average charging time: 2 hours 30 minutes 1.2. Memory saving A second lithium battery ensures the storage of the MX 2100's specific data, such as when the main battery set is completely discharged. This lithium battery has an average service life of five years.

  • Page 6: Layout Of Cells On Top Of Appliance: Examples Of Configuration

    EEPROM memory in which OLDHAM has stored the cell's specific characteristics (measuring range, various correction coefficients, STEL and TWA alarms, date of manufacture, serial number, etc.). Another item of data called the "wear rate" is used by the MX 2100 to automatically determine the optimal time to replace the cell.

  • Page 7: Visual Indications

    N.B. On option, the MX 2100 can be equipped with a vibrator. The MX 2100 can be equipped with a sampling system to measure gas concentrations either in normally inaccessible locations or before entering places which may be contaminated by gas (such as tanks, sewers or tunnels ).

  • Page 8: Carrying The Mx 2100: Options

    The MX 2100 can be connected to a computer via a cable equipped with an infrared port which is plugged into the charger module.

  • Page 9: Twincall" Calibration Station

    " " Checking of the MX 2100 can be performed using a testbench which delivers test gases to the MX 2100 in order to place the channels in alarm status. The MX 2100 detects the presence of the bench and indicates, on the display unit, the faulty channel or channels where alarms were not triggered.

  • Page 10: Reading Measurements

    If there are no toxic cells, the Oxygen and Explo. measurements will be displayed at the top of the dial. REMINDER: Before switching on the MX 2100, check that the necessary cells are connected. When you switch the appliance on, you have a choice of two procedures: •...

  • Page 11: Switching On With Choice Of Reference Explosive Gas

    The reference explosive gas is now the gas that was selected. If you do not validate any gas, after a certain time, the MX 2100 switches to the test phase and to the normal scanning phase without changing the reference gas, so that the procedure is aborted.

  • Page 12: Display Unit Lighting

    The display unit is then lit up in backlighting mode so the data can be read easily. This lighting is automatically deactivated after 30 seconds. The lighting function can be used in dangerous environments, i.e. containing explosive gases as the MX 2100 guarantees intrinsic safety.

  • Page 13: Roundsman" Function

    In this way, as soon as the predefined alarm thresholds are exceeded on at least one channel, the MX 2100 triggers an audio and light signal. The alarm message or messages (FAULT, ALARM, TWA, STEL, min., etc.) and the...

  • Page 14: Fault Alarms

    • Normal operating conditions can be restored by stopping and restarting the MX 2100. • Caution must be exercised in the area owing to the presence of explosive gases exceeding LEL.

  • Page 15: Acknowledging Fault Alarms

    8.3. Memorizing histogram measurements Depending on the version, the MX 2100 can memorize measurements so they can be restored later on a computer. The "Histogrammes" (Histograms) function can be used to output values and events memorized by MX 2100 during its operating period to a computer (a workstation, for example).

  • Page 16: Operating Principle

    To make the best possible use of the data output when histograms are printed, you must understand the operating principle of data memorization. Items memorized: The MX 2100 stores sets of data when it is switched on and then in cyclic mode. Each of these data sets has the same structure and contains the following: •...

  • Page 17: Special Instructions For Use In Atex Explosive Atmospheres

    All servicing, adjustment and maintenance operations must be performed by duly approved personnel. IMPORTANT: The MX 2100 is a safety appliance and, therefore, it must be calibrated at least once a year and according to its utilization. The user will automatically receive a maintenance reminder every six months.

  • Page 18: Access To Maintenance Menus On Mx 2100

    The access code is in four figures. Scroll to each figure with the "lighting" key, select the figure with the "Acknowledge" key and then validate the access code (given by Oldham) with the "ENTER" key. The list of available menus is then displayed:...
  • Page 19 Range coef., German German coef., LEL France Germany Standard coef. 'All gases' standard coef. 'All gases' Density Ethyl acetate C4H8O2 2.10% 2.20% 11.50% 1.70 1.05 1.62 1.00 Acetone C3H6O 2.15% 2.50% 0.00 0.00 0.00 1.05 Acetylene C2H2 1.50% 2.30% 100% 0.00 0.00 0.95...

  • Page 20: Cell Calibration Menu

    This menu is used to regularly calibrate the cells connected to the appliance. Calibration consists in adjusting the zero of the clean air cell (free of gas which may be detected by the MX 2100) and adjusting sensitivity with a standard gas of known characteristics (including content, etc.).

  • Page 21: Exit Menu

    This system automatically injects standard gases from two cylinders installed in the testbench in order to trigger the alarms. The MX 2100 detects the presence of the testbench and indicates the faulty channel or channels according to the test, on the display panel.
  • Page 22 When the installation operation has been completed and the components are in operation, your working conditions are extremely user-friendly using the available screens. See a few examples below. Opening screen "Fichier" (Menu) screen From the "Fichier" (Menu) window, you can open saved files, check and status sheets, and histograms on the computer.
  • Page 23 "Communication" screen This screen is used to select the port, the communication speed and the language used. "Fenêtre" (Window) screen This is used to select the type of screen.
  • Page 24 This provides the user with help in the event of problems with operation, consultation or display. MX 2100 connection When the MX 2100 is correctly connected to a computer by an infrared cord, this screen can be used to validate communication by looking on the "Connect" window.

  • Page 25: Charger Module

    • Connect the charging module to the top of the appliance as shown in the photo below and charge for at least 2 hours 30 minutes for completely discharged batteries. • This module can be supplied with power by the 230 V AC mains using an adapter unit or with DC power (12 to 30 V DC).

  • Page 26: Technical Characteristics

    Manufacturer: OLDHAM Function: Multi-risk gas detector Type: MX 21OO Configuration: • One to four cells (explosimetric, electrochemical, semiconductor, infrared (CO2) or katharometric cells) Gases detected: Explosive gases, toxic gases and oxygen Measurement: continuous on all cells in operation Cell: •...
  • Page 27 Marking in accordance with Electromagnetic Compatibility Directive 89/336/CEE: compliance with standard EN 50270. Explosive atmospheres ATEX 94/9/CE: Marking in accordance with Explosive Atmospheres Directive ATEX 94/9/CE: On MX 2100: OLDHAM Arras CE 0080 MX2100 II 1G II 2G I M1 I M2...

  • Page 29: Measuring Cells (Non-Exhaustive List)

    Explo. O2 2 yrs Katharo. Standard range (1) 100% 1000 2000 100% vol Accuracy (2) 0.03 Repeatability (3) Deviation of zero (4) < 0.5 % Response time (5) < 20 < 20 < 60 < 30 <70 < 80 < 90 <...
  • Page 31 OLDHAM ITALIA S.R.L. Italia ' (39) 011 38 013 71 7 (39) 011 38 066 13 paolo.pozzato@oldham.it...
