part

base with pad

3-wing knob with bolt

Fit bracket

strap

buckle bumper

ratchet with carabineer hook

hook

attachment strap

1/4" rope

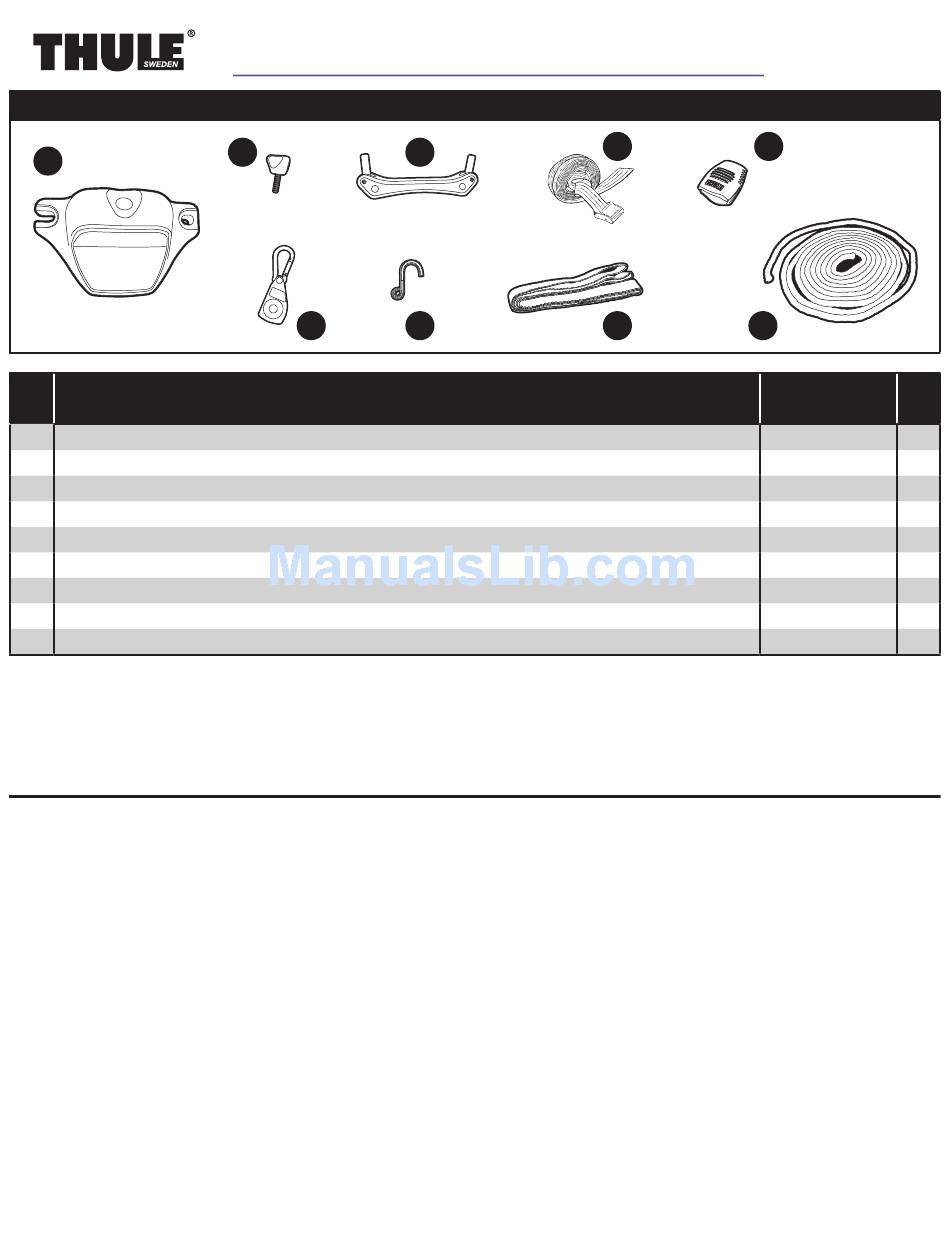

PORTAGE CANOE CARRIER

PARTS INCLUDED

description

819

part number

7521604001

7521606001

7521605001

753203002

8522883001

qty.

8535593

8535465

8535467

8535466

Table of Contents

Do you have a question about the 819 and is the answer not in the manual?

Page 1 PORTAGE CANOE CARRIER PARTS INCLUDED part description part number qty. base with pad 7521604001 3-wing knob with bolt 7521606001 Fit bracket 7521605001 strap 753203002 buckle bumper 8535593 ratchet with carabineer hook 8522883001 hook 8535465 attachment strap 8535467 1/4" rope 8535466...
Page 2 • Mount the load carrier bars as far apart as possible with a maximum of 36" apart. • An XAdapt 12 kit may be purchased to mount canoe carrier flush to Aeroblade bars. • Attach two 3-wing knobs with bolt to Flip-Fit bracket. •...
Page 3 • Place bracket on load bar with Thule brand logo facing outwards. • Tighten both knobs so that bracket is held in place. Bracket will Slide Flip-Fit bracket under load bar and rotate knob into slot on likely need to be moved to fit canoe.
Page 4 • Wrap strap over canoe and under load bar on both sides of canoe. Slide buckle bumper over metal buckle to prevent vehicle and canoe scratches. Thread end of strap through metal buckle by pushing down on lever and then pulling down to tighten. Re-cover buckle with buckle bumper.
Page 5 • Carefully attach hook to end of rope. • Attach hook to vehicle undercarriage or tow hooks. If no attachment points are available, purchasing a Thule Hood Loop strap (part 529) or Quick Loop strap (part 530) may provide a solution.
