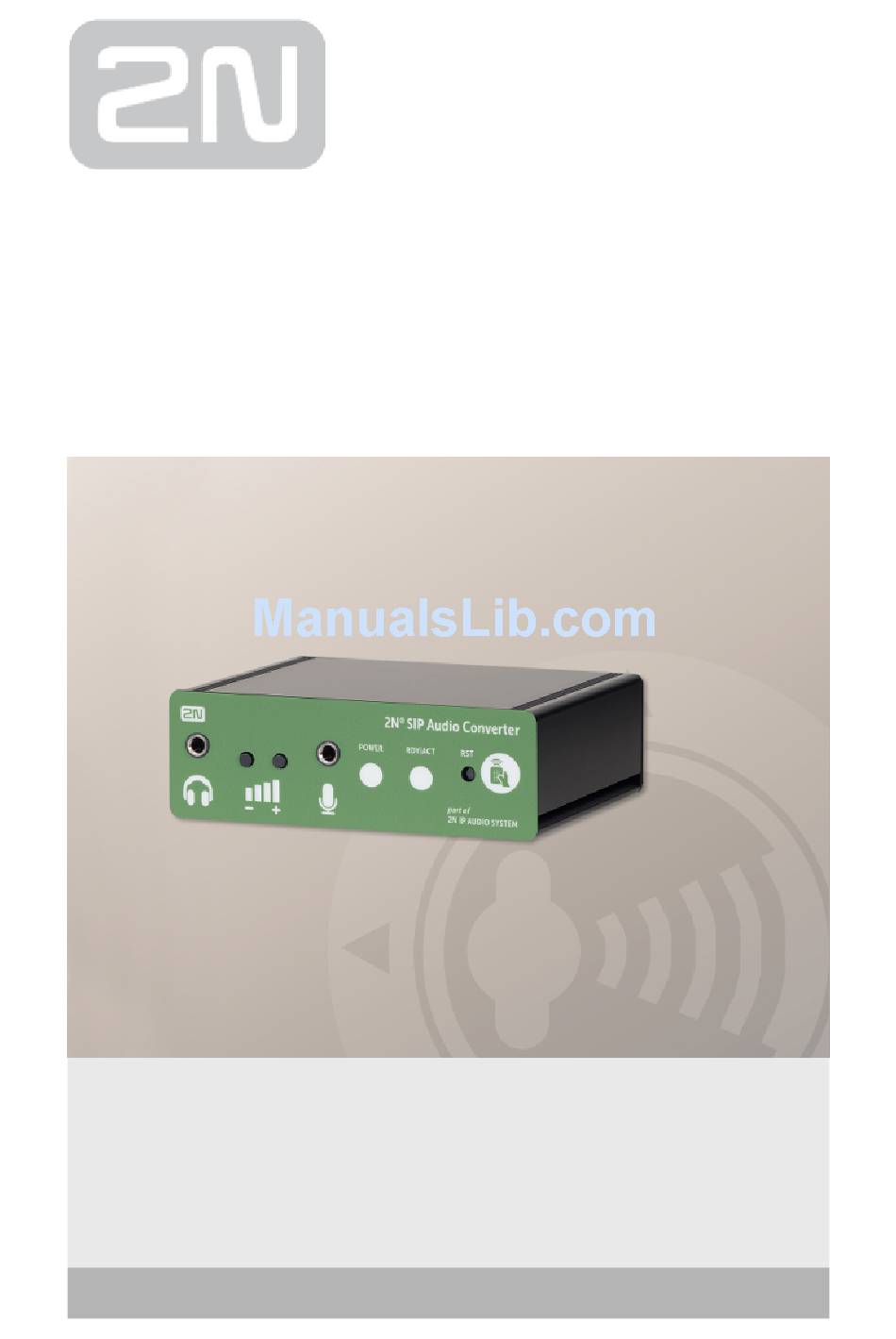

2N SIP Audio Converter
Public Address Paging
Installation Manual
Version:
2.9
www.2n.cz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIP Audio Converter and is the answer not in the manual?

Questions and answers

Related Manuals for 2N SIP Audio Converter

Summary of Contents for 2N SIP Audio Converter

  • Page 1 ® 2N SIP Audio Converter Public Address Paging Installation Manual Version: www.2n.cz...
  • Page 2 2N TELEKOMUNIKACE a.s. administers the FAQ database to help you quickly find information and to answer your questions about 2N products and services. On www. faq.2n.cz you can find information regarding products adjustment and instructions for optimum use and procedures „What to do if...".
  • Page 3 The 2N TELEKOMUNIKACE a.s. is the holder of the ISO 9001:2009 certificate. All development, production and distribution processes of the company are managed by this standard and guarantee a high quality, technical level and professional aspect of all our products.
  • Page 4 2.4 Product Description 3. Function and Use 3.1 Configuration 3.2 Default Reset 3.3 Basic Functions 3.4 Downloads 4. Technical Parameters 5. Supplementary Information 5.1 Troubleshooting 5.2 Directives, Laws and Regulations 5.3 General Instructions and Cautions 2N TELEKOMUNIKACE a.s., www.2n.cz 4/50...

  • Page 5: Product Overview

    The section also includes safety precautions. Here is what you can find in this section: 1.1 Components and Associated Products 1.2 Terms and Symbols 2N TELEKOMUNIKACE a.s., www.2n.cz 5/50...

  • Page 6: Basic Properties

    SIP-based sound decoder and converter ® with an amplifier. SIP Audio Converter communicates with the other audio system components via the SIP Proxy or directly via a specified address. Press the attached button to set up a call to up to three predefined numbers or addresses, with calls being transferred automatically at no answer.

  • Page 7: Advantages Of Use

    Operable in the Ethernet network Ethernet-based power supply – PoE Integrated administration web server 1 programmable button Streamed audio support Integrated calendar with programmable DAY/NIGHT/WEEKEND modes Applicable as standard VoIP telephone/communicator DTMF detection according to RFC2833, in-band and SIP-INFO 2N TELEKOMUNIKACE a.s., www.2n.cz 7/50...

  • Page 8: Basic Features

    12 V DC / 1,8 A or PoE 802.3af supply Integrated 30 W amplifier Line/headset output Colour LED operational status signalling Universal galvanically isolated output Universal galvanically isolated digital input Two volume control buttons Infrared remote control 2N TELEKOMUNIKACE a.s., www.2n.cz 8/50...

  • Page 9: Components And Associated Products

    IP audio decoder 18 W amplifier PoE / 12 V 10/100Base Ethernet terminals for connecting loudspeakers 4–16 Ohm support for SIP protocol Part No. 914490E Part No. 914490E ® Audio Converter set with speaker and mic 2N TELEKOMUNIKACE a.s., www.2n.cz 9/50...

  • Page 10: Power Supply

    Part No. 91341481E Stabilised 12 V / 2 A power supply needs to be used when no PoE is available. Part No. 932928 For external power supply of the lock with 12 V AC voltage. 2N TELEKOMUNIKACE a.s., www.2n.cz 10/50...

  • Page 11: Internal Units

    On the panel’s display not only can you find out who is at the door, but also start a conversation with the visitor, open the lock or turn on the light in the entrance hall. 2N TELEKOMUNIKACE a.s., www.2n.cz 11/50...

  • Page 12: Voip Telephones

    IP network. Touchscreen and keyboard control. Part No. 91378358 Grandstream GXV3275 VoIP telephone GXV3275 is the successor to the popular GXV3175 model, which allows comfortable video calls in the IP network. Touchscreen control. 2N TELEKOMUNIKACE a.s., www.2n.cz 12/50...

  • Page 13: Electric Locks

    BEFO 11211MB with mechanical blocking 12 V / 230 mA DC low consumption Enables mechanically close or open the lock. When opened, the lock is open all the time. When closed, it behaves as standart electrical lock. 2N TELEKOMUNIKACE a.s., www.2n.cz 13/50...
  • Page 14 When electricity is interrupted, the lock is opened. It contains a built-in contact to indicate whether the door is open or closed. ® FAQ: Electric locks – Difference between locks in 2N Helios IP accesories 2N TELEKOMUNIKACE a.s., www.2n.cz 14/50...
  • Page 15 External IP Relay – 4 outputs, PoE Standalone IP device which can be controlled by HTTP commands sent by Helios IP intercom, which can thus control devices on unlimited distance. Part No. 9159013 Exit button (suitable for Security relay) 2N TELEKOMUNIKACE a.s., www.2n.cz 15/50...
  • Page 16 Part No. 9154004 Water-proof metal button Hole diameter 19 mm, button diameter 22 mm. Part No. 914105E ® Mounting set for 2N SIP Audio Converter Side legs can be used to attach the device to any base. 2N TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 17 A wall-mounted 8 ohm loudspeaker can be connected as an ® loudspeaker to the Audio Converter . Available in black and white. For more accessories and particular advice please contact your local distributor of 2N products. 2N TELEKOMUNIKACE a.s., www.2n.cz 17/50...

  • Page 18: Terms And Symbols

    Warning Always abide by this information to prevent damage to the device. Caution Important information for system functionality. Useful information for quick and efficient functionality. Note Routines or advice for efficient use of the device. 2N TELEKOMUNIKACE a.s., www.2n.cz 18/50...

  • Page 19: Description And Installation

    ® In this section, we describe the Audio Converter product and its installation. Here is what you can find in this section: 2.1 Before You Start 2.2 Mechanical Installation 2.3 Electric Installation 2.4 Product Description 2N TELEKOMUNIKACE a.s., www.2n.cz 19/50...

  • Page 20: Before You Start

    1x 4-pin terminal block Quick User Manual Installation Conditions ® Audio Converter is to be connected to the LAN. ® Audio Converter is designed for indoor use. ® Audio Converter may not be operated in damp environment. 2N TELEKOMUNIKACE a.s., www.2n.cz 20/50...

  • Page 21: Mechanical Installation

    You can use the dowels and screws included in the delivery for wall mounting. Follow the instructions below while drilling the mounting holes. Mounting Holes 2N TELEKOMUNIKACE a.s., www.2n.cz 21/50...

  • Page 22: Electric Installation

    Two 4 Ω 2x 10 W 2x 5 W Two 8 Ω 2x 9 W 2x 5 W One 4 Ω 1x 18 W 1x 10 W One 8 Ω 1x 12 W 1x 10 W 2N TELEKOMUNIKACE a.s., www.2n.cz 22/50...

  • Page 23: Headset/External Amplifier Connection

    Use the L − R − terminals. Loudspeaker Connection Headset/External Amplifier Connection ® Audio Converter is equipped with a headset/external amplifier output. The 3.5 mm jack is available on the front panel. Audio Output Connection 2N TELEKOMUNIKACE a.s., www.2n.cz 23/50...

  • Page 24: Microphone/Line Connection

    24 V / 1 A AC/DC loads. By default, the output is in the NO (normally open) state. Digital Output Connection Warning Do not exceed the upper voltage and current limits to avoid irreversible damage of the equipment. 2N TELEKOMUNIKACE a.s., www.2n.cz 24/50...

  • Page 25: Digital Input Connection

    Audio Converter can be connected to a standard local area network using a LAN interface via the RJ-45 connector on the back panel. Always use CAT-5d or higher class cables for reliability reasons. LAN Connection 2N TELEKOMUNIKACE a.s., www.2n.cz 25/50...

  • Page 26: Power Supply Connection

    IEEE 802.3af standard. Note With PoE, the integrated amplifier power output is limited to 10 W. To ® utilise the maximum power output of the amplifier, feed 2N Audio Converter from a 12 V DC / 1.8 A external power supply.
  • Page 27 If you use an adapter other than the recommended one, do not exceed the nominal supply voltage value of 12 V. Also make sure that the supply voltage polarity is correct. Exceeding nominal values and/or incorrect connection may lead to irreversible damage of the equipment. 2N TELEKOMUNIKACE a.s., www.2n.cz 27/50...

  • Page 28: Product Description

    Audio Converter configuration. Apply the ® ® Helios IP Network Scanner to search all the Audio Converter units connected. 2N ® SIP Audio Converter Front and Back Panels ® Audio Converter Front and Back Panel 2N TELEKOMUNIKACE a.s., www.2n.cz 28/50...
  • Page 29 Headset/line output for standard earphones/external amplifier − and + volume control buttons Microphone input (use electrolytic microphone) Power up LED indicator Operational status LED indicators RESET button Infrared signal receiver for remote control and signal reception LED 2N TELEKOMUNIKACE a.s., www.2n.cz 29/50...

  • Page 30: Function And Use

    3. Function and Use ® This section provides the basic and extended functions of the 2N Audio Converter product. Here is what you can find in this section: 3.1 Configuration 3.2 Default Reset 3.3 Basic Functions 3.4 Downloads 2N TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 31: Description Of 2N ® Helios Ip Network Scanner

    ® server. Connect Audio Converter to the IP network and make sure that ® Audio Converter is powered. Description of 2N ® Helios IP Network Scanner purpose this application find dynamic address ® Audio Converter in the local IP network.
  • Page 32 Config . Set the requested static IP address or enable DHCP in the window. Default password for configuration: 2n. It is not possible to change the IP address of the devices on Refresh the grey backgroud. Select to find the devices again and verify that multicast is enabled in your network.

  • Page 33: Language Selection

    IP address entered, or, if applicable, check the way the IP address was obtained as described at the beginning of subsection Default Reset Language Selection You can select the language using the tag menu in the right-hand upper corner as shown in Figure below. Language Selection 2N TELEKOMUNIKACE a.s., www.2n.cz 33/50...

  • Page 34: Factory Default Reset

    Factory Default Reset with Static IP Address Use a thin rigid tool (toothpick or paperclip) to press the RESET button on the front panel. Do not disconnect the device from the power supply while resetting. Reset with Static IP Address 2N TELEKOMUNIKACE a.s., www.2n.cz 34/50...

  • Page 35: Factory Default Reset With Dhcp Client On

    Reset with DHCP ON Keep the RESET and – volume buttons pressed until the RDY/ACT LED stops flashing red and you can hear a beep (for approx. 18 s). Now release both the buttons. 2N TELEKOMUNIKACE a.s., www.2n.cz 35/50...

  • Page 36: Basic Functions

    3.3 Basic Functions 2N ® SIP Audio Converter Button Control ® Audio Converter is equipped with two buttons on the front panel. Volume Buttons ® Use these buttons to adjust the Audio Converter volume. 2N ® SIP Audio Converter Remote Control ®...

  • Page 37: Remote Controller Setting

    MAGIC button until the controller flashes twice. Press the following buttons sequentially: once the left button, once the right button, twice the middle button and once the left button. 2N ® SIP Audio Converter Status Signalling ® Audio Converter is equipped with colour LEDs on the front panel, which indicate operational statuses.

  • Page 38: Operational Status Signalling

    Used for calendar deactivation. Use this function, for example, to disable user group ringing in an office and forward the call(s) to a predefined telephone number (reception desk or user mobile phones). Refer to the Time Profiles subsection in configuration manual for deactivation code settings. 2N TELEKOMUNIKACE a.s., www.2n.cz 38/50...
  • Page 39 A successful launch is signalled by this tone combination. Connected to LAN, IP address received ® When the internal application has been launched, 2N Audio Converter logs into the LAN. A successful login is signalled by this tone combination.
  • Page 40 You can set a call time limit in Audio Converter to avoid call blocking. Push a button on your VoIP telephone to prolong the call. ® Connected call when calling from a telephone to 2N Audio Converter ® When calling from your VoIP telephone to Audio...
  • Page 41 Software ® Helios IP network scanner 3.0.4 2N TELEKOMUNIKACE a.s., www.2n.cz 41/50...

  • Page 42: Mechanical And Electrical Parameters

    Amplifier power output: Loudspeaker 12 V / 2 A 2x 4 Ω 2x 10 W 2x 5 W 2x 8 Ω 2x 9 W 2x 5 W 1x 4 Ω 1x 18 W 1x 10 W 2N TELEKOMUNIKACE a.s., www.2n.cz 42/50...
  • Page 43 Digital input: Only external contact needed Supported protocols: SIP2.0, SIPS (TLS), DHCP opt. 66, SMTP, 802.1x, RTSP, RTP, SRTP, TFTP, HTTP, HTTPS, Syslog, ONVIF Audiocodecs: G.711 (PCMA, PCMU), G.729 (Annex A, B), G.722, L16 / 16 kHz 2N TELEKOMUNIKACE a.s., www.2n.cz 43/50...

  • Page 44: Supplementary Information

    5. Supplementary Information Here is what you can find in this section: 5.1 Troubleshooting 5.2 Directives, Laws and Regulations 5.3 General Instructions and Cautions 2N TELEKOMUNIKACE a.s., www.2n.cz 44/50...

  • Page 45: Troubleshooting

    5.1 Troubleshooting For the most frequently asked questions refer to faq.2n.cz 2N TELEKOMUNIKACE a.s., www.2n.cz 45/50...

  • Page 46: Directives, Laws And Regulations

    5.2 Directives, Laws and Regulations Europe ® SIP Audio Converter conforms to the following directives and regulations: Directive 1999/5/EC of the European Parliament and of the Council, of 9 March 1999 - on radio equipment and telecommunications terminal equipment and the mutual...
  • Page 47 Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. 2N TELEKOMUNIKACE a.s., www.2n.cz 47/50...

  • Page 48: General Instructions And Cautions

    The consumer shall, at its own expense, obtain software protection of the product. The manufacturer shall not be held liable and responsible for any damage incurred as a result of the use of deficient or substandard security software. 2N TELEKOMUNIKACE a.s., www.2n.cz 48/50...

  • Page 49: Electric Waste And Used Battery Pack Handling

    Make sure that the devices to be disposed of are complete. Do not throw battery packs into fire. Battery packs may not be taken into parts or short-circuited either. 2N TELEKOMUNIKACE a.s., www.2n.cz 49/50...
  • Page 50 2N TELEKOMUNIKACE a.s. Modřanská 621, 143 01 Prague 4, Czech Republic Phone: +420 261 301 500, Fax: +420 261 301 599 E-mail: sales@2n.cz Web: www.2n.cz v2.9 2N TELEKOMUNIKACE a.s., www.2n.cz 50/50...
