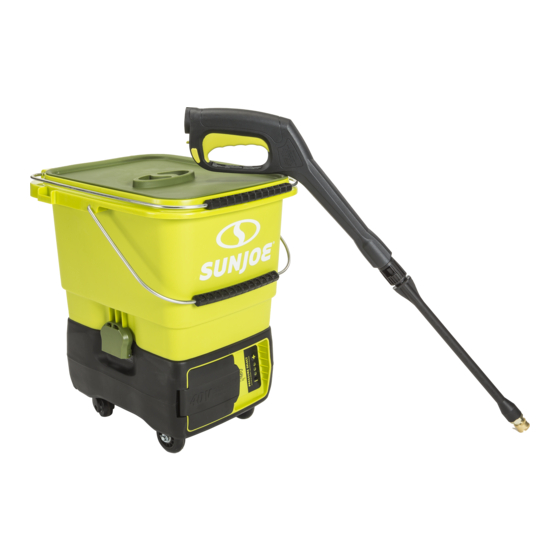

sunjoe SPX6000C-XR Operator's Manual

sunjoe SPX6000C-XR Operator's Manual

Cordless go-anywhere pressure washer 40 v max,1160 psi,pressure select

Advertisement

A Division of Snow Joe
, LLC
®

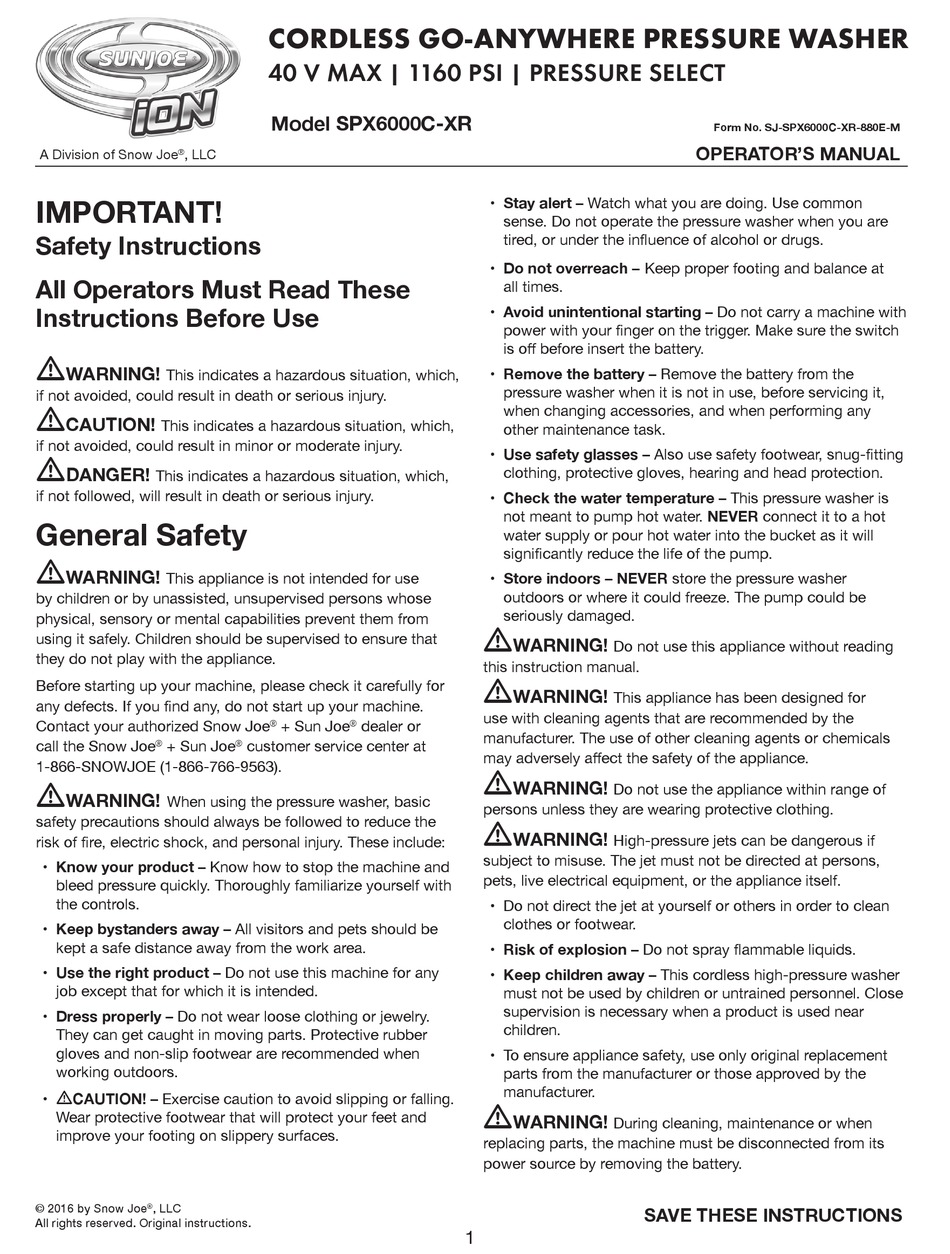

IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
m
WARNING!
This indicates a hazardous situation, which,
if not avoided, could result in death or serious injury.
m
CAUTION!
This indicates a hazardous situation, which,
if not avoided, could result in minor or moderate injury.
m
DANGER!
This indicates a hazardous situation, which,
if not followed, will result in death or serious injury.
General Safety
m
WARNING!
This appliance is not intended for use
by children or by unassisted, unsupervised persons whose
physical, sensory or mental capabilities prevent them from
using it safely. Children should be supervised to ensure that
they do not play with the appliance.
Before starting up your machine, please check it carefully for
any defects. If you find any, do not start up your machine.
Contact your authorized Snow Joe
call the Snow Joe
+ Sun Joe
®
1-866-SNOWJOE (1-866-766-9563).
m
WARNING!
When using the pressure washer, basic
safety precautions should always be followed to reduce the
risk of fire, electric shock, and personal injury. These include:
• Know your product – Know how to stop the machine and
bleed pressure quickly. Thoroughly familiarize yourself with
the controls.
• Keep bystanders away – All visitors and pets should be
kept a safe distance away from the work area.
• Use the right product – Do not use this machine for any
job except that for which it is intended.
• Dress properly – Do not wear loose clothing or jewelry.
They can get caught in moving parts. Protective rubber
gloves and non-slip footwear are recommended when
working outdoors.
CAUTION! – Exercise caution to avoid slipping or falling.
m
Wear protective footwear that will protect your feet and
improve your footing on slippery surfaces.
© 2016 by Snow Joe
, LLC
®
All rights reserved. Original instructions.
CORDLESS GO-ANYWHERE PRESSURE WASHER
40 V MAX | 1160 PSI | PRESSURE SELECT
Model SPX6000C-XR
+ Sun Joe
dealer or
®
®
customer service center at
®
• Stay alert – Watch what you are doing. Use common
sense. Do not operate the pressure washer when you are
tired, or under the influence of alcohol or drugs.
• Do not overreach – Keep proper footing and balance at
all times.
• Avoid unintentional starting – Do not carry a machine with
power with your finger on the trigger. Make sure the switch
is off before insert the battery.
• Remove the battery – Remove the battery from the
pressure washer when it is not in use, before servicing it,
when changing accessories, and when performing any
other maintenance task.
• Use safety glasses – Also use safety footwear, snug-fitting
clothing, protective gloves, hearing and head protection.
• Check the water temperature – This pressure washer is
not meant to pump hot water. NEVER connect it to a hot
water supply or pour hot water into the bucket as it will
significantly reduce the life of the pump.
• Store indoors – NEVER store the pressure washer
outdoors or where it could freeze. The pump could be
seriously damaged.
m
WARNING!
Do not use this appliance without reading
this instruction manual.
m
WARNING!
This appliance has been designed for
use with cleaning agents that are recommended by the
manufacturer. The use of other cleaning agents or chemicals
may adversely affect the safety of the appliance.
m
WARNING!
Do not use the appliance within range of
persons unless they are wearing protective clothing.
m
WARNING!
High-pressure jets can be dangerous if
subject to misuse. The jet must not be directed at persons,
pets, live electrical equipment, or the appliance itself.
• Do not direct the jet at yourself or others in order to clean
clothes or footwear.
• Risk of explosion – Do not spray flammable liquids.
• Keep children away – This cordless high-pressure washer
must not be used by children or untrained personnel. Close
supervision is necessary when a product is used near
children.
• To ensure appliance safety, use only original replacement
parts from the manufacturer or those approved by the
manufacturer.
m
WARNING!
During cleaning, maintenance or when
replacing parts, the machine must be disconnected from its
power source by removing the battery.
1
Form No. SJ-SPX6000C-XR-880E-M
OPERATOR'S MANUAL
SAVE THESE INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPX6000C-XR and is the answer not in the manual?

Questions and answers

Summary of Contents for sunjoe SPX6000C-XR

  • Page 1 CORDLESS GO-ANYWHERE PRESSURE WASHER 40 V MAX | 1160 PSI | PRESSURE SELECT Model SPX6000C-XR Form No. SJ-SPX6000C-XR-880E-M OPERATOR’S MANUAL A Division of Snow Joe , LLC ® IMPORTANT! • Stay alert – Watch what you are doing. Use common sense.
  • Page 2: Battery & Charger Safety Instructions

    not wire a battery pack to a power supply plug or car cigarette WARNING! High-pressure hoses, fittings, and lighter. Such misuse will permanently disable or damage the couplings are important for the safe operation of the appliance. battery pack. Use only hoses, fittings, and couplings recommended by the •...
  • Page 3 • Do not disassemble – Incorrect reassembly may pose 8. Protect batteries and the tool from overloads. Overloads a serious risk of electric shock, fire or exposure to toxic will quickly result in overheating and cell damage inside battery chemicals. If the battery or charger are damaged, the battery housing even if this overheating is not contact an authorized Snow Joe + Sun Joe...
  • Page 4: Product Description

    Risk of Explosion 9. Charging batteries at a temperature below 50°F (10°C) will cause chemical damage to the cells and may cause a fire. • Do not spray flammable liquids. 10. Do not use batteries that have been exposed to heat •...
  • Page 5: Safety Symbols

    Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S MANUAL(S) – Read, understand, SAFETY ALERT –...
  • Page 6: Technical Data

    Know Your Cordless Pressure Washer Read the owner’s manual and safety instructions carefully before operating the cordless pressure washer. Compare the illustration below to the cordless pressure washer in order to familiarize yourself with the location of the various controls and adjustments.
  • Page 7: Carton Contents

    Unpacking Assembly Carton Contents 1. The washer must be used on a secure and stable surface in a standing, upright position (Fig. 1). • Water bucket assembly • Base unit Fig. 1 • Trigger gun • Spray wand • Four (4) Quick-Connect nozzles (0º, 15º, 25º, and 40º) •...
  • Page 8 Fig. 3 Fig. 5 Trigger gun holder 1. Flip up Bucket buckle 2. Press the end WARNING! When the water bucket is fixed on the base unit, do not lift the pressure washer by the handle. Instead, use the tow handle to pull the pressure washer unit along on its 4.
  • Page 9 7. Unlock the lock latch by moving it down, and insert the Fig. 10 high pressure hose into the high pressure hose connection on the end of the trigger gun. Slide the latch back to lock the hose in place (Figs. 8 – 9). Fig.
  • Page 10: Battery Pack Operation

    Battery Pack Operation • Use the battery charge indicator lights to determine when to charge your EcoSharp iBAT40XR lithium-ion battery pack. ® The equipment is powered by a lithium-ion battery. The battery • You can "top-off" your battery pack's charge before starting pack is completely sealed and maintenance free.
  • Page 11 3. Place the battery pack into the charger by sliding the 7. When charging is complete, remove the battery from the pack as shown to lock it into position. When you insert charger by pulling the push lock button and sliding the the battery into the charger, the bottom red light will battery backward to unlock it from the charger (Fig.
  • Page 12 The TSS system will work only when there's water in the the buckles to ensure the bucket is securely connected before using (Figs. 4 – 5). bucket or the base unit is connected with a water supply. When there's no water connected with the unit, the On/Off NOTE: If you do not want to use the bucket, you can use button has to be pressed to stop the unit.
  • Page 13 6. If only using the base unit, turn the water supply tap on 9. When re-starting the motor, always keep the trigger completely. pressed. 7. Push the safety lock on the spray gun handle, then press NOTE: The motor only runs when the trigger is operated the trigger for a few seconds until the water flow is steady.
  • Page 14: Working With Detergents

    Working with Detergents 4. Turn on the pressure washer. Pull the trigger to operate the unit. When cleaning with the pressure washer, some cleaning tasks CAUTION! Always test the detergent in an can be solved with water alone, but for most tasks cleaning inconspicuous area before use.
  • Page 15: Taking A Break

    I) The 0º intense-jet nozzle (orange) is an extremely WARNING! Turn off the water supply and squeeze the powerful nozzle that delivers a high-pressure, pencil- trigger to depressurize the unit. Failure to do so could result in point jet stream. It is used to cut heavy dirt deposits personal injury due to discharge of high-pressure water.
  • Page 16: Recycling The Washer

    Maintenance 3. Remove additional debris by back flushing water through the nozzle and spray wand. To do this, place the end of your garden hose (with water running) to the tip of the CAUTION! Before working on the pressure washer, nozzle, pushing water and debris out of the back opening remove the battery from the compartment.
  • Page 17: Service & Support

    If your Sun Joe iON SPX6000C-XR cordless pressure washer ® Class B device: requires service or maintenance, please call the Snow Joe ®...
  • Page 18: Troubleshooting

    Troubleshooting • Remove the battery from the compartment before carrying out maintenance on the machine or when checking that its parts are in proper working order. • To avoid unnecessary hassles, consult the following table before contacting customer service with any mechanical issues. Problems Possible Cause Possible Solution...
  • Page 19: Optional Accessories

    Optional Accessories WARNING! ALWAYS use only authorized Snow Joe + Sun Joe replacement parts and accessories. NEVER use ® ® replacement parts or accessories that are not intended for use with this cordless pressure washer. Contact Snow Joe ® Sun Joe if you are unsure whether it is safe to use a particular replacement part or accessory with your pressure washer.
  • Page 20 NOTES...
  • Page 21 NOTES...
  • Page 22 NOTES...
  • Page 23 SNOW JOE + SUN JOE CUSTOMER PROMISE ® ® ABOVE ALL ELSE, Snow Joe + Sun Joe are dedicated to you, our customer. We strive to make your experience as pleasant ® ® as possible. Unfortunately, there are times when a product does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us.
  • Page 24 snowjoe.com WARNING! This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. WARNING! This product or its power cord contains chemicals, including lead, known to the State of California to cause cancer and birth defects or other reproductive harm.
