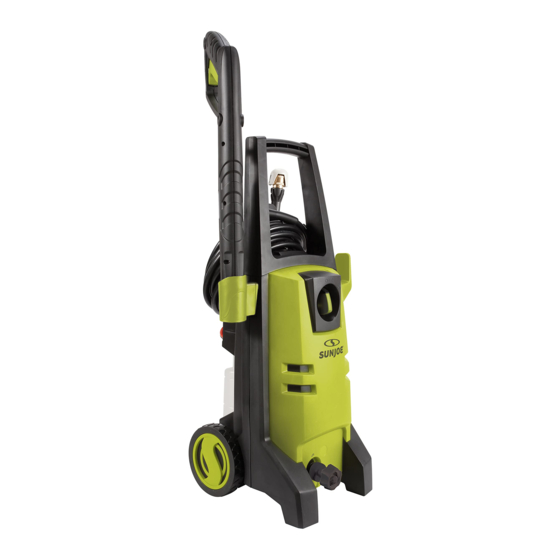

Electric pressure washer

Advertisement

Quick Links

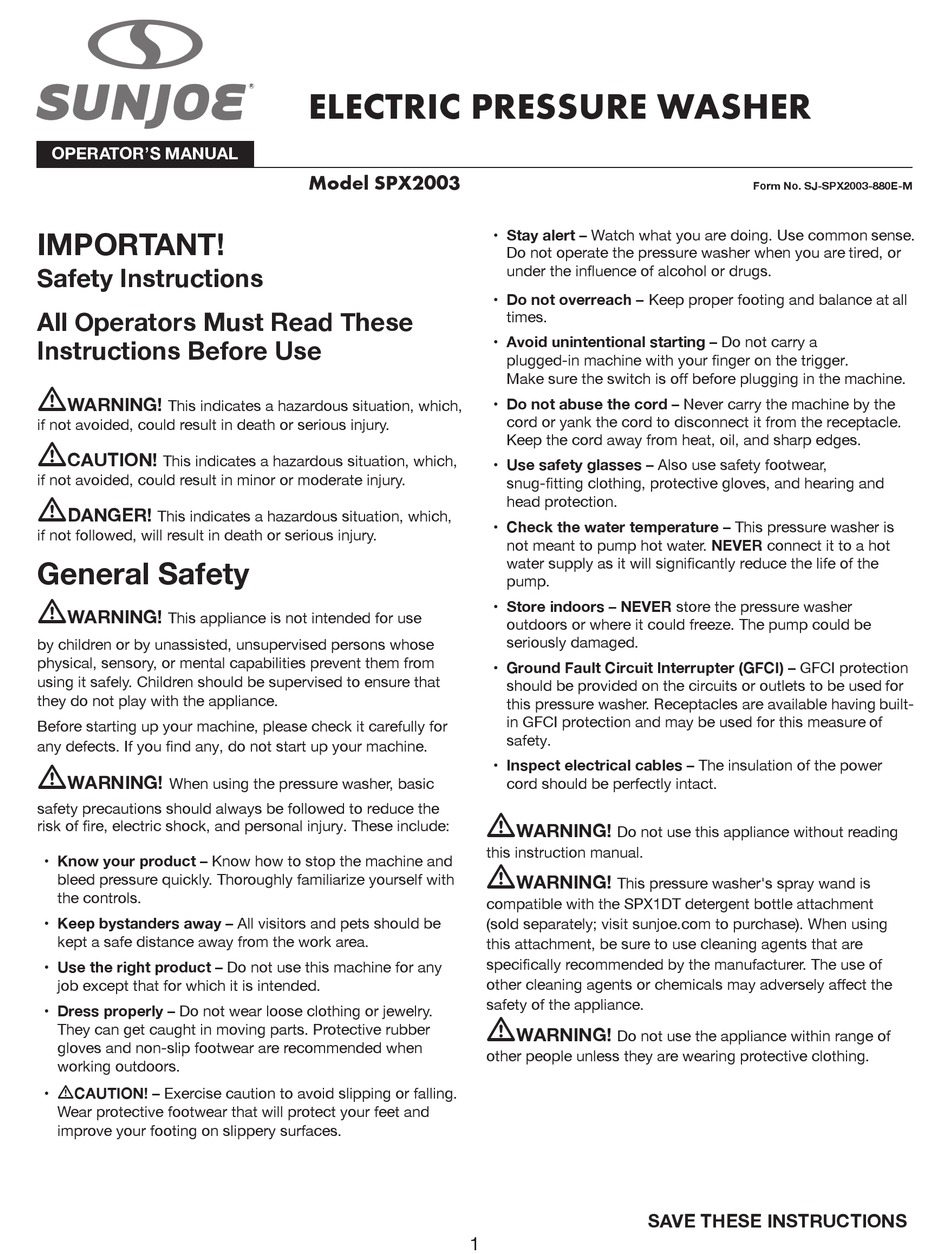

OPERATOR'S MANUAL
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
m
WARNING!
This indicates a hazardous situation, which,
if not avoided, could result in death or serious injury.
m
CAUTION!
This indicates a hazardous situation, which,
if not avoided, could result in minor or moderate injury.
m
DANGER!
This indicates a hazardous situation, which,
if not followed, will result in death or serious injury.
General Safety
m
WARNING!
This appliance is not intended for use
by children or by unassisted, unsupervised persons whose
physical, sensory, or mental capabilities prevent them from
using it safely. Children should be supervised to ensure that
they do not play with the appliance.
Before starting up your machine, please check it carefully for
any defects. If you find any, do not start up your machine.
m
WARNING!
When using the pressure washer, basic
safety precautions should always be followed to reduce the
risk of fire, electric shock, and personal injury. These include:
• Know your product – Know how to stop the machine and
bleed pressure quickly. Thoroughly familiarize yourself with
the controls.
• Keep bystanders away – All visitors and pets should be
kept a safe distance away from the work area.
• Use the right product – Do not use this machine for any
job except that for which it is intended.
• Dress properly – Do not wear loose clothing or jewelry.
They can get caught in moving parts. Protective rubber
gloves and non-slip footwear are recommended when
working outdoors.
CAUTION! – Exercise caution to avoid slipping or falling.
m
Wear protective footwear that will protect your feet and
improve your footing on slippery surfaces.
R
ELECTRIC PRESSURE WASHER
Model SPX2003
• Stay alert – Watch what you are doing. Use common sense.
Do not operate the pressure washer when you are tired, or
under the influence of alcohol or drugs.
• Do not overreach – Keep proper footing and balance at all
times.
• Avoid unintentional starting – Do not carry a
plugged-in machine with your finger on the trigger.
Make sure the switch is off before plugging in the machine.
• Do not abuse the cord – Never carry the machine by the
cord or yank the cord to disconnect it from the receptacle.
Keep the cord away from heat, oil, and sharp edges.
• Use safety glasses – Also use safety footwear,
snug-fitting clothing, protective gloves, and hearing and
head protection.
• Check the water temperature – This pressure washer is
not meant to pump hot water. NEVER connect it to a hot
water supply as it will significantly reduce the life of the
pump.
• Store indoors – NEVER store the pressure washer
outdoors or where it could freeze. The pump could be
seriously damaged.
• Ground Fault Circuit Interrupter (GFCI) – GFCI protection
should be provided on the circuits or outlets to be used for
this pressure washer. Receptacles are available having built-
in GFCI protection and may be used for this measure of
safety.
• Inspect electrical cables – The insulation of the power
cord should be perfectly intact.
m
WARNING!
Do not use this appliance without reading
this instruction manual.
m
WARNING!
This pressure washer's spray wand is
compatible with the SPX1DT detergent bottle attachment
(sold separately; visit sunjoe.com to purchase). When using
this attachment, be sure to use cleaning agents that are
specifically recommended by the manufacturer. The use of
other cleaning agents or chemicals may adversely affect the
safety of the appliance.
m
WARNING!
Do not use the appliance within range of
other people unless they are wearing protective clothing.
SAVE THESE INSTRUCTIONS
1
Form No. SJ-SPX2003-880E-M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPX2003 and is the answer not in the manual?

Questions and answers

Summary of Contents for sunjoe SPX2003

  • Page 1 SPX1DT detergent bottle attachment • Keep bystanders away – All visitors and pets should be (sold separately; visit sunjoe.com to purchase). When using kept a safe distance away from the work area. this attachment, be sure to use cleaning agents that are specifically recommended by the manufacturer.
  • Page 2: Electrical Safety

    • In the event of an accident or breakdown, switch off the WARNING! High-pressure jets can be dangerous if machine immediately (If contact with detergent occurs, subject to misuse. The jet must not be directed at persons, rinse with an abundance of clean water.) pets, live electrical equipment, or the appliance itself.
  • Page 3: Risk Of Electrocution

    3. Ground fault circuit interrupter (GFCI) protection – WARNING! To reduce the risk of electrocution, keep A GFCI should be provided on the circuit(s) or outlet(s) all connections dry and off the ground. Do not touch plug with to be used for this pressure washer. Receptacles are wet hand.
  • Page 4: Product Description

    Product Description Purpose • This high-pressure electric power washer is intended for residential use only. It is designed for light-to-medium duty cleaning jobs on boats, motorcycles, RVs, ATVs, trailers, decks, barbecues, siding, patio furniture, and more. Areas of application • Never use the machine in potentially explosive areas under any circumstances! •...
  • Page 5: Safety Symbols

    Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S MANUAL(S) – Read, understand, and follow all instructions in the WARNING! Electrical shock hazard.
  • Page 6: Technical Data

    Know Your Electric Pressure Washer Read the owner’s manual and safety rules carefully before operating the pressure washer. Compare the illustration below to the pressure washer in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.
  • Page 7: Carton Contents

    Unpacking Assembly Carton Contents Tools required: Phillips head screwdriver 1. Lay unit on its side. Firmly press the wheel onto the unit • Electric pressure washer body until it locks into place. Repeat on the opposite side • Transport handle (Fig.
  • Page 8 3. Slide the trigger gun holder into position (Fig. 3). Fig. 5 Fig. 3 Insert the tab into the hole Trigger gun holder Rear compartment Fig. 6 4. Slide the hose/cord holder into position (Fig. 4). Fig. 4 Rear compartment Hose/ cord holder Small Phillips head...
  • Page 9 Fig. 8 Fig. 10 (FRONT) Trigger gun Water inlet (female Garden hose This end to High-pressure hose (male end) water inlet coupler) Garden hose 10. Attach garden hose to water supply (Fig. 11). 8. Connect the other end of the high-pressure hose to the water outlet on the pressure washer (Fig.
  • Page 10 Operation 11. Make sure the motor switch is pushed to the OFF (0) position before plugging the unit into the power outlet (Fig. 12). IMPORTANT! This pressure washer is equipped with a micro-switch sensitive to water flow. This Total Stop System Fig.
  • Page 11: Shutting Down

    Using Nozzles 3. Remove the nozzle by disconnecting it while pulling back the brass Quick-Connect collar. Before beginning any cleaning task, determine the best nozzle WARNING! for the job. Each of the nozzles has a different spray pattern. Do not make changes to the nozzle while The nozzle patterns are 40˚...
  • Page 12: Taking A Break

    Maintenance WARNING! Turn off the water supply and squeeze the trigger to depressurize the unit. Failure to do so could result in CAUTION! personal injury due to discharge of high-pressure water. Before working on the pressure washer, disconnect the plug from the power supply socket. Taking a break 1.
  • Page 13: Recycling The Washer

    Fig. 22 Needle clean-out tool Disposal Recycling the washer • Do not dispose of electrical appliances as unsorted municipal waste. Use separate collection facilities. • Contact your local government agency for information regarding the collection systems available. • If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
  • Page 14: Troubleshooting

    Troubleshooting • Disconnect the unit from the electrical power supply before carrying out maintenance on the machine or when checking that its parts are in proper working order. • To avoid unnecessary hassles, consult the following table before contacting customer service with any mechanical issues. Problems Possible Cause Possible Solution...
  • Page 15 Optional Accessories WARNING! ALWAYS use only authorized Snow Joe + Sun Joe replacement parts and accessories. NEVER use ® ® replacement parts or accessories that are not intended for use with this electric pressure washer. Contact Snow Joe + Sun Joe ®...
