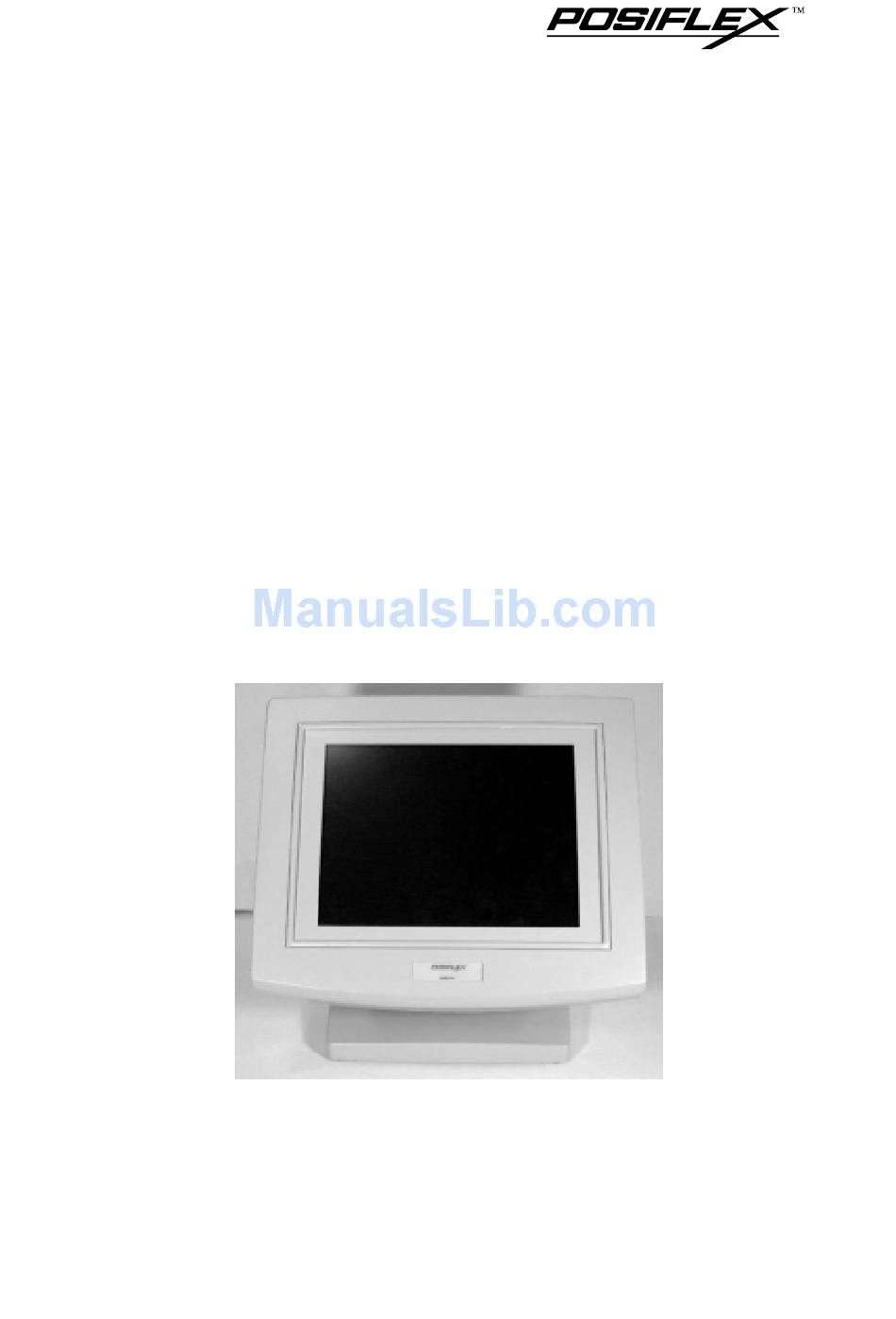

- Page 1 TP-6000 SERIES USER’S MANUAL TOUCH PANEL POS SYSTEM Rev. : Original...
-
Page 2: About This Manual
SOME IMPORTANT NOTES FCC NOTES This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions manual, may cause interference to radio communications. It has been tested and found to comply with limits for a Class A digital device pursuant to subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against interference when operated in a commercial environment. -
Page 3: Table Of Contents
TABLE OF CONTENTS BRIEF INTRODUCTION THE USER’S MANUAL ....... . 1 - 1 THE PRODUCT . - Page 4 PREPARING THE MAIN UNIT ......4 - 4 JOINING MAIN UNIT AND PADDLE ..... 4 - 4 OPENING CABLE COVER .
-
Page 5: Brief Introduction
BRIEF INTRODUCTION THE USER’S MANUAL The purpose of this manual is to guide the user in the initial installation and general use of the Posiflex fully integrated compact touch terminal system with touch panel input. TP6000 series is a product group of fully integrated PC based touch terminal systems. -
Page 6: Standard Features
STANDARD FEATURES a) CPU: Celeron 366MHz up to 500 MHz HDD: 6.4 GB or above b) Support MS DOS, WIN98, WIN NT, WIN 2000 environment (WIN 2000 support starting June 2000) c) Power saving support: doze or suspension mode d) High quality 12.1” / 15.1” TFT active matrix LCD panel e) Vertical type LCD panel with easy tilt angle adjustment from 18°... -
Page 7: Optional Items
o) Built-in UPS function to support the system from intermittent power failure (battery itself is an option) p) Accidental power off protection – The power switch is safely located at one side, and this power switch can be defined as a “ON” switch only through software command q) Forced power off against system malfunction under the power switch on/off mode... - Page 8 TP6000 USER’S MANUAL 1 - 4...
-
Page 9: System Box Contents
SYSTEM BOX CONTENTS MAIN UNIT & PADDLE ASSEMBLY Open the carton Carton Packaging materials Documents for Preloaded OS Power Cord and take all the contents out together with the packaging materials. Take out the accessories/options from the partitions in the packaging materials and unfold the packaging materials carefully to unload the upsidedown loaded TP6000 series touch terminal. -
Page 10: Optional Devices
The COM1 terminator will be already mounted on the system unit when being shipped. The latch key for cable cover lock will be in a bag. OPTIONAL DEVICES There are several options that will be mounted on/in the main system unit either by the manufacturer if ordered. -
Page 11: Parts Identification
PARTS IDENTIFICATION FRONT VIEW The MSR unit is option to both 12” and 15” models. The LED in the logo area serves for multiple purposes through giving different indication of steady/flashing green/orange light. Please refer to the paragraph discussing the LED indication in the chapter of “USING THE TOUCH POS”... -
Page 12: Side Views
SIDE VIEWS Right Side View Left Side View Push Down To Switch The Power ON/OFF Slide Switch For Power On/Off Control TP6000 USER’S MANUAL 3 - 2 Latch Hole For Cable Cover Push This Direction To Adjust The Tilt Angle Of The Display Panel Lock/Release Lever Latch Hole For... -
Page 13: Rear View
REAR VIEW Cable Exit REAR VIEW OF MAIN UNIT Service Window Cable Cover Lock/Release Button Detach Main Unit Optional MSR Unit Lock/Release Lever Removal Hollow Of Cable Cover TP6000 USER’S MANUAL 3 - 3 Matching Pegs Cable Exit... -
Page 14: Adjustable Paddle Assembly
ADJUSTABLE PADDLE ASSEMBLY Matching Holes Paddle Base Lock/Release Lever BOTTOM OF PADDLE ASSEMBLY Base UPS Battery Cover Lock/Release Button Main Unit CONNECTORS Turn Counterclockwise Then Take Out The Latch Key TP6000 USER’S MANUAL 3 - 4 Pull The Cable Cover Out In This Direction Cable Passage Cover... - Page 15 PS/2 KB PS/2 Mouse Cash Drawer Controller Power Input Jack UPS Battery Connector COM1 Port COM2 Port External VGA Port LPT1 Printer Port External FDD Port LED Connector TP6000 USER’S MANUAL 3 - 5 USB5 Port USB4 Port USB3 Port USB2 Port USB1 Port LAN Port...
- Page 16 TP6000 USER’S MANUAL 3 - 6...
-
Page 17: Installation Guides
INSTALLATION GUIDES CAUTION: Before any installation or cable connection to the set, please always make certain that the system is turned off and the external power source to the set is removed to prevent electric hazard! Never touch any metal pin in the connectors or circuits to avoid high voltage hazard or electrostatic discharge damage unless the operator is well grounded. -
Page 18: Preparing Paddle Assembly
PREPARING PADDLE ASSEMBLY Take the adjustable paddle assembly and turn it up side down to show the bottom of the base. 2 Sets of 4 Matching Holes If there is no need to install the optional UPS battery here (either not to be installed or already installed), please skip the next paragraph and directly start routing cables through the cable passage. -
Page 19: Installing Ups Battery
INSTALLING UPS BATTERY UPS Battery Removed Battery Cover Place the optional UPS battery in the battery compartment in the way as indicated in the picture. Screw on the battery cover and join the battery cable into the cable routing operation. Please enable UPS function in software setting before use. ROUTING THE CABLES Now, turn the adjustable paddle assembly back to normal orientation and arrange all cables to come out of the... -
Page 20: Preparing The Main Unit
PREPARING THE MAIN UNIT On the back of the main unit, there are 4 matching pegs and a service window. Push open the service window in the direction as indicated in the picture, one can find a button cell battery socket, a 1 x 3 header (JP10) with 1 jumper and a 2 x 3 header (JP8) with 2 jumpers. -
Page 21: Opening Cable Cover
the hole and make sure that all pegs are inside the holes. Then slide the main unit down to move the pegs into the lower slot part of the holes till it clicks. Note that all the cables come out of the paddle from the lower edge and won’t get trapped by this mounting operation. -
Page 22: Connecting Cables
CONNECTING CABLES Connect the cables required to the appropriate connectors. Please make sure that each connector has to be connected to the right port in the right orientation. Some connectors have to be inserted till a click is heard such as the LAN connector, the external FDD connector, the power connector and the cash drawer connector. -
Page 23: Wall Mounting
the shorter one for the original cash drawer “CR1” and use the longer one for the extended cash drawer “CR2” that will be distinguished by the software command. In this way, the TP6000 is capable of controlling two cash drawers independently through software command. - Page 24 either 360 mm or 380 mm depending on the position adjusted. When the main unit is tilted to near horizontal position, the total height required is 275 mm. TP6000 USER’S MANUAL 4 - 8...
-
Page 25: Using The Touch Pos
USING THE TOUCH POS APPLICATION ENVIRONMENT It is very important that you check the following operational guidelines: Ventilation This terminal must NOT be operated in an environment with restricted ventilation. The installation should be such that there is at least 25mm air clearance around any top or side ventilation holes. -
Page 26: External Monitor
Parallel printer – connect to Parallel port Serial printer – use USB to RS232 adapter to connect to USB port or directly connect to COM1 port Serial barcode scanner – use IW-2000PS2 (RS232 to KB wedge converter) to connect to PS2 KB port Cash drawer –... -
Page 27: Power On/Off
POWER ON/OFF LED Indicator There is an LED in the logo area that serves for multiple purposes. When the TP6000 is standing by for powering up in the presence of external power supply, the LED is orange. When the TP6000 is powered up and working normally with the external power supply, the LED is green. -
Page 28: Hardware Switch
Hardware Switch The power switch located at left side of the main unit is a slide type switch. This switch controls the power on/off of the system. This switch turns the system on when slid downward at original power connection status or power off status. The switch will always spring back to its original position when external force is removed. -
Page 29: Magnetic Stripe Reader
program shall prepare the terminal to standby for LAN Wake Up during power off so that when the predefined condition is met (LAN status change or receiving certain packet) the TP6000 will be powered on. When the TP6000 system is turned off after a successful boot up, the defined preset power on functions will keep monitoring for the preset conditions. -
Page 30: Display Resolution
DISPLAY RESOLUTION For best viewing result please set your display resolution of TP6012 at 800 x 600 with true color in the operation system. For TP6015, please set the display resolution at 1024 x 768 with high color. TOUCH PANEL The touch panel in TP6000 series, either PS2 interfaced or RS232 interfaced, when its driver is properly installed, works exactly like a standard mouse. -
Page 31: Rs232 Touch Monitor Mouse
also be obtained through downloading from our web site. Application of this program provides control over the MSR, the touch panel and the power control of the Posiflex Touch Terminal. For an RS232 interfaced touch panel, the touch panel part of the following description should be disregarded and please refer to the paragraph “RS232 TOUCH MONITOR MOUSE”... - Page 32 If, for any reason, the user wants to remove the driver for the RS232 touch controller, please select “Monitor Mouse for Windows 95” in the program list for removal. TP6000 USER’S MANUAL 5 - 8...
