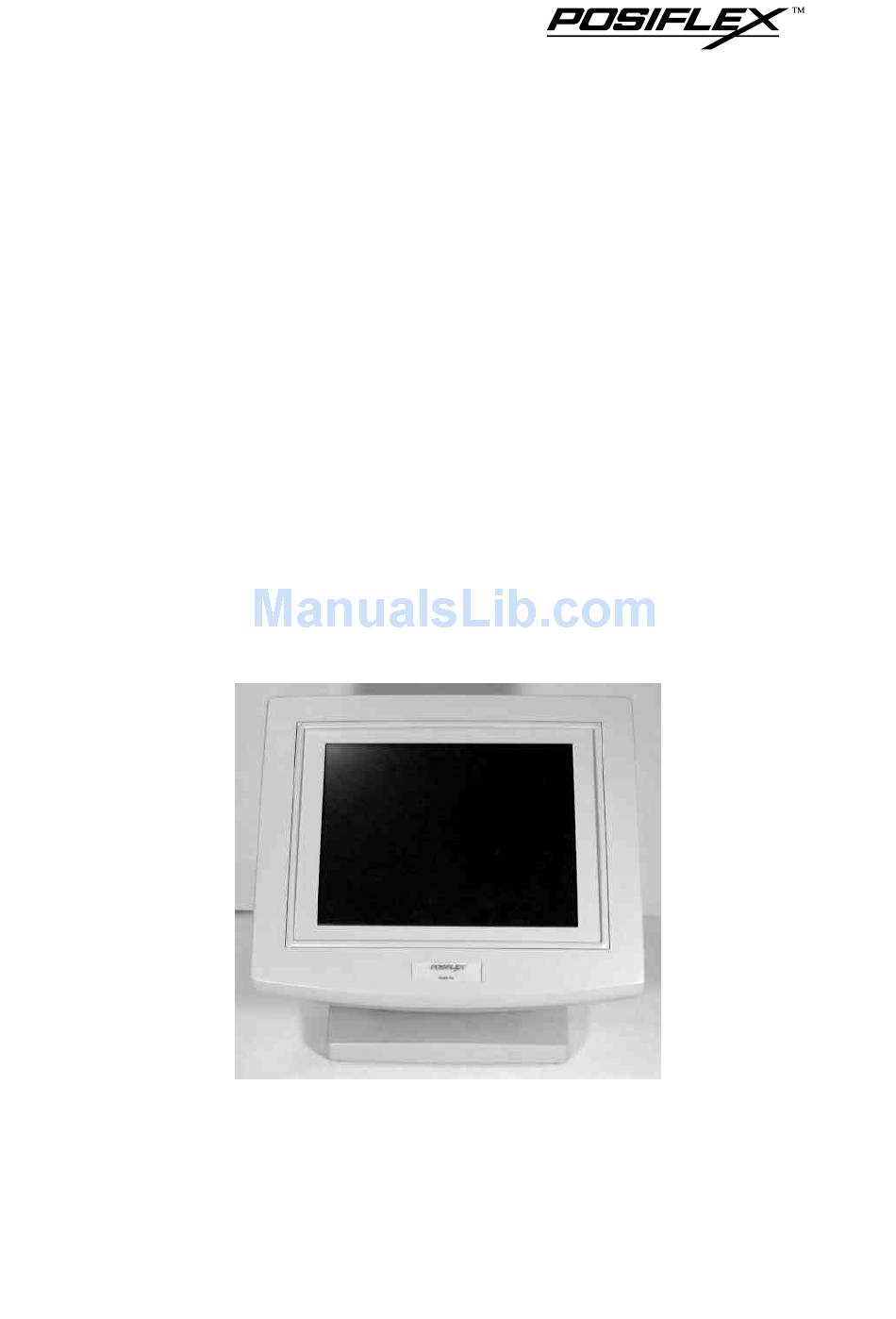

- Page 1 TP-6000 SERIES USER’S MANUAL TOUCH PANEL POS SYSTEM Rev. : A1...
-
Page 2: About This Manual
All rights are strictly reserved. No part of this documentation may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, or otherwise, without the prior written consent of Mustek Corp. the publisher of this documentation. TRADE MARKS AND SERVICE MARKS POSIFLEX is a registered trademark of Mustek Corp.. -
Page 3: Table Of Contents
TABLE OF CONTENTS BRIEF INTRODUCTION THE USER’S MANUAL ....... . 1 - 1 THE PRODUCT . - Page 4 INSTALLING CASH DRAWERS ......3 - 6 WALL MOUNTING ........3 - 7 LOCATION FOR INSTALLATION .
-
Page 5: Brief Introduction
BRIEF INTRODUCTION THE USER’S MANUAL The purpose of this manual is to guide the user in the initial installation and general use of the Posiflex fully integrated compact touch terminal system with touch panel input. TP6000 series is a product group of fully integrated PC based touch terminal systems. - Page 6 Height adjustment: the high / low adjustment gives 20 mm difference in height g) Resistive type touch panel h) Extra long life touch panel that endures 10 million up to 35 million touches in one location Spill proof water resistant structure allows for easy cleaning Easy maintenance construction k) Various I/O ports supported, including: 1.
-
Page 7: Optional Items
q) Touch control functions: left/right mouse buttons, double click, drag & drop Touch sound can be pitch adjusted and enabled/disabled by software control High resolution touch sensor: 1024 x 1024 DRAM memory can extend to 1GB u) Dual display support under OS’s supporting multiple display output v) VGA memory size selectable by software (up to 64 MB) w) Integrated structure for optional MSR x) Software selectable MSR parameters... - Page 8 TP6000 USER’S MANUAL 1 - 4...
-
Page 9: Parts Identification
PARTS IDENTIFICATION FRONT VIEW The MSR unit is optional for both 12” and 15” models. The orange/green LED in the logo area is multipurpose. Please refer to the paragraph discussing the LED indication in the “USING THE TOUCH POS” chapter of this manual. Display Screen + Touch Panel Main Unit... -
Page 10: Side Views
SIDE VIEWS Right Side View Left Side View Push Down To Switch The Power ON/OFF Slide Switch For Power On/Off Control TP6000 USER’S MANUAL 2 - 2 Latch Hole For Cable Cover Push This Direction To Adjust The Tilt Angle Of The Display Panel Lock/Release Lever Latch Hole For... -
Page 11: Rear View
REAR VIEW Cable Exit REAR VIEW OF MAIN UNIT Service Window Cable Cover Note: The contents in the service window may evolve as technology progresses. Please consult your dealer for applicability. Lock/Release Button Detach Main Unit Optional MSR Unit Lock/Release Lever Removal Hollow Of Cable Cover TP6000 USER’S MANUAL 2 - 3... -
Page 12: Adjustable Stand Assembly
ADJUSTABLE STAND ASSEMBLY Matching Holes Stand Base Lock/Release Lever BOTTOM OF STAND ASSEMBLY Base UPS Battery Cover Lock/Release Button Main Unit TP6000 USER’S MANUAL 2 - 4 Cable Passage Cover Cable Exit Stand... -
Page 13: Installation Guides
SEPARATING MAIN UNIT In order to properly install the TP-6000 terminal, all cables must be routed through its base. Therefore, please press the lock/release button at the rear side to separate the main unit from the stand assembly. -
Page 14: Preparing Stand Assembly
PREPARING STAND ASSEMBLY Take the adjustable stand assembly and turn it up side down to show the bottom of the base. 2 Sets of 4 Matching Holes If there is no need to install the optional UPS battery here (either not to be installed or already installed), please skip the next paragraph and start routing cables through the cable passage. -
Page 15: Installing Ups Battery
INSTALLING UPS BATTERY UPS Battery Removed Battery Cover Place the optional UPS battery in the battery compartment (shown top left). Screw on the battery cover and route the battery cable through the base. Please enable the UPS features in the software settings before use. ROUTING THE CABLES assembly back to normal orientation and arrange all cables so that they will be easily connected after the terminal is mounted... -
Page 16: Preparing The Main Unit
PREPARING THE MAIN UNIT On the back of the main unit, there are 4 matching pegs and a service window. Push the service window open, in the direction indicated in the picture. Below, one can find a button cell battery socket, a 1 x 3 header (JP10) with 1 jumper and a 2 x 3 header (JP8) with 2 jumpers. -
Page 17: Opening Cable Cover
toward the upper round part of the hole and make sure that all pegs have been properly seated. Then slide the main unit down to move the pegs into the narrow section of the slot until the rear latch clicks. Note that all the cables come out of the stand from the lower edge and won’t get trapped by this mounting operation. -
Page 18: Connecting Cables
CONNECTING CABLES Connect the required cables to the appropriate connectors. Please make sure that each connector is connected to the right port with the correct orientation. Some connectors, such as the LAN connector, the external FDD connector, the power connector, the cash drawer connector, and the COM4 connector for the conversion cable have to be inserted until a click is heard. -
Page 19: Wall Mounting
The main part in the wall mounting kit is a bracket as shown in the picture. When mounting the TP-6000 bracket to a wall, be sure that the widest part of each of the four holes faces in the upward direction (see picture below). Align the four... - Page 20 be either 360 mm or 380 mm depending on the adjusted position. When the main unit is tilted to near horizontal position, the total height required is 275 mm. TP6000 USER’S MANUAL 3 - 8...
-
Page 21: Using The Touch Pos
USING THE TOUCH POS APPLICATION ENVIRONMENT It is very important that you check the following operational guidelines: Ventilation This terminal must NOT be operated in an environment with restricted ventilation. The installation should be such that there is at least 25mm air clearance around any top or side ventilation holes. -
Page 22: Serial Port - Com1
Serial Port – COM1 CAUTION: The COM1 serial port should be occupied by either a suitable serial device or a COM1 terminator at all times (as supplied). Without this provision the cash drawer control ports will fail to work correctly. The recommended devices for COM1 are either an external customer display or a serial POS printer. -
Page 23: Hardware Switch
Ÿ When the external power fails and the TP6000 is working on the optional UPS battery power, the green LED flashes. Ÿ When the optional UPS battery is close to full discharge from supporting the TP6000 in the absence of the external power, the orange LED flashes rapidly. Ÿ... -
Page 24: Software Support
Software Support The TP6000 series provides a software power off command for application program maneuvers. The TP6000 also provides a specific means for the software to detect if the system is working on external or UPS battery power. Due to this feature, compatible software applications have the ability to change operating conditions when running on standard/backup power. -
Page 25: Magnetic Stripe Reader
MAGNETIC STRIPE READER The magnetic stripe reader, if installed, will be mounted on the right edge of the TP6000 series. When reading an ISO standard magnetic card, please face the magnetic stripe toward the TP6000 series and slide the card downward through the slot. -
Page 26: Touch Panel
TOUCH PANEL The touch panel in TP6000 series uses either a PS2 interface or an RS232 interfaced. When its driver is properly installed, this touch panel works exactly like a standard mouse. However, if the system is running under safe mode due to a previous improper shutdown or for any other reason, most drivers are disabled in this mode and the touch panel calibration may not coincide with the mouse pointer. -
Page 27: Rs232 Touch Monitor Mouse
This program controls software gating of data read from each MSR track and the way that the data is sent from the reader to the system, including the coding method against language systems, data transmission speed, delivery and selection on the leading/ending code of each track.
