  • Page 1 il  LT600     ERIES    ETTING  TARTED  UIDE   GNSS DATA COLLECTING TERMINAL                    ...
  • Page 2: Table Of Contents

    CONTENTS  Introduction  ........................  3     1.1. Technical Assistance  ..................  3     1.2. Your Comments  ....................  3     1.3. Safety Information ..................  3     1.4. Warning and Cautions  ..................  3     1.5. Use and Care ....................  3     Overview  ........................  5  ...
  • Page 3: Introduction

    OMMENTS Your feedback about this Getting Started Guide will help us to improve it in future revision.  Please e‐mail your comments to support@chcnav.com.  1.3.   AFETY  NFORMATION This  manual  describes  CHC  LT600  Series  GNSS  Data  Collecting  Terminal.  Before  using  the  LT600  Series,  please  make  sure  that  you  have  read  and  understood  this  Getting  Started  Guide, as well as the safety requirements.  1.4.   ARNING AND  AUTIONS An absence of specific alerts does not mean that there are no safety risks involved. ...
  • Page 4 The LT600 Series is designed to withstand the rough environment that typically occurs in the  field.  However,  the  LT600  Series  is  high‐precision  electronic  equipment  and  should  be  treated with reasonable care.                                               Page 4   ...
  • Page 5: Overview

    2. O   VERVIEW 2.1.   EATURES LT600  is  a  high  accuracy  GNSS  data  collecting  terminal  independently  developed  by  CHC,  which adopts industrial third level design, IP65 protection level. Positioning accuracy of the  LT600 could reach decimeter, with alternative configuration of 1D/2D code scanning, RFTD,  Infrared and MIC so on. Equipped with high sensitive point touch pen, LT600 makes it more  convenient to collect data and map ground. 4G cellular modem with Dual‐SIM‐Dual‐Standby  offers  more  choices  of  experiencing  high  speed  data  transmitting.  With  8  inch  screen  and  16:9 scale, LT600 provides you more open vision and more convenience.  2.2.
  • Page 6 Physical specifications  Display  ·  Size: 8inch Corning Gorilla Glass touch screen  ·  Resolution: 1280*800  ·  Brightness: 450cd/m   ·  Touch screen: Capacitance touch, 5 points touch screen  ·  Point touch pen: Mapping pen with high degree of accuracy    Physical  ·  Dust proof and waterproof: IP65  ·  Shock: Survives a 1.5meter drop onto concrete  ·  Humidity: 5%RH ‐ 95%RH (without condensation)  ·  Dimension: 235mm*138mm* 30mm (L*W*H)  ·  Weight: 660g (with battery)  ·  Operating temperature:‐20 °C to + 60 °C  ·  Storage temperature: ‐30 °C to + 70 °C    Physical Properties  ·  Bar code: 1D/2D scanning mode (optional)  ·  G‐sensor: Support  ·  Light sensor: Support  ·  Distance sensor: Support  ·  E‐compass: Support  · ...
  • Page 7: Lt600 Overview

    3. LT600     VERVIEW 3.1.   RONT     Power Button  ‐ Turn ON: Press the button for 1‐2 seconds, the Power Indicator will turn on and the boot  screen will appear, and then the LT600 will enter the operation system after 30 seconds.    ‐ Turn OFF: Press the button for 1‐2 seconds, the “SELECT” dialogue box will pop up, select  “Power off” to turn off the device.    ‐ Restart: Press the button for 1‐2 seconds, the “SELECT” dialogue box will pop up, select  “Restart” to restart the device.     Page 7   ...
  • Page 8  Menu Button  Click this button to bring out the start menu.     Home Button  Use the home button to return main menu.   Return Button  Press this button to go back to previous menu.   SIM    Insert SIM card into this card slot.     TF  Insert TF card into this card slot.   Charging/Data Interface  This interface is used for battery charging and data transmission between LT600 and PC using  USB cable.   Headset Jack  Insert your headset into this socket.   Page 8   ...
  • Page 9: Back View

    3.2.   ACK                     Page 9   ...
  • Page 10: Side View

    3.3.   IDE   Page 10   ...
  • Page 11: Basic Operation

      4. B   ASIC  PERATION 4.1.   NSERT    ARD AND POWER ON   Refer 3.3 Front View to find the SIM card and TF card slot, and then insert the cards  into slots correctly.   Before powering on LT600, please make sure the battery has plenty of power. Then  long press the power button to turn on LT600 and enter its home screen.                Figure 1                                                        Figure 2                                             ...
  • Page 12         Figure 3                                                                Figure 4      Use virtual button key to facilitate your operation with LT600.    Click ...
  • Page 13: Language & Input

    4.2. &   ANGUAGE   INPUT Click Settings/Language & input/Language to select language.    4.3.   ET  Click Settings/Date & time and enter Date & time interface.   Page 13 ...
  • Page 14: Display

        If you want to use date and time from network or GPS, click Automatic date & time to  select Use network‐provided time or Use GPS‐provided time:        If you want to set date and time by yourself, please turn off the Automatic date & time  first and then click Set date and Set time to start your own settings.      24‐ OU  CAN  ALSO  CUSTOMIZE  YOUR  TIME  ZONE  AND  CHOOSE  WHETHER  TO  USE  HOUR  FORMAT  IN  THIS  .  INTERFACE   4.4.   ISPLAY Click Settings/Display to enter Display interface.   Page 14   ...
  • Page 15         Brightness adjusting: Click Brightness level to adjust it according to your preference.      Sleep: Click to optimize the inactivity time LT600 needs to close screen.      Font size: Click to change the font size.     Page 15   ...
  • Page 16: Wifi

    4.5. WIFI  Click Settings/WIFI to switch on the button.    Select WIFI and type in its password to connect.        4.6.   LUETOOTH Click Settings/Bluetooth to turn on the Bluetooth.   Page 16   ...
  • Page 17: Usb Connection

      Find nearby devices and pair with it.      4.7.     ONNECTION  For connection or data transmission between LT600 and office computer, please use the  USB data cable as shown below.    Click Settings/Developer options/USB debugging to make sure this function is switched  on. After USB data cable is connected with PC, wait until the Allow USB debugging dialogue  pops up, click OK.          You  can  also  use  third  party  software  to  manage  the  documents  and  data  stored  in   Page 17   ...
  • Page 18: Use Camera

    LT600 and install software like MapCloud3.0, GNSSTool into it.    4.8.   SE  AMERA Make sure that the battery is charged and installed in the receiver.      Click to start recording the video, click again to finish.    Click to take a photo.  Slide fingers in the left column to switch between 5 different modes:    Normal mode      PIP mode    Live photo mo:      Panarama mode    Multi angle view mode        Camera Settings    Click to configure related parameters     Page 18   ...
  • Page 19: Scheduled Power On & Off

        4.9. &   CHEDULED POWER ON   OFF LT600 allows users to achieve scheduled power on and off by setting the power up & off  time and repeat time beforehand.                Set the Scheduled power on time and click OK.          Set scheduled power on repeat time and click OK.     Page 19   ...
  • Page 20: Location

      Scheduled power off time settings is the same with Scheduled power on.    4.10. L   OCATION Click Settings/Location to switch on location service.   Page 20   ...
  • Page 21: Getting Started With Map Cloud 3.0

      5. G 3.0  ETTING  TARTED  ITH  AP  LOUD  5.1.   UILD  EW  ROJECT Open  MapCloud3.0  and  click  "+"  to  build  new  project  >  choose  "Project  Template"  and  "Coordinate System" >click "√" to finish;            Click  satellite  icon  in  the  upper  right  corner  >click  "Connect"  >choose  "Connect  Method,  Device Type" >Local Connection Successful >Return. ...
  • Page 22: Coordinate System Settings

              5.2.   OORDINATE  YSTEM  ETTINGS Click  Menu  >"Settings"  >"Coordinate  System"  >"Projection  Parameters"  >Set  “Central  Meridian” and “East Shifting” >click "√" to save;             Page 22   ...
  • Page 23: Import Base Map

            Type in 3 or 7 parameters, or open “Site Calibration” >click    "+"    to add known point >click  “Calculate” > click "√" to save and then starts collecting.                  5.3.   MPORT  ASE  Click  menu  button  of  hand‐held  receiver  >”Import”  >”Import  Vector  Data”  or  “Import  Map” > choose the file to be imported.   Page 23   ...
  • Page 24: Data Collection

            5.4.   ATA  OLLECTION Click the button in the lower right corner >”Point” >”GPS” >click save to finish collecting (the  same for line or area collecting)         Page 24   ...
  • Page 25: Export Data

            5.5.   XPORT  Click menu button of the hand‐held receiver >"Export" >click “Export Vector Data” >choose  the point/line/area layer and its format you want to export >click "√" to export.           Page 25   ...
  • Page 26: Software Registration

      OFTWARE  EGISTRATION Register  in  the  upper  right  corner  of  GNSS  Server  contains  GNSS  Server  version,  device  ID  and  so  on;  Software  registration  set  by  MapCloud3.0  include  the  version  of  MapCloud3.0,  device ID etc. Users can register by applying for registration code from CHC.                 Page 26 ...
  • Page 27: Getting Started With Gnsst Ool

    External  App  can  send  command  to  receiver  by  using  GNSSTool  through  broadcast.  GNSSTool  can  call  CHC  SDK  to  send  command  to  receiver.  Users  only  need  to  connect  with  GNSSTool  to  communicate  with  the  receiver.  It  will  be  running  in  the ...
  • Page 28           3. Connection Type: For smart RTK (like i80), we select Bluetooth, WIFI or Demonstration.  For GNSS RTK (like X91), we select Bluetooth, and Demonstration. For Local and Peripheral,  we select the specific device type that we use. Here we select LT600 for Connection Type.           Page 28   ...
  • Page 29: Cors Login

              4. Click  [Connect]  to  connect  with  the  receiver  successfully  and  go  back  to  the  previous  interface.            6.2. CORS     OGIN After finishing connection successfully, we can log in CORS to receive differential data. Users  can  log  in  CORS  in  4  different  ways:  CORS,  APIS,  TCP  and  RTCM  SDK.  Before  log  in  CORS,  please ...
  • Page 30: Sky Plot

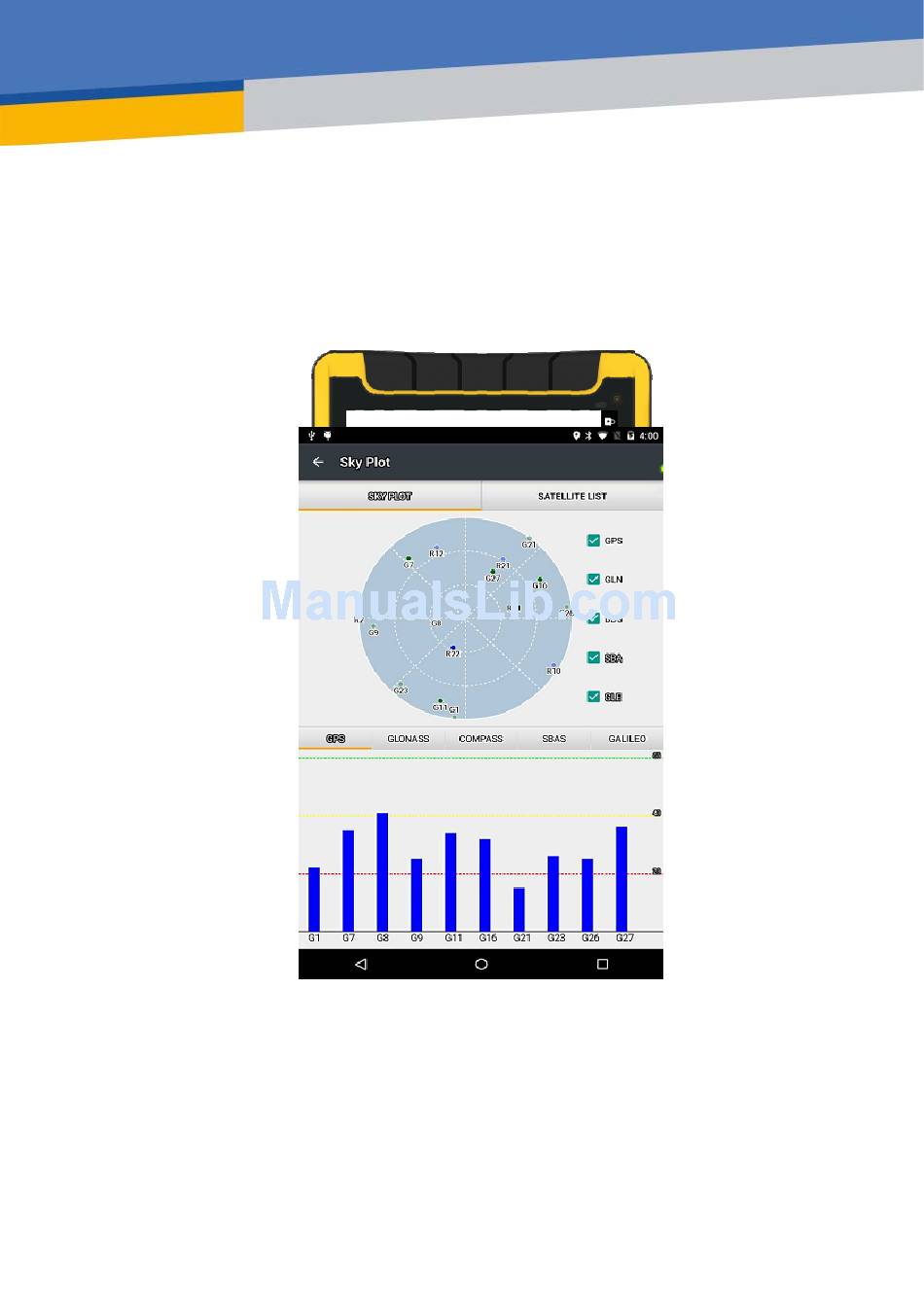

    Internet. GNSSTool will automatically disconnect CORS if the device is disconnected.  1. Click  Diff  Data  Source  in  the  main  interface,  type  in  IP,  Port,  Source  Table  and  other  parameters and then click LOGIN.                    6.3.   KY  LOT  Click Sky Plot and see how many satellites (including GPS, GLONASS, BDS, GALILEO and SBAS)  the device is currently tracking.   Page 30   ...
  • Page 31: Debugging Data

    6.4. EBUGGING  Click Debugging Data to enter data debugging interface. Click HEX to change the data into  txt format, or pause, save and clear the data using button in the upper side.     Page 31 ...
  • Page 32 —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. CHC ‐ Shanghai HuaCe Navigation Technology Ltd. Building C,599 Gaojing Road,Qingpu District,Shanghai,China...
