- Page 1 GUIDEBOOK TO ENJOYMENT OF YOUR VENTURE RV RECREATIONAL VEHICLE Sport Trek, Sport Trek Touring & Sport Trek Toy Hauler PDF created with pdfFactory trial version www.pdffactory.com...
- Page 2 THE PURPOSE OF THE VENTURE RV OWNER’S MANUAL IS TO PROVIDE THE MOST CURRENT INFORMATION AVAILABLE CONCERNING VENTURE RV RECREATIONAL VEHICLES. OPERATION AND MINOR MAINTENANCE IS THE MAIN FOCUS OF THIS BOOK. CRITICAL SAFETY WARNINGS ARE INCLUDED AND MUST BE READ AND OBEYED...
- Page 3 As the owner of a new VENTURE RV, you can rest assured that we will do all we can to keep you a “happy camper”. Naturally, your selling dealership is always happy to help you with any questions you may have or service you may need.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Chapter 1 – Introduction to RV Ownership ........1 Safety Considerations ..............2 Reporting Safety Defects ............2 Safety When Emergency Stopping ........3 Additional Safety Considerations .......... 3 Extended or Cold Weather Use ..........4 Condensation ................4 Causes...….…………………………………………………..…4 Solutions…………………………………………………………5 Interior Ventilation……………………………………...……………6... - Page 5 Vehicle Load Limits ............27 Cargo Capacities ..............28 How Overloading Affects Your RV and Tires ..... 28 Tire Speed Rating……………………………………………..27 How to Change a Tire ............29 Wheel Bearings ..............29 Lugs…………………………………………………………….30 Brakes—Electrical .............. 30 Breakaway Switch…………………………………………….31 Setting Up and Using Your Recreational Vehicle ..... 32 Travel Trailer Hook Up………………………………………..34 Safety Detectors….………….…...………………...…………33 Fire Extinguisher ………………………………………….34...
- Page 6 Filling Fresh Water System ..........46 12-Volt Demand Pump ............48 Faucets…................49 Bath and Shower……………………………………………...49 Outside Shower (Optional)……….…………………………..49 Fresh Water Lines…………………………………...………..50 Lo-Point Drains……………………………...……….………..50 Sanitizing and Filling the Potable Water System ....51 For Gravity Fill and Storage Tank………………………51 For Direct Fill-City Water…………………..….……...….51 Drainage (Fresh Water) ............
- Page 7 Porch Lights………… ........... 77 Brake Wiring……............77 Chapter 5 – Appliances………………………………………………79 Safety………………………………………………………………..79 Furnace………………..............80 Thermostat………………………………………….………….80 Operating Instructions………………………………………...81 To Turn Off Appliance………………………………………...81 External Vents…………………………………………………81 Ducting………………………………………………....82 Range and Oven Top Burner Operation………………………..82 Operating Instructions ............82 Top Burner………………..........82 Oven Burner ..............84 Water Heater…………...............
-
Page 8: Chapter 1 - Introduction To Rv Ownership
CHAPTER 1 INTRODUCTION TO RV OWNERSHIP Welcome to the growing family of new VENTURE RV owners and the world of recreational vehicle travel. The purchase of your VENTURE RV product allows you to enter this type of camping and leisure travel. -
Page 9: Safety Considerations
However, NHTSA cannot become involved in individual problems between you, your dealer or VENTURE RV. To contact NHTSA, you may either call the Auto Safety Hotline toll- free at 1-800-424-9393 or write to:... -
Page 10: Safety When Emergency Stopping
Washington, DC 20590 You can also obtain other information about motor vehicle safety from the Hotline. Safety When Emergency Stopping It is wise to carry road flags and/or triangular warning devices to be used when necessary. When pulling off a highway, use your four way hazard lights as warning flashers, even if only to change drivers. -
Page 11: Extended Or Cold Weather Use
11. Extinguish all campfires before leaving your campsite. EXTENDED OR COLD WEATHER USE Your VENTURE recreational vehicle has been built for enjoyment in a recreational manner. This recreational vehicle is not intended to be used as full-time living quarters. Nor is this a four season unit. Using this unit in freezing conditions is not recommended. -
Page 12: Condensation
required. Use skirting and/or insulation below floor level to provide additional protection. 2. Remember, water freezes at 32 Fahrenheit whether fresh or drainage. Proper care must be used to protect any system at CAUTION Continuous living in your recreational vehicle could cause accelerated wear to components above recreational use. -
Page 13: Interior Ventilation
Numerous ways are provided to exchange air in coaches. 1. Open windows on non-rainy days, allowing air exchange between inside and outside. 2. Power hood vent above cooking stove will send heat and food smell outside. Roof vent; numerous types; a. -
Page 14: Chapter 2 - Service Procedures
CHAPTER 2 SERVICE PROCEDURES BASIC SERVICE PROCEDURES___________________________ VENTURE RV and Your VENTURE RV Dealer have a strong and dedicated interest in maintaining the highest quality customer relations with its owners. Your satisfaction with your VENTURE recreational vehicle and your VENTURE RV dealer is our primary concern. -
Page 15: Dealer
Your authorized VENTURE RV dealer has performed a PDI (pre- delivery inspection) on your recreational vehicle. Since your dealer is authorized to sell VENTURE RV products, they are also there to supply parts, optional equipment, and provide service repairs, warranty or otherwise as needed. -
Page 16: Seasonal Site
If you are traveling and are unable to locate an authorized VENTURE RV dealer, or an authorized dealer for the component needing service, please call our customer service office at (866-472- 5460. Service at a non-authorized dealer MUST have prior authorization. -
Page 17: Towable Limited Warranty
TLW are: (1) items added, changed, or modified after the unit left the posses- sion of Venture RV; (2) units used for any commercial purpose; (3) units used for full-time residential use or more than occasional recreational use ; (4) wear and tear caused by normal usage by the consumer, including but not limited to fading or discoloration of soft goods [e.g., tents, upholstery, drapes, carpet,... - Page 18 Venture RV and delays may be experienced. Venture RV is not responsible for loss of use of the unit, expenses for fuel, telephone, food, lodging, travel, loss of income or revenue, or loss of or damage to personal property.
- Page 19 Venture RV reserves the right to make changes in the design or material of its products without incurring any obligation to incorporate such changes in any product previously manufac- tured.
- Page 20 The TLW registra- tion must be completed and returned to Venture RV within fifteen (15) days of delivery of the unit to the consumer. Failure to do so can void this TLW or cause delays in obtaining benefits.
-
Page 21: Chapter 3 Using Your Rv
CHAPTER 3 USING YOUR RV In this chapter you will find three areas of useful information to assist you with correct equipment, traveling, and finally, actually using your recreational vehicle. EQUIPMENT______________________________________ Tow Vehicle Begin your camping experiences by obtaining a tow vehicle which will adequately transport your recreational vehicle to and from your chosen destinations. -
Page 22: Hitch Height Specifications - Travel Trailer
Weight distributing hitches apply leverage between the tow vehicle and trailer. This assists in equalizing the weight between vehicles, resulting in both vehicles traveling level. The condition of the tow vehicle’s suspension system will affect the towing performance capability of your equipment. CAUTION Trailers with tandem axles need to travel as level as possible, avoiding different weights on each axle plus handling conditions. -
Page 23: The Safety Chain (Travel Trailer)
2. Open the coupler latch. 3. Back the tow vehicle into proper position. 4. Turn the crank on the jack to lower the coupler onto the ball hitch. 5. Close the coupler latch after completely seated. 6. Install weight distributing bars (equalizer), when required, as recommended by hitch supplier. -
Page 24: Traveling
TRAVELING_______________________________________ Weights For safety reasons and federal regulations VENTURE RV provides accurate weight specifications to owners. On the exterior left front corner of the coach you will find the Federal “Vehicle Identification Number” sticker, as required by the federal government. This tag... -
Page 25: Weighing Vehicle (Loaded Or Unloaded)
Now record the axle weight only. The difference between the two weights is the hitch weight. VENTURE RV suggests you also weigh each side (2 tires) separate to find balance of pounds per side. Its possible to have 1 side correct and the other side over-loaded. - Page 26 Venture recreational vehicle to avoid damages. CAUTION Any damage caused by improper loading or installing additional equipment is NOT covered by Venture RV Limited Warranty. WARNING The rear bumper on the frame will only carry 100lbs, therefore only the spare tire carrier, and spare tire can be added to the bumper. Do not add any other components to the bumper, such as bike racks, generators, cargo containers, and etc.
-
Page 27: Toy Hauler-Cargo Information
TOY HAULER—CARGO INFORMATION In Toy Hauler units, you may place 40% of (C.C.C.) carrying cargo capacity in rear area, and then distribute remaining pounds. Place 2 pounds in front of axle to every 1 pound behind axle, some of this weight will be on top of axles. Below is a blank space for you to calculate the “... -
Page 28: Interior, Cargo Area
Interior, Cargo Area * Cargo Area. When sleeping or occupying this area, care must be taken. There are two vents, one located on each side. These vents must be open if the presence of gasoline filled equipment is in the cargo area. •... -
Page 29: Rear Cargo Door
Weight rating and limit on the power bed is 600 pounds static, (stationary) and 450 pounds dynamic (moving ). Rear Cargo Door Rear door on Toy hauler is “ spring loaded “, also known as having preset and designed springs attached along with hinge assembly at the bottom of the door. -
Page 30: Towing
NO SMOKING, BEFORE DISPENSING FUEL, TURN OFF ALL ENGINES, FUEL-BURNING APPLIANCES, AND THEIR IGNI- TORS. DO NOT DISPENSE FUEL WITHIN 20 FEET OF AN IG- NITION SOURCE. FAILURE TO, COMPLY COULD RESULT IN FIRE, DEATH ORSERIOUS INJURY. Towing When towing your trailer you need to recognize the extra weight behind your vehicle. -
Page 31: Tires
7. Remember to drive more slowly on wet and icy highways to keep control of your vehicle. Tires ALL VENTURE RV towable coaches are equipped with appropriate tires for recreational vehicles. Tires are rated to carry weight as listed to G.V.W.R. Tires are radical in design using components to offer excellent strength and mileage in all kinds of weather conditions. -
Page 32: Safety First-Basic Tire Maintenance
—————————————————————————————— TIRE SIZE COLD TIRE PRESSURE PNEU DIMENSIONS PRESSIONDES PNEUS A FRIUD ————————————————————————————— FRONT AVANT REAR ARRIERE —————————————————————————————— SPARE DESECOURS —————————————————————————————— Safety First-Basic Tire Maintenance Properly maintained tires improve the steering, stopping, traction, and load carrying capability of your vehicle. Under inflated tires and overloaded vehicles are a major cause of tire failure. -
Page 33: Tire Size
Tire Size To maintain tire safety, purchase new tires that are the same size and load rating as the vehicle’s original tires or another size recommended by the manufacturer. Look at the tire information placards, or the sidewall of the tire you are replacing to find this information. -
Page 34: Tire Fundamentals
Tire Speed Rating Each original tire installed on Venture RV recreational vehicle has a speed rating of 75 mph or greater. Please note maximum load rating, tire pressure and speed rating as imprinted on the sidewall of... -
Page 35: Cargo Capacities
Cargo Capacities Cargo can be added to the vehicle, up to the maximum weight specified on the placard. The combined weight of the cargo is provided as a single number. In any case, remember: the total weight of a fully loaded vehicle can not exceed the stated GVWR. Water and propane also need to be considered. -
Page 36: How To Change A Tire
tables provided by the tire manufacturer. However, they should never exceed the tire limitation for load or air pressure. If you discover that you are overloaded, you MUST remove weight to stay with in specifications and limits. Note: Tires are warranted by the manufacturer of their respective brand and are to be serviced and warranted by a service center. -
Page 37: Lugs
Wheel Lugs When the wheels are installed on your recreational vehicle, the lug nuts must be tightened at 90-120 foot pounds of torque. Powder coat painted wheels may require more torque attempts due to thickness of paint. You must re-torque the wheel lugs at 50 and 200 miles. -
Page 38: Breakaway Switch
amperage at each brake assembly for equal braking capability and/ or performance. Use the foot pedal for general operation on combined use of both brake systems. Manual control is to be used only in special situations, such as slow movement or icy road conditions. In open road position, electrical current will flow to brake assemblies activating them along with tow vehicle. -
Page 39: Setting Up And Using Your Recreational Vehicle
SAFETY BREAK-AWAY SWITCH WILL NOT OPERATE Unless connected to a power source equivalent to or greater than an auto -motive type 12 volt, 12 amp hour wet-cell battery. SETTING UP AND USING YOUR RECREATIONAL VEHICLE We recommend that you select a level or nearly level place for camping. -
Page 40: Safety Detectors
6. Now raise/lower front end until coach is level. 7. Lower stabilizer jacks to desired position to stabilize coach. 8. Reverse procedure to hook up coach to tow vehicle. The use of stabilizer jacks on a recreational vehicle is a popular and useful option. -
Page 41: Fire Extinguisher
SAFETY DETECTORS Fire Extinguisher—1 A fire extinguisher is installed in each coach and is located near the entrance door of the RV. Be familiar with its location and operating instructions as printed on the extinguisher. Inspect your extinguisher at least two times per year or more often, as instructed on the extinguisher. -
Page 42: Operation
is an alarm that combines into a single, compact system a powerful alarm that detects both Carbon Monoxide (CO) and explosive gases propane (LPG) and Methane Natural Gas). The 35 series uses the latest microprocessor technology combined with two electronic self-cleaning sensors that operate independently of each other. -
Page 43: Visual And Audible Alarm Signals
VISUAL AND AUDIBLE ALARM SIGNALS This SAFE-T-ALERT CO/Propane Gas Alarm is designed to be easy to operate. The alarm has two indicator lights that display a specific color for each monitored condition. There also is a matching sound pattern for alarm condition. CO ALARM The Red CO LED will flash and the alarm will sound 4 “BEEPS’... - Page 44 OPERATION AUDIBLE SIGNAL VISUAL SIGNAL NORMAL NONE STEADY GREEN CO ALARM 4”BEEPS” STEADY RED 5 SECONDS OFF PROPANE ALARM CONSTANT FLASHING RED ALARM “BEEP” EVERY ALTERNATING MALFUNCTION 30 SECONDS RED/GREEN END OF LIFE ‘”BEEP” EVERY RED?RED 30 SECONDS GREEN/GREEN FLASHING WARM UP CYCLE NO WARM FLASHING GREEN...
-
Page 45: Smoke Alarm
SMOKE ALARM—3 Smoke alarms are required when propane is in coach and open flame cooking happens. Alarm is placed on ceiling between bed room and kitchen. Energy to operate is supplied by a 9 volt battery inside of alarm. Operation: The smoke alarm is in operation once the battery is correctly connected. -
Page 46: Tv Antenna (Standard Roof Mount)
TV Antennas (Standard Roof Mount) TV antenna head has a rigid base to mount the receiver head which cannot be rotated or raised up. Base is attached to the roof with 4 screws and the antenna is attached with 2 bolts and nuts Inside of the coach is a power supply, 12 volt DC power which is required for full performance. -
Page 47: To Test System
To test system 1. Make sure the television is working properly. 2. Switch the power supply ON and OFF to see if there is a difference in the picture quality while watching TV. If NO difference, test for 12 volt power at the cable on the roof top, as 12 volt D.C. -
Page 48: Slide Outs
Locks on trunk doors use both thumb and keyed latches. Silicone spray used on these latches will help operation. SLIDE-OUTS With different models of trailers, VENTURE RV uses numerous slide out systems as listed below, followed by descriptions. Several different vendors supply components, loose and/or attached to frames. -
Page 49: Trailer Set-Up Requirements-General
POWER FOR OPERATION All power slide systems operate on 12 volt DC power provided by a convertor, being the main source, requiring 120 volt power and/or a 12 volt battery, fully charged. A 12 volt distribution load center, breakers and fuses are provided for each slide. Tow vehicle 12V power may also be used as required. -
Page 50: Electrical Components
It takes about 20 seconds to move the slide in or out. VENTURE RV does NOT require or suggest blocking, supports, jacks, etc., to be used under slide outs during extended normal use. -
Page 51: Manual Override
CANNOT be installed in bunks designed and built for young children. Cords could become wrapped around their neck. VENTURE RV recommends these shades be in the UP position for travel to avoid lower metal holder being in contact with garnish on window, wall panels, etc. -
Page 52: Ladder-Outside
WARNNG These individual tassel cords reduce the strangulation hazard in the pull cord by removing the loop. Do not tie cords together. Check periodically to make sure the cords have not twisted into a loop This device will not prevent strangulation hazard if young children wrap pull cords around their necks. -
Page 53: Chapter 4 - Systems
CHAPTER 4 SYSTEMS WATER AND DRAINAGE PLUMBING_______________________ Your Venture recreational vehicle has a complete water system, to carry fresh water, as well as holding tanks for used water. Each group has its own explanation along with its own operation. FRESH WATER SYSTEM_________________________________... - Page 54 B City Water Fill See Figure 1 Figure 1 Water may be received into the system through a direct hook-up referred to as “CITY WATER FILL”. After attaching a supply hose to the hook-up, open the faucet from supply line. Enter coach and open all faucets to relieve air from the lines.
-
Page 55: 12-Volt Demand Pump
Valves to operate – Open and close to control water movement in the lines in coach. V1= Regulates Siphon hose. Must be closed except to draw antifreeze or sanitizing solution. V2=Valve closes line from tank to pump. Will be open during pump usage. -
Page 56: Faucets
CAUTION Excessive pressure from water supply systems may be encountered in some parks, especially in mountain regions. Water pressure regulators are available to protect your system against such high pressure. A regulator at 45 pound rating is recommended to prevent damage to the plumbing sys- tem or components. -
Page 57: Fresh Water Lines
as washing hands and utensils. To operate the outside shower: 1. Open the door with key and allow lid to hinge down. 2. Remove the shower head and open valve. 3. Open the faucet valves and adjust to the desired temperature. 4. -
Page 58: Sanitizing And Filling The Potable Water System
WARNING POTABLE WATER ONLY. SANITIZE, FLUSH AND DRAIN BEFORE USING. SEE INSTRUCTION MANUAL. FAILURE TO COMPLY COULD RESULT IN DEATH OR SERIOUS INJURY. Sanitizing and Filling the Potable Water System For your safety, you should sanitize your potable water system when your recreational vehicle is new or when it has been sitting unused for a period of time and it may have become contaminated. -
Page 59: Drainage (Fresh Water)
solution. Turn pump on . Be sure V2 and V3 valves are closed. Faucets need to be open and then closed when liquid appears. Pump will stop when full pressure is achieved. 3. Should you wish to sanitize the tank, open V3 allowing water to flow into tank and pressure will be released. -
Page 60: Sanitation System
SANITATION SYSTEM Toilets The toilet used in this model, is a Thetford, Aqua Magic Residence, with foot flush. Prior to using your toilet, be sure to add a proper amount of deodorant chemical into the toilet with water. Flush contents into tank plus two or three gallons of water. -
Page 61: Using Toilet And Tank System
Using Toilet and Tank System When camping you should always have 4 to 6 inches of water in the toilet bowl. The toilet system performs better when you run water 10 to 20 seconds after flushing to ensure wastes will proceed to the bottom of the tank. -
Page 62: Draining The Tanks
2. Place the recommended quantity of chemicals for waste holding tank as per instructions on the bottle into the toilet bowl. 3. Flush liquids into the tank and allow up to two gallons of water to flow into tank. Each time you drain the tank, you should follow instructions listed, before using. -
Page 63: Maintenance For Holding Tanks
1. Attach a fresh water source to connection marked “Sewer Tank Flusher”. Be sure termination valves are open on tanks. 2. Open valve to release water into tank for rinsing and cleaning of your waste water holding tank. 3. Rinse for several minutes to remove any foreign matter from tank and probes. - Page 64 METHOD #1 Open ALL faucets, low point drains, toilet valve and water heater to drain ALL water. Leave these open during this procedure. 2. Start pump and operate until all water has been removed, takes about 20 to 30 seconds 3.
-
Page 65: By Pass Kit
BY—PASS KIT Valves handles in horizontal position allows water to flow thru entire system including heater. Valves with handles in vertical position will take water heater out of system. By-Pass Kit consists of water line, 2 valves and clamps to control where water will flow. -
Page 66: Propane Fuel System
PROPANE FUEL SYSTEM_______________________________ The fuel system in your recreational vehicle has numerous components such as, piping, copper tubing, brass connectors, hoses, regulators and appliances. Each of these components will be explained in its appropriate area. Propane is the only fuel permitted to be used in a recreational vehicle and its appliances. -
Page 67: Servicing And Filling Propane Containers
1. Main pass thru portion to fill or draw propane is controlled by upper 3 sided knob on top. 2. A small screw on the side of main body is referred to as a 10% valve which allows air to escape when filling and indicates when container has reached the 80% capacity 3. - Page 68 When propane containers are filled to 80% level there is available space for safe expansion of the vaporized liquid. Should your container become slightly overfilled, pressure may rise due to hot sun. It could cause the overflow valve to “blow off” and emit a small quantity of propane vapor.
-
Page 69: Installing Propane Containers
Installing Propane Containers Venture recreational vehicles are equipped with 20 or 30 pound propane containers, depending on floor plan models. Mounting and attaching instructions are listed below: 1. Thread the long rod into the base plate. 2. Set both bottles into place as shown. -
Page 70: Regulator
ALL GAS LINES HAVE BEEN CHECKED WITH AIR PRESSURE. DEALERS ARE REQUIRED TO RECHECK BEFORE DE- LIVERY TO RETAIL CUSTOMERS. DANGER All pilot lights, appliances and their igniters (see operating instructions) shall be turn OFF before refueling of motor fuel tanks and/or propane containers. FAILURE TO COMPLY COULD RESULT IN DEATH OR SERIOUS INJURY. -
Page 71: High Pressure Hoses With Acme Connectors
The propane regulator used on the Venture units, is the automatic two stage regulator. With both cylinders full of propane, turn the lever on the regulator towards the cylinder you wish to use first. -
Page 72: Main Supply Hose - Low Pressure
occur. Main Supply Hose – Low Pressure The main supply hose will be attached from the regulator to the brass manifold fitting in the frame of the coach. The swivel brass nut on the main hose will be your final attachment. There are several things to remember each time the container is removed: 1. -
Page 73: Checking For Leaks
Checking for Leaks The entire propane distribution system and appliances have gone through complete factory and dealer tests for any leakage. When traveling with your RV, normal vibrations and road movement may cause connections to loosen and develop leaks. For normal maintenance we advise all owners to test for leakage at least once per year or more often. -
Page 74: Propane Consumption
For your own protection, the preceding warning label has been placed near the cooking area to remind you of the need of oxygen for combustion and breathing. Due to smaller area in your RV, there is less oxygen than in your home. Proper ventilation is required when cooking. - Page 75 Propane consumption depends mostly upon individual use of appliances and the length of time operated. Each gallon of propane produces about 91,500 BTUs of heat energy. Following is a list of typical appliance consumption when turned on fully for one hour of operation.
-
Page 76: Electrical System
ANSI standard 1192, National Electric Code and Canadian Standards Association. This series and models manufactured by VENTURE RV has 30 amp service, 50 amp service is available as an option. Highly recommend that your RV electrical connection, is not plugged into a household outlet. -
Page 77: Circuit Breakers And Box
Energy will enter through the main breaker and is distributed through circuit breakers to the wall receptacles and appliances. This power cord will be approximately 26 to 28 feet in length. Each cord has the correct gauge of wire to carry the correct voltage to coach. In some hook-ups the power cord may not be long enough and extension cords are required. - Page 78 Don’t forget loose items such as toasters, electric skillets, and coffee pots also consume power. Include these also in your planning. WARNING NEVER, under any circumstances, remove a grounding pin in any cord or plug. It may mean the difference between LIFE OR DEATH. CAUTION A 50 amp service is a 240-volt hook-up.
- Page 79 Quantity of breakers depends on the floor plan, options and size of coach. Venture RV. recommends against using any reducer adaptor (50 to 30 or 30 to 15) when 50 amp service is not available. When using such an adaptor, you have reduced incoming power and CANNOT power all your appliances.
-
Page 80: Gfci Protection
GFCI Protection Each coach has a GFCI, Ground Fault Circuit Interrupter, protection receptacle installed into the circuitry. This GFCI device is designed to protect people from hazards of line to ground electric shock. The purpose is to reduce possible injury caused by electrical shock, resulting from faulty installation, improper polarity and related to moisture and/or earth ground. -
Page 81: Converter
All travel trailers and fifth wheels are pre-built to accept a battery. Batteries are not standard equipment or supplied by the manufacturer on Venture RV units. Recommended batteries are of deep-cycle type as you need longer, slow consuming power rather than cold-cranking power. A battery is PDF created with pdfFactory trial version www.pdffactory.com... -
Page 82: Circuit Breakers And Fuses-12Volt Dc
always required for a break-away switch to function. A battery requires routine maintenance for long life. First, terminals need to be kept clean to avoid corrosion. Second, a battery used daily will consume water as long as the converter is in operation. Be sure to check the battery no less than every 30 days and keep the battery filled with distilled (rain) water. -
Page 83: Auxiliary Battery
All wiring used in your coach meets correct amp rating correlated with fuses and breakers in respective panels as required by code. BATTERY—AUXILARY. The RV battery is placed in parallel circuitry with the battery on your tow vehicle, which is NOT SUPPLIED by manufacture. Care needs to be exercised not to drain both batteries together. -
Page 84: Porch Lights
Power for exterior lights, such as tail lights, turn, clearance and brake lights, is supplied by the tow vehicle. The connector between the recreational vehicle and the tow vehicle may build up corrosion due to moisture. You may need to clean these terminals occasionally to insure good electrical contact. - Page 85 OPTIONS-involving electrical 1. With second air conditioner, 50 amp service is required. With 50 amp it means 2- 120 volt positive wires will be attached to two banks of positive power in circuit breaker box, one to each side. Power cord will have 4 prongs on it, 2 positive,1 neutral, and 1 ground.
-
Page 86: Chapter 5 - Appliances
CHAPTER 5 APPLIANCES VENTURE RV places brand name, quality-built equipment, as guided by current codes and standards, in all recreational vehicles. Some appliances are built and equipped to operate on propane gas ONLY. DO NOT attempt to operate on natural, butane or methane fuel. -
Page 87: Furnace
FURNACE_____________________________________________ The furnace in your recreational vehicle requires 12-volt DC electrical current and propane gas energy for correct operation. The furnace receives 12-volt DC power from a fully charged battery and/ or the converter in the coach. This power must be present before propane gas can enter through the control to the burner tube. -
Page 88: Operating Instructions
From the time you turn the thermostat on, there is a delay built into the furnace to perform a purge cycle preventing any possible gas vapor build-up in the chamber. NOTE: Different model furnaces are used for different unit floor plans. -
Page 89: Ducting
RANGE AND OVEN TOP BURNER OPERATION______________ The cooking appliance used in the Venture RV products is a standard 17” oven with three top burners. None have a ‘STANDING PILOT” on top burners and must be lit, at each usage with igniter by turning knob in direction of arrows, or hand held lighter or matches. - Page 90 2. Depress knob and turn fully counterclockwise to “LITE” position. a. Verify sufficient propane supply before attempting to light the burner. Air in the propane line will significantly delay burner ignition. The burner may light unexpectedly as the air in the line clears and is replaced by propane.
-
Page 91: Oven Burner
WARNING When holding the match or lighter to ignite flame, DO NOT position your fingers close to the burner. You could get burned causing injury. CAUTION Hand held igniters may be used but be sure they are the type designed for lighting open flame burners. -
Page 92: Water Heater

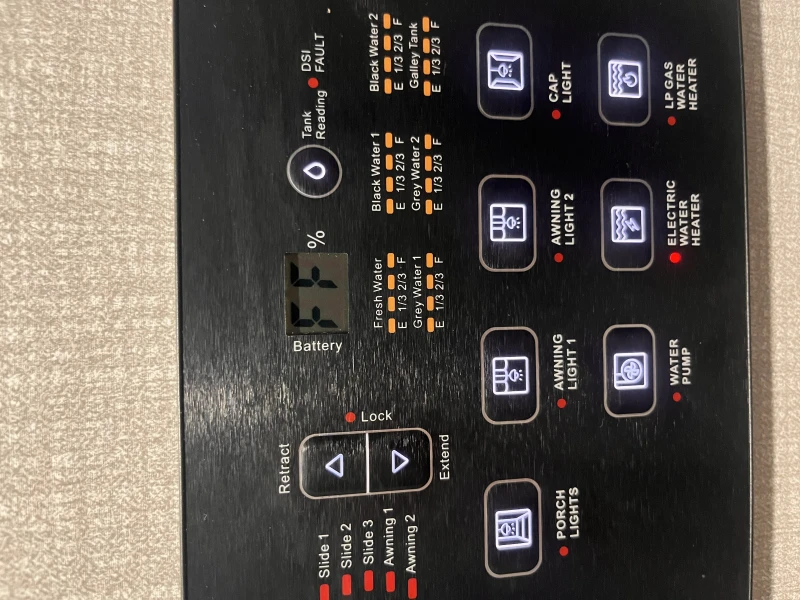

thermostat was calibrated at the factory and is not field adjustable. 3. To shut down the oven burner turn the oven control knob clockwise to “PILOT ON” position. At this position, the oven pilot will remain lit. 4. To shut down the oven pilot light slightly depress knob and turn clockwise to “... - Page 93 propane, STOP! Follow previous instructions, what to do if you smell propane. If you do not smell propane, go to the next step. 5. Turn “ON” the propane supply. 6. Turn on electrical power to the appliance. 7. Turn switch marked “ Gas “, which is located on bottom of the monitor panel, to “...
-
Page 94: Operating Instructions-Electric
OPERATING INSTRUCTIONS—ELECTRIC Electric water heaters are designed to operate with a minimum amount of service problems, however, proper operation and care is essential. By far the most common trouble with electric water heaters results from energizing the water heater before it is filled with water. Even brief operation of the electric element without water in the tank will burn out the electric heating element. -
Page 95: Refrigerator
DANGER If the user of this appliance fails to maintain it in the condition in which it was shipped from the factory or if the appliance is not used solely for its intended purpose or if the appliance is not maintained in accordance with the instructions in this manual then the risk of a fire and/or the production of carbon monoxide exists which can cause personal injury, property dam- age or loss of life. -
Page 96: Operation During Travel
Operation During Travel While the refrigerator should be level when the vehicle is stopped, performance during travel is not usually effected when in motion. Venting For an absorption unit to operate fully it must have two vents. The lower vent serves as access to service components and allows air to enter. -
Page 97: Door Handles
* Have your dealer or an authorized Norcold Service Center correct the seal of the door. Door Handles During travel, the door latch prevents the door from opening. When closing each door, push the door toward the refrigerator until you hear a “... -
Page 98: Operating The Refrigerator Controls
OPERATING THE REFRIGERATOR CONTROLS Control Panel: Control for the refrigerator is a single switch on center, front panel to turn unit ON or OFF. Should you wish to change temperature on the inside of box you must move the thermister and wire on the fins of unit. -
Page 99: Fire Place (Option)
10 amps. The actual panel is an after market item. Venture RV does not stock nor sell this option. It’s main function is to maintain a charge for any auxiliary battery you may have installed on your coach. -
Page 100: Outside Kitchen (Optional)
OUTSIDE KITCHEN (OPTIONAL) Using this outside kitchen is a nice feature as it will eliminate traffic inside of your camper and perhaps avoid a food spill or dirt on inside floor. Two sizes are available, a short or tall version, depending on size or model of camper and space. - Page 101 If problems occur with any appliance while traveling, contact the appliance manufacture direct. These phone numbers are listed in the appliance manuals. Manuals should stay in unit at all times. Important Phone Numbers ————————————————————— ————————————————————— ————————————————————— ————————————————————— ————————————————————— ————————————————————— ————————————————————— —————————————————————...
