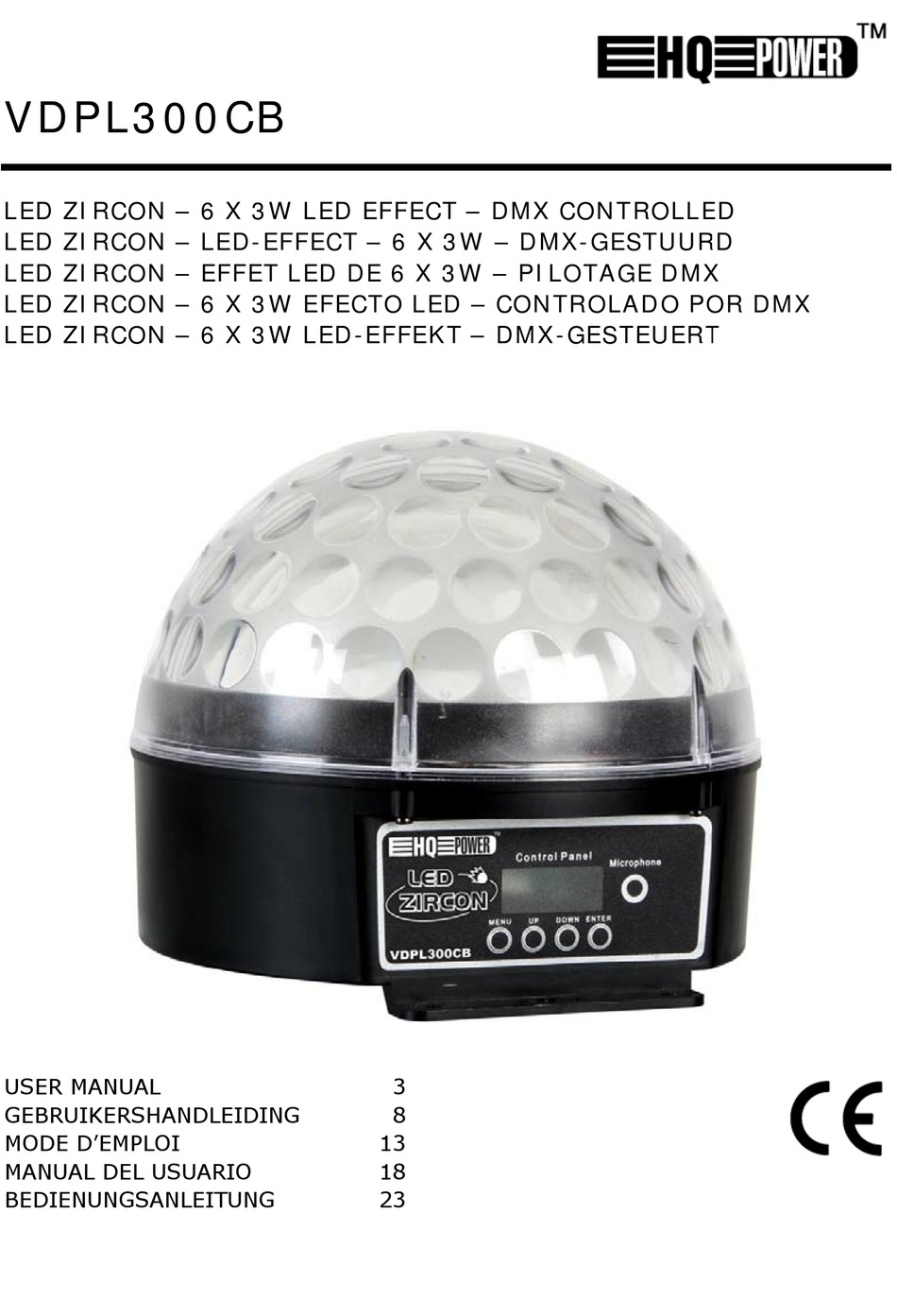

- Page 1 PL300 LED Z ZIRCON – 6 6 X 3W LE ED EFFECT – DMX CO ONTROLLE LED Z ZIRCON – L LED-EFFEC CT – 6 X 3 3W – DMX- -GESTUUR LED Z ZIRCON – E EFFET LED D DE 6 X 3 W –...
- Page 2 VDPL300CB terminator – eindweerstand – résistance de terminaison – terminación – Terminierung How to turn the controller line from 3-pins into 5-pins (plug and socket). Controller line van 3-pin naar 5-pin aanpassen (stekker en contact). Modifier la ligne du contrôleur de 3 broches en 5 broches (fiche et contact).
- Page 3 VDPL30 00CB USER MA ANUAL Introductio To all re esidents of the e European Un Importa ant environme ntal informati on about this product This symbol o on the device or the package in dicates that dis posal of the dev vice after its life ecycle could harm th...
-
Page 4: Installation
Protect the device against damage by leaving it switched off until it has reached room temperature. • This device is designed for professional use on stage, in discos, theatres, etc. The VDPL300CB should only be used indoors. Use only the included power adapter. -
Page 5: Operation
When applicable, connect an XLR cable to the female 3-pin XLR output of a controller (not incl.) and the other side to the male 3-pin XLR input [4] of the VDPL300CB. Multiple VDPL300CBs can be linked through serial linking. The linking cable should be a dual core, screened cable with XLR input and output connectors. -
Page 6: Master/Slave Mode
• In case of the 6-channel VDPL300CB, you will have to set the start address of the first unit to 1 (CH1~6), the second to 7 (1 + 6) (CH7~12), the third to 13 (7 + 6) (CH13~18), and so on. -
Page 7: Cleaning And Maintenance
VDPL300CB Cleaning and maintenance • All screws should be tightened and free of corrosion. • The housing, the lenses, the mounting supports and the installation location (e.g. ceiling, suspension, trussing) should not be deformed, modified or tampered with; e.g. do not drill extra holes in mounting supports, do not change the location of the connections…...
