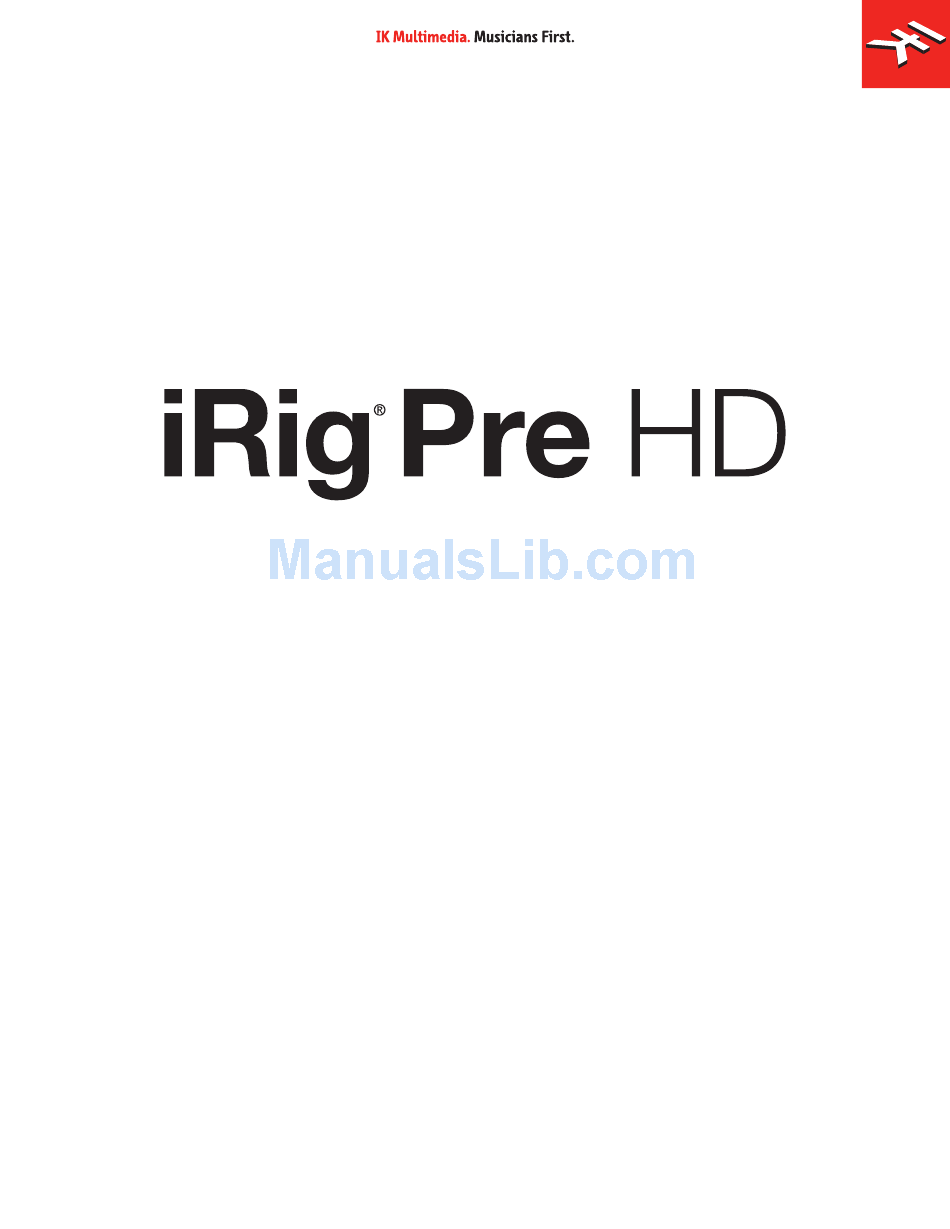

Page 1: User Manual
Portable Audio interface for iOS, USER MANUAL... -
Page 2: Table Of Contents
Register your iRig Pre HD Installation and setup iOS devices MAC/PC iRig Pre HD LEDs Status / Audio level LED Phatom power LED Setting input gain on iRig Pre HD Direct monitoring Stand adapter Troubleshooting Specifications Warranty Support and more info... -
Page 3: English

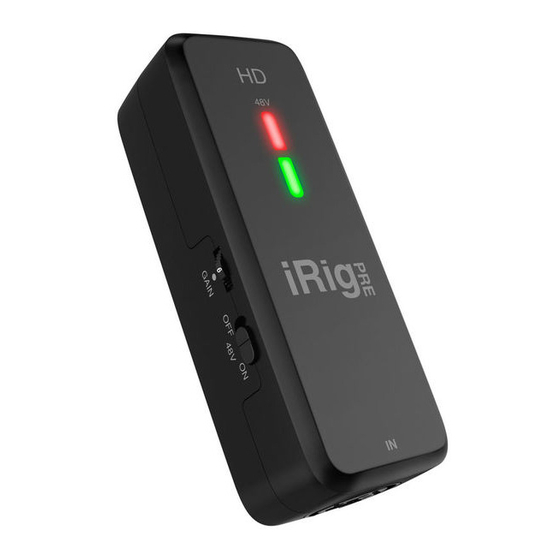

• Quick start guide • Registration card iRig Pre HD is a digital microphone interface for iOS/MAC devices. It features a 3-pin XLR connector for connecting microphones (accepts also phantom powered microphone, thanks to the internal batteries). The new design sports also an Headphones output 1/8” jack to allows to connect your headphone. -
Page 4: Installation And Setup
English Installation and setup For iOS users: the internal batteries will power up iRig Pre HD while using a microphone that requires external phatom power. iOS devices 1. Connect the included Lightning cable to iRig Pre HD Micro-USB port. 2. Connect the Lightning cable to your iOS device. Make sure phantom power is turned off by setting the phantom power switch to the OFF position. - Page 5 4. If you are using a microphone connect it using an XLR cable to the iRig Pre HD microphone input and set its level via the dedicated gain wheel. If the microphone requires an external power supply, switch ON the phantom power switch.
-
Page 6: Mac/Pc
3. Make sure phantom power is turned off by setting the Phantom Power switch to the OFF position. Check that the phantom power LED is OFF. 4. If you are using a microphone connect it using an XLR cable to one of the iRig Pre HD microphone input and set its level via the dedicated gain wheel. -
Page 7: Phatom Power Led
• If the LED is alternating between BLUE and GREEN, or is always GREEN, you should increase the iRig Pre HD input gain by rotating the GAIN control clockwise. • If the LED sometimes flashes RED, you should decrease the iRig Pre HD input gain by rotating the GAIN control counter-clockwise. -
Page 8: Direct Monitoring
Sound is distorted. You’re probably overloading the input. Check that the input gain on iRig Pre HD is set properly. If the Audio Level LED is red when you play your instrument or sing or talk into a mic, decrease the input gain as described in this guide. -
Page 9: Warranty
English Gain Range: 40 dB Phantom Power: +48V ± 4V Frequency Response: 20 Hz - 20 kHz +/-1.5dB Input Noise: -97 dB RMS, -105 dB(A) Stereo Headphone Output Connector: 1/8” TRS Jack. Tip: right / Ring: left / Shield: ground Headphone Level Control numbered thumbwheel Headphone Level Power 100mW into 50 Ohms Other Input/Output... - Page 10 2. This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. iRig® Pre HD is a trademark or registered trademark property of IK Multimedia duction Srl. All other product names and images, trademarks and artists names are the property of their respective owners, which are in no way associated or affiliated with IK Multimedia. 2017/09/27...
