Viking CTG-2A Product Manual

Cl series wireless analog / digital clocks and accessories.
Hide thumbs

Advertisement

Designed, Manufactured and Supported in the USA
VIKING
C O M M U N I C A T I O N & S E C U R I T Y S O L U T I O N S

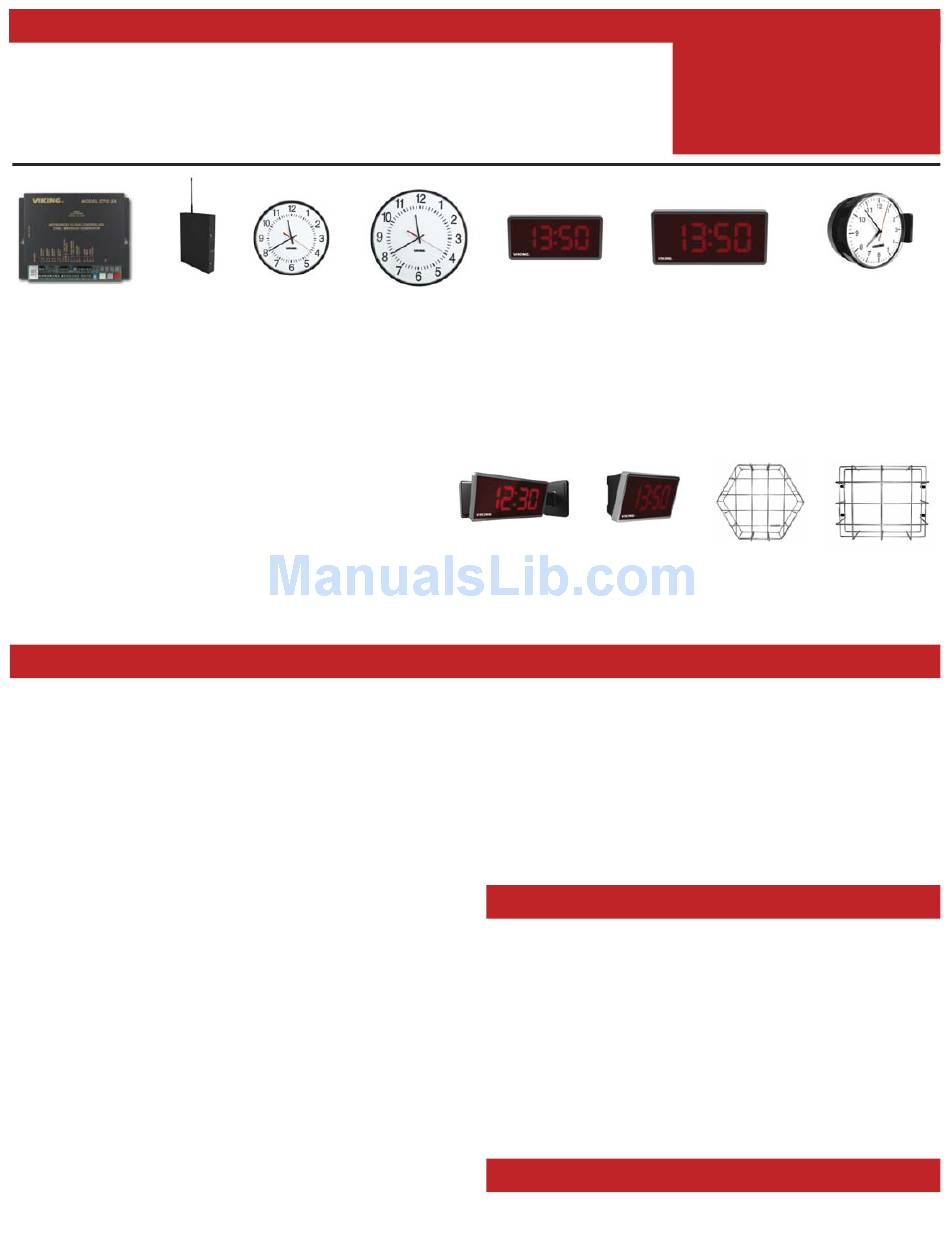

CL-RFT
CTG-2A
Clock RF
Master Clock/Tone
Transmitter/
Generator (DOD# 464)
Repeater
Viking's Wireless Clock System provides reliable, accurately synchronized clocks for your entire facility. Eliminating dedicated clock wiring can save you thousands of dollars on installation
and also allows for easy retrofitting of an existing installation. While most wireless systems are limited to the range of the transmitter, Viking's system is not. Each clock acts as a Repeater
(transceiver), meaning the secondary clocks both receive and retransmit the signal, maximizing signal transmission distances. The system is comprised of a CTG-2A master clock, a CL-
RFT clock RF transmitter and Analog or Digital wireless slave clocks. Working on Viking's 915-928MHz frequency hopping technology eliminates interference with other wireless products
and requires no FCC license, eliminating extraneous fees. The received signal remains strong even under the effects of noise, obstructions or long distances which tend to decrease the
signal to noise ratio. Installation is a cinch for our wireless clocks, just insert the batteries or connect power and hang them. That's it.
Viking's CL Series wireless clocks include automatic calibration, as well as diagnostics
that allow the user to view the signal strength, how long since the last time the clock
received a signal, a comprehensive analysis of the clock itself and remaining battery
life. The 12 and 16 inch wireless Analog clocks receive and retransmit an RF clock
sync signal every 4 hours (standard mode) or 12 hours (economy mode) allowing for
a battery life of 5 years or 8 years respectively. The 2.5 and 4 inch digital clocks are
powered by an included power adapter and receive and retransmit an RF clock sync
signal every minute. Viking also offers a complete line of accessories for the Analog or
Digital clocks such as: double mount housings, wire guards and surface mount housings
(for digital clocks only).

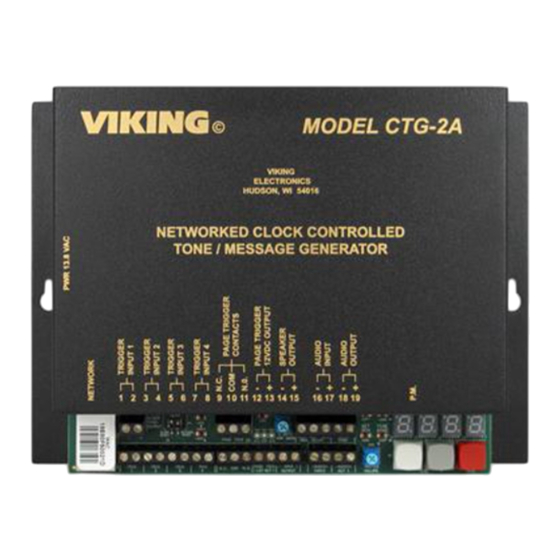

CTG-2A Master Clock/ Tone Generator:
• See the complete CTG-2A Product Manual, DOD# 464
CL-RFT Clock RF Data Transmitter/Repeater:
• Transmits the CTG-2A RS485 clock sync data wirelessly to the CL Series
wireless clocks
• Can be configured as a wireless repeater to extend RF transmit range
• Powerful transmission range: Up to 6500 ft in open space
• Compact, slim design makes it versatile for mounting
• Can wirelessly receive and transmit data
• LEDs for indication of transmission and/or receipt of RS485 signal
• Powerful 1 watt (30dBm) transmission
• Works with Viking's 915 - 928 MHz frequency-hopping technology
• FCC Part 14 compliance (no license required)
CL-D2 and CL-D4 Digital Clocks:
• Built-in repeater receives and retransmits clock sync signal each minute
up to 500 ft in open space
• 915 – 928 MHz frequency-hopping technology
• Internal antenna
• Built-in diagnostic mode for easy maintenance
• Receives the RF Sync signal once a minute
• Immediate correction for time change
• 12 or 24 hour format
• Two (2) levels of adjustable brightness
• Loss of communication alert
• Available in red 2.5" and 4" displays
• Surface and double mount housing sold separately
• Optional wire guards (see CL-WGD4 on page 11)
www.vikingelectronics.com
PRODUCT MANUAL
CL-A12
CL-A16
12" Analog Clock
16" Analog Clock (surface
(surface mount
mount hardware included)
hardware included)
Features
CL-D2
Digital Clock with 2.5"
Numbers (surface or
Numbers (surface or double
double mount housing
mount housing not included)
not included)
CL-DMD2/4
CL-SMD2/4
Double Mount
Surface Mount
Housing for 2.5"/4"
Housing for 2.5"/4"
Digital Clocks
Digital Clocks
(clocks not included)
(clock not included)
CL-A12 and CL-16 Analog Clocks:
• Built-in repeater receives and retransmits clock sync signal up to 500 ft in
open space
• 915 – 928 MHz frequency-hopping technology
• Internal antenna
• Built-in diagnostic mode for easy maintenance
• 5 yr battery life (standard mode) or 8 yr battery life (economy mode),
(2) "D" cell batteries not included
• Black ABS case and polycarbonate crystal
• Optional double mount housing available (see CL-DMA12/16 on page 5)
Applications
Using the CTG-2A, CL-RFT and CL Series Clocks:
• Wirelessly synchronize all clocks in your facility to the Atomic clock
• Signal the beginning and end of class periods, breaks and lunch periods
for schools
• Signal the beginning and end of shifts, breaks and lunch periods for
factories/businesses
• Provide trigger controlled emergency alert messages for fire, flood, severe
weather, lock down, etc.
• Provide messages at specific times for store sales, promotions, closing
times, airport loading zones, etc.
• Provide Auxiliary contact activation at specific times for specific durations
for controlling lights, cameras, unlocking doors/gates, etc.
Specifications
For complete specifications, see pages 3 - 11.
Information: 715-386-8861
CL Series
Wireless Analog / Digital
Clocks and Accessories
August 23, 2017
CL-D4
CL-DMA12/16
Digital Clock with 4"
Double Mount Housing for
12"/16" Analog Clocks
(clocks not included)
CL-WGA12/16
Wire Guard for
Wire Guard for 2.5" or 4"
12"/16" Analog Clocks
CL-WGD4
Digital Clocks

Advertisement

Table of Contents

   Also See for Viking CTG-2A

   Related Manuals for Viking CTG-2A

No related manuals

   Summary of Contents for Viking CTG-2A

  • Page 1 Viking’s Wireless Clock System provides reliable, accurately synchronized clocks for your entire facility. Eliminating dedicated clock wiring can save you thousands of dollars on installation and also allows for easy retrofitting of an existing installation. While most wireless systems are limited to the range of the transmitter, Viking’s system is not. Each clock acts as a Repeater (transceiver), meaning the secondary clocks both receive and retransmit the signal, maximizing signal transmission distances.
  • Page 2 70V OUT OUTPUT CONTACT LINE (optional but 1/8" mono recommended) plug All Clear Viking RF Synchronized Clocks with Built-In Repeaters CL-A16 Optional Background Music CL-A12 Source (not included) (Up to 6500 ft * Note: Each clock's repeater will in open space) re-transmit the clock sync signal up to 500 ft in open space.
  • Page 3 C. Wiring and Jumper Settings (Transmitter / Repeater Configuration) The wireless Transmitter / Repeater can be configured to use either incoming wireless signals or RS485 data from the CTG-2A as a means of recieving time. To change the time data source:...
  • Page 4 (analog wireless clock only), or 24 volts (digital clocks only). Will the Transmitter/Repeater have interference from cordless or cellular phones? No, because with Viking’s innovative frequency-hopping technology, interference will not occur. The repeater switches frequencies automatically when the receiver and transmitter is open, thus interference is avoided.
  • Page 5 B. Wall Mounting the CL-A12 and CL-A16 CL-A12 CL-A16 (12” Analog Clock) (16” Analog Clock) 1. Mount both plastic anchors in the wall. 2. Insert the sheet metal screws (#10) through the mounting bracket into the plastic anchors. 3. Hang the clock on the mounting bracket. 4.
  • Page 6 Take the clock within close proximity to the CL-RFT Transmitter and power up the clock. If the clock is battery operated, remove the battery and put the battery back in again or press the Transmit/Receive button twice. If the clock does not correct, call Viking technical support.
  • Page 7 Second Hand Position Time Since Clock Last Received a Communication Signal Clock has received communication in the past hour Clock has received communication between one and two hours ago Clock has received communication between two and three hours ago Clock has received communication between three and four hours ago Clock has received communication between four and five hours ago Clock has received communication between five and six hours ago Clock has received communication between six and seven hours ago...
  • Page 8 CL-D2 / CL-D4 Digital Clocks A. Specifications CL-D2 (Digital Clock with Display Digit Size: 2.5” (6.35 cm) and 4.0” (10.16 cm) tall 2.5” Tall Numbers) Display Color: Vibrant Red Number of Digits: 4 digits Visibility: CL-D2: 100 ft. (30.48 m), CL-D4: 250 ft. (76.2 m) Bezel Color: Anti-glare red Bezel Size (HxW): CL-D2: 4.69”...
  • Page 9 C. CL-DMD2 / CL-DMD4 Double Mount Installation * Single or Double Gang Electrical Box (not included) * Important: Single or Double Gang Electrical Box Use one that can support a minimum of 50 lbs. 1. Install Metal Mounting Bracket - Screw the metal mounting bracket to the wall or ceiling in which the clock is being installed using the four (4) 6-32 x1”...
  • Page 10 Can the CL-D2/4 digital clocks be used as an independent clock? No, the CL-D2/4 requires a communication input and must be used with a Viking Transmitter/Repeater (model CL-RFT). What will happen if the clock is not receiving a signal? The colon on the display will flash every second.
  • Page 11 If the wiring is correct, take a volt meter and measure the voltage. The voltage should be between 14 - 28 volts. What happens if the clock does not receive the signal? Take the clock within close proximity to the transmitter and power the clock. If the clock does not correct, call Viking technical support at (715) 386-8666.
  • Page 12 TWO YEAR LIMITED WARRANTY Viking warrants its products to be free from defects in the workmanship or materials, under normal use and service, for a period of two years from the date of purchase from any authorized Viking distributor. If at any time during the warranty period, the product is deemed defective or malfunctions, return the product to Viking Electronics, Inc., 1531 Industrial Street, Hudson, WI., 54016.
