Summary of Contents for ProFire 3100
- Page 1 PF3100 User Interface Card Product Manual August 2017 Rev. 1.3 PROFIRE 3100 User Interface Card The PROFIRE User Interface (UI) Card is designed to provide easy interface between operators and the BMS controller. PROFIRE 1.855.776.3473 solutions@profireenergy.com Page 1 of 9...
-
Page 2: Table Of Contents
Card Diagram ..............................3 Wiring Diagrams ............................. 5 Instructions for Use ............................7 Preventative Maintenance and Inspection ....................... 7 Enclosure Specifications ..........................8 Important Safety Information .......................... 8 PROFIRE Contact Information .......................... 9 PROFIRE 1.855.776.3473 solutions@profireenergy.com Page 2 of 9... -
Page 3: Introduction

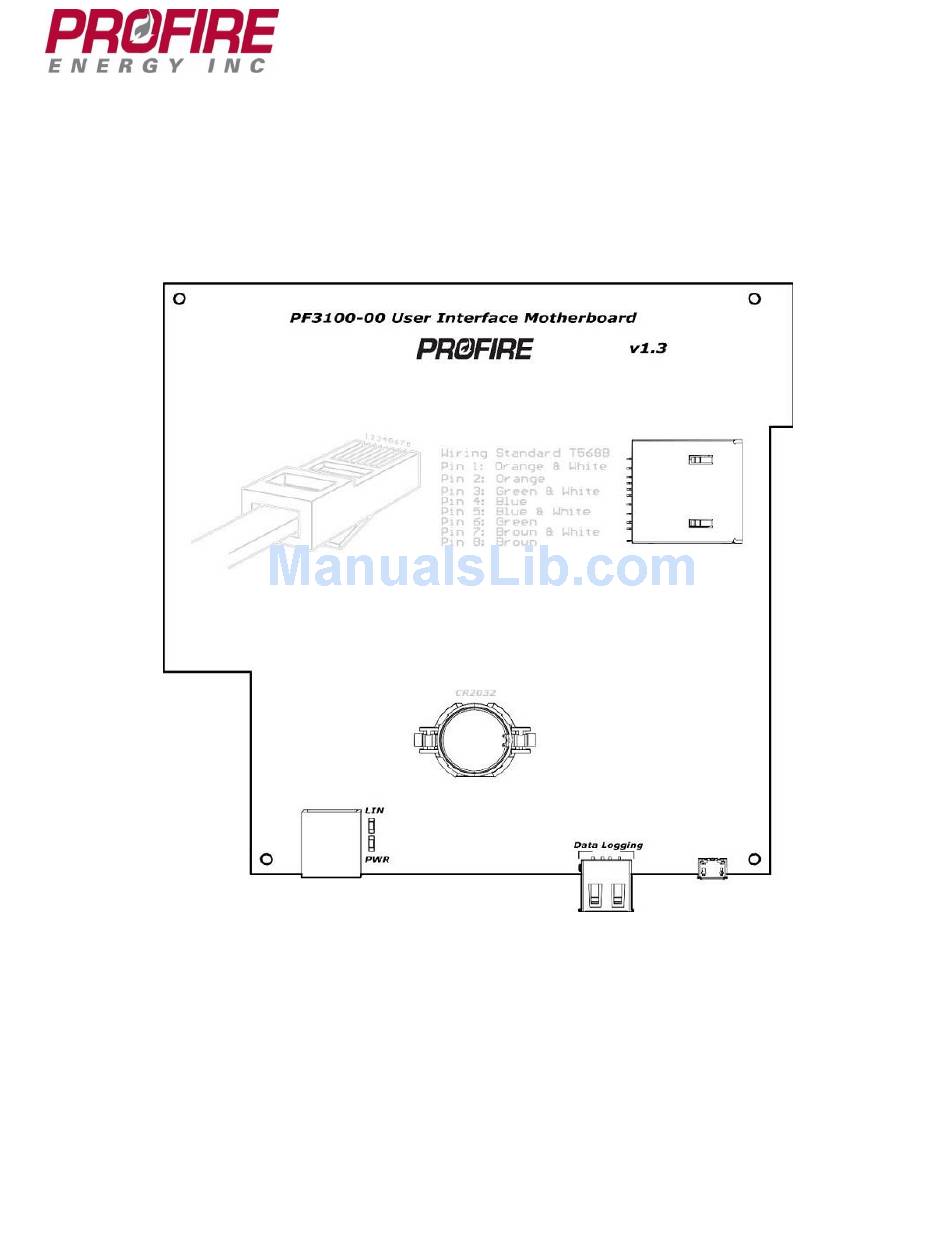

Hardware Guide corresponding to the cards specific to your application. User Interface Card – Hazardous Location Rating Class I, Div 2, Grp ABCD; T4: type 4, IEC 61508 SIL2, CSA 22.2 No. 60730-2-5, UL 60730-2-5. 2. Card Diagram PROFIRE 1.855.776.3473 solutions@profireenergy.com Page 3 of 9... - Page 4 The datalogging USB port is used for downloading event log information and firmware updates. Please refer to PROFIRE’s Firmware Update Guide (http://3100.profireenergy.com/pf3100-documentation/) for detailed instructions on performing a firmware update. The USB should not be inserted or removed unless the area is known to be non-hazardous, as removing or inserting the USB may cause a spark.
-
Page 5: Wiring Diagrams
PF3100 User Interface Card Product Manual SD Card An SD card is used for programming the operating system on the User Interface. Please refer to PROFIRE’s PFNIX Software Update Guide (http://3100.profireenergy.com/pf3100-documentation/) for detailed instructions on programming and updating PFNIX software. The SD card should not be inserted or removed unless the area is known to be non-hazardous, as doing so may cause a spark. - Page 6 PF3100 User Interface Card Product Manual UI Connection to BMS through Modbus Card UI Connection to BMS through Network Card PROFIRE 1.855.776.3473 solutions@profireenergy.com Page 6 of 9...
-
Page 7: Instructions For Use
➢ Routine inspections should be performed on all equipment. If any abnormality is found, corrective actions should be taken. If the abnormality cannot be corrected, contact PROFIRE as soon as possible. ➢ A qualified technician should perform any tests necessary to confirm that the equipment is still in a safe condition. -
Page 8: Enclosure Specifications
Do not plug in or remove connectors unless the area is known to be non-hazardous; this includes the USB, SD card, and battery. ➢ Installation and use must conform to the directions in this guide. PROFIRE 1.855.776.3473 solutions@profireenergy.com Page 8 of 9... -
Page 9: Profire Contact Information
Moisture damage is not covered by the product warranty. 7. PROFIRE Contact Information If you have any concerns or questions about this product, please contact PROFIRE as follows: U.S. 1.801.796.5127...
