  • Page 2: System Requirements

    5V 2.5A AC Power Adapter CAT5 Ethernet Cable If any of the above items are missing, please contact your reseller. Note: Using a power supply with a different voltage will cause damage and void the warranty for this product. D-Link DCS-910/90 Quick Install Guide...
  • Page 3: Hardware Overview

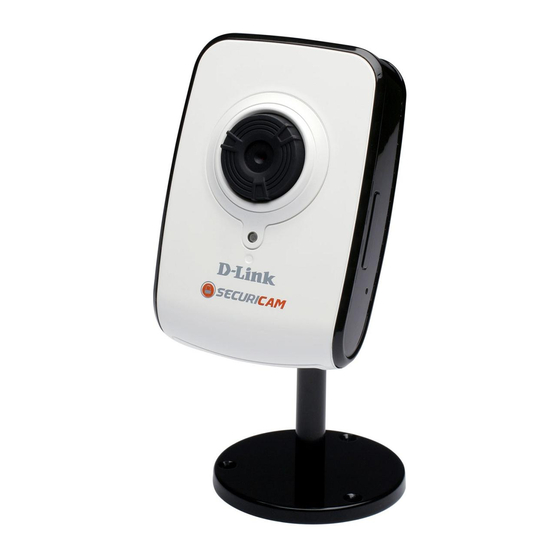

    Hardware Overview Hardware Overview Front Wireless Antenna* Power and Link LED Camera Lens Camera Stand * Antenna available on the DCS-920 only D-Link DCS-910/90 Quick Install Guide...
  • Page 4 Hardware Overview Rear Wireless Antenna* Reset Power Connector Ethernet Connector Camera Stand * Antenna available on the DCS-920 only D-Link DCS-910/90 Quick Install Guide...
  • Page 5: Hardware Installation

    Ethernet cable and begin communicating wirelessly with your DCS-920. Attach the Swivel Stand Locate the stand mount on the back panel of the DCS-910/920 and screw on the swivel stand to the DCS-910/920. Connect the Ethernet Cable Connect the included Ethernet cable to...
  • Page 6 Attach the External Power Supply Attach the external power supply to the DC power input connector located on the bottom panel of the DCS-910/920 and connect it to your local power supply. Note: Power source is confirmed when the red LED Power Indicator located below the lens on the camera is illuminated.
  • Page 7: Software Installation

    Software Installation Software Installation Insert the DCS-910/920 CD into the CD-ROM drive. If the CD Autorun function does not automatically start on your computer, click Windows ® Start > Run. In the Run command box type “D:\DCS910920.exe”, where D: represents the drive letter of your CD-ROM. If it does start, proceed to the next screen.
  • Page 8 Software Installation To start the installation click Next. Note: The installation may take several minutes to complete. Click Next Click Finish to complete the installation. Click Finish D-Link DCS-910/90 Quick Install Guide...
  • Page 9 Configuration Configuring Your Camera with the Installation Wizard Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu. The Setup Wizard will appear and show the MAC address of the DCS-910/920 and an IP Address (which may or may not be correct depending on what you have your DCS-910/920 connected to).
  • Page 10 IP address at each boot up. Click Next Enable wireless settings and enter your wireless network information. Select your wireless security settings, and click Next. Note: Wireless is available only for the DCS-920. Click Next D-Link DCS-910/90 Quick Install Guide...
  • Page 11 DCS-920. Click Next If you need to make any changes, click Back to modify your settings. Otherwise, click Restart to save and apply your settings. Note: Wireless is available only for the DCS-920. Click Restart D-Link DCS-910/90 Quick Install Guide...
  • Page 12: Viewing Your Internet Camera

    Click the button labeled Link to access the web configuration. The Setup Wizard will automatically open your web browser to the IP address of the DCS-910/920, in this example it is: http://192.198.0.102. Your DCS-910/920 may have a different IP Address.
  • Page 13 This section shows your camera’s live video. You can control your settings using the buttons below. For more information on using the web configuration, please refer to the user manual. Click ActiveX or Java radio button to view live video. D-Link DCS-910/90 Quick Install Guide...
  • Page 14 D-ViewCam Installation D-ViewCam software is included for the administrator to manage up to 32 D-Link IP cameras remotely. The administrator can also record the video to hard drive and configure advanced settings. D-ViewCam is a complete management tool and includes all configurative settings.
  • Page 15 Click Browse if you would like to choose a specific folder for the installation, otherwise click Next to continue. Click Next Click Next to start the installation. Note: The D-ViewCam installation process may take several minutes to complete. Click Next D-Link DCS-910/90 Quick Install Guide...
  • Page 16 DViewCam Installation Click Finish to complete the installation. D-Link DCS-910/90 Quick Install Guide...
  • Page 17: Add A Camera

    D-Link > D-Link D-ViewCam Use admin as the default user name and leave the password blank. Click the (Check Box) to continue. The D-ViewCam screen will appear as shown below. Click (Next) to begin the Add Camera wizard. D-Link DCS-910/90 Quick Install Guide...
  • Page 18 The system will place all found cameras under the default map called My Map. Click Next to continue. DCS-910-55 If you choose Add Manually, you will need to enter the IP address of the camera. Click Next to continue. D-Link DCS-910/90 Quick Install Guide...
  • Page 19 (06:00 PM to 08:00 AM), and ONLY records when motion is detected. Note: Except 24/7 Continuous Recording, other schedule recording types can be activated ONLY when image motion detection window is created. Please refer to the users manual for more information. D-Link DCS-910/90 Quick Install Guide...
  • Page 20 D-ViewCam Select Yes to add other camera(s), or select No to continue. Note: After you have finished adding your camera(s), click Close to view your camera(s). Your D-ViewCam Installation is Complete! D-Link DCS-910/90 Quick Install Guide...
  • Page 21 Notes D-Link DCS-910/90 Quick Install Guide...
  • Page 22 Notes D-Link DCS-910/90 Quick Install Guide...
  • Page 23 Notes D-Link DCS-910/90 Quick Install Guide...
  • Page 24: Technical Support

    Copyright ©00 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link and the D-Link logo are registered trademarks of D-Link Corporation or its subsidiaries in the United States and other countries. Other trademarks are the property of their respective owners. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead lower actual data throughput rate.

This manual is also suitable for:

Dcs-920
