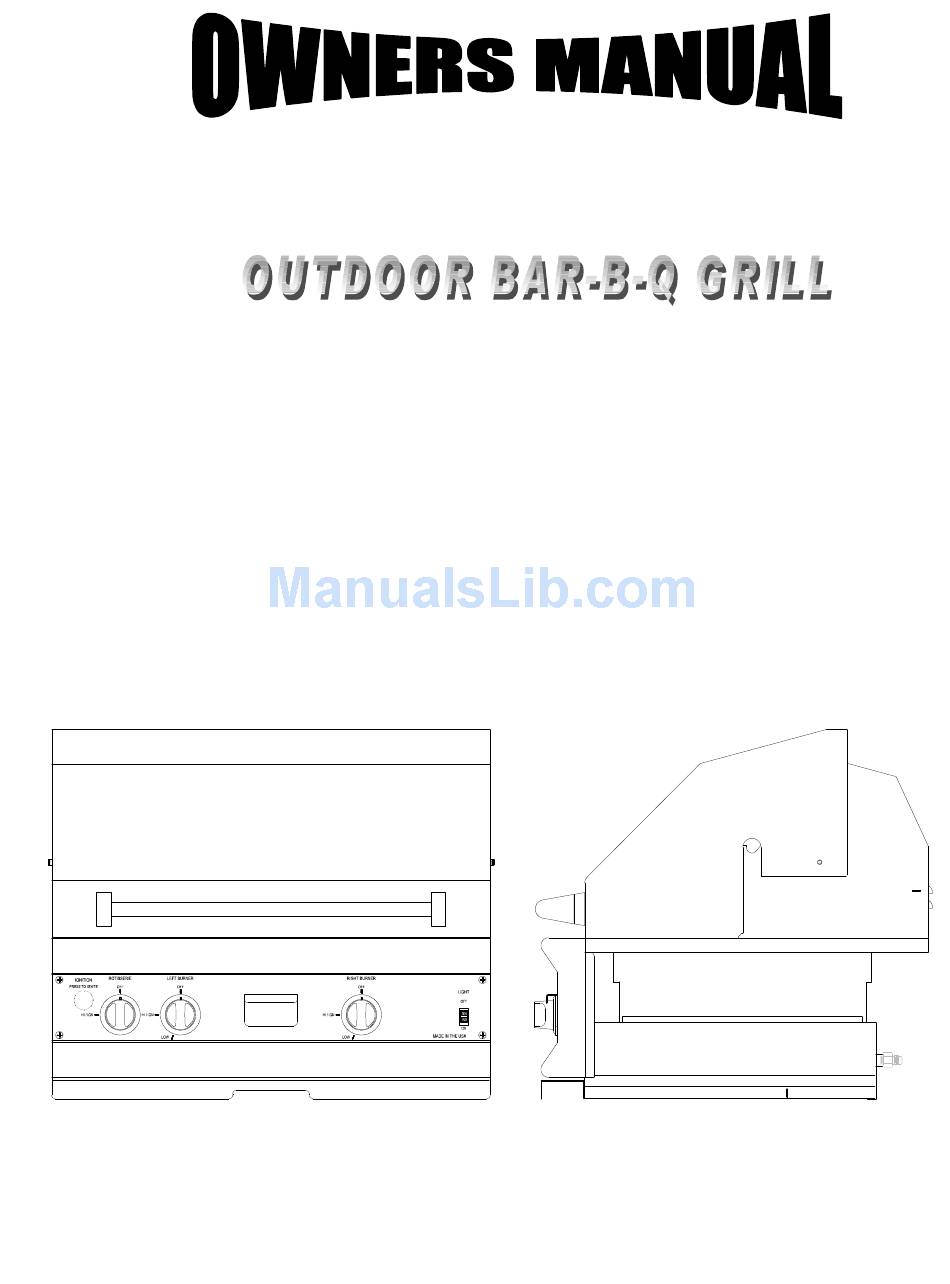

- Page 1 For Outdoor Use Only Installation, Operation, Maintenance Instructions And Parts List Model: BPQ – 30, BPQ - 42 ROYAL RANGE OF CALIFORNIA, INC. 3245 Corridor Drive, Eastvale, CA 91752 Phone: (951) 360 1600, Fax: (951) 360 7500...
-
Page 2: Table Of Contents
Contents Page For Your Safety Safety Rules Gas Connection LP Tank Requirement Installation Location Clearances Electrical Burner Adjustment Low Flame Setting Lighting Instructions Operation Cleaning and Maintenance Parts Removal and Replacement Trouble Shooting Exploded View – Parts Identification 13-14 Message to the Proud Owner Congratulations on owning the high quality, high performance grill. -
Page 3: For Your Safety
For Your Safety TESTED IN ACCORDANCE WITH ANSI STANDARD FOR OUTDOOR COOKING GAS APPLIANCES. THIS GRILL IS FOR OUTDOOR USE ONLY. If you smell gas : 1. Shut off gas to the appliance. Check your local building codes for the proper 2. -
Page 4: Gas Connection
Do not place clothing or other flammable material on or near the appliance. Do not wear loose-fitting clothes or long sleeves while using the grill as some fabrics can be highly flammable. Children should be carefully supervised when they are in the vicinity of the grill. Do not allow them to get close while in use. - Page 5 Assemble pipe fittings as shown. Apply pipe compound on male joints only. Install regulator with the proper orientation for the gas flow. LP Gas Connection: Appliance pressure 10.5” W.C. Inlet pressure 11” – 14” W.C. Assemble pipe/hose assembly as shown. After completion of assembly, turn the tank valve on and turn the control valves on the grill to the ‘HI/IGN’...
-
Page 6: Lp Tank Requirement
The pressure regulator and hose assembly supplied with the outdoor cooking gas appliance must be used. Replacement pressure regulators and hose assemblies can be purchased from authorized dealer or calling Royal Range of California, Inc. The cylinder supply system must be arranged for vapor withdrawal. Make sure the LP cylinder has a collar to protect the cylinder valve. -
Page 7: Clearances
Choose a location where the flow of air in the front of the grill is not obstructed. Due to high temperatures, place the grill out of traffic and keep away from clothing, furniture, etc. Keep the gas line connection as short as possible. Do not install in recreational vehicles/mobile homes, trailers, boats, etc. -
Page 8: Electrical
Electrical Electrical outlet for Rotisserie motor must be installed on the side where the motor is mounted. The outdoor cooking gas appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1. -
Page 9: Burner Adjustment
Burner Adjustments Every grill is thoroughly checked for proper lighting and burner flame pattern. Conditions at the location may necessitate minor adjustment of the burner air intake, if the flames are not steady/stable as shown in the figure. ADJUSTMENT SCREW 1"... -
Page 10: Lighting Instructions
Lighting Instructions: Before Lighting: Check gas line/hose for signs of wear, abrasion or cuts. If evidence of deterioration is visible, replace the part prior to use. If you smell gas, check for leaks. If odor continues, immediately call for service. Keep your face and body away from grill top when lighting. -
Page 11: Cleaning And Maintenance
Cleaning and Maintenance Cleaning: Your Bar-B-Q grill works better and lasts longer if properly cleaned and maintained. Clean the grill immediately after every use. Turn grill off before starting to clean. Protect your hand with a good mitt when cleaning the hot grill. Use a wire brush, dip in water and scrub the grill to soften and loosen the food particles. -
Page 12: Parts Removal And Replacement
Front panel removal - Pull knobs out. - Remove screws (4). - Pull panel out slightly. - Disconnect wires from module and switch. - Replace in reverse orde Parts Removal and Replacement Grill Burner: Remove top grates. Remove shields. Unscrew the burner at rear and slide out. -
Page 14: Parts List
MANIFOLD PIPE (42) 4502 SPACER - HANDLE FLARE CONNECTOR FITTING TOP HOOD ASSY 3101 CONTROL KNOB 1801 THERMOMETER For replacement parts, contact: Royal Range of California, Inc. 3245 Corridor Drive, Mira Loma, CA 91752 Phone: (951) 360 1600, Fax: (951) 360 7500... - Page 15 4. This warranty is not valid unless the equipment is installed, operated and maintained as per the procedure outlined in the Instruction Manual. This warranty does not include normal maintenance or adjustments. Royal Range of California, Inc, is not liable for any consequential or incidental damages, which occur from the misuse,...
