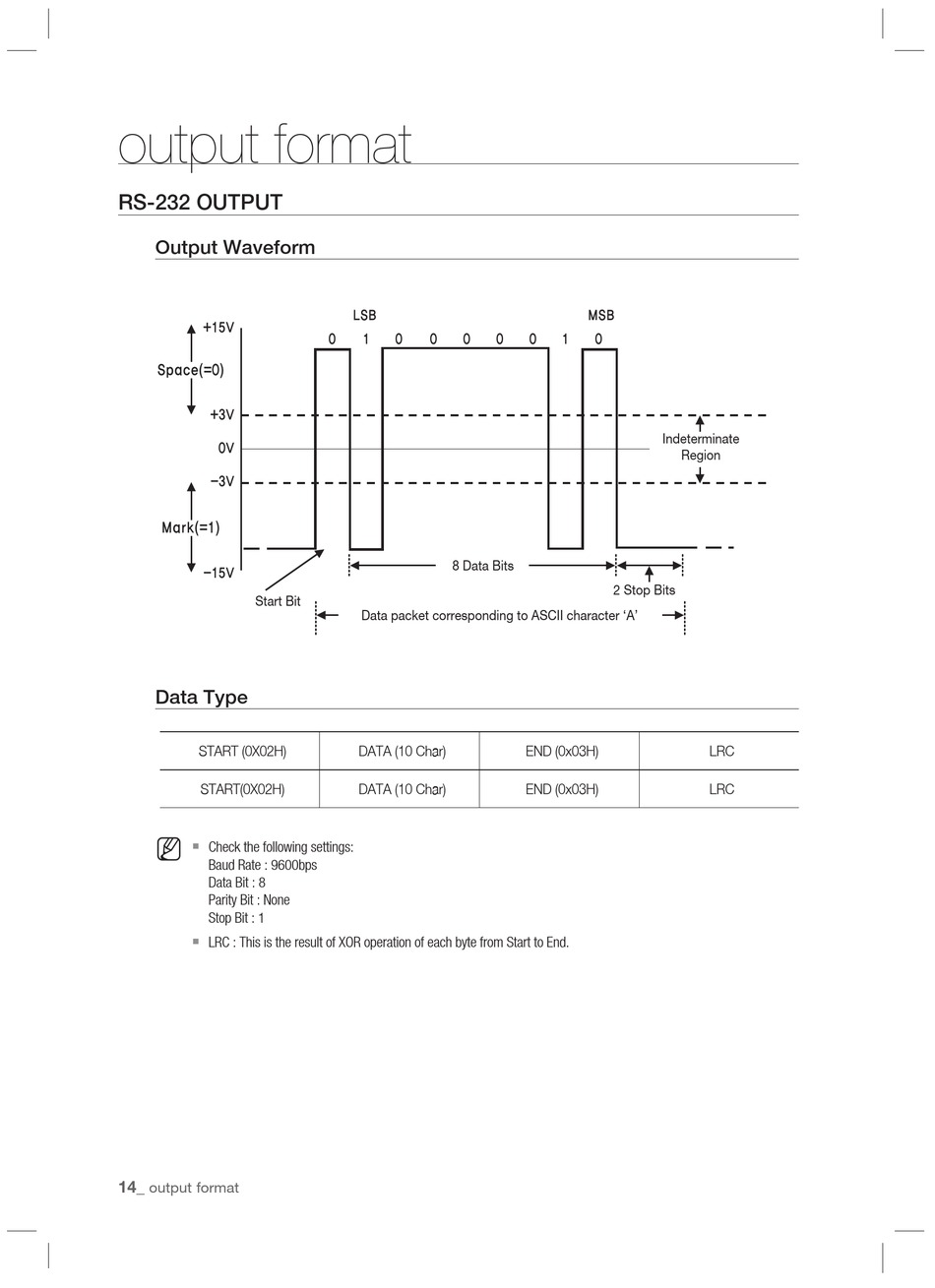

output format
RS-232 OUTPUT
Output Waveform
+15V
Space(=0)
+3V
0V
-3V
Mark(=1)
-15V
Start Bit
Data Type
START (0X02H)
START(0X02H)
M
Check the following settings:
Baud Rate : 9600bps
Data Bit : 8
Parity Bit : None
Stop Bit : 1
LRC : This is the result of XOR operation of each byte from Start to End.
14_
output format
LSB
0
1
0
0
0
0
8 Data Bits
Data packet corresponding to ASCII character 'A'
DATA (10 Char)
DATA (10 Char)
MSB
0
1
0
Indeterminate
Region
2 Stop Bits
END (0x03H)
END (0x03H)
LRC
LRC
