Ipevo IW2S Quick Start Manual

Wireless interactive whiteboard system short throw version
Hide thumbs

Advertisement

Quick Links

Download this manual
Quick Start Guide
for IW2S Wireless Interactive Whiteboard System
Short Throw Version

Advertisement

loading
Need help?

Need help?

Do you have a question about the IW2S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ipevo IW2S

Summary of Contents for Ipevo IW2S

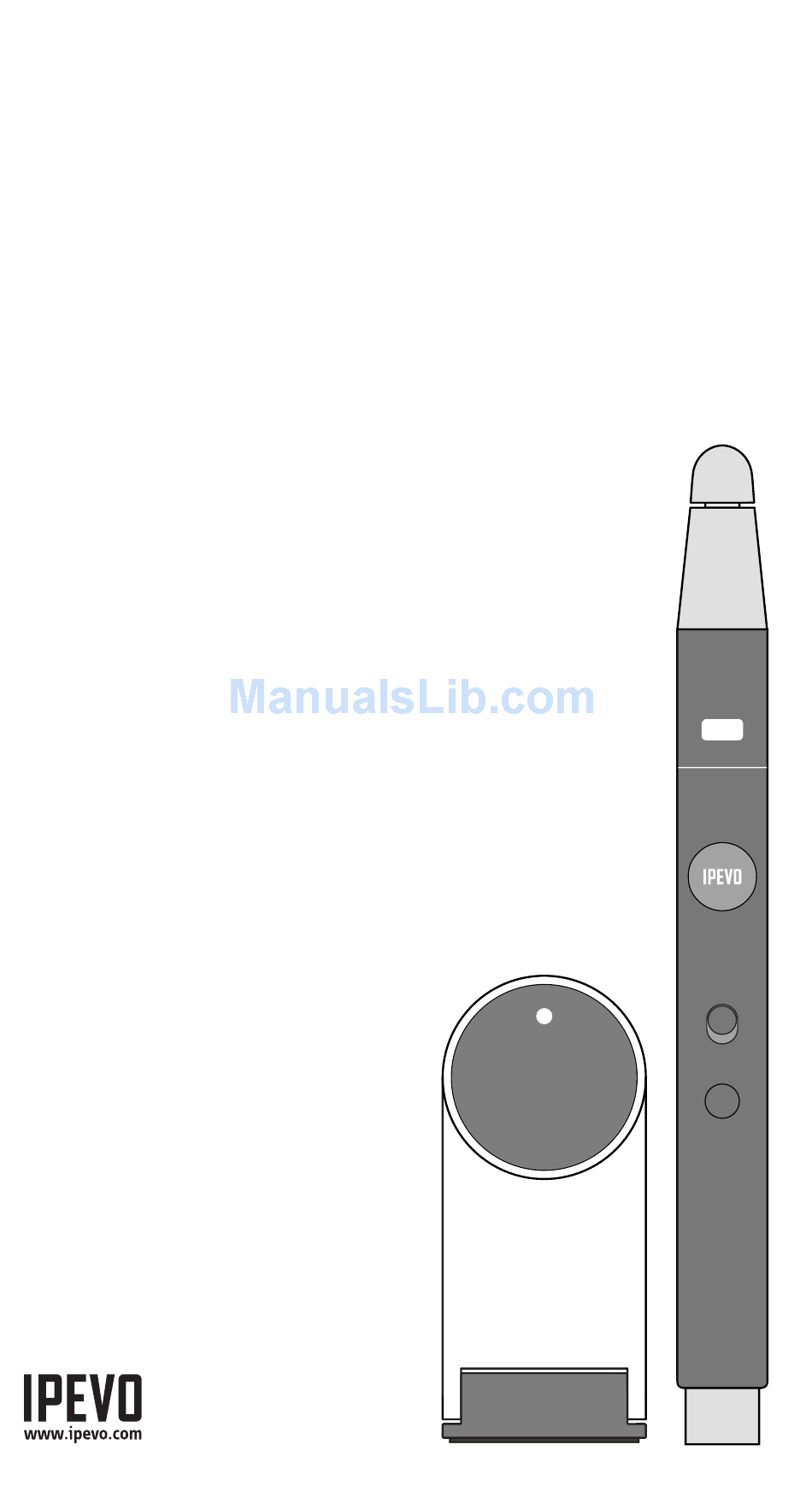

  • Page 1 Quick Start Guide for IW2S Wireless Interactive Whiteboard System Short Throw Version...
  • Page 2 The Basics The IPEVO Wireless Interactive Whiteboard System Short Throw Version, or IW2S, is a compact 3-piece system that turns your large projection screen into an interactive touchscreen. It is specially designed to use with ceiling-mounted short-throw projectors. Once set up, you can use it to control your computer’s cursor. And if you have any annotation software installed on your computer, you can also use IW2S to draw/annotate on your projection screen.
  • Page 3 By default, no pairing action is required – the Sensor Cam and Wireless Receiver you received are already paired. However, if you are using a replacement Wireless Receiver or Sensor Cam, you’ll need to pair them before use. For the pairing instructions, please refer to the FAQ section at www.ipevo.com/iw2s.
  • Page 4 Tap for a left click, or tap and hold for 2s or longer for a right click. Quickly tap twice for a double-click. IPEVO Button Press for a left click, or press and hold for 2s or longer for a right click.

  • Page 5: Software Installation

    Installing IW2S 1. Software Installation IW2S requires IW Driver to function. IW Driver allows you to calibrate and control your IW2S. Please visit IPEVO website at support.ipevo. com/iw2s to download it. 2. Readying the Interactive Pen Remove the battery cover from the Interactive Pen and insert 2 AAA batteries.
  • Page 6 Sensor Power Button Power Adapter 2. Detach the Wireless Receiver from the bottom of the Interactive Pen and plug it into the USB port of your computer. 3. Turn on the Sensor Cam by pressing the Sensor Power Button located on the Interactive Pen. Next, check the LED indicator of the Sensor Cam.

  • Page 7: Securing The Sensor Cam

    Installing IW2S (cont’d) 4. Positioning the Sensor Cam The optimum position for the Sensor Cam will be the same location as your ceiling-mounted short-throw projector. However, depending on the make and model of your projector, and even your screen size, there might be some exceptions.
  • Page 8 Remove the sticker 6. Calibration IW2S must be calibrated before it can be used. To start the process, please click on the IW Driver icon located in the task bar or status bar and choose “Calibrate”. To complete the process, please follow the onscreen instructions carefully.
  • Page 9 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 10 © 2017 IPEVO Inc. All rights reserved. IPEVO, IPEVO Annotator, IW2S, the IPEVO logo, and other IPEVO marks are owned by IPEVO Inc. and may be registered. All other trademarks are the property of their respective owners. Customer Service Email: cs@ipevo.com...
