Summary of Contents for Ipevo IS-01
- Page 1 Interactive Whiteboard System IS-01 User Manual...
-
Page 2: Table Of Contents
Plus, because IS-01 is compatible with many different kinds of software, you’ll also be able to control your computer (and what’s on the screen) at a distance. And this is all... -
Page 3: Two Ways To Use It

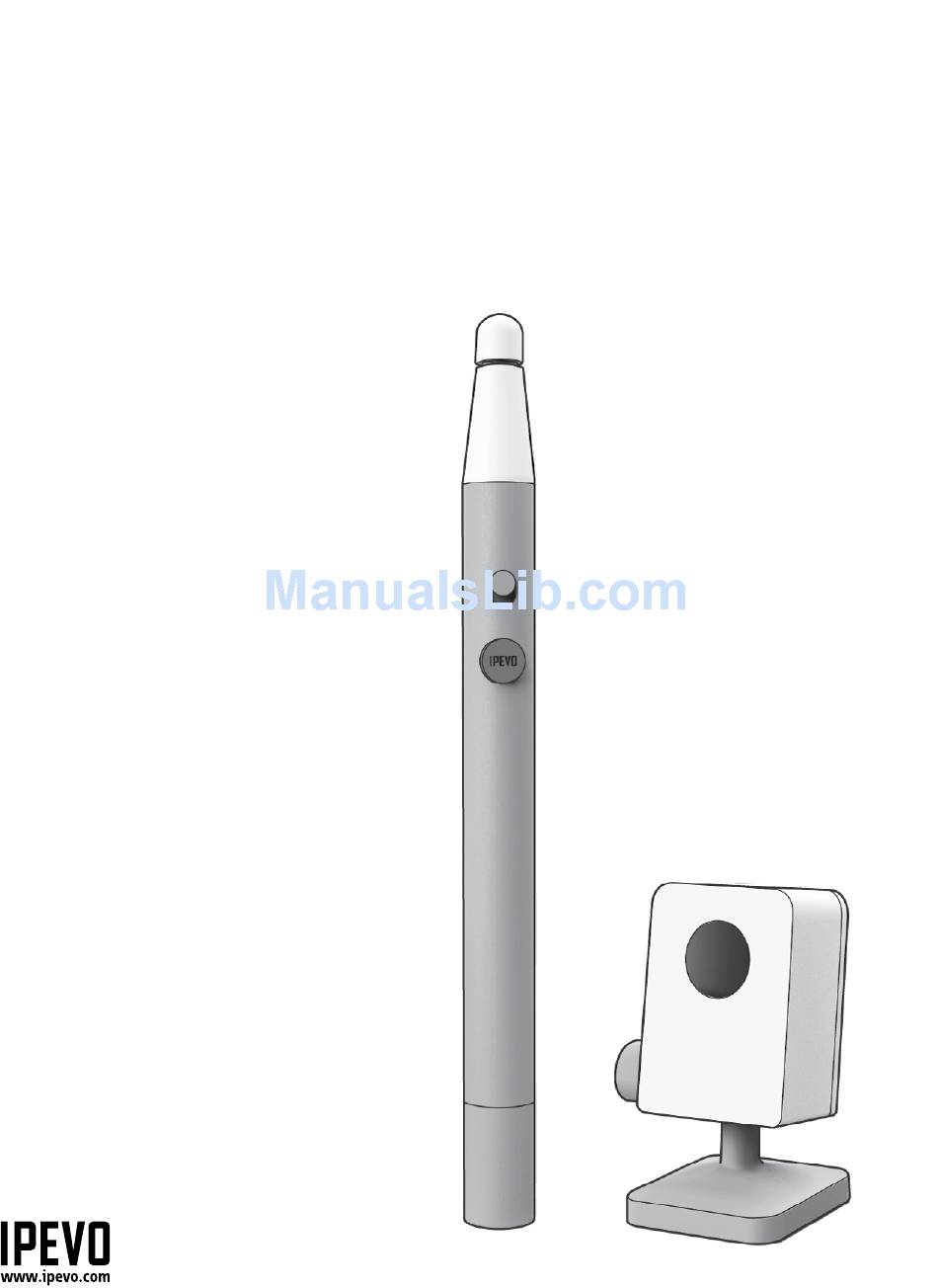

Two Ways to Use It How It Works IS-01 is made up of two devices: the Sensor Cam and the Interactive Pen. The Sensor Cam detects the physical location of the Pen and sends this information to your computer, which then translates the Pen’s motion into cursor motion. -
Page 4: Get To Know It
2. Drag the “IPEVO IS-01” folder into the Application folder to complete the installation. Lens 3. Double-click the “IS-01 Driver” to start it up. The IS-01 icon will appear on the top right of Detects signals emitted by your status bar. -
Page 5: Step 3: Securing The Sensor Cam
Sensor Cam may be placed at another angle if necessary. Please refer to the diagram below for placement zones according to accuracy quality: Sensor Cam Placement Zone B. Using an upside-down Ceiling Mount IS-01 can be mounted upside-down onto the ceiling or ceiling-mounted projector. To do so: 1. T wist the Sensor Cam base onto the screw on the Ceiling Mount until tight. Turn the star- shaped knob near the base for additional angle adjustment. -
Page 6: Step 4: Connecting To The Computer
Installing It (cont’d) 2. B efore affixing the mount to the ceiling, hold the Sensor Cam in an area just below (by C. Using a tripod a few inches) where you intend to mount the projector. Run the Sensor Cam Position The Sensor Cam comes with a built-in Diagnosis (see Page 11) with the Sensor Cam in this position to ensure maximum accuracy. tripod mount. -
Page 7: Step 6: Calibration
For PC, the calibration application will appear the first time the Sensor Cam is connected to the computer. For Mac, if you are using the IS-01 for the first time, you’ll need to double-click on the “IS-01 Driver” to start it up. After that, the IS-01 icon will appear on the top right of your status bar and you can click on it and run the calibration application from the drop-down menu. -
Page 8: Using It
Left click: Tap the tip onto the surface, or press the IPEVO button once. Double click: Quickly tap the tip onto the surface twice, or press the IPEVO button twice. Right click: Press and hold the tip onto the surface, or press and hold the IPEVO button. Hold for at least 2 seconds. -
Page 9: Using Ipevo Annotator Software
Using IPEVO Annotator Software IS-01 comes with IPEVO Annotator, a screen annotation software which can For a quick reference guide, we had all the standard features of IPEVO Annotator summed up be used in combination with any other software/application. You can draw, in the following table: write and annotate onto images on the screen. -
Page 10: Faq
My pen trace and pointing are inaccurate after I change screen resolution. Why is there no scrollbar in my browser or finder window in Mac OS X when using IS-01? Changing the screen resolution throws off the calibration. Please run the calibration process By default, scrollbar is enabled only when a mouse is connected to Mac. - Page 11 © 2016 IPEVO Inc. All rights reserved. IPEVO, IPEVO Annotator, IS-01, the IPEVO logo,and other IPEVO marks are owned by IPEVO Inc. and may be registered. All other trademarks are the property of their respective owners. Customer Service Customer Service (USA) (International) Email: cs@ipevo.com...
