NES30 Pro Instruction
Manual

FAST START UP

Power ON
(Hold down key for 3 seconds)
Blue LED
Support system
Memo

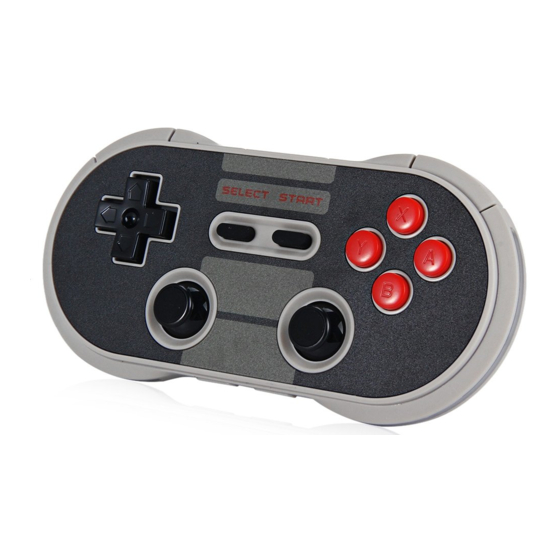

Thank you for buying the 8Bitdo NES30 Pro GamePad! It's the best for fighting, shooting action and emulator
games.
The NES30 Pro GamePad supports many devices and platforms thanks to the multiple modes it can switch between.
PC, Smart phone, iPad, Notebook, Android, iOS, Mac OSX, Windows are supported. Making the NES30 Pro GamePad
ideal for all popular systems and devices.
To relive the happy memories of the past.
Mode1
Joystick
Bluetooth Keyboard
Power
1 times per second
2 times per second
Windows, Mac OS,
Windows, Android
Android, iOS
PC can use Bluetooth
Exclusive support FOUR
Adapter.
Mode2
Mode3
iCade
Power+B
Power+A
3 times per second
Android, iOS
Input method should be
players
English.
Mode4
Emu-Touch Screen
Power on first, then connect
Power+X
4 times per second
Can be ignored
Android
Need ROOT
Also charge GamePad battery
Mode5
USB Joystick
USB cable
Windows

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NES30 Pro and is the answer not in the manual?

Questions and answers

Summary of Contents for 8BITDO NES30 Pro

  • Page 1 NES30 Pro Instruction Manual Thank you for buying the 8Bitdo NES30 Pro GamePad! It’s the best for fighting, shooting action and emulator games. The NES30 Pro GamePad supports many devices and platforms thanks to the multiple modes it can switch between.
  • Page 2 Hold down button for 3 seconds. To connect the joystick NES30 Pro to another device: Delete pairing information of NES30 pro. Holding the button down for more than 3 seconds. When both LED lights have flashed once, NES30 Pro can be connected to other devices.
  • Page 3 Player 1 press Power + B to power on the NES30 Pro. (LED light will blink twice.) Player 2 press Power + B + R to power on the NES30 Pro.(LED light will blink once, for a longer period of time.) Both NES30 Pro will provide a different key code password to work with Bluetooth.
  • Page 4 To restore the NES30 Pro to factory settings hold down for 8 seconds. The firmware of the NES30 Pro can be upgraded and functions may be changed or added. The final notices and features can be checked on the official website.
  • Page 5 FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
