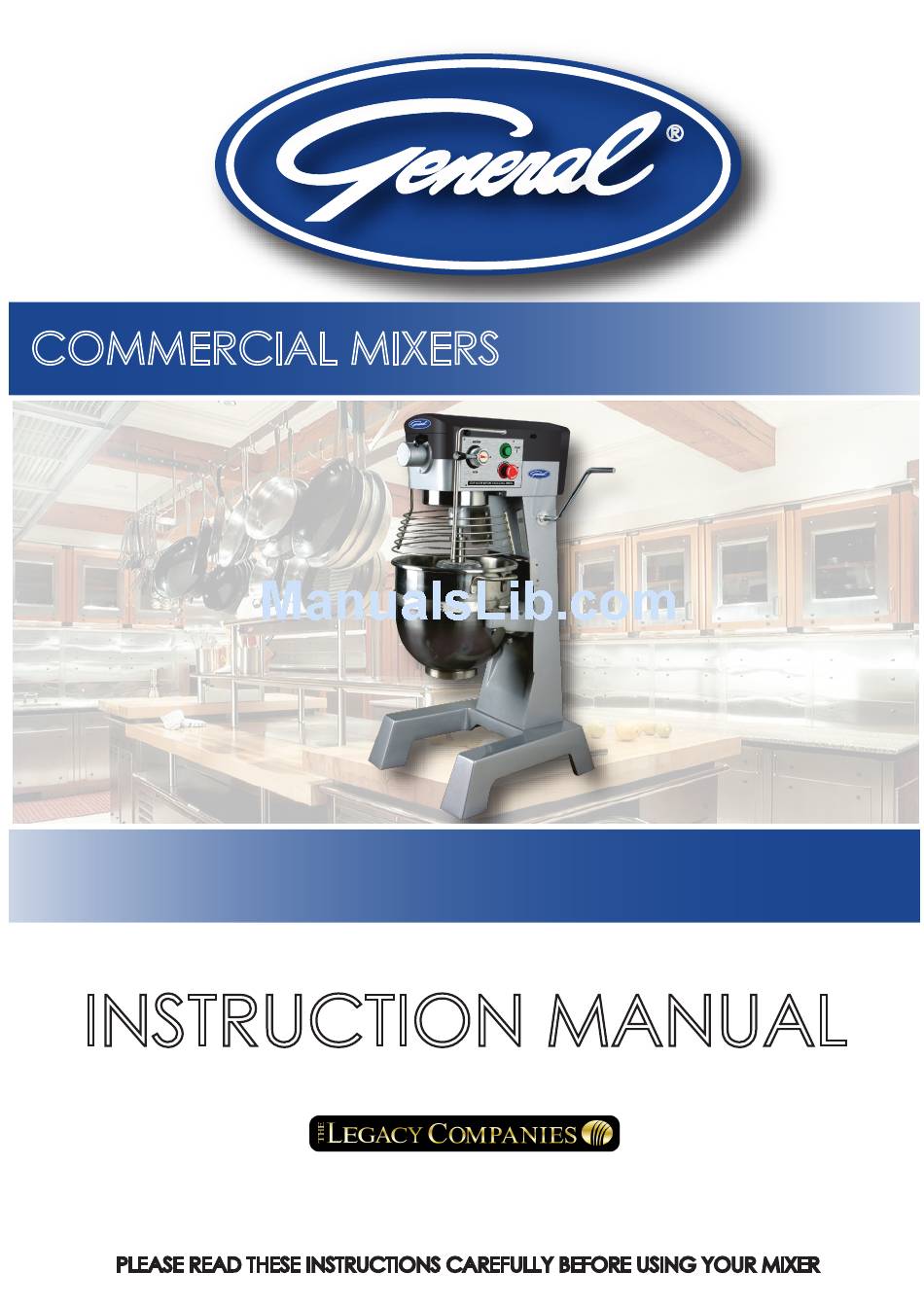

R
COMMERCIAL MIXERS
MODEL:GEM130
INSTRUCTION MANUAL
3355 Enterprise Avenue, Suite 160
Fort Lauderdale, Florida 33331
Tel: 954.202.7419 Fax: 954.202.7337
www.thelegacycompanies.com
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING YOUR MIXER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GEM130 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for General GEM130

Summary of Contents for General GEM130

  • Page 1 COMMERCIAL MIXERS MODEL:GEM130 INSTRUCTION MANUAL 3355 Enterprise Avenue, Suite 160 Fort Lauderdale, Florida 33331 Tel: 954.202.7419 Fax: 954.202.7337 www.thelegacycompanies.com PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING YOUR MIXER...

  • Page 2: General Description

    FOOD Mixer Operation Instruction General Description This is a kind of changing speed gear mixer. With its planetary stirring design, it has a compact structure, high efficiency, power saving and easy operation. It will be provided to you as an ideal assistant for bread and cake making.
  • Page 3 6. Bent lever 7. Safety guard(may choose the fitting) 8. Support Operation Instruction Standard power supply Hz AC. (Please use a plug with 3 wide contacts and good grounding.) Installation of Mixer: Put the stirring shaft 2 in Mixer 3 and rotate it in clockwise direction. Starting procedure: Pull the gear change hand lever 1 to position 1 before staring, then turn on the power switch 5 and set the speed required.

  • Page 4: Maintenance

    Maintenance Clean the bowl and stirrer daily or after use to maintain hygiene standard. Clean the mixer with wet soft cloth. Do not use liquid or corrosive spraying detergent to clean the mixer. The transmission gear box is greased in factory. Check the greasing each 6 months. To add or refill grease, open the top cover, then fill grease from aperture or replace the grease directly.
  • Page 6 PARTS OF 30 L MIXERS SER.NO. PART.NO PART NAME SER.NO PART.NO PART NAME 40705900 Hook 40704000 Body housing 40705800 Beater 40704200 Bowl hold kits 40706000 Wire Whip 40705100 Support 40708200 Safety guard 50307009 Clamp plate 18 50401008 Bowl 50304012 Nut M8*1.5 40707300 Top cover 50405038...
  • Page 7 50310009 Oil seal 40703000 Plug cover 1 50306036 Pin 10*38 50304007 Nut M12 40702800 Working shaft 50308007 Spring washer 12 40703600 Declutch shift shaft 50301004 Bearing 6202 50307006 Plate 10 40700600 Gear wheel 40701300 Main shaft 50313016 Key 5x15 50304006 Nut M10 50312008 Circlips for shaft 20...
