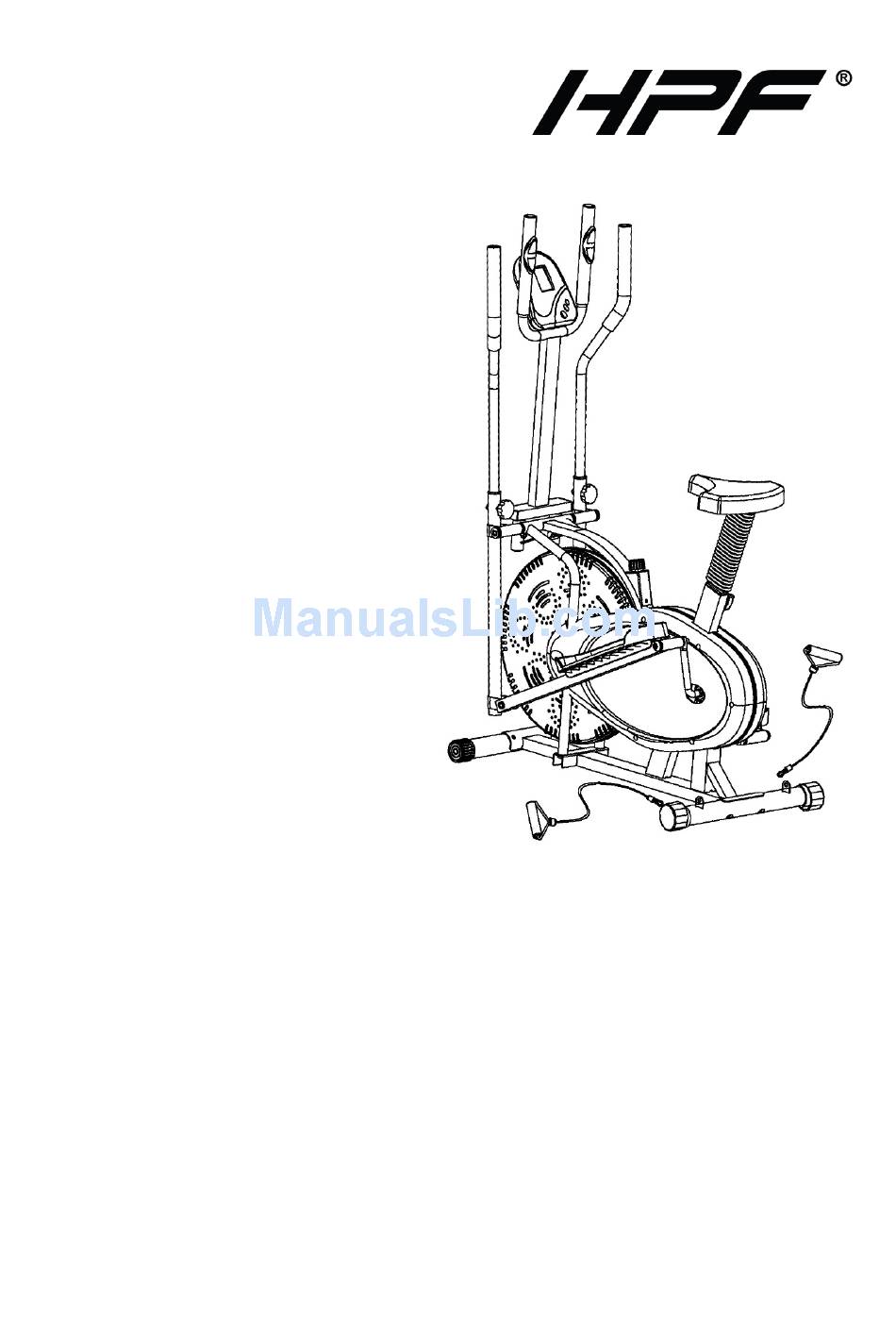

- Page 1 Elliptical Cross-Trainer & Exercise Bike User Manual RETAIN THIS MANUAL FOR FUTURE REFERENCE PLEASE READ THIS MANUAL CAREFULLY BEFORE USE...
-
Page 2: Table Of Contents
Elliptical Cross-Trainer & Exercise Bike Table of Contents SAFETY REMINDERS ............................1 EXPLODED DIAGRAM ............................2 PARTS LIST ............................... 4 ASSEMBLY INSTRUCTIONS ..........................5 Preparation ..............................5 Assembly ..............................5 Reversible Movement ..........................9 DISPLAY SCREEN ............................10 TROUBLESHOOTING ............................11 Changing the Batteries .......................... -
Page 3: Safety Reminders
Elliptical Cross-Trainer & Exercise Bike Safety Reminders Note the following precautions before assembling or operating the machine: 1. Assemble the machine exactly as what the descriptions indicate in this User Manual. 2. Check all the screws, nuts and other connections before using the machine for the first time and ensure that the cross-trainer is in safe condition. -
Page 4: Exploded Diagram
Elliptical Cross-Trainer & Exercise Bike Exploded Diagram... - Page 5 Elliptical Cross-Trainer & Exercise Bike...
-
Page 6: Parts List
Elliptical Cross-Trainer & Exercise Bike Parts List NAME QTY. NAME QTY. MAIN FRAME CRANK (LEFT&RIGHT) REAR STABILIZER RIGHT HANDLEBAR END CAP LEFT HANDLEBAR KEY HEAD BOLT (M10*60) LOCKING KNOB DOMED NUT (M10) FOAM GRIP ARC WASHER HANDLEBAR END CAP FRONT STABILIZER COMPUTER WIRE TRANSPOTTATION WHEEL CONNECTING ROD FOR METER... -
Page 7: Assembly Instructions
Elliptical Cross-Trainer & Exercise Bike Assembly Instructions Preparation 1. Before assembling, make sure that you will have sufficient working space. 2. Use the tools provided for assembling. 3. Before assembling, check whether all needed parts are available. Refer to the Exploded Diagram section with all single parts (marked with numbers) which this equipment consists of. - Page 8 Elliptical Cross-Trainer & Exercise Bike BEFORE CONTINUING ASSEMBLY YOU MUST READ THE FOLLOWING IMPORTANT INFORMATION. PLEASE NOTE: ANY DAMAGES TO THE BOLT OR PRODUCT CAUSED BY FAILURE TO FOLLOW THESE STEPS MAY RENDER THE PRODUCT’S WARRANTY VOID. IMPORTANT: THE LEFT HAND BOLT AND NUT (BLUE) IS A REVERSE THREAD (ANTI-CLOCKWISE). The bolt has an L imprinted on the head.
- Page 9 Elliptical Cross-Trainer & Exercise Bike Attach the Pedals (No. 23) to the Pedal Posts (No. 11 & No. 12), using two M10*45 Bolts (No. 24) and two M10 Nuts (No.13) for each side. Figure 3 Attach handlebars to the lower handlebar tubing. Select a height setting that is comfortable for you and make sure both handlebars are set at the same height.
- Page 10 Elliptical Cross-Trainer & Exercise Bike • Remove the washer (No. 37) and nut (No. 38) from the saddle (No. 40). Attach the saddle and saddle post (No. 41) as shown in Figure 5. Re-insert and tighten the bolts. • Put the plastic insert (No. 39) over the saddle post then insert the saddle post into the main frame as shown in Figure 5.
-
Page 11: Reversible Movement
Elliptical Cross-Trainer & Exercise Bike The assembly of your strider is now complete. Place plastic caps provided on exposed bolt heads if you wish. For instructions on how to operate the meter refer to the separate instructions manual provided. When you try it for the first time, you should adjust the tension to the correct level before you begin a full workout. -
Page 12: Display Screen
Elliptical Cross-Trainer & Exercise Bike Display Screen Button Functions Mode Press to select function, and hold on for 4 seconds for a total reset. Functions Scan Automatically scans through each function at intervals of 6 seconds. Time Displays total working time up to 99:59 minutes. Displays the current speed up to 99.9km/h or ml/h. -
Page 13: Troubleshooting
Elliptical Cross-Trainer & Exercise Bike Troubleshooting Changing the Batteries 1. To change the computer batteries, please slide the computer from the computer holder, remove the battery cover on the back of the computer console, and remove the batteries. 2. Replace with 2 x AA batteries. 3. - Page 14 Some experts believe the incorrect or prolonged use of almost any product could cause serious injury or death. For information that may reduce your risk of serious injury or death consult thepoints below and additionall y , the information available at www.datastreamserver.com/safety - Consult all documentation, packaging and - The product has been supplied by a general merchandise...
