Erato Muse 5 User Manual

Size:8x16cm
展開:8x32cm
EN
MUSE 5 USER'S MANUAL
OVERVIEW

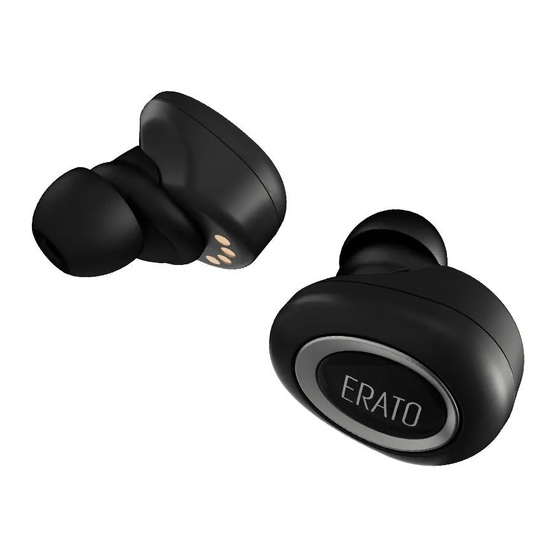

MUSE 5 Earphones
Charging Case
FitSeal TM Sleeves
Silicone Tips
XS S M L
Micro USB Charging Cable
BEFORE YOU START CONNECTING
Please insert earphones into charging case 1. On your device
and charge for approx. 2 hours to fully charge • Verify Bluetooth is ON
before using for the first time. • Verify Bluetooth is actively scanning for
devices.
Please see CHARGING section for instructions.
2. LEFT earphone, long press button for 5
PERFECT FIT
seconds. Listen for:
• "Power on"
For optimal comfort and sound quality please
• "Pairing"
select the FitSeal TM sleeves and silicone tips
3. On your device select "MUSE 5"
that best suit your ears. Please match the
4. LEFT earphone listen for:
FitSeal TM sleeve to the correct earphones, "L" • "Paired"
for left and "R" for right. • "Your headset is connected"
5. RIGHT earphone, long press button for 2
seconds. Listen for:
• "Power on" and a beep
• "True wireless stereo connected" –
indicating successful pairing to LEFT
earphone
Note: Only the left earphone will connect
Notch
to your device. The right will connect to the
Left Earphone Right Earphone left. Only the left may be used as a single
Master
headset.
Tip: The FitSeal
TM sleeve will need to hook
under the earphone notch to be secured.
Note: You may need to try different size
Press
combinations for your left and right ear.
WEARING
Check both earphones and locate the "R" for
right and "L" for left, and take notice of the 4
CONTROLS
contact dots. Gently insert one earphone into
your ear with the 4 contact dots pointing The MUSE 5 can perform a wide range of
upwards toward your ear and gently twist the
functions with just one button on each
earphone down towards your earlobe, do the
earphone, so you can freely control your
same for the second earphone. The fit should
device without taking it out of your pocket.
be snug and secure in your ear.
MODES
Contact Dots
• Stand-by Mode – When no audio is active
or music is paused.
• Media Mode – When music or video are
active.
Ear
1 2
• Hands-free Mode – When receiving • Decrease: During Media Mode, double
incoming call or during phone call. press on LEFT button.
Next/Previous Song
Note: During hands-free mode, only the
LEFT earphone will be active. This is a safety • Next Song: During Media Mode, long
feature built into the MUSE 5. press RIGHT button for 2 seconds
• Previous Song: During Media Mode, long
POWERING ON
press LEFT button for 2 seconds
1. Long press LEFT button for 2 seconds,
listen for:
Tip: It is recommended to set volume at a
• "Power on" followed by a beep moderate level for longer battery life. Using
• "Your headset is connected"
the earphones at a high level will result in
2. Long press RIGHT earphone for 2
shorter battery life.
seconds, listen for:
• "Power on" followed by a beep
• "True wireless stereo connected" – ERATOSURROUND TM
indicating successful pairing to LEFT
Using DSP (Digital Sound Processing)
earphone
technology in our true wireless earphones,
POWERING OFF
we can restore the spatial distance missing
• Insert into charging case and earphones
will automatically power off. in traditional earphones. Calibrated with
• From Stand-by Mode, press and hold for 2
our micro-driver and its acoustic chamber,
seconds either LEFT or RIGHT buttons
ERATOSURROUND™ can reduce sound
Answering Incoming Call
image distortion to create a more accurate
• Press LEFT button once
sound.
Rejecting and Ending Call
• 3D Normal – simulates surround sound of a
• Press and hold LEFT button for 2 seconds
typical room
Increase/Decrease Hands-Free Volume
• 3D Wide – simulates surround sound of a
• Only can be adjusted by your host
concert hall
devices (Phones or pads)
CHANGING ERATOSURROUND
Activating Siri/Google Now (for supported
devices only) From Stand-by Mode, press LEFT button 4
• From Stand-by Mode, double press LEFT or times. The modes will cycle starting from 3D
RIGHT button Normal to 3D Wide to 3D Disable.
Playing and Pausing Music
• During Media Mode, press LEFT or RIGHT
Modes LED Notifications/Sound
button to play/pause media
3D Normal (Default) 2 red flashes/2 beeps
Increase/Decrease Media Volume
3D Wide Enable 3 red flashes/3 beeps
• Increase: During Media Mode, double
3D Disable 4 red flashes/4 beeps
press on RIGHT button.
2 beep indicates volume are at max
level.
3 4
WATCHING VIDEOS LED INDICATORS
Although the MUSE 5 are mainly designed for Earphones
listening to music, it is compatible with certain
Actions
iOS and Android apps for watching videos.
Powering on
We use the latest CSR technology and aptX
codec in our earphones, however in True
Searching
Wireless stereo earphones, data have to be
transmitted to each earphone simultaneously for device
instead of just once like traditional Bluetooth Powering off
earbuds. This can cause latency during video Stand-by mode
playback on devices and apps.
Media/Hands-
To improve latency, disable ERATOSUR-
free mode
ROUND by changing mode to 3D Disable for
TM
Incoming call
a better viewing experience. See instructions
Charging
above.
*Results will vary from device and app. Fully charged
CHARGING
Charging Case
To charge your charging case, simply insert
the micro USB cable into the back of the case, Actions
and the USB into a USB power supply.
Charging
Full battery
Charging Case
Button Pushing
Left LED Micro USB
battery
Charging Cable
indicator
button
Charging Right
LED
Case
MODES
TM
Charging Case Charging Case
Battery Level LED Charging lndicator
Press Rear Button
• Earphones: 4 hours of media playtime/ 6
hours talk time
• Charge time: approx. 2 hours to fully
charge earphones and charging case
• Charging case capacity: 2 full charges for
both earphones while on the go
5 6
Specifications
Bluetooth Version 4.1
LED Notifications
Bluetooth Profile A2DP 1.2, AVRCP 1.4,
Left earphone: Flashes once blue
HFP 1.6, HSP 1.2
Right earphone: Flashes once red
Supported Audio Codecs aptX / AAC / SBC
Flashes twice red / 10 sec interval
Bluetooth Range from 10 meters (30feet)
DeviceBattery capacity
Flashes once purple
Battery Capacity 100 mAh (per earphone)
Flashes 3 times blue / 5 sec interval
700 mAh (charging case)
Flashes twice blue / 10 sec interval
Earphone Driver Size Ø 5.8mm
Constantly
Sensitivity 101dB @ 1kHz
flashes blue
Frequency 20Hz ~ 20KHz
Steadily Flashes red
Impedance 16 Ohm
Stays blue for 1 minute
MEMS Omni Direction -42dB (±3dB)
Microphone Input
Sensitivity
Waterproof Nano Coating IPX5
LED Notifications
Dimensions Earphone : 25.2mm(L)
Steadily flashes red
x 20mm(D) x 30mm(H)
No LED
Charging case :
Blue LED:
78.1mm (L) x 39.2mm (D)
charge remain
x 39.77mm(H)
Red LED:
Weight Earphone: 8.5g x 2
30% or less charged
Charging case: 46g
7 8
