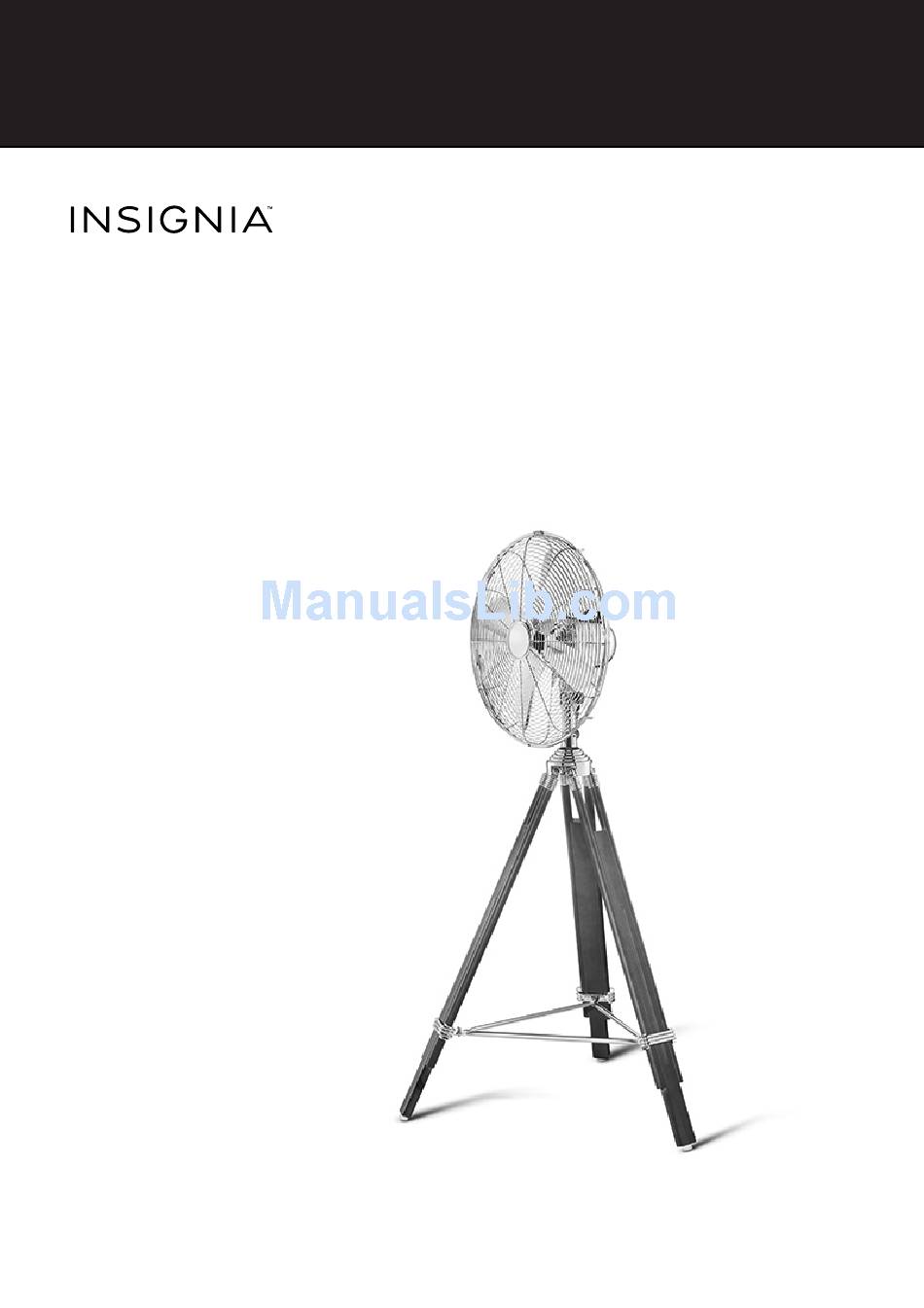

- Page 1 USER GUIDE 16” Retro Fan with Tripod Stand NS-F16F7-CH Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Table Of Contents
ONE-YEAR LIMITED WARRANTY ........12 Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-F16F7-CH represents the state of the art in electric fans and is designed for reliable and trouble-free performance. IMPORTANT SAFEGUARDS... - Page 3 16” Retro Fan with Tripod Stand This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your electric fan. When using electrical appliances, follow these basic precautions; 1 Read all instructions. 2 To protect against fire, electric shock, and injury to persons, do not immerse the cord, the plugs, or the fan in water or other liquid.
-
Page 4: Features
NS-F16F7-CH WARNING Electric Shock Hazard Failure to follow these instructions can result in electric shock, fire, or death. Additional safety concerns 1 To reduce the risk of electric shock, do not use this fan with any solid-state speed control device. -
Page 5: Main Features
16” Retro Fan with Tripod Stand Main features Rear fan guard Fan blade Set screw Front fan guard Fan motor Support tube Locking notch Rubber ring Screws (2) Fan guard Connecting screw mounting Connecting screw Fastening knob Washer Long screw Tripod legs (3) Wing screws Wing nuts (3) -
Page 6: Assembling Your Fan
NS-F16F7-CH Assembling your fan Tools needed but not included in the package Phillips screwdriver Assembling the tripod 1 Remove the tripod legs and connecting rods from the box. 2 Remove the wing nuts from the plastic bag attached to the front page of the instruction manual. - Page 7 16” Retro Fan with Tripod Stand 3 Insert the support tube into the hole on the top of the tripod. Make sure the locking notch on the support tube is aligned with the fastening knob. Support tube The locking notch must align with the fastening knob, as shown above.
- Page 8 NS-F16F7-CH 7 Remove the screw from the fan motor housing, then align the two upper hangars (without holes) with the upper holes on the fan motor housing. 8 Align the third (bottom) hanger on the rear fan guard with the screw hole in the motor, then tighten it to secure the rear fan guard to the fan motor housing.
-
Page 9: Fuse Protection
16” Retro Fan with Tripod Stand 11 Secure the front fan guard with the lock clips (6), then tighten the connecting screw and nut. Fuse protection There is an electrical fuse built into the plug for overcurrent protection. If the fan draws too much current, the fuse blows to shut off the motor automatically. -
Page 10: Using Your Fan
NS-F16F7-CH Using your fan Turn the speed control fan switch to the setting you want: 0 - Off 1 - Low 2 - Medium 3 - High • To oscillate the fan, push the oscillation knob down. Pull it up to stop oscillation. -
Page 11: Specifications
16” Retro Fan with Tripod Stand Specifications Dimensions 27.9 x 24.6 x 50 inches (710 x 625 x 1270 mm) Power requirements 0.45 A at 120V ~ 60 Hz www.insigniaproducts.com... -
Page 12: One-Year Limited Warranty
Products and parts replaced under this warranty become the property of Insignia and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Insignia Product during the Warranty Period. - Page 13 FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND...
- Page 14 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC V1 ENGLISH ©2016 Best Buy. All rights reserved. 15-0900 Made in China.
