Summary of Contents for ShopBot DT3624

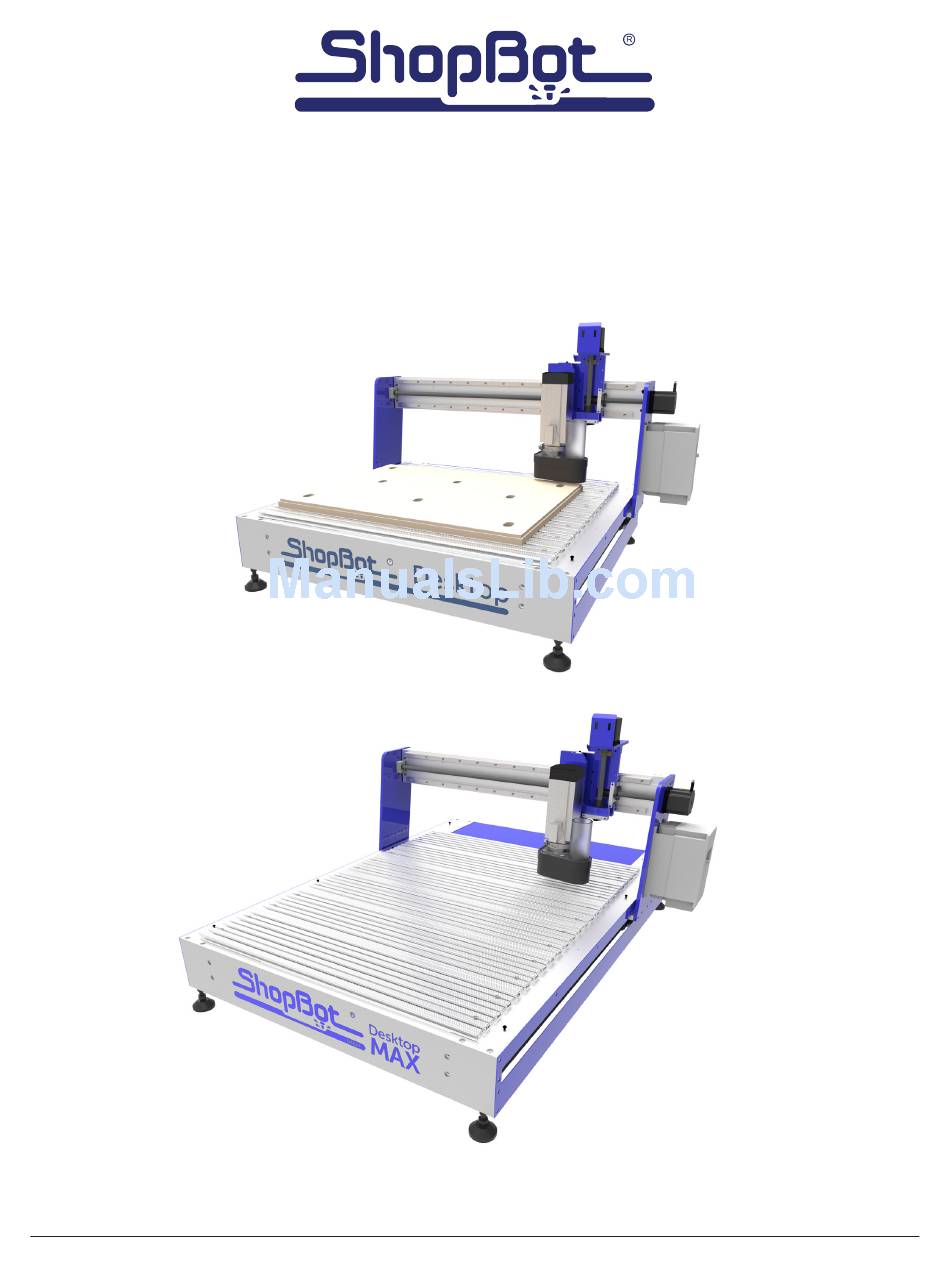

- Page 1 888-680-4466 • ShopBotTools.com Desktop CNC Quick-Start Guide © Copyright 2017 ShopBot Tools, Inc. page 1...
-
Page 2: Table Of Contents
Warm Up (Spindle Models Only) ......................24 Desktop Spindle RPM Settings ......................25 Trim the Deck ............................26 Switch to ShopBot FULL ........................28 Surfacing the Deck ..........................29 Beyond the Basics ..........................31 Vcarve Pro ............................31 Maintenance ............................32 Transportation ............................32 Resources .............................33 © Copyright 2017 ShopBot Tools, Inc. page 2... -
Page 3: Desktop Safety And Precautions
Never place your hands on the rails of the ShopBot. Be aware that the machine may move unexpectedly in any direction, which can cause serious injury if your hands are in the path of movement. -
Page 4: Desktop Quick Start Guide • October
This tool is intended to be used with wood, plastic, or other non-ferrous materials. It is not intended for use with ferrous materials. Transportation - This tool can be transported by two people by grabbing from the bottom front and rear locations. © Copyright 2017 ShopBot Tools, Inc. page 4... -
Page 5: What's In The Crate
Desktop Tool Shown with optional spindle and speed controller. Manila Envelope, which includes: • Desktop Quickstart Guide • Desktop Enclosure Document (if applicable) • User’s Guide Binder • Thumb Drive with Software © Copyright 2017 ShopBot Tools, Inc. page 5... - Page 6 Desktop Quick Start Guide • October 6, 2017 1/4” and 1/2” Spindle or Router Collet Sets Collet Wrenches Bit Kit (Optional) Z-Zero Assembly Power Cord Hold Down Bolts USB Cord Pendant © Copyright 2017 ShopBot Tools, Inc. page 6...
-
Page 7: Shopbot Desktop Overview
Desktop Quick Start Guide • October 6, 2017 ShopBot Desktop Overview - Model DT3624 Shown Pendant Connection Power Cord Optional Accessory Connection USB Cable Machine ON/OFF Switch © Copyright 2017 ShopBot Tools, Inc. page 7... -
Page 8: Uncrating
Lift Desktop onto a sturdy table or bench. CAUTION!! The ShopBot Desktop is a substantial tool and depending on accessories, it can weigh from 150 to 190 lbs. Have AT LEAST one additional person help lift the tool. Assemble Parts Adjust leveling feet with 5/8”... -
Page 9: Tool Orientation And Direction Of Axes
Tool Orientation and Direction of Axes The pictures below show the axis orientation for the two ShopBot Desktop tools. Normally, the 0, 0, 0 point is located at the intersection of the three axes as shown, and “front” is con- sidered the side noted below. -
Page 10: Software And Computer Configuration
Desktop Quick Start Guide • October 6, 2017 Software and Computer Configuration Refer to the Uninstalling and Reinstalling ShopBot and VCarve Software document for software instal- lation and software and computer configuration. Plug in Pendant and Connect Power Plug the pendant into the connector on the tool located in the Pendant Connection rear (on Desktop tools) or right side (Desktop MAX tools). -
Page 11: Launch Software
Note: It is best to use the same USB port every time the ShopBot is attached to the computer. Launch Software Double-click the ShopBot 3 icon to open the machine’s control program. The first time the program is opened, there will not be a settings file for the machine. -
Page 12: Tool Movement
Click on the yellow button to bring up the “KeyPad” panel. © Copyright 2017 ShopBot Tools, Inc. page 12... -
Page 13: The Keypad
This will cut the power to the spindle or router. For routers, the collet nut and collet come locked together as a single unit. For spindles, the collet and spindle nut come separately. © Copyright 2017 ShopBot Tools, Inc. page 13... - Page 14 It should go on very easily. If resistance is en- countered, do NOT apply force. Stop and try again until it goes smoothly. Once the nut is finger-tight, reposition the bit if it has slipped. © Copyright 2017 ShopBot Tools, Inc. page 14...
- Page 15 A ShopBot is a very safe power tool as long as safety procedures are followed. Go to www.shopbottools.com, then click on the ShopBot Docs link at the center of the top of the main page. Then click on your tool (either Desktop or Desktop MAX).
- Page 16 Locate and open “Desktop MAX Setup.sbp”. Click START. When prompted, click “Yes” to run routine. For Desktop and Desktop MAX tools: Press “Cut Part” again. Locate and open “MAX Squaring.sbp” or “DESKTOP Squaring.sbp”. © Copyright 2017 ShopBot Tools, Inc. page 16...
-
Page 17: Zero The X- And Y-Axes
The X and Y locations in the control panel should now read .000 in. Note: Ensure the setup and squaring process has been run prior to performing this step! © Copyright 2017 ShopBot Tools, Inc. page 17... -
Page 18: Zero The Z-Axis
Plug the Z-zeroing assembly into the socket on the end plate. This is located on the front of the machine for Desktop MAX tools and the right side of the ma- chine for Desktop tools. © Copyright 2017 ShopBot Tools, Inc. page 18... - Page 19 Note: Machine can be Z-zeroed to the top of the spoil board or to the top of the project material depending on how it is set up in the design file. Click the white button marked “Z”. © Copyright 2017 ShopBot Tools, Inc. page 19...
- Page 20 1/2” above the deck. The Z-axis is now zeroed to the top of the MDF deck. Unplug and remove Z-zero plate and clip from machine. Press “OK” to exit the program. Re-attach dust foot. © Copyright 2017 ShopBot Tools, Inc. page 20...
-
Page 21: Move To Home Position
Click the white button marked 0, 0. This will move the spindle/router to the machine home position in the left lower (front) corner of the machine, which is the default zero position for both the X- and Y-axes. © Copyright 2017 ShopBot Tools, Inc. page 21... -
Page 22: Warm Up (Spindle Models Only)
RPM for 10 minutes at the beginning of each day and after the spindle has been idle for more than 3 hours. Open the yellow KeyPad, and click on the Output 1 button in the position window. © Copyright 2017 ShopBot Tools, Inc. page 22... -
Page 23: Desktop Spindle Rpm Settings
Click on the “X” to close the yellow KeyPad. Desktop Spindle RPM Settings The display on the VFD will show the frequency. To find RPM, multiply the listed frequency by the Hertz setting. © Copyright 2017 ShopBot Tools, Inc. page 23... -
Page 24: Trim The Deck
This step will rout a rabbet around the perimeter of the basic deck to reveal the cutting area. Ensure the X-, Y-, and Z-axes have been zeroed prior to proceeding. © Copyright 2017 ShopBot Tools, Inc. page 24... - Page 25 If the ShopBotEASY control is not currently open, double-click the ShopBot 3 shortcut icon. Go to www.shopbottools.com, then click on the ShopBot Docs link at the center of the top of the main page. Then click on your tool (either Desktop or Desktop MAX) Scroll to the bottom of the page under the “Files”...
-
Page 26: Switch To Shopbot Full
Switch to ShopBot FULL ShopBotEASY has limited functionality; in order to use all of the tools, switch to ShopBot FULL. To do this from the ShopBotEASY position window, click on the help (?) button. At the bottom of the window, click on the “Switch to FULL”... -
Page 27: Surfacing The Deck
For most cutting this doesn’t matter, but for critical depth cutting/pocket cutting or v-carving, the MDF should be sur- faced first. Use the “Table Surfacer” routine under “Tools” in the FULL ShopBot control. It can also be accessed by typing “TU”. - Page 28 MDF deck gets thin and close to the bolts holding the deck to the machine, simply glue on a new piece of MDF – there’s no need to remove the thin part that’s still attached. © Copyright 2017 ShopBot Tools, Inc. page 28...
-
Page 29: Beyond The Basics
Some examples are tutorials, training at ShopBot, online training through ShopBot, help files provided in the program, and online support. Be sure to take advantage of these resources, many of them are listed on page 33. -
Page 30: Maintenance
Desktop Quick Start Guide • October 6, 2017 Maintenance The ShopBot Desktop doesn’t require a lot of maintenance. The table below covers general mainte- nance. Item/Duration Maintenance Motor Screws Wipe screws with a clean dry cloth. DO NOT USE any kind of lube or solvent-based cleaner on the Teflon coated screws. -
Page 31: Resources
ShopBot Tutorials & Videos www.shopbottools.com/mSupport/tutorials.htm ShopBot Training Classes www.shopbottools.com/mSupport/training.htm Information on a variety of different CAD/CAM software packages for design www.shopbottools.com/mProducts/software.htm Tooling, materials, and more www.shopbottools.com/mSupport/resourcelist.htm ShopBot Forum http://www.talkshopbot.com/forum/forum.php? Technical support http://www.shopbottools.com/support.htm © Copyright 2017 ShopBot Tools, Inc. page 31... - Page 32 Desktop Quick Start Guide • October 6, 2017 © Copyright 2017 ShopBot Tools, Inc. page 32...
