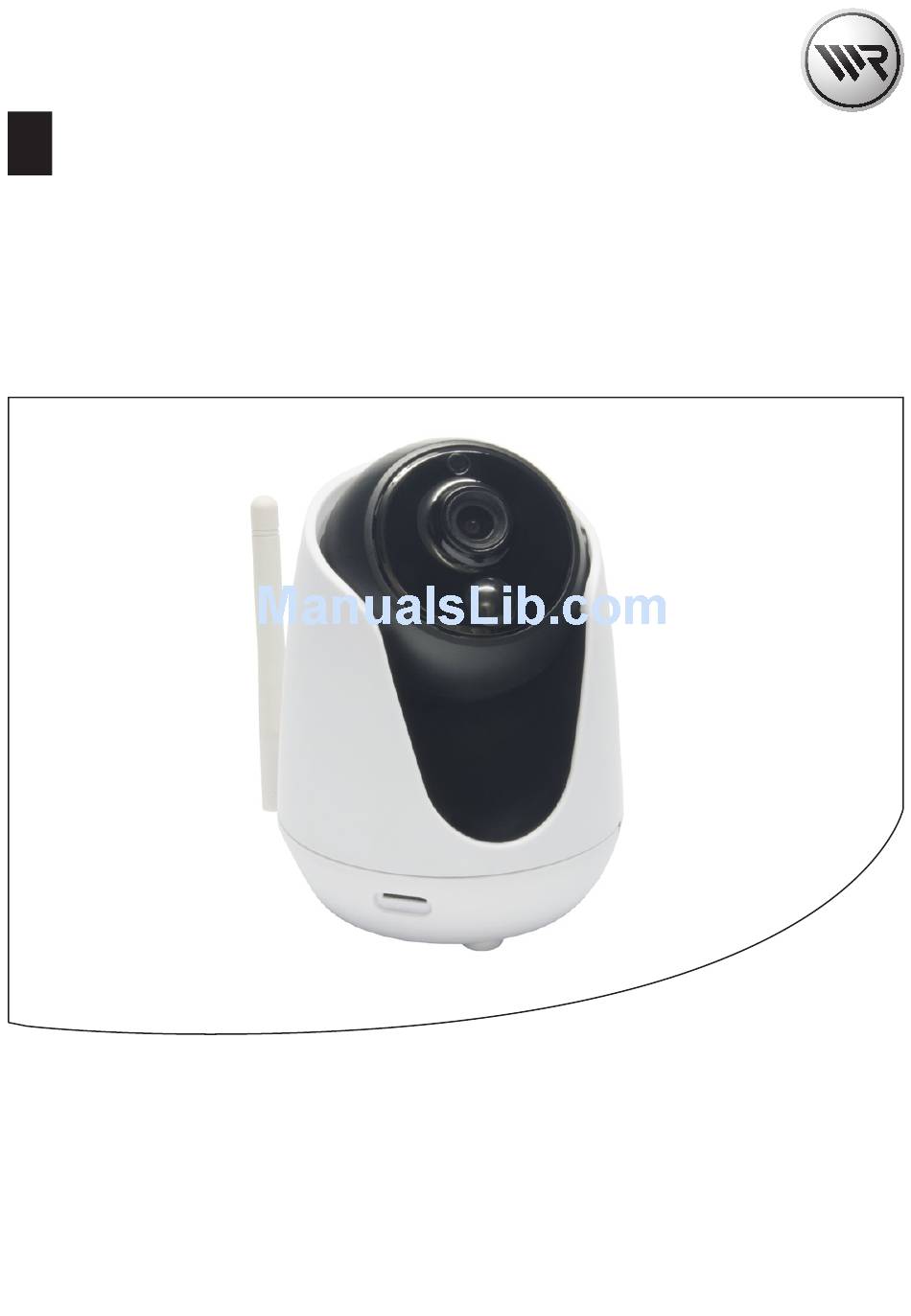

- Page 1 HomePilot® HD Camera (indoor) 9486 Instruction Manual for Installation and Commissioning Item No.: 3200 42 19 Type: 9486 VBD 659-2 (09.16)
-
Page 2: Dear Customer
Dear Customer... With your purchase of a HomePilot® HD Camera (indoor) 9486, you have chosen a quality product manufactured by RADEMACHER. Thank you for the trust you have placed in us. RADEMACHER products have been developed with the greatest possible convenience in mind. Having applied uncompromising quality standards and thorough testing, we are proud to be able to present this innovative product to you. -
Page 3: Table Of Contents
Contents Dear Customer..............2 These instructions..............4 Application of this manual ..............4 Related instructions ................4 Hazard symbols ..............5 Levels of danger and signal words ..........5 Symbols used and depictions ............6 Glossary - Definition ............6 Included in delivery ............7 Overview of the HD Camera 9486 ........8 Functional description ............9 Technical Specifications .......... -
Page 4: These Instructions
1. These instructions..specify the installation and commissioning of the HomePilot® HD Camera (indoor) 9486. 1.1 Application of this manual ◆ Please read this manual through completely and follow all the safety instructions. ◆ This manual is a component of the product. Please store it in an easily accessible place. -
Page 5: Hazard Symbols
2. Hazard symbols The following hazard symbols are used in this manual to indicate safety instructions: Danger of fatal electric shock 2.1 Levels of danger and signal words CAUTION! This hazard may result in serious injury or death if not avoided. ATTENTION! This hazard may lead to property damage. -
Page 6: Symbols Used And Depictions
Lists further useful information 3. Glossary - Definition HomePilot® Central controller unit for RADEMACHER radio products. Control is carried out via a tablet PC or Smartphone. LAN (Local Area Network) Abbreviation for a wired, local computer network. WLAN (Wireless-LAN) Abbreviation for a local radio network. -
Page 7: Included In Delivery
4. Included in delivery Included in delivery a) 1 x HD Camera 9486 b) 1 x Wall bracket with joint c) 1 x WLAN antenna d) 1 x Mains adaptor e) 1 x LAN cable f) 1 x Installation set... -
Page 8: Overview Of The Hd Camera 9486
5. Overview of the HD Camera 9486 Loudspeaker Camera lens Connections Antenna - LAN - Mains adaptor Antenna LEDs - Network (green) / PIR Motion Power supply (red) sensor Infrared (IR) LEDs Microphone Slot for a micro Audio input Audio output SD memory card Reset / WPS button Thread for wall... -
Page 9: Functional Description
6. Functional description The HD Camera is a network-compatible camera used to monitor interior rooms. It transmits image data to the HomePilot®. The HD Camera can be installed in any desired place with the enclosed wall bracket. Integrated brightness sensor For day and night monitoring with infrared LEDs and automatic image adjustment when dark. -
Page 10: Technical Specifications
7. Technical Specifications Mains adaptor Operating voltage: 230 V / 50 - 60 Hz Output voltage: / 2 A HD Camera general Supply voltage: 5 V DC via mains adaptor Maximum current consumption: Consumption: < 5 W Permitted place of inside only application: Protection class:... -
Page 11: System Requirements
7. Technical Specifications Camera - Specifications: Sensor: 1.3 Megapixel CMOS-Sensor Resolution: 1280 x 960 Video specifications: Image compression: H.264 Framerate: 30 frame/s 8. System requirements You require the following for installation: ◆ Internet access. ◆ A router* with DHCP server and a free LAN port or WPS function. -
Page 12: Safety Instructions
HD Camera or lead to a short circuit. ◆ Only use original accessories from RADEMACHER. The mains socket and mains adaptor must be easily accessible at all times. -
Page 13: Intended Use
10. Intended Use ◆ Only use the HD Camera to transmit image data to the HomePilot® or an external storage device. ◆ Only operate the HD Camera in dry rooms. Operating conditions The installation and operation of the radio systems is only per- mitted for those systems and devices where a malfunction in the transmitter or receiver would not cause a danger to personnel or property or where this risk is already covered by... -
Page 14: Connecting The Hd Camera To The Router
11. Connecting the HD Camera to the router Connect the HD Camera to a free LAN port on your router. For this, use the enclosed LAN cable. Plug the mains adaptor cable into the inlet of the HD Camera and then the mains adaptor into a 230 V / 50 Hz mains socket. Mains adaptor LAN cable LED - Power supply (red) -
Page 15: Alternative Wlan Connection With Wps
12. Alternative WLAN connection with WPS Briefly press the WPS button on the HD Camera using a thin but not too pointed object. Next, activate the WPS function on your router. After this, the camera is connected to the router or to the local radio network. -
Page 16: Access Data For Configuring The Hd Camera During Initial Installation
Next, log on using the user name and password set in the factory. Factory settings (see bottom of camera): ◆ User name = admin ◆ Password = rademacher After logging on for the first time, enter a new user name and secure password, in order to protect your HD Camera from being used without permission. -
Page 17: Logging Out From The Homepilot
14. Logging out from the HomePilot® Switch the HomePilot® to log out mode. To do this, select the „Delete configuration / cameras / devices“ menu. Select the HD Camera and click on „log out manually“. Switch off the HD Camera‘s power supply and remove the LAN cable. -
Page 18: Installation
◆ Do not install the HD Camera next to strong magnetic fields (e.g. speakers). 17. Simplified EU Declaration of conformity RADEMACHER Geräte-Elektronik GmbH declares that the HomePilot® HD Camera (indoor) 9486 complies with the European directive 2014/53/EU (radio equipment directive). -
Page 19: Warranty Conditions
Proof of this can be provided by presenting a copy of the bill. RADEMACHER will remedy any defects that occur within the warranty period free of charge either by repair or by replacement of the affected parts or by supplying a new replacement unit or one to the same value. - Page 20 RADEMACHER Gerate-Elektronik GmbH Buschkamp 7 46414 Rhede (Germany) info@rademacher.de www.rademacher.de Service: * 30 seconds free of charge, subsequently Hotline 01807 933-171* 14 cents / minute from German fixed line Fax +49 2872 933-253 networks and max. 42 cents / minute from service@rademacher.de...
