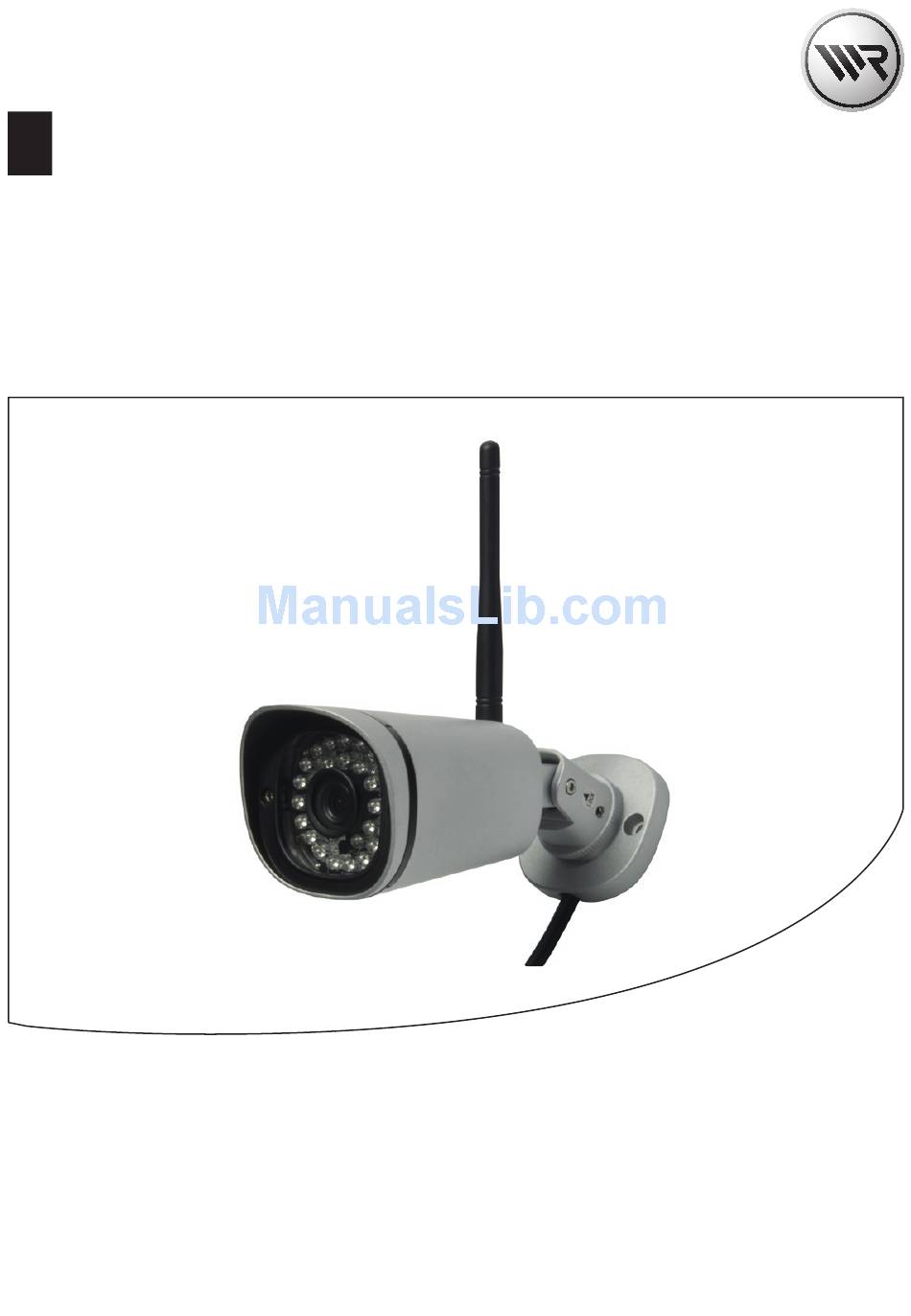

- Page 1 HomePilot® HD Camera (outdoor) 9487 Instruction Manual for Installation and Commissioning Item No.: 3200 43 29 Type: 9487 VBD 658-2 (11.16)
-
Page 2: Dear Customer
Dear Customer... With your purchase of a HomePilot® HD Camera (outdoor) 9487, you have chosen a quality product manufactured by RADEMACHER. Thank you for the trust you have placed in us. RADEMACHER products have been developed with the greatest possible convenience in mind. Having applied uncompromising quality standards and thorough testing, we are proud to be able to present this innovative product to you. -
Page 3: Table Of Contents
Contents Dear Customer..............2 These instructions..............5 Application of this manual ..............5 Related instructions ................5 Hazard symbols ..............6 Levels of danger and signal words ..........6 Symbols used and depictions ............7 Glossary - Definition ............7 Included in delivery ............8 Overview of the HD Camera 9487 ........9 Product Description ............ - Page 4 Contents 15. Deleting all settings - Reset .......... 19 16. After logging on - prior to installation ......20 17. Installation ................ 20 18. Accessories ............... 22 19. Simplified EU Declaration of conformity ....22 20. Warranty Conditions ............23...
-
Page 5: These Instructions
1. These instructions..specify the installation and commissioning of the HomePilot® HD Camera (outdoor) 9487. 1.1 Application of this manual ◆ Please read this manual through completely and follow all the safety instructions. ◆ This manual is a component of the product. Please store it in an easily accessible place. -
Page 6: Hazard Symbols
2. Hazard symbols The following hazard symbols are used in this manual to indicate safety instructions: Danger of fatal electric shock 2.1 Levels of danger and signal words CAUTION! This hazard may result in minor or moderate injury if not avoided. ATTENTION! This hazard may lead to property damage. -
Page 7: Symbols Used And Depictions
Lists further useful information 3. Glossary - Definition HomePilot® Central controller unit for RADEMACHER radio products. Control is carried out via a tablet PC or Smartphone. LAN (Local Area Network) Abbreviation for a wired, local computer network WLAN (Wireless-LAN) Abbreviation for a local radio network. -
Page 8: Included In Delivery
4. Included in delivery Included in delivery a) 1 x HD Camera 9487 b) 1 x WLAN antenna c) 1 x Wall bracket d) 1 x Mains adaptor e) 1 x Connecting cable with electrical connectors f) 1 x Installation set... -
Page 9: Overview Of The Hd Camera 9487
5. Overview of the HD Camera 9487 Antenna connection Antenna Infrared (IR) LEDs, range approx. 20 m Connections: Camera lens Wall bracket 1) LAN 2) Audio input 3) Audio output 4) Power supply connection 5) Reset button... -
Page 10: Product Description
6. Product Description The HD Camera is a network-compatible camera used to monitor outside areas. It transmits image data to the HomePilot®. The HD Camera can be installed in any desired place with the enclosed wall bracket. Integrated brightness sensor For day and night monitoring with infrared LEDs and automatic image adjustment when dark. -
Page 11: Technical Specifications
7. Technical Specifications Mains adaptor Operating voltage: 230 V / 50 - 60 Hz Output voltage: 12 V / 1 A HD Camera general Supply voltage: 12 V DC via mains adaptor Maximum current consumption: Consumption: < 4.2 W Authorised operating Outside areas location: Protection class:... -
Page 12: System Requirements
7. Technical Specifications Camera - Specifications: Sensor: 1.0 Megapixel CMOS-Sensor Resolution: 1080 x 720 Video specifications: Image compression: H.264 / MJPEG Framerate: 23 frame/s 8. System requirements You require the following for installation: ◆ Internet access. ◆ A router* with DHCP server and a free LAN port. ◆... -
Page 13: Safety Instructions
HD Camera or lead to a short circuit. ◆ Only use original accessories from RADEMACHER. The mains socket and mains adaptor must be easily accessible at all times. -
Page 14: Safety Instructions For The Electrical Connection
10. Safety Instructions for the Electrical Connection There is a danger of life-threatening electrical shocks when using the mains adaptor and connecting plugs outdoors. ◆ The HD Camera mains adaptor must not be used outdoors. ◆ The HD Camera connecting plugs are not weatherproof and must be protected against rain and all environmental effects. -
Page 15: Initial Commissioning And Logging On To The Homepilot® Prior To Installation
12. Initial commissioning and logging on to the HomePilot® prior to installation In order to commission the HD Camera it must be connected to the router using a LAN cable. We recommend that you log on to the HomePilot® prior to outdoor installation. ◆... - Page 16 12.1 Connecting the HD Camera to the router Next, plug the mains adaptor into a 230 V / 50 Hz mains socket. Wait a few moments. The HD Camera now automatically carries out a self-test. After this, the HD Camera is ready to operate and can be logged on to the HomePilot®.
-
Page 17: Logging On To The Homepilot
13. Logging on to the HomePilot® Switch the HomePilot® to registering mode. To do this, select the „Add“ function from the „Configuration / Cameras“ menu. The HomePilot® will automatically search for cameras that are in the same network and list these. Select the HD Camera, specify a name and other individual descriptions. -
Page 18: Access Data For Configuring The Hd Camera During Initial Installation
Next, log on using the user name and password set in the factory. Factory settings: ◆ User name = admin ◆ Password = rademacher After logging on for the first time, enter a new user name and secure password, in order to protect your HD Camera from being used without permission. -
Page 19: Logging Out From The Homepilot
14. Logging out from the HomePilot® Switch the HomePilot® to log out mode. To do this, select the „Delete configuration / cameras / devices“ menu. Select the HD Camera and click on „log out manually“. Switch off the HD Camera‘s power supply and remove the LAN cable. -
Page 20: After Logging On - Prior To Installation
16. After logging on - prior to installation If you have, as recommended, logged on prior to installation, you must now separate the connected cables from one another again. 17. Installation There is a danger of life-threatening electrical shocks when using the mains adaptor and connecting plugs outdoors. - Page 21 17. Installation Select a suitable installation site for the HD Camera and terminal boxes. Drill the required mounting holes and secure the HD Camera and terminal boxes. Where necessary, drill a duct for all of the required cables (e.g. the mains adaptor plug cable) into the building structure. Lead the required cables (the mains adaptor plug cable or the extension) outwards into the socket.
-
Page 22: Accessories
Mains adaptor extension cable Item No. 7000 01 07 Length = 2 m Only use the original RADEMACHER extension cable. The cable may only be extended to a maximum overall length of 3.80 m. Connection box HD Camera (outdoor) 9487-A Item No. -
Page 23: Warranty Conditions
Proof of this can be provided by presenting a copy of the bill. RADEMACHER will remedy any defects that occur within the warranty period free of charge either by repair or by replacement of the affected parts or by supplying a new replacement unit or one to the same value. - Page 24 RADEMACHER Gerate-Elektronik GmbH Buschkamp 7 46414 Rhede (Germany) info@rademacher.de www.rademacher.de Service: * 30 seconds free of charge, subsequently Hotline 01807 933-171* 14 cents / minute from German fixed line Fax +49 2872 933-253 networks and max. 42 cents / minute from service@rademacher.de...
