Specifications; Installing - Control C4-Z2IO Installation Manual

Zigbee io and extender
Table of Contents

Advertisement

Important: Using this product in any manner other than
outlined in this document voids your warranty. Also,
Control4 is not responsible or otherwise liable in any
way for any damage resulting from the misuse of this
ctrl4.co/warranty
product. See

Specifications

Model number
C4-Z2IO
System requirements
Control4 OS system
OS version 2.10.0 or greater
requirements
Control4 system
Each installed ZigBee IO and Extender adds sensor
integration
and input connections to the Composer project.
The ZigBee IO and Extender (C4-Z2IO) is available
Driver
in the Composer Online Driver Database.
Communication
Control4 ZigBee Pro mesh networking protocol,
Networks supported
based on the IEEE 802.15.4 ZigBee standard
ZigBee data rate
250 kbps
ZigBee frequency
2.405 – 2.475 GHz
range
Connections
4 inputs, accepts AWG 16-28, common ground
Contact sensor input
connection.
0.5A @ 50V, 1A @ 24V or less
Relay terminal ratings
Max voltage: TBD
1 thermistor input, sold separately.
External thermistor
See "Accessories"
Infrared
2 3.5 mm IR ports
Integrated features
Internal magnetic reed switch
Internal contact
Requires external magnet, sold separately
Integrated internal
Internal thermistor can be used for local
thermistor
temperature sensing: 32°F to 104°F (0°C to 40°C)
Integrated humidistat
Can measure local humidity from 5% to 90%.
Power consumption
100mA at 12V, fully active
External low-voltage
Micro USB power supply (included)
power supply
AC/DC 5-24V (optional)
Available colors
Black (water-based paintable enclosure)
Dimensions (L × W × H)
3.1" (78.7 mm) × 2.6" (65.7 mm) × 1.05" (26.6 mm)
Weight
2.5 oz. (70.9 grams)
Temperature:
Operational 32°F to 104°F (0°C to 40°C)
Storage -20°F to 158°F (-29°C to 70°C)
Environmental
Humidity 5% to 95% non-condensing
This device is not waterproof and must be kept out
of direct contact with water. The product must not
be immersed.
The cover assembly plastics are paintable with any
Paintable enclosure
water-based residential paints. Do not clog the
cover assembly vent holes with paint.
Accessories
External thermistor
ZCA-EXT10A, AC-DOTS1-W, AC-PMT51-W
3 3
for details.
Power
Other

Installing

1 Place the device in a location which ensures the following:
• Easy access to any externally-connected wires
• ZigBee mesh networking efficiency
Note: Make sure the device has good ZigBee wireless
reception by (1) ensuring it is within range of another
ZigBee device and (2) avoiding other electrical
equipment that may cause interference with the ZigBee
signal (such as cordless telephones that operate on the
2.4 GHz frequency.)
• Avoiding unnecessary exposure to extreme environmental
conditions.
IMPORTANT! Do not place the device in direct sunlight.
2 If an external thermistor is used with the device, place
it away from direct sunlight, drafts, doorways, skylights,
windows, and exterior walls for best accuracy.

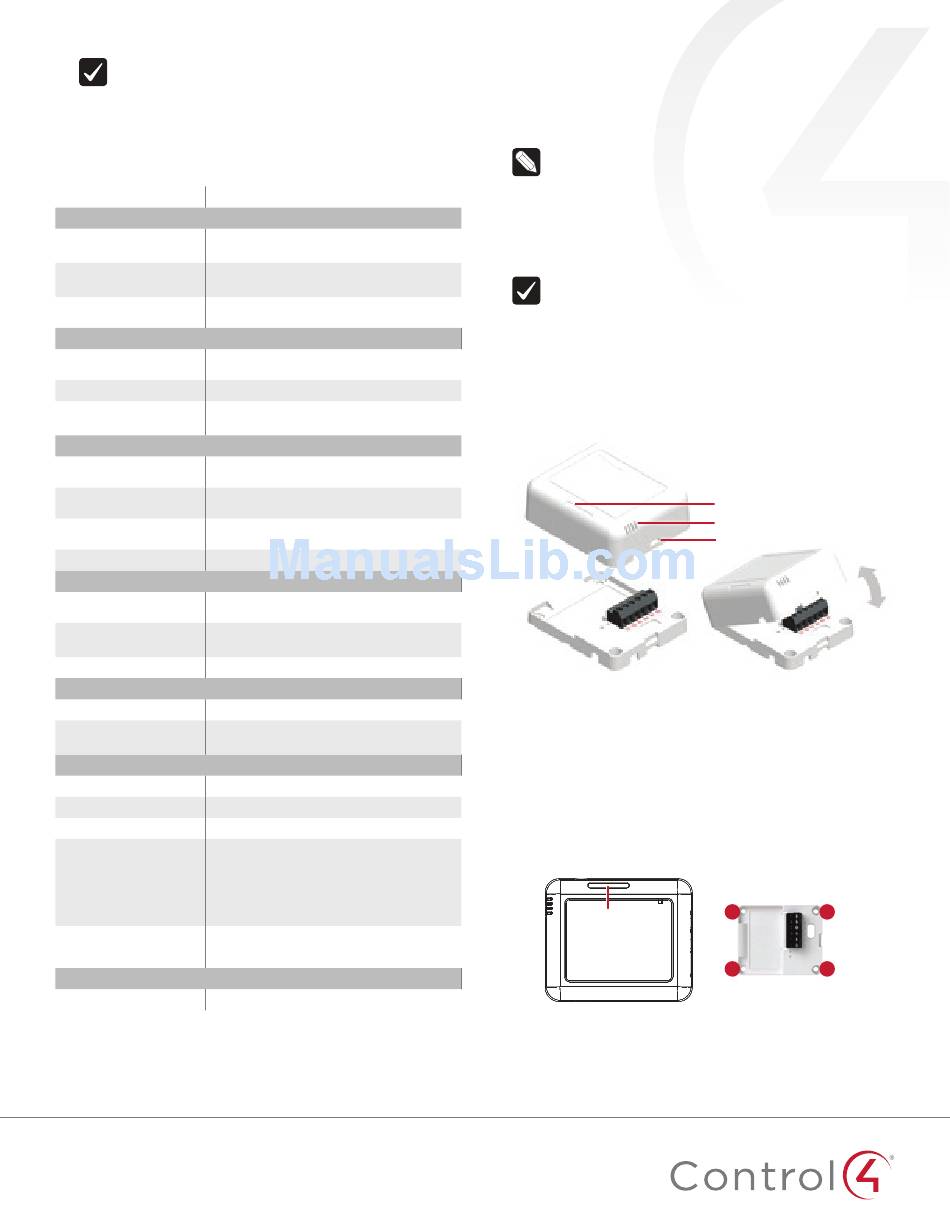

3 Detach the tray from the cover by inserting a flat screwdriver
into the opening slot in the side of the cover and pushing in
gently, while at the same time pulling the cover out and away
from the tray.
Cover
Tray
The cover holds the radio logic board
(the actual device) and pins, the IR
ports, the internal contact, and the
USB power connector. The cover
attaches to the tray. The tray holds the
wiring terminals and is mounted to a
wall or flat surface.
4 Position the tray against the wall or other flat surface.
5 If you are using the internal contact, position the device so
that the narrow indentation that marks the internal contact
(on the long edge of the cover) aligns with the external
magnet (not included).
Indentation
6 Mark the locations of the four screw holes on the wall.
7 If mounting the device to drywall, remove the tray from the
wall and drill four 3/16-inch (4.75 mm) mounting holes at the
four screw hole locations (B) previously marked on the wall.
Reed switch location
Temperature chamber/LED display
Opening slot
The cover "rocks" into contact with
the tray. To separate the two, insert a
screwdriver or other flat object into the
opening slot on the side of the cover,
gently push in and then "rock" it away
from the tray.
B
B
B
B
