RIM 802D Integrator Manual

Oem radio modem
Hide thumbs Also See for 802D:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Integrator's Manual

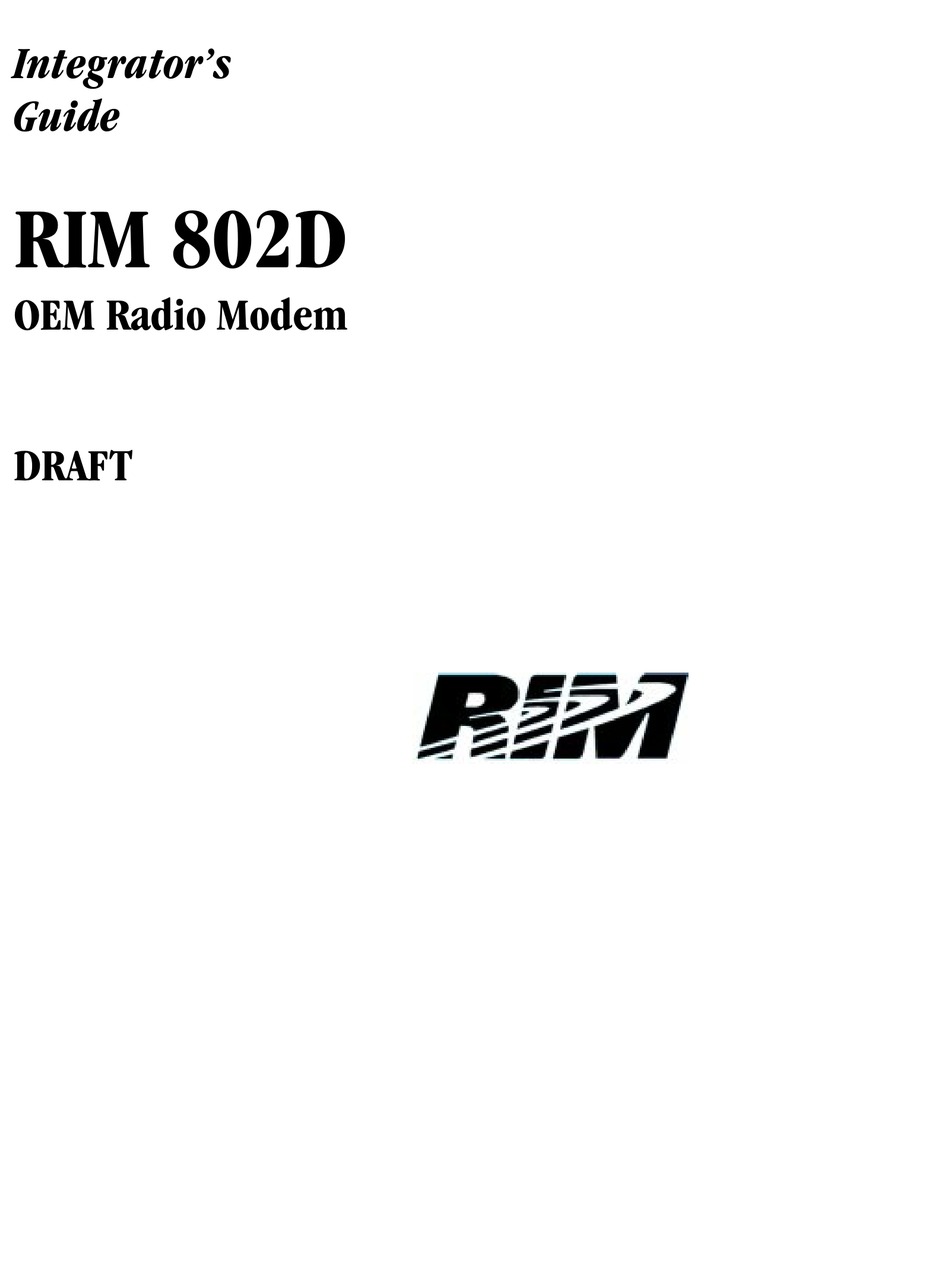

,QWHJUDWRU·V
*XLGH
5,0'
2(05DGLR0RGHP
'5$)7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 802D and is the answer not in the manual?

Questions and answers

Related Manuals for RIM 802D

Summary of Contents for RIM 802D

  • Page 1 ,QWHJUDWRU·V *XLGH 5,0' 2(05DGLR0RGHP '5$)7...
  • Page 2 © 1999, RESEARCH IN MOTION LIMITED Research In Motion and RIM are registered trademarks of Research In Motion Ltd. MS-DOS is a registered trademark, and Windows is a trademark, of Microsoft Corp. Warning: This document is for the use of licensed users only. Any unauthorised copying, distribution or disclosure of information is a violation of copyright laws.
  • Page 3 DRAFT FCC Compliance Statement (USA) FCC Class B Part 15 This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.
  • Page 4 DRAFT Industry Canada Certification This device complies with Industry Canada RSS 119, under certification number xxxxx. IC Class B compliance This device complies with the Class B limits for radio noise emissions as set out in the interference-causing equipment standard entitled “Digital Apparatus,”...

  • Page 5: Table Of Contents

    Contents DRAFT FCC Compliance Statement (USA) ......i DRAFT Industry Canada Certification ......... ii About this guide..............v Introduction............... 1 Radio performance..............1 DataTAC network technology............. 4 Getting started............7 Test board overview..............8 How to connect the test board............9 The MENU diagnostics tool ............10 Mechanical integration ...........
  • Page 6 Antenna design considerations...........47 Shielding ...................49 FCC radio frequency exposure rules...........50 Specifications ..............55 Glossary of terms ..............57...

  • Page 7: About This Guide

    About this guide This guide will assist you in integrating the RIM 802D OEM radio modem into a variety of devices such as laptop computers, handhelds, vending machines, point-of-sale terminals, vehicle-based mobile terminals, and alarm system. Topics covered in this guide include:...

  • Page 9: Introduction

    Introduction With the introduction of the RIM 802D, Research In Motion (RIM) has set a new standard for radio modem performance. The RIM 802D is unrivaled in the key areas of receiver sensitivity, output efficiency, noise immunity, and power consumption. Its small size and weight make it suitable for virtually any wireless data application, including handheld devices and mobile terminals.
  • Page 10 RF shielding Low power requirements If you are planning to integrate the RIM 802D into a handheld or portable device, battery life is a critical issue: your customers will insist on long lasting devices without heavy battery packs. The RIM 802D sets a new power consumption standard for DataTAC radio modems.
  • Page 11 Using a single board design, the RIM 802D is very thin, and much smaller than a business card, at only 42.0 by 67.5 mm. This tiny size allows the RIM 802D to meet tight space requirements within most applications. Its single-board...

  • Page 12: Datatac Network Technology

    This enables packets to be transmitted individually, in any order, as traffic permits. Internal to the network, individual packets may travel along different routes, in any order, without interfering with Integrator’s Guide – RIM 802D OEM Radio Modem DRAFT VERSION...
  • Page 13 Set up time is eliminated and network connection is instantaneous. As a result, packet-switching makes far more efficient use of channel capacity, typically allowing 10 to 50 times more users over a radio channel than a circuit switched network. RIM 802D OEM Radio Modem – Integrator’s Guide DRAFT VERSION...

  • Page 15: Getting Started

    Years of intense R&D have spawned several tools that have been used internally to help streamline our own development process. We have included many of these tools with the RIM 802D OEM Developer’s Kit. The purpose of the Kit is to accelerate radio integration and to help system designers evaluate the RIM 802D.

  • Page 16: Test Board Overview

    It is designed to help you quickly interface the RIM 802D to a standard PC (through a COM port) or a terminal device with an RS-232 serial port. The test board also provides access points to the radio’s communication port, which allows you to monitor activity with a logic probe, multimeter, or oscilloscope.

  • Page 17: How To Connect The Test Board

    Now that you are familiar with the components and functions of the test board, you are ready to connect the RIM 802D radio modem to an antenna and to a PC (or some other computing device with an RS-232 serial interface). To do this, you will use the test board and cables supplied with your RIM 802D Developer’s Kit.

  • Page 18: The Menu Diagnostics Tool

    The power switch on the test board is connected to the TURNON line of the RIM 802D radio modem. To determine whether the radio is on, look at the LED marked ONI. It is lit when the radio is on.
  • Page 19 Setup The following instructions assume that your RIM 802D is connected to a PC running a terminal program, such as Windows HyperTerminal. The MENU utility is based in the RIM 802D’s firmware, so HyperTerminal is the only software required to use it.
  • Page 20 LLI stands for Logical Link Identifier, which is a unique number that identifies each DataTAC radio modem. The LLI is used for addressing packets. The screen will also display a Radio Serial Number, which is unique to each radio Integrator’s Guide – RIM 802D OEM Radio Modem DRAFT VERSION...
  • Page 21 Possible causes include lack of network coverage, wrong network selected, or the battery level is too low. 0002 This is a new RIM 802D being used for the first time. No action is necessary. 0008 The radio modem has exhausted its internal memory. This should not happen under ordinary use.
  • Page 22 The RIM 802D has received an unknown interrupt. No action is necessary. 4000 The RIM 802D has been damaged and cannot be used until this problem is corrected. The unit should be returned for repair. How to change to a different network The RIM 802D radio may be used on different DataTAC networks operating on different channels in the 800 MHz range.
  • Page 23 Signal quality can vary significantly within a building. Try moving the antenna to a new location, perhaps near a window, to see if you can get a signal. RIM 802D OEM Radio Modem – Integrator’s Guide DRAFT VERSION...
  • Page 24 The screen will clear and you will be informed that the radio has been reset. You can safely disconnect the radio and close your terminal program once you have seen this message. Integrator’s Guide – RIM 802D OEM Radio Modem DRAFT VERSION...

  • Page 25: Mechanical Integration

    Mechanical integration This chapter provides information about the RIM 802D that will be useful in determining the physical positioning of the radio modem within an application. Environmental properties and testing, physical properties, mounting methods, and connector information are provided. Environmental properties During environmental testing, RIM takes samples of its radio modems and subjects them to a variety of harsh conditions.

  • Page 26: Physical Properties

    Mechanical integration – Physical properties Storage temperature The RIM 802D OEM radio modem may be stored at a temperature from -40 to +85 C (-40 F to +185 Operating temperature The RIM 802D is designed to operate between -30 C to +70...
  • Page 27 Mechanical integration – Physical properties RIM 802D OEM Radio Modem – Integrator’s Guide DRAFT VERSION...

  • Page 28: Mounting Methods

    Mechanical integration – Mounting methods Mounting methods The RIM 802D OEM radio modem may be securely fastened using a variety of methods. The operating environment must be carefully considered when choosing a mounting option. For example, extreme temperature, heavy vibration, or high electromagnetic interference areas may require a special mounting solution.
  • Page 29 Tie wraps Tie wraps can be used as a secure but non-permanent means of attaching the RIM 802D to a surface. Typically, each tie wrap passes through a hole drilled RIM 802D OEM Radio Modem – Integrator’s Guide DRAFT VERSION...
  • Page 30 Mechanical integration – Mounting methods into the surface of your board, on either side of the RIM 802D. This allows the radio to be attached to a shell, a PCB, or some other mounting surface. If using tie wraps, ensure that the surface beneath the RIM 802D is flat.

  • Page 31: Cables And Connectors

    The minimum cable length available is 30 mm (1.181”). The interface cable supplied with the RIM 802D Developer’s Kit is a Type D 76.2 mm (3.0”) long Flat Flex Cable (FFC) Jumper in 1.00 mm centerline...
  • Page 32 The antenna cable should have low loss, an impedance of 50 , and an MMCX jack that mates with the RIM 802D’s MMCX plug. The other end of the cable can be any connector you choose, as long as it has an impedance of 50 .
  • Page 33 ) cable 133REEZ4-12-S2/1216 8” cable, straight MMCX to SMA 133REEZ4-12-S2/1699 8” cable, right-angle MMCX to SMA The following cable is included with the RIM 802D Developer’s Kit: Contact: Huber & Suhner Huber & Suhner Essex Junction, VT, USA Kanata, Ontario, Canada...

  • Page 35: Power Requirements

    Power supply parameters The RIM 802D requires a clean, stable 4.1 to 4.75 volt source that is capable of delivering a one-second burst of up to 1.7 A when required by the transmitter.
  • Page 36 A passive LC (series L, shunt C) power filter can be put between your power supply and the RIM 802D radio modem to reduce ripple at the radio connector. Bear in mind that the RIM 802D radio already has about 70 F of on-board shunt capacitance.

  • Page 37: Calculating Overall Power Consumption

    Power requirements – Calculating overall power consumption 2.2 A supply current at all temperatures, and its resistance must be low enough to guarantee minimum voltage of 4.1 V to the RIM 802D at 2.2 A. Calculating overall power consumption The instantaneous power consumption varies between 0.2 mA and 1.7 A, a range of four orders of magnitude.

  • Page 38: Batteries

    The selected cells must be able to meet the load specifications of the RIM 802D. Specifically, they must be able to provide 1.7 A (at 4.4 V) for transmission. Rechargeable cells vary considerably, because capacity varies with current draw.

  • Page 39: Plug-In Supplies

    Energizer. This should be communicated to the user of your product. Plug-in supplies A plug-in supply converts normal AC power (usually 110 volts or 220 volts) into a steady DC source that can be used instead of batteries. The plug-in RIM 802D OEM Radio Modem – Integrator’s Guide DRAFT VERSION...

  • Page 40: Automotive Supplies

    20 volts and be placed on the supply side of the regulator circuit. RIM recommends a supply capable of providing 4.1 V and rated for 2.5 A peak current. LIND Electronics (www.lindelectronics.com) can supply a car lighter adapter suitable to drive a 5V, 2A device (model number APA-SH0520M) with a connector of your choice;...

  • Page 41: Interface Specification

    The RIM 802D can be controlled by a wide variety of microcontrollers and microprocessors, such as the Intel 8051 or 80386, or Motorola 68000. In most cases, the RIM 802D can be connected directly to a micro-controller, or through a Universal Asynchronous Receiver/Transmitter (UART) to a microprocessor data bus.
  • Page 42 RIM 802D is very long. Advances in mobile computing technology have helped to ensure that serial links are short enough to make bit errors extremely unlikely.

  • Page 43: Pin Descriptions

    RIM 802D OEM radio modem. The symbol ~ before the label indicates that line is an active low digital signal. Note that pins 9 through 22 on the RIM 802D correspond to pins 14 through 1 on the RIM 900. The numbering is reversed because the connector is reversed, but physically the leftmost pin on the RIM 802D connector is the same as the leftmost pin on the RIM 900 connector.
  • Page 44 5.0V tolerant. Information about the use of this pin is contained in the next section of this chapter. Pin 11 ONI On Indicate This output from the radio that indicates that the radio is on and operational. Integrator’s Guide – RIM 802D OEM Radio Modem DRAFT VERSION...
  • Page 45 Transmit Indicate The active (radio transmitting) state of this line is high. This output from the radio that is asserted while the RIM 802D is transmitting a packet to the network base station. TRI has a built-in current limiter that allows it to drive an LED directly, to provide real-time visual feedback to the user that the radio is transmitting packets.
  • Page 46 When this line is high, any data sent from the computing device to the RIM 802D may be lost. This is a flow control mechanism that is normally reacted to by the UART in your serial communication system.
  • Page 47 The active (data terminal ready) state of this line is low, and indicates that the computing device is ready to receive data from the RIM 802D. De-asserting this line high will turn communication off; the RIM 802D would not attempt to deliver data to the computing device until ~DTR is again asserted low.

  • Page 48: How To Turn The Radio On And Off

    Turning the radio on To turn the RIM 802D on, the software should first check the ONI pin. If ONI is high, but TURNON is being held low, then your application has recently requested the radio to shut down, and the radio is performing shutdown operations and should not be disturbed.

  • Page 49: Loading Firmware (Optional)

    5 mA may flow into the radio modem. SDU data that has been received by the RIM 802D from the DataTAC network, but which has not been transferred to the computing device, will not be saved.
  • Page 50 Interface specification – Loading firmware (optional) computer. Other lines that are required during reprogramming are DTR (must be asserted low), TURNON (must be high), and GND. Integrator’s Guide – RIM 802D OEM Radio Modem DRAFT VERSION...

  • Page 51: Antenna Selection

    The performance of an antenna depends on its configuration and environment: the same antenna will behave differently in one device than in another device, even if both devices use the same RIM 802D radio modem. For example, magmount antennas include a magnetic base that allows the antenna to clamp onto a metal surface.
  • Page 52 (800) 525-6749 / (360) 944-7556 fax: (800) 689-2199 / (604) 299-4191 www.larsenantenna.com Austin Antenna (subsidiary of World Wireless Communications Inc.) Salt Lake City, UT, USA tel: (801) 575-6600 fax: (801) 575-6621 www.worldwireless.com Integrator’s Guide – RIM 802D OEM Radio Modem DRAFT VERSION...

  • Page 53: Introduction To Antenna Terminology

    (or loss) will result in an increase (or decrease) in this value. The actual output is called the Effective Radiated Power, or ERP. For example, if the RIM 802D is putting out 2.0 W of power to a 2.3 dBd gain antenna, the ERP is 2.0 10^(2.3...
  • Page 54 ¸ © ¹ output Equation 1: Return Loss The Voltage Standing Wave Ratio (VSWR) is another way of expressing the ratio of incident power (from the RIM 802D) to reflected power (into the RIM 802D). reflected output VSWR reflected output...

  • Page 55: Antenna Design Considerations

    = 3 x 10 m/s by the center frequency f = 833 MHz. Because the RIM 802D’s receiver is so sensitive, this value includes a 5 MHz bias toward the transmit frequencies to help balance the uplink and downlink between the radio modem and the network base station.
  • Page 56 The option to position the antenna vertically when in use so that performance is optimized is another consideration which can be limiting and a true consideration when choosing to use off-the-shelf solutions. Integrator’s Guide – RIM 802D OEM Radio Modem DRAFT VERSION...

  • Page 57: Shielding

    RIM 802D and a computing device, unless the environment contains an extreme level of RF noise (electromagnetic interference). In fact, it would be more important for the power supply to the RIM 802D to be free of high- frequency electrical noise, than to provide additional RF shielding.

  • Page 58: Fcc Radio Frequency Exposure Rules

    Based on FCC rules 2.1091 and 2.1093 and FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields, OET Bulletin 65 and its Supplement C, all integrations of the RIM 802D OEM unit are subject to routine environmental evaluation for radio-frequency (RF) exposure prior to equipment authorization or use.
  • Page 59 Antenna selection – FCC radio frequency exposure rules If the RIM 802D radio modem is integrated in a vehicle, and if one of these two antennas is used, the MPE limits will not be exceeded provided that the antennas are installed at least 20 cm from any edge of the vehicle rooftop. This...
  • Page 60 PC. If your device can run DOS programs, RIM can provide a DOS-based utility that joins two COM ports. This can be useful if the radio might be connected to a handheld device’s internal COM 4 port.
  • Page 61 Further information concerning the bulletin can be obtained by contacting the RF Safety Group: Telephone: (202) 418-2464 Email: rfsafety@fcc.gov Web: www.fcc.gov/oet/rfsafety Inquiries can also be directed to the FCC’s Call Centre. The toll-free number is: 1-888-CALL-FCC (1-888-225-5322) RIM 802D OEM Radio Modem – Integrator’s Guide DRAFT VERSION...
  • Page 62 Antenna selection – FCC radio frequency exposure rules You may contact Research In Motion’s engineering development team at: Email: rim802d@rim.net Telephone: (519) 888-7465 Integrator’s Guide – RIM 802D OEM Radio Modem DRAFT VERSION...

  • Page 63: Specifications

    Specifications The following is a summary of the RIM 802D OEM radio modem specifications. Power supply & typical current usage Single power supply; operating range: 4.1 to 4.75V DC Single 3.0V logic line to turn on/off Battery save stand-by mode: 0.2 mA (at 4.4 V) Receive / express stand-by mode: 66 mA (at 4.4 V)

  • Page 64: Other Features

    Antenna cable connector: MMCX Tested to IEC 68-2-6 Part 2 for vibration Metal case Operating temperature tested to: -30°C to +70°C (at 5-95% relative humidity, non-condensing) Storage temperature: -40°C to +85°C Integrator’s Guide – RIM 802D OEM Radio Modem DRAFT VERSION...

  • Page 65: Glossary Of Terms

    RIM 802D OEM Radio Modem. MMCX The connector on the RIM 802D to which an antenna cable is connected. DataTAC A radio network and its communication protocols.
  • Page 66 Term: Meaning: Original Equipment Manufacturer. Usually implies that the “OEM product” is carried another manufacturer’s name. The RIM 802D is designed to be embedded in OEM terminals, PCs, and data gathering equipment. The Open Systems Interconnection model allows different systems,...
