Heckler Design H506 Assembly & Installation

Windfall checkout stand compatible with: ipad mini 1 ipad mini 2 ipad mini 3 ipad mini 4

Advertisement

Quick Links

WindFall

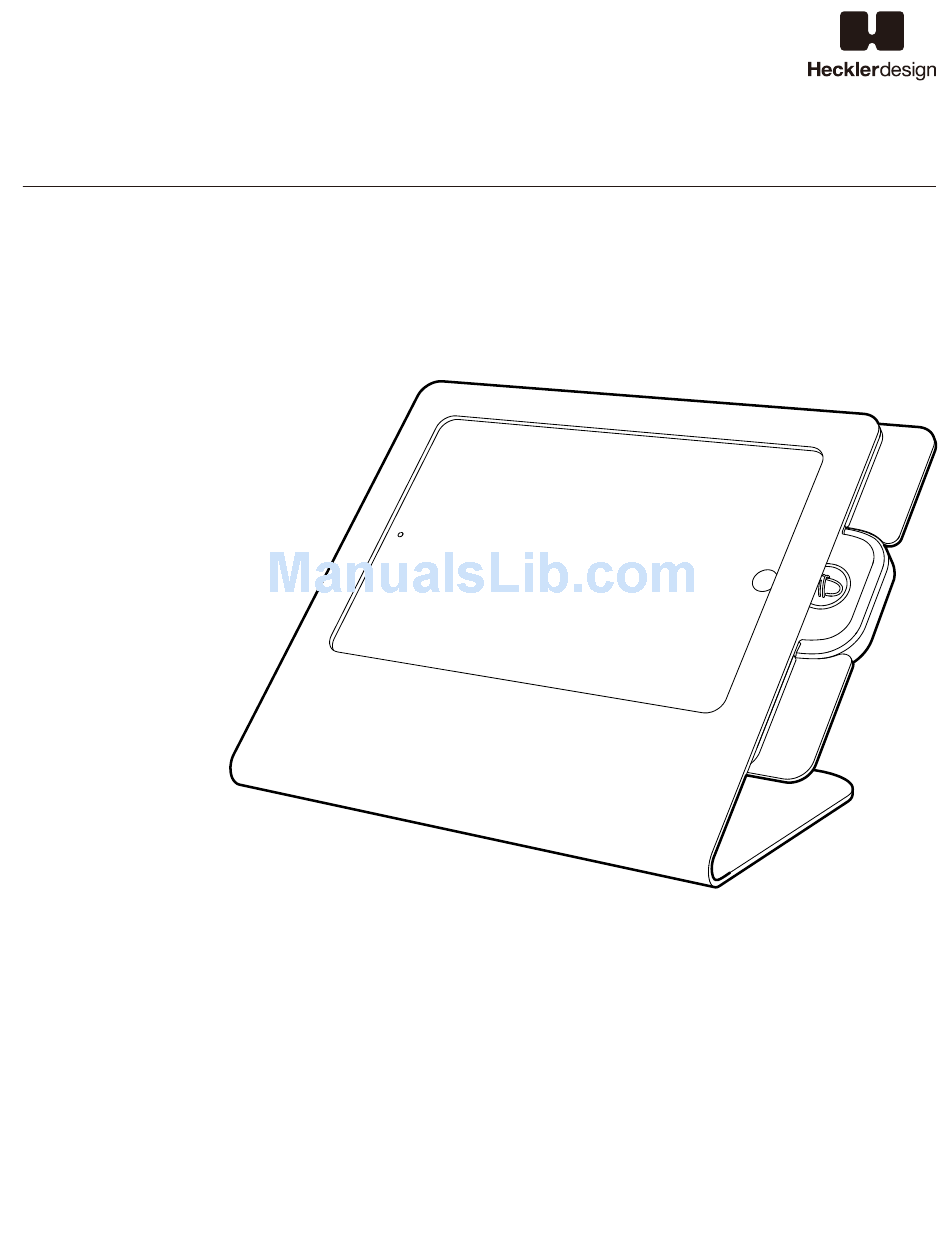

CHECKOUT STAND
Assembly & Installation
Compatible with:
iPad mini 1
iPad mini 2
iPad mini 3
iPad mini 4
®
Point-of-Sale Stand for iPad mini
Limited Warranty
Heckler Design warrants your product to be free from defect in material and
workmanship for a period of two years from the original date of purchase.
Electronic components are warranted to be free from defect for a period of one
year from the original date of purchase. If you discover a defect, please contact
service@hecklerdesign.com. Heckler Design will repair, at our discretion, using
new or refurbished components. If repair is not possible, Heckler Design will
replace the item.
H506
