WindFall
SIDE MOUNT
Assembly & Installation
Compatible with:
iPad Air 1
iPad Air 2
iPad Pro 9.7-inch
iPad (5th Gen)
®
Room Scheduling Enclosure for iPad Air
Limited Warranty
Heckler Design warrants your product to be free from defect in material and
workmanship for a period of two years from the original date of purchase.
Electronic components are warranted to be free from defect for a period of one
year from the original date of purchase. If you discover a defect, please contact
service@hecklerdesign.com. Heckler Design will repair, at our discretion, using
new or refurbished components. If repair is not possible, Heckler Design will
replace the item.
H501
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Heckler Design H501
Summary of Contents for Heckler Design H501
- Page 1 Compatible with: Limited Warranty iPad Air 1 Heckler Design warrants your product to be free from defect in material and workmanship for a period of two years from the original date of purchase. iPad Air 2 Electronic components are warranted to be free from defect for a period of one iPad Pro 9.7-inch...
- Page 2 M3 Hex Key Thread-Forming Foam for iPad Fit Mounting Screw Adapter Clip F529 F486 E250 Keep your special assembly tool in a safe place. To purchase a replacement, please contact service@hecklerdesign.com. Phillips Head Drill Marker Screwdriver...

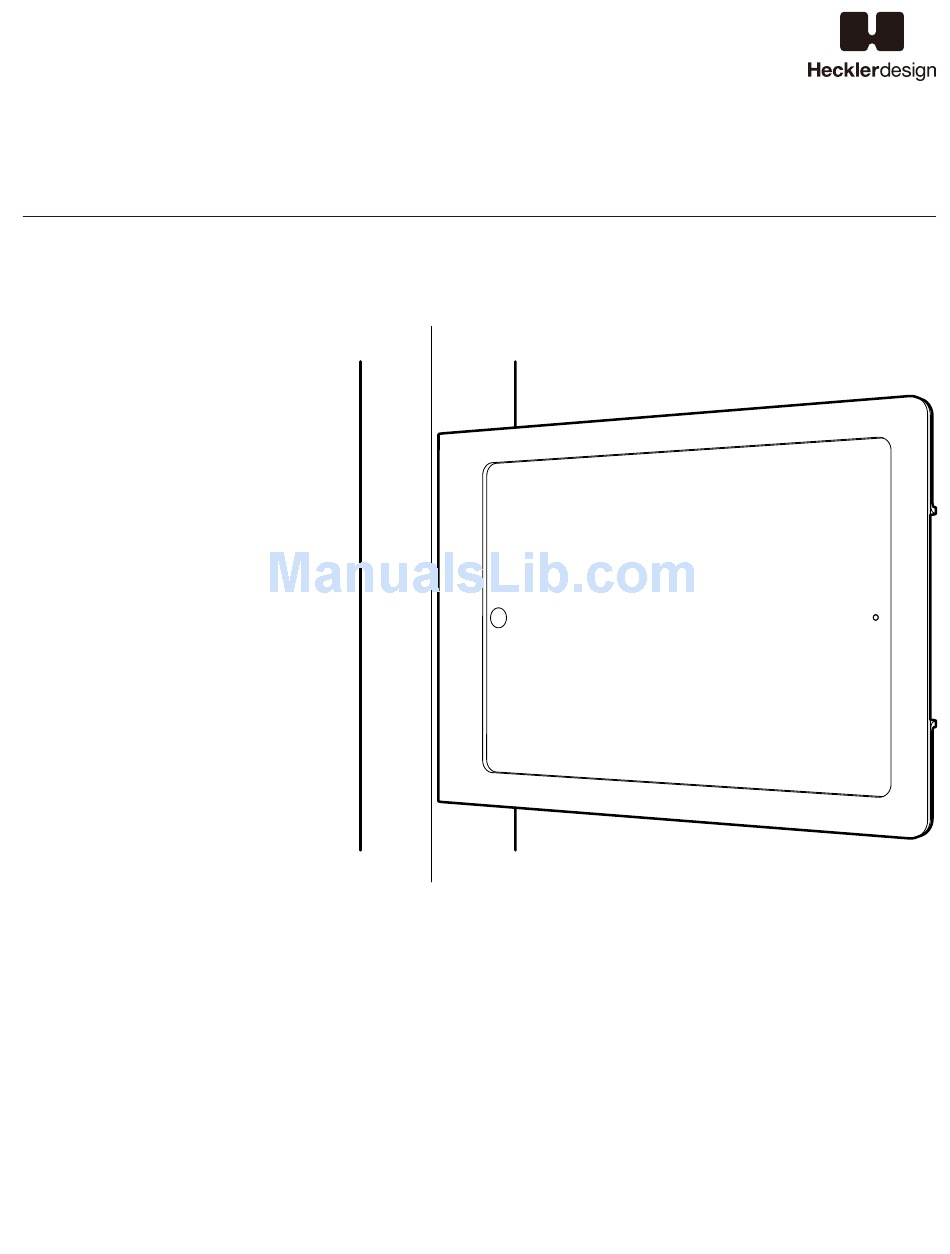

- Page 3 WindFall Side Mount for iPad Installation Instructions and Template BEFORE AFTER INSTALLATION INSTALLATION Important Note: Mullion Door Frame Glass Mullion Door Frame Glass A minimum 1.5 inch (38mm) set back from mullion face to the glass is required for an optimal installation in which the front face of the enclosure is flush with the front face of the mullion.
- Page 4 Disassemble Side Mount Remove Mounting Bracket From Front Bezel...
-
Page 5: Drill Mounting Holes
Mark Hole Positions Please select the mounting positions that work best for your mullion. Drill Mounting Holes You may use any screw you see fit for mounting the product to the mullion. If you choose to use the self-tapping mounting screws provided, we recommend drilling a pilot hole with a #17 drill bit or a 5/32-inch drill bit. - Page 6 Form Mounting Hole Threads F486 The mounting screws provided are thread-forming screws. Ethernet Cable Hole If your Ethernet cable has an RJ45 connec- tor installed, drill a 5/8 inch hole in the position shown. If you will install an RJ45 connector after the Ethernet cable is drawn through the mullion, a smaller hole can be created.
-
Page 7: Remove Mounting Screws
Remove Mounting Screws Fasten Mounting Bracket to mullion F486... - Page 8 Adapter Clips For iPad Pro 9.7-inch and iPad Air 2 E250 iPad Air 2 iPad Pro 9.7-inch...
-
Page 9: Charging Options
Charging Options PoE Splitter (Power Only) PoE Splitter (With wired data connection) 1. Apple Lighting to USB 3 Camera Adapter 2. Apple USB Ethernet Adapter Battery Bank... - Page 10 Install Tablet Install Front Bezel...
- Page 11 Slide Front Bezel Onto Mounting Bracket Tighten Assembly Screws F529...
