USER MANUAL

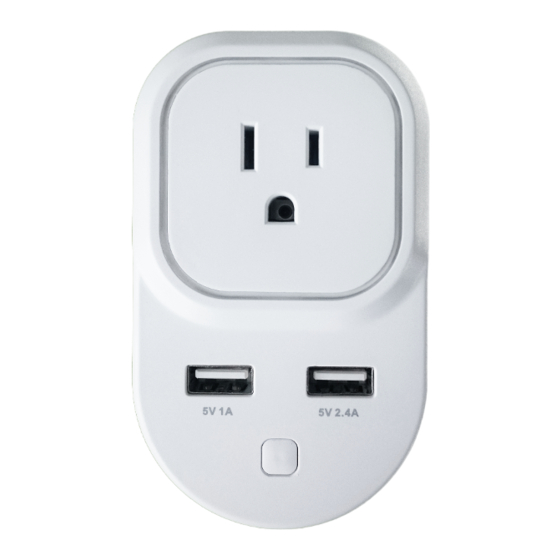

Z-WAVE SMART PLUG
ZEN06
Z-Wave Plus Certified Device
Certified
WELL DONE!
You have picked the finest solution for your smart home, congratulations!
Now it's time to enjoy these great features of your new Smart Plug:
- Wireless control of floor lamps and small appliances
- Energy monitoring in live mode or over time (your Z-Wave gateway needs to support this
feature)
- Scene inclusion for custom automation scenarios when included to a Z-Wave gateway
controller
- LED indicator displaying Z-Wave signal strength and power usage
- Security enabled Z-Wave device with AES signal encryption (requires a security enabled
gateway controller for full functionality)
- Z-Wave Plus with improved 500 chip for faster and safer wireless communication
- Built-in range extender for a stronger, more reliable network
- 2 USB charging ports for your smart phone or tablet (no Z-Wave functionality)
- Built-in overload protection in Z-Wave outlet and USB ports
SPECIFICATIONS
Model Number: ZEN06
Z-Wave Signal Frequency: 908.42 MHz
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ZooZ Z-WAVE SMART PLUG
Summary of Contents for ZooZ Z-WAVE SMART PLUG
- Page 1 USER MANUAL Z-WAVE SMART PLUG ZEN06 Z-Wave Plus Certified Device Certified WELL DONE! You have picked the finest solution for your smart home, congratulations! Now it's time to enjoy these great features of your new Smart Plug: - Wireless control of floor lamps and small appliances...
-
Page 2: Installation
Power: 110V, 60Hz Maximum Load: 15A, 1800W USB Charging Port Power: 1A and 2.4A Operating Temperature: 14 – 104 F Range: Up to 130 feet line of sight Installation and Use: Indoor only Dimensions: 4” x 2.5” x 1.2” Weight: 7oz Z-WAVE COMMAND CLASSES This device requires the following command classes to be supported and recognized by your Z-Wave controller:... -
Page 3: Z-Wave Inclusion
Z-Wave button a few times quickly. If the LED still does not turn on, contact the reseller or Zooz directly: ask@getzooz.com Use the Z-Wave button to turn the lamp or appliance on and off manually. The plug is off when the LED indicator is lit up in burgundy. -
Page 4: Z-Wave Exclusion
Q: I have not been able to add the device to my network after several attempts. What do I do now? A: If you are unable to include the Z-Wave smart plug to your controller, please try one of the following:... -
Page 5: Led Notifications
Please refer to your controller's user guide for advanced programming instructions as they are a little different for every software. LED NOTIFICATIONS LED indicator on your smart plug will visually report power consumption and network range. How to read LED indicator colors? Burgundy = Smart Plug is off Blue = 0 –... - Page 6 Parameter 20: Overload protection will turn the Smart Plug’s relay off once voltage exceeds 16.5A for over 5 seconds when this setting is enabled. We DO NOT recommend changing this parameter’s value as it may result in device damage and malfunction. Values: 0 –...
-
Page 7: Warranty
This is an ETL certified device. ETL, just like UL, is a Nationally Recognized Testing Laboratory. The ETL mark is proof of product compliance to North American safety standards. WARRANTY This Limited Warranty applies to physical goods, and only for physical goods, purchased from Zooz (the "Physical Goods"). - Page 8 See full list of Zooz distributors here: getzooz.com/buy During the Warranty Period, Zooz will repair or replace, at no charge, products or parts of a product that prove defective because of improper material or workmanship, under normal use and recommended maintenance.
- Page 9 - Increase the separation between equipment and receiver - Connect equipment into a separate outlet or circuit from receiver - Consult the dealer or an experienced radio/TV technician for additional assistance All brand names displayed are trademarks of their respective holders. [c] Zooz 2016...
