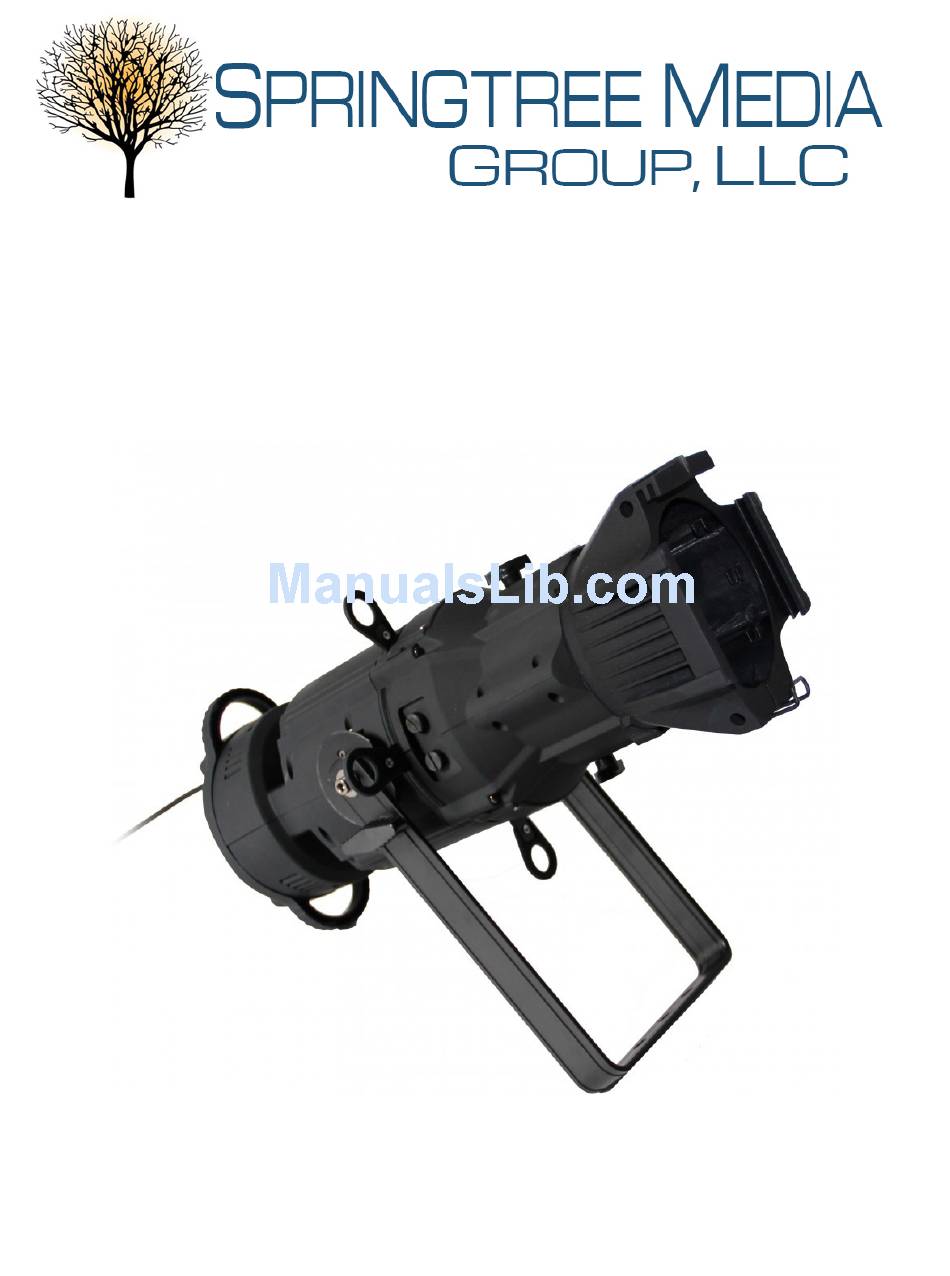

- Page 1 Springtree Profile Spot LED Ellipsoidal USER MANUAL AND INSTALLATION GUIDE...
-
Page 2: Table Of Contents
T able of Contents 1. Before You Begin What is included........................3 Safety precautions........................3 2. Product Information Description..........................4 Features............................4 3. Installation Power supply..........................5 Mounting............................5 Rigging............................5 Adjusting the shutters........................6 Using a gobo..........................6 Using a gel or filter........................6 DMX linking..........................7 4. Operation Touch buttons...........................7 Operating modes........................7 LED display menu........................8 5. -
Page 3: Before You Begin
3. one gel frame 4. one Powercon power cord *If any of these items is damaged or missing, please contact Springtree Media Group immediately! Safety precautions • To reduce the risk of electrical shock or fire, do not expose this unit to moisture. • Be sure that the local power outlet matches that of the required voltage for your unit •... -
Page 4: Product Information
Product Information Description The Springtree LED Profile Spot Ellipsoidal is a powerful, versatile fixture with all of the professional features found on higher priced units. The warm white LED runs cool and has a life-span of up to 100,000 hours. Features • Interchangeable 19°, 26°, 36° or 50° lenses •... -
Page 5: Installation
Installation Power Supply Before plugging your unit in, be sure the source voltage in your area matches the voltage required for your lighting setup. Every unit has a power supply capable of 100V to 250V. Because line voltage may vary from venue to venue, you should be sure your unit voltage matches the wall outlet voltage before attempting to operate your unit. -
Page 6: Adjusting The Shutters
Adjusting the shutters To adjust the width and shape of the beam, simply push or pull any of the four shutters located around the body of the ellipsoidal. Using a gobo If you want to shape your light with a gobo, insert it into the included gobo holder so that it is visible through the circular hole. -
Page 7: Dmx Linking
DMX linking An LED Ellipsoidal can be connected to a DMX controller by a 3-pin XLR cable, allowing total control over one or more lights. To do this, connect an XLR cable from the DMX-input (labeled DMX IN) on your lighting unit to the DMX-output of the controller. Connect a second light via its DMX-in- put to the first unit’s DMX-output (labeled DMX OUT) to control and synchronize muiltiple lighting units at once. -
Page 8: Led Display Menu
LED display menu (stand alone) DMX Channels (2) Maintenance Cleaning your ellipsoidal Due to fog residue, smoke, and dust cleaning the internal and external optical lenses must be carried out periodically to optimize light output. 1. Use normal glass cleaner and a soft cloth to wipe off the outside casing. 2. -
Page 9: Technical Specifications
T echnical Specifications • Switch Power Supply: Built-in and auto switching • Power Supply: AC100V-240V, 50/60Hz • Cooling: Entire casing heat sink plus 2 fans • Power Consumption: Max. 150W • Housing: Plastic • LED: Warm White • Housing Color: Black •... -
Page 10: Troubleshooting
2. Check that all cables are connected to the right connectors; it does matter which way the inputs and outputs are connected. Contact us Springtree Media Group would like to thank you for choosing our company for your lighting needs! If you have any questions or concerns, please contact us. Office hours:...
